Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

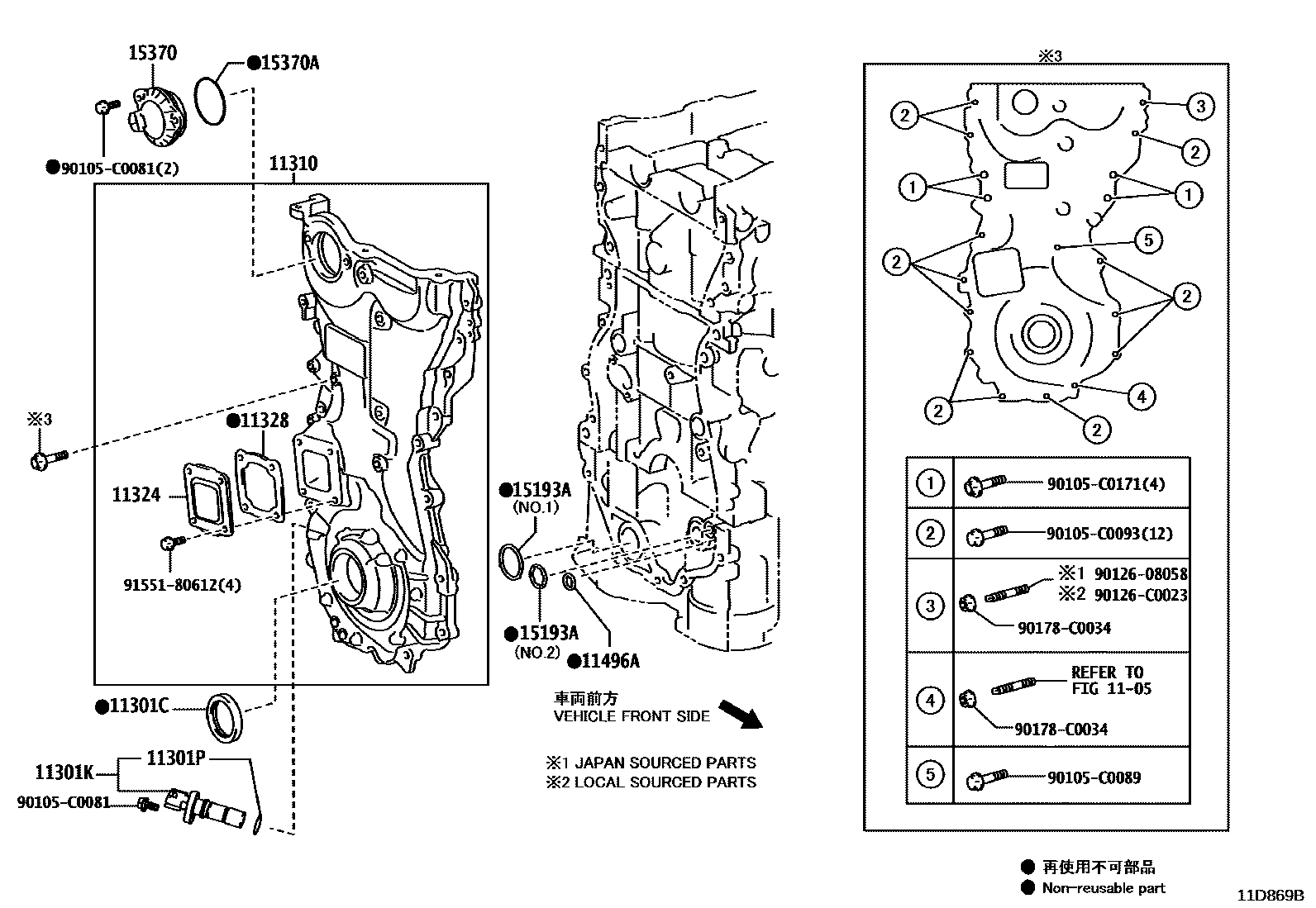

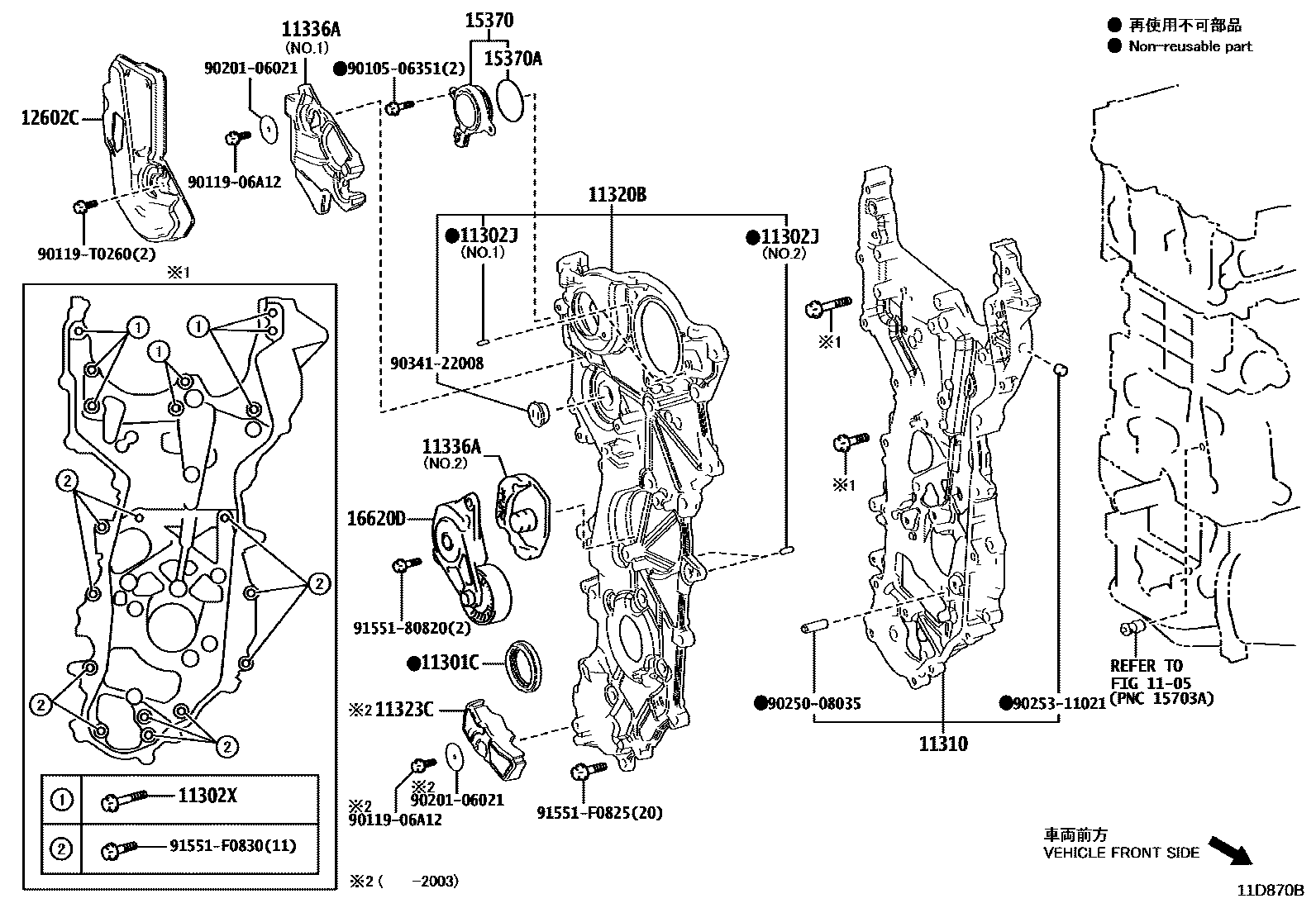

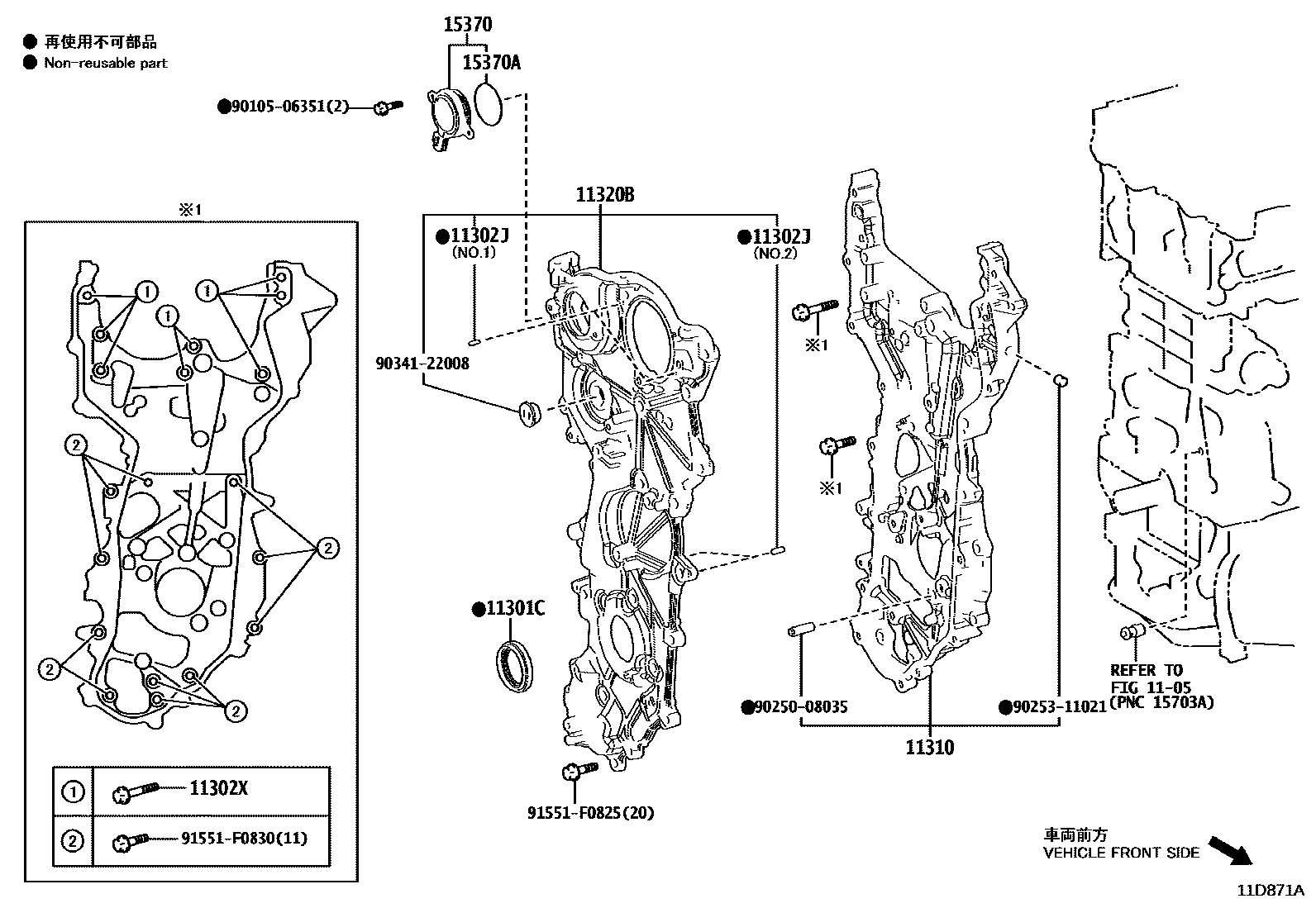

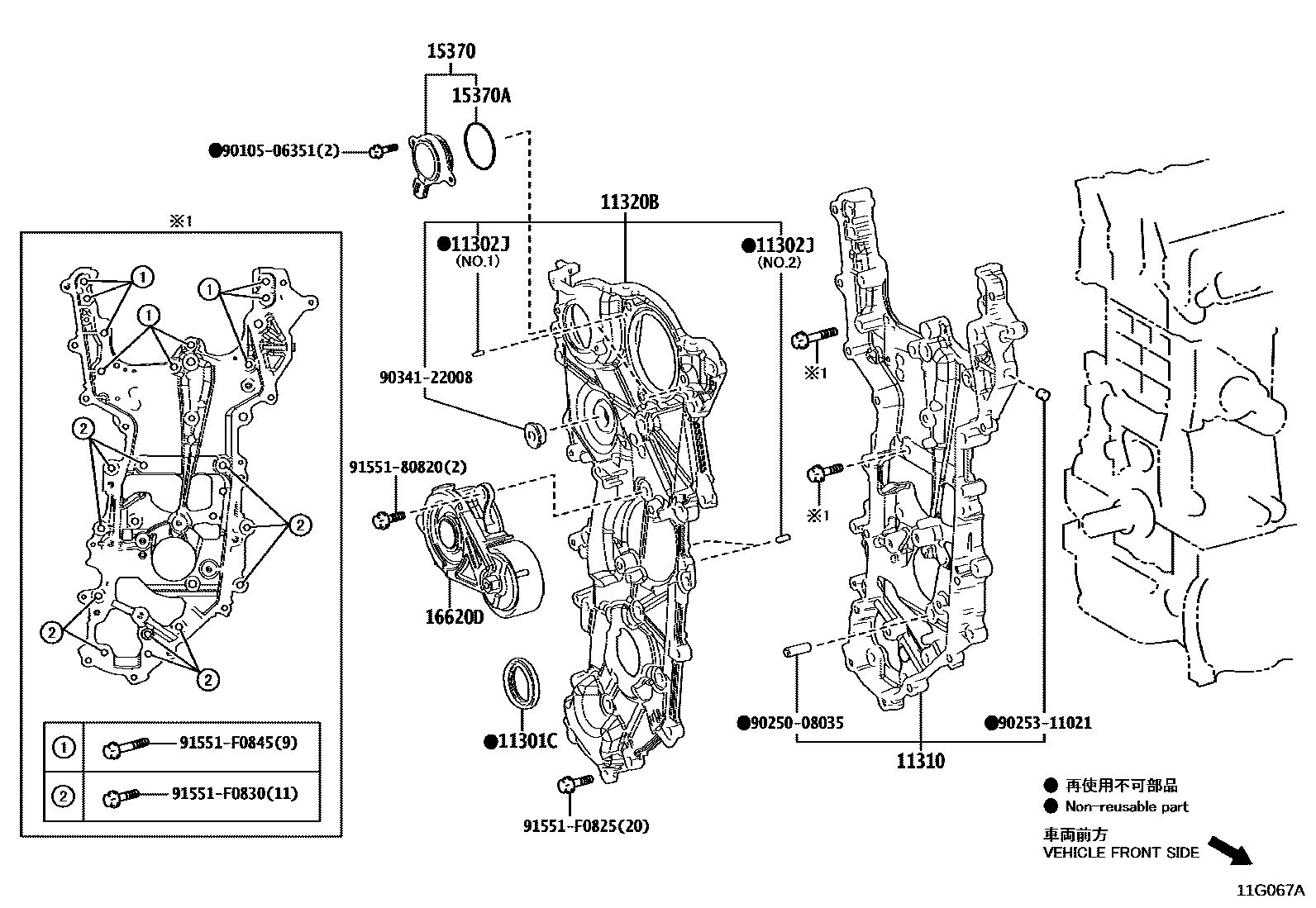

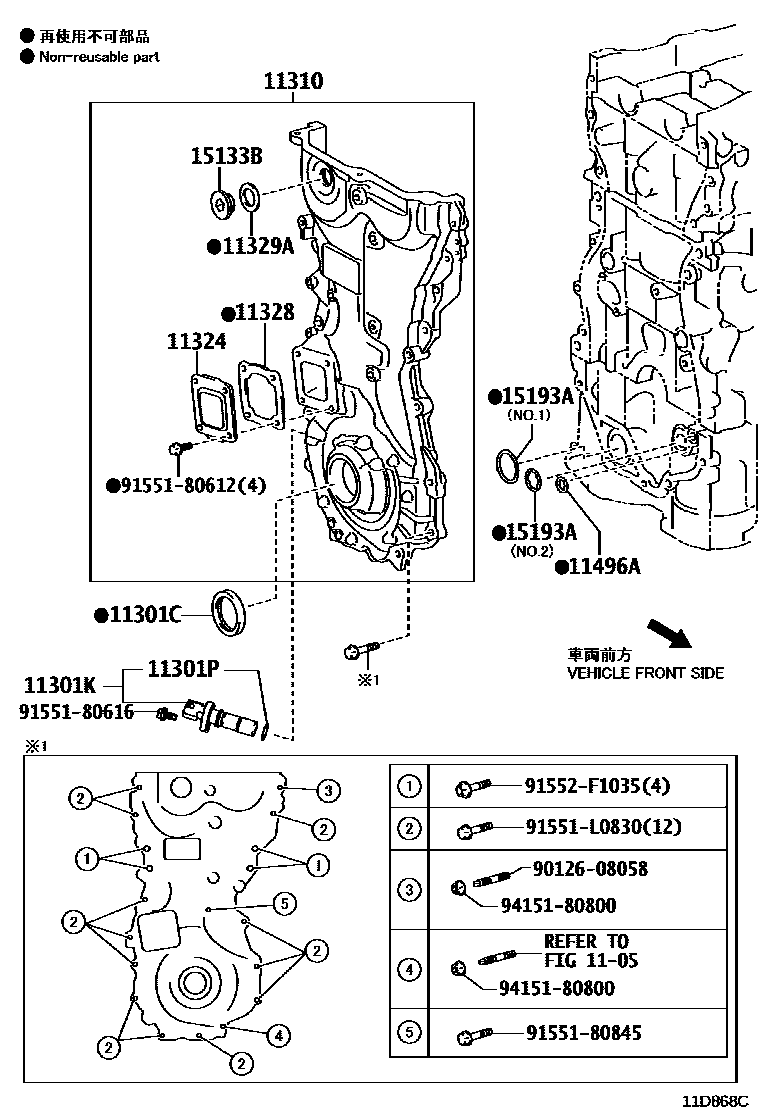

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-40042 · 90311-40044 · 90311-42061 · 90311-C0046 |
| 11301K | crankshaft position sensor | 90919-05070 · 90919-05088 |
| 11301P | Crankshaft position sensor O-ring | 90301-14016 |
| 11302J | Direct sales (for timing chain cover) | 90250-04097 · 90250-06003 |
| 11302X | flange bolts | 91551-F0845 |
| 11310 | Timing chain cover assembly | 11310-0V040 · 11310-24010 · 11310-25030 · 11310-36020 |
| 11320B | No. 2 timing chain cover assembly | 11320-24010 · 11320-25010 · 11320-25011 |
| 11323C | No. 3 timing chain cover | 11323-25010 |
| 11324 | Timing chain cover | 11324-36010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-36020 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-36020 |
| 11336A | Timing gear cover vibration isolation pad | 11336-25010 · 11339-25010 |
| 11496A | Oil hole cover gasket | 11496-0V010 · 11496-36010 |
| 12602C | Engine hood No. 2 | 12612-25010 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-36020 |
| 15193A | oil pump gasket | 15193-0V010 · 15193-36010 · 15197-0V010 · 15197-36010 |
| 15370 | Camshaft timing oil control solenoid valve assembly | 15370-0V010 · 15370-25020 |
| 15370A | O-ring (for camshaft timing oil control solenoid valve) | 90301-44006 · 90301-50003 · 90301-C0080 |
| 16620D | Poly V-belt tensioner assembly | 16620-24021 · 16620-24040 · 16620-25010 · 16620-25011 · 16620-25021 |
