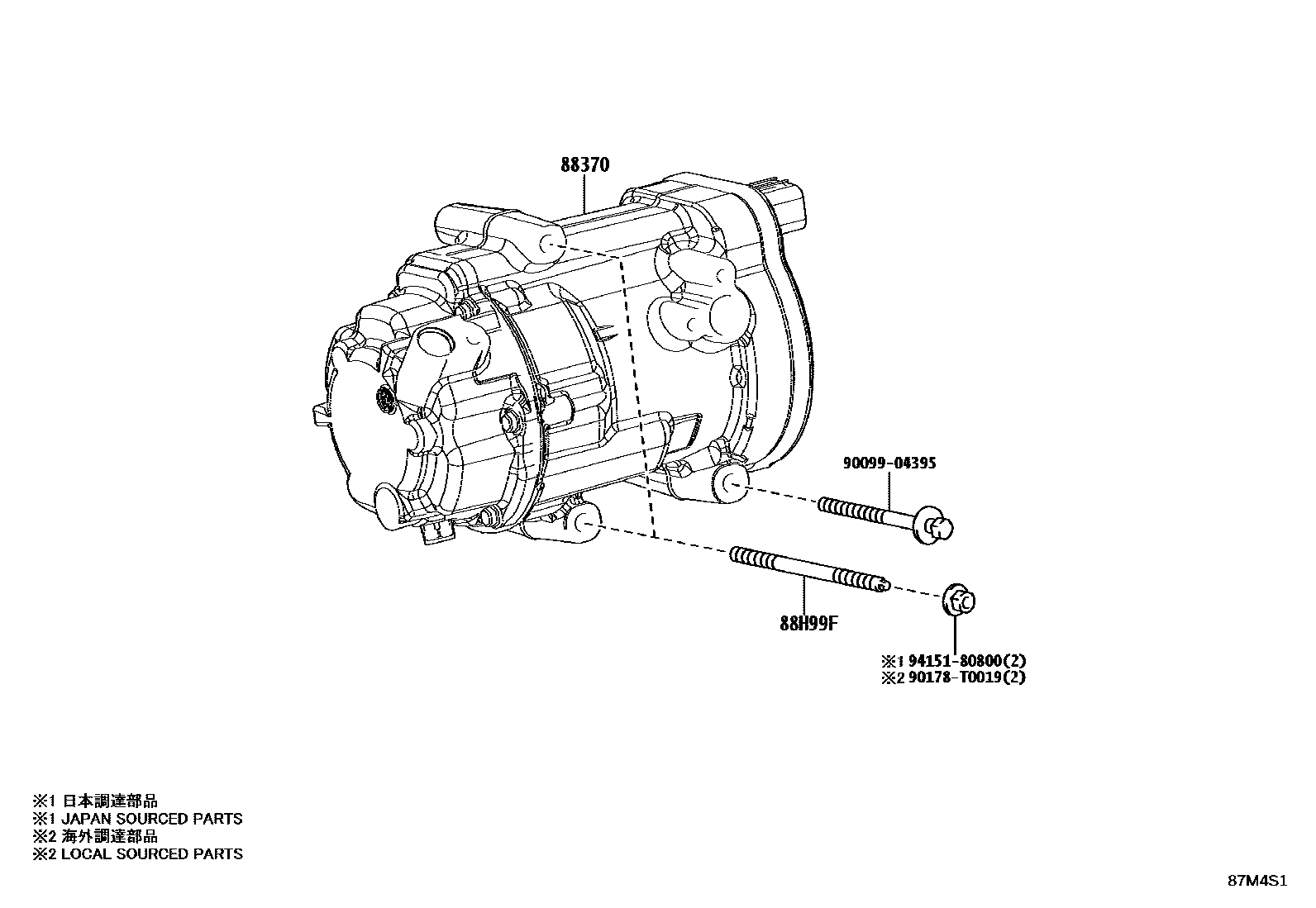

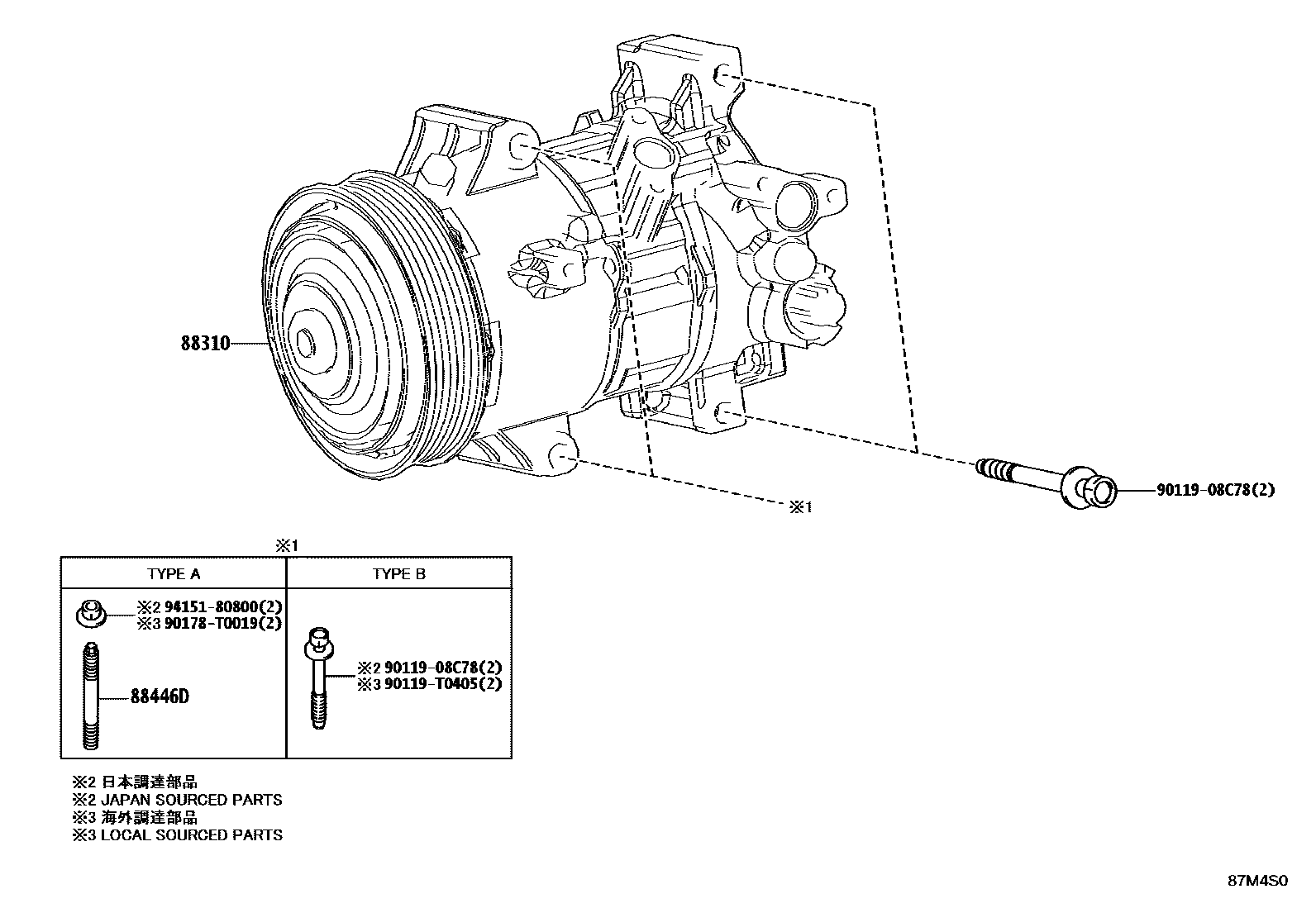

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-06700 · 88310-06710 |
| 88370 | Compressor assembly with motor | 88370-33051 |
| 88446D | cooler bolt | 88446-02090 · 88446-42030 |
| 88H99F | Stud bolt | 88899-44010 |
