Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

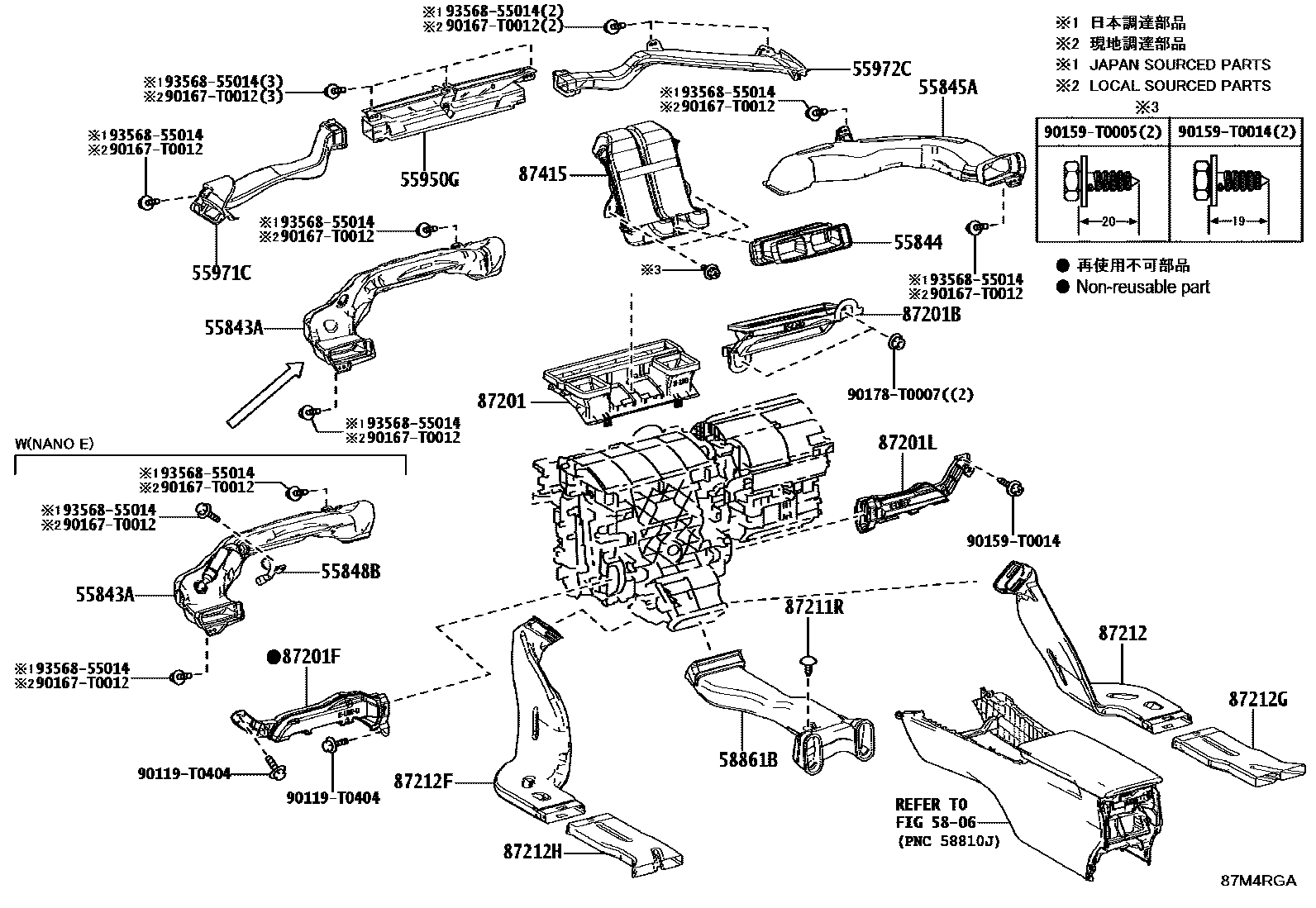

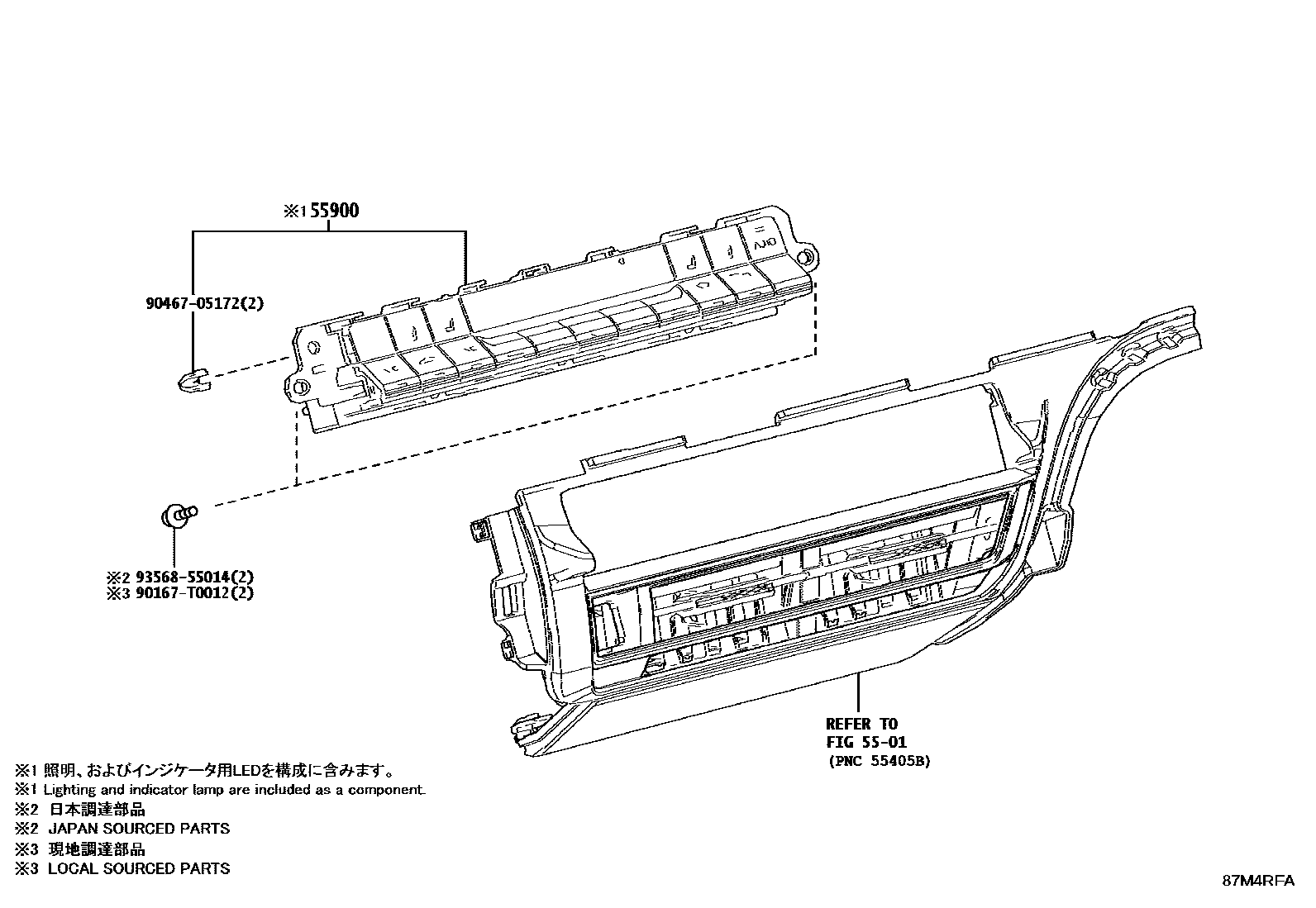

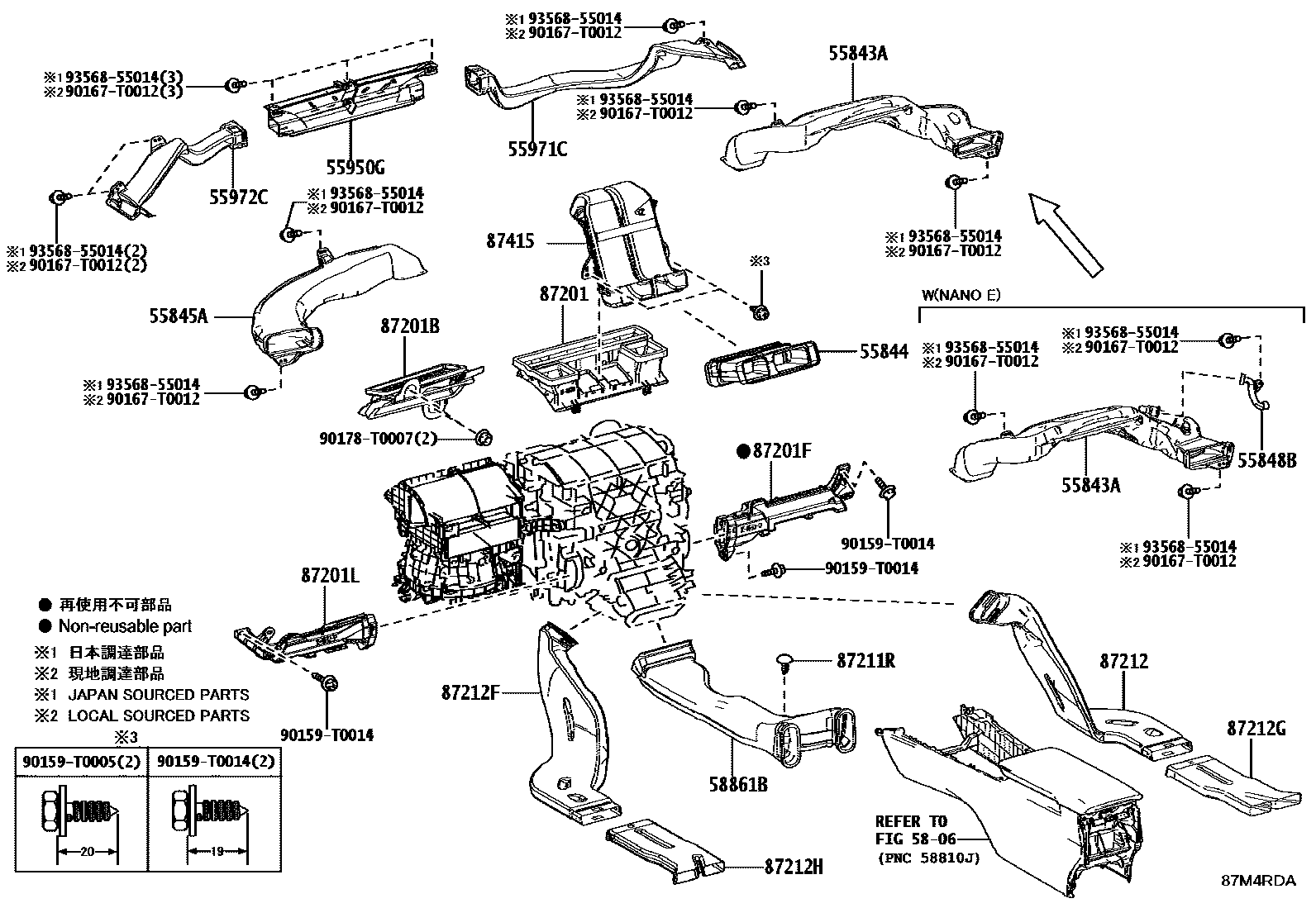

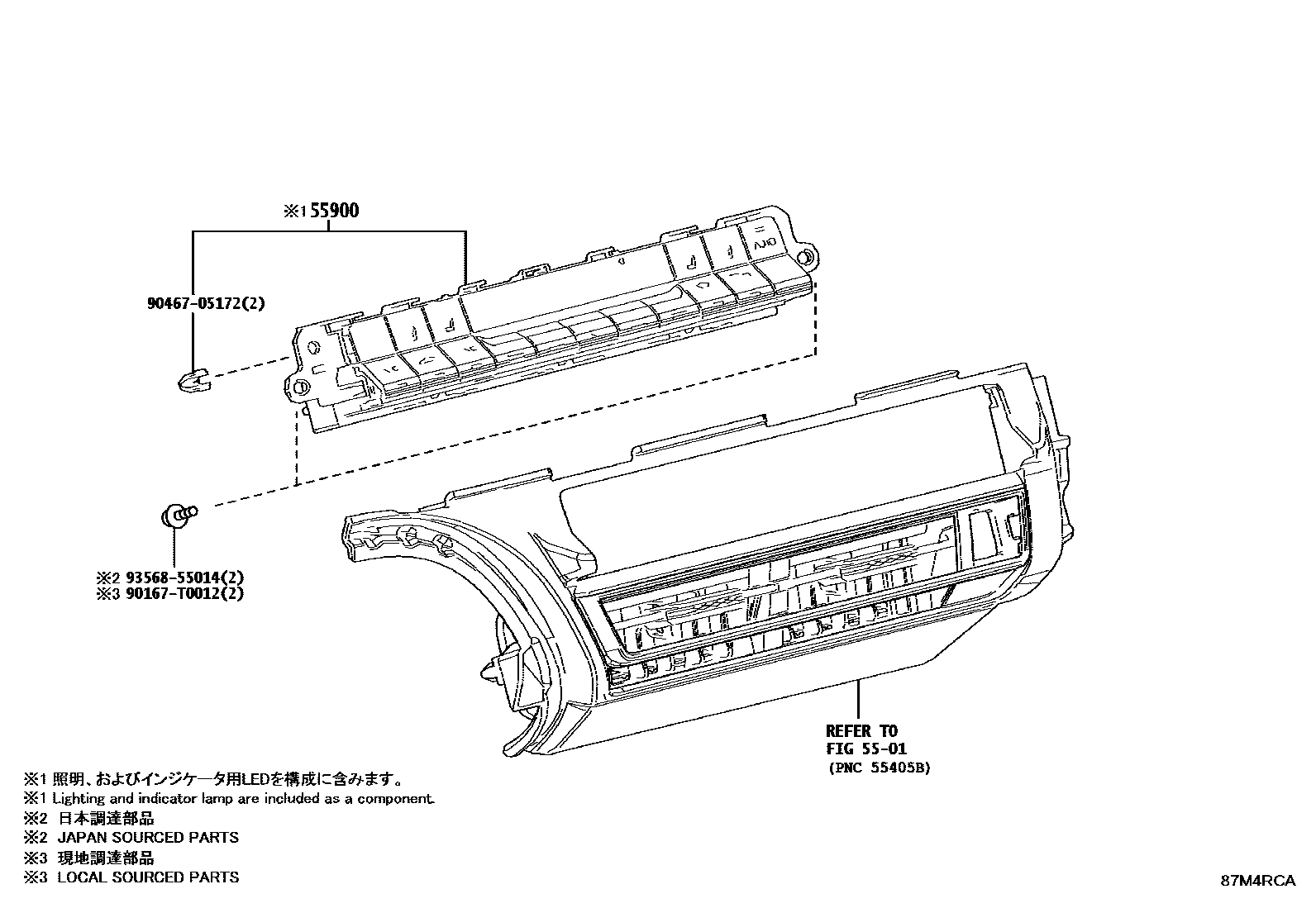

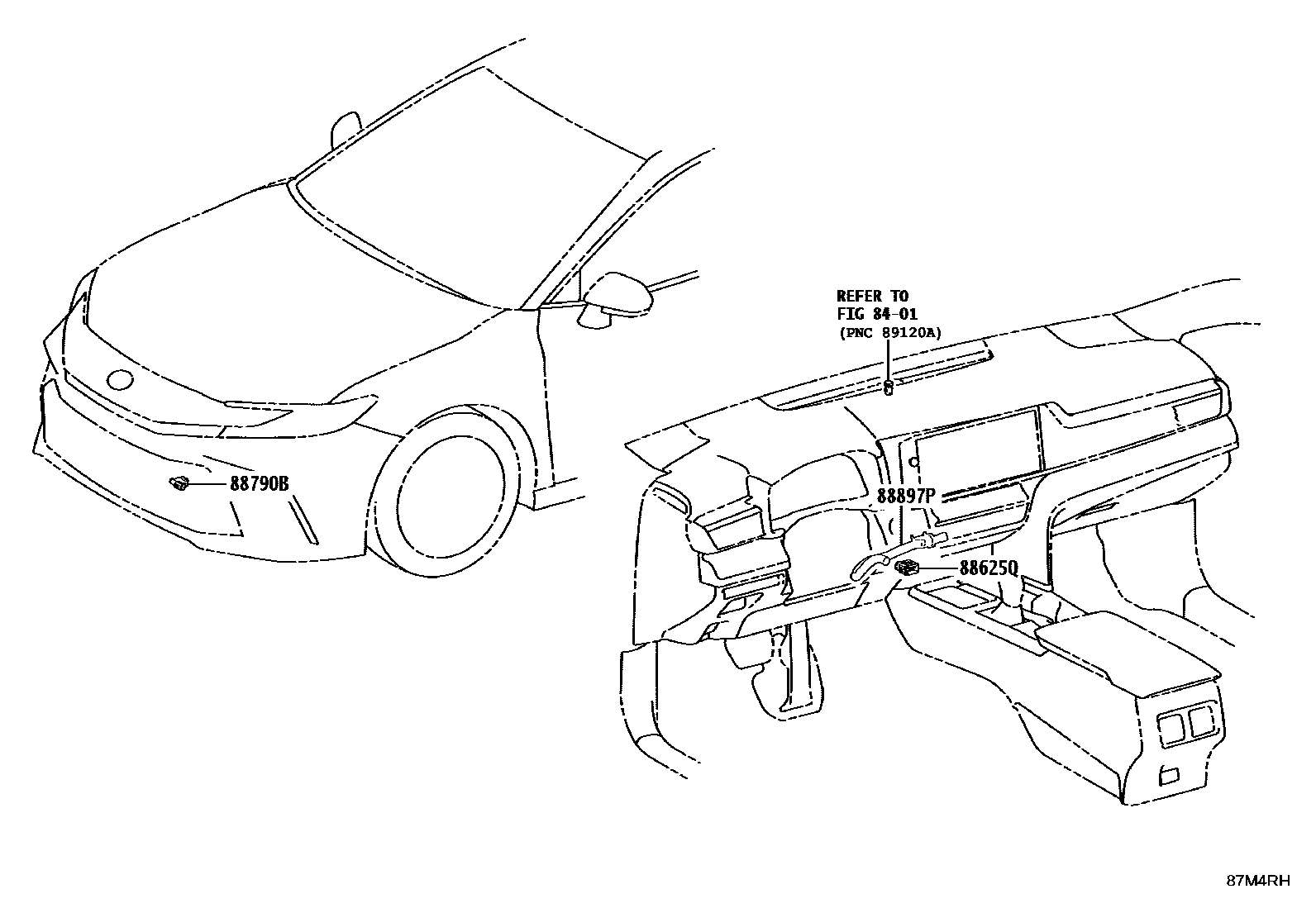

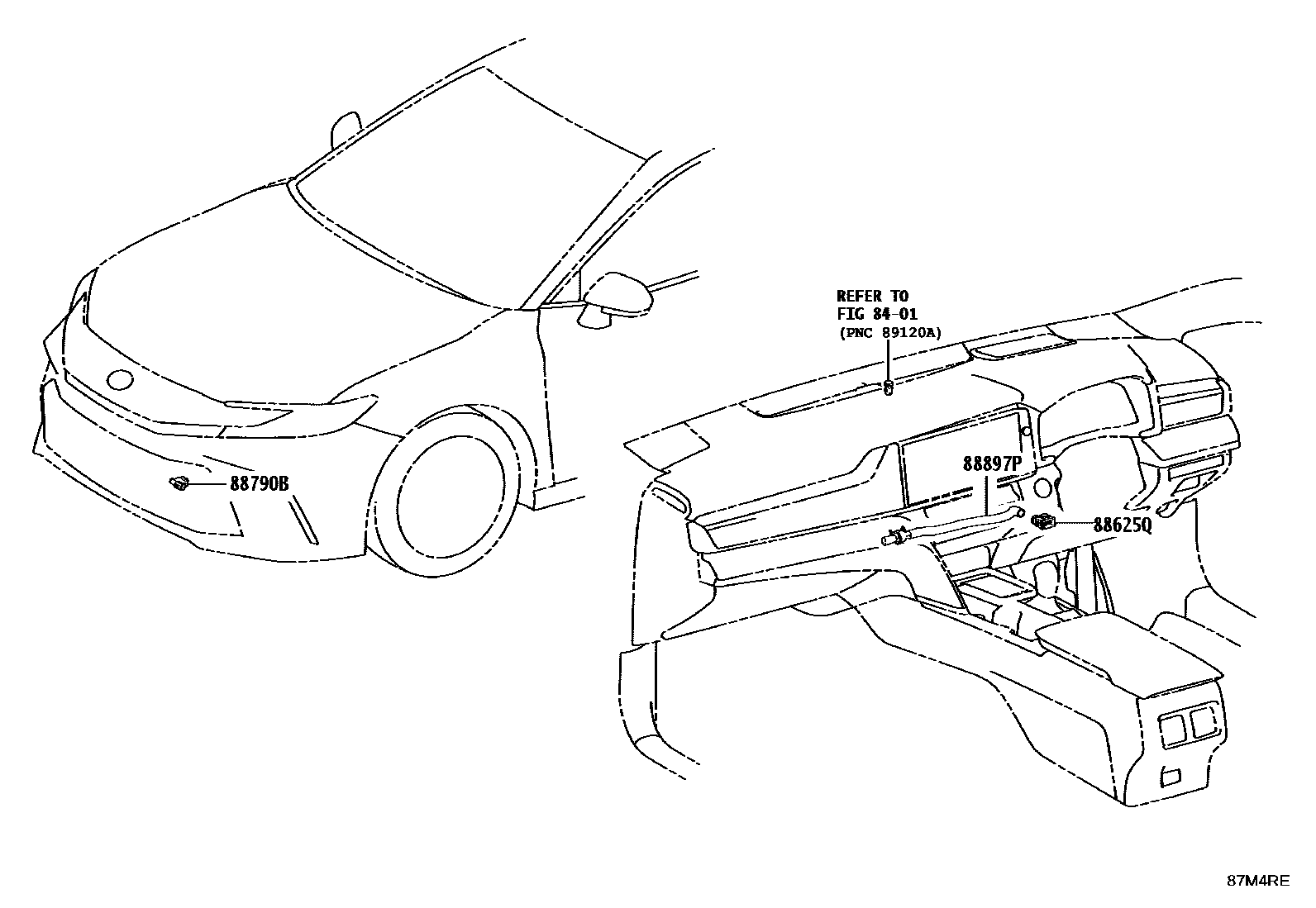

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-06490 · 55843-06500 · 55870-06100 · 55870-06120 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06380 · 55844-06390 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06320 · 55845-06330 |
| 55848B | Air duct No. 6 from heater to air register | 55848-06110 · 55848-06120 |
| 55900 | Air conditioning control assembly | 55900-33P00 · 55900-33P10 · 55900-33Q00 · 55900-33Q10 · 55900-33Q20 · 55900-33Q30 |
| 55950G | Defroster nozzle assembly | 55950-06180 · 55950-06210 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06170 · 55971-06200 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06170 · 55972-06200 |
| 58861B | Air duct No. 1 for armrest box | 58861-06220 · 58861-06250 |
| 87201 | No. 1 air duct sub-assembly | 87201-06C40 · 87201-06C50 |
| 87201B | No. 2 air duct sub-assembly | 87220-06030 · 87220-06040 |
| 87201F | No. 3 air duct sub-assembly | 87201-06830 · 87201-06870 |
| 87201L | No. 4 air duct sub-assembly | 87201-06840 · 87201-06880 |
| 87212 | No. 1 rear air duct | 87212-06121 · 87212-06130 |
| 87212F | No. 2 rear air duct | 87213-06120 · 87213-06131 |
| 87212G | No. 3 rear air duct | 87215-06080 |
| 87212H | No. 4 rear air duct | 87216-06080 |
| 87415 | air duct | 87415-06030 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
| 88897P | aspirator | 87201-06860 · 87201-06A00 |
