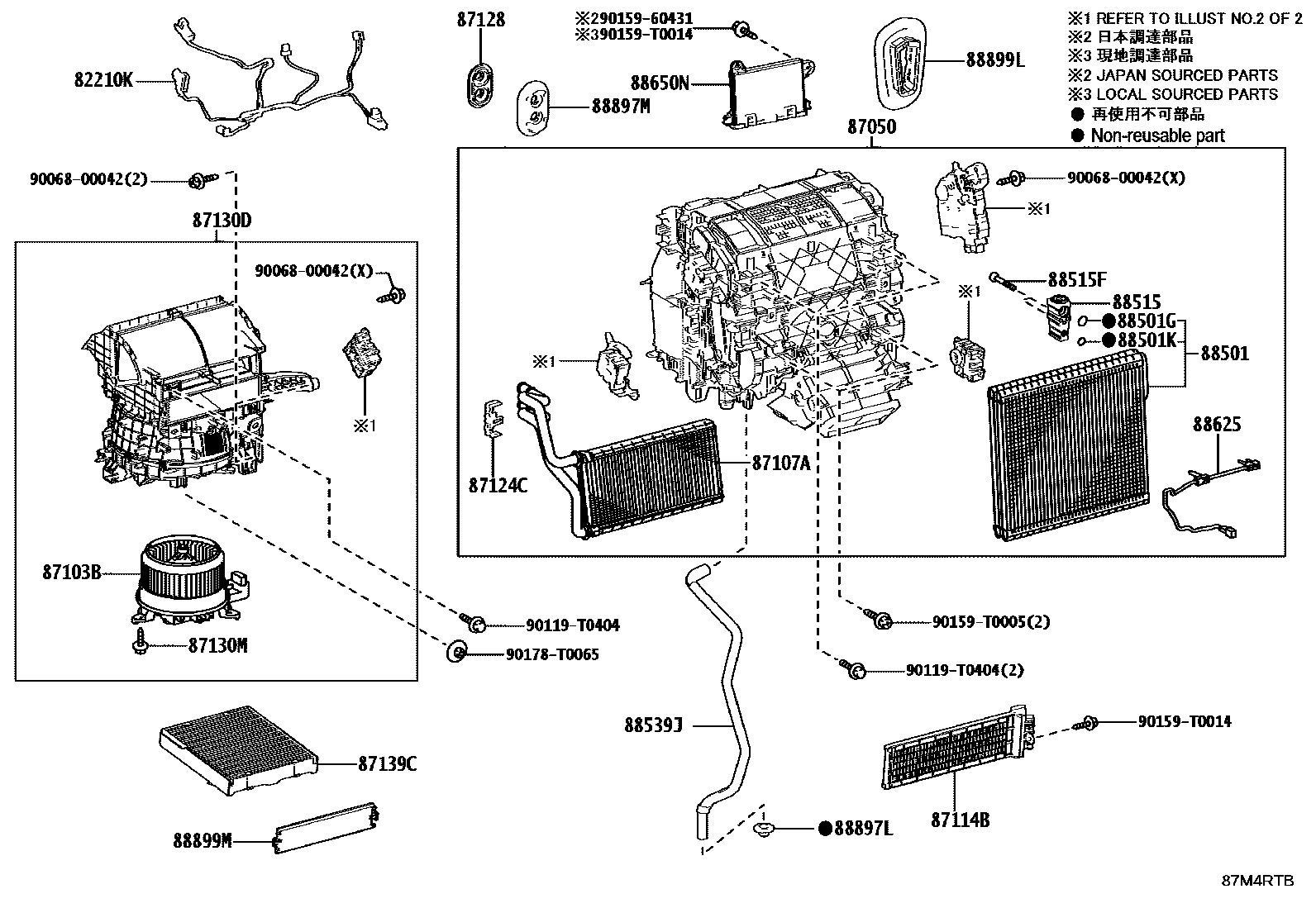

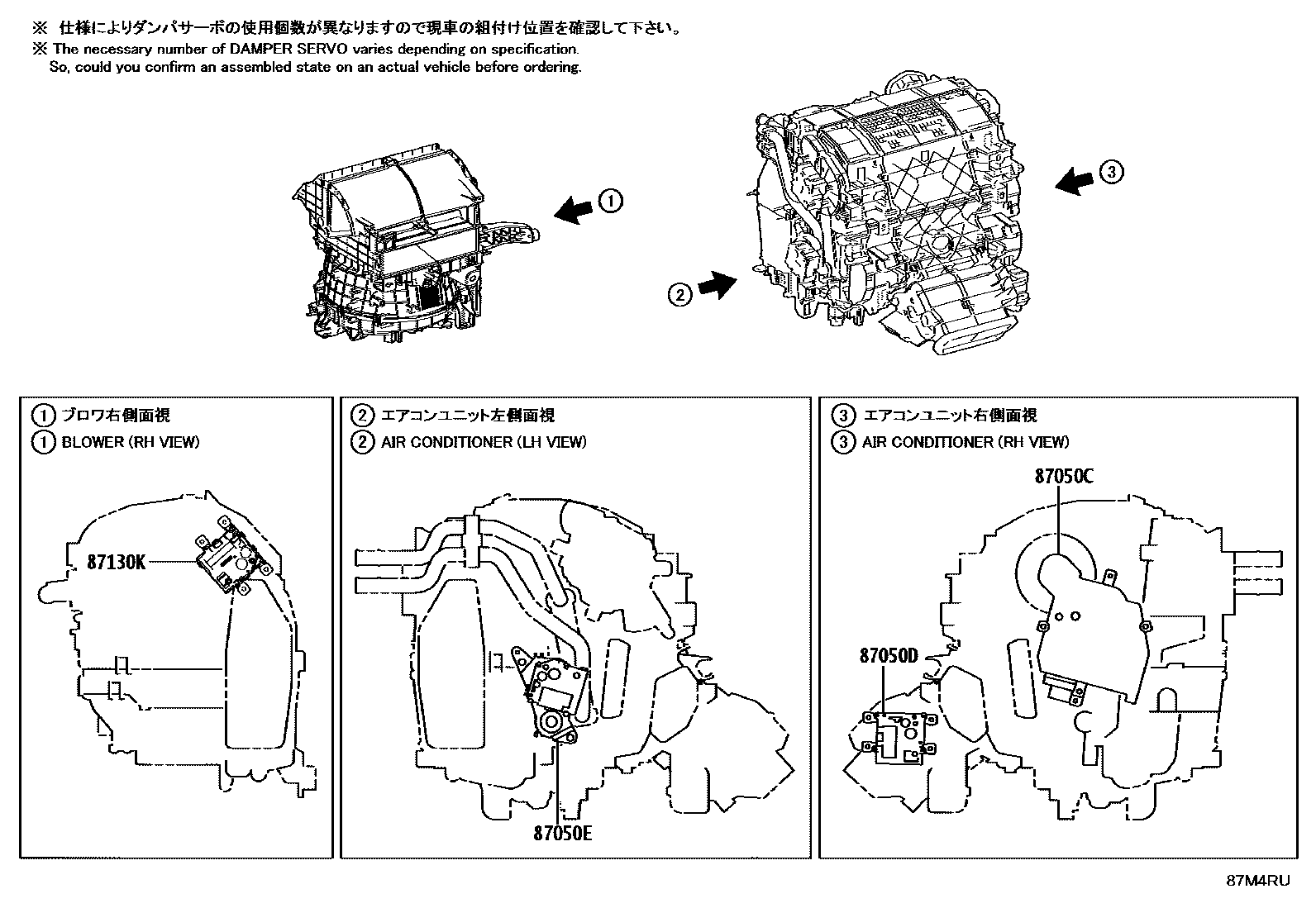

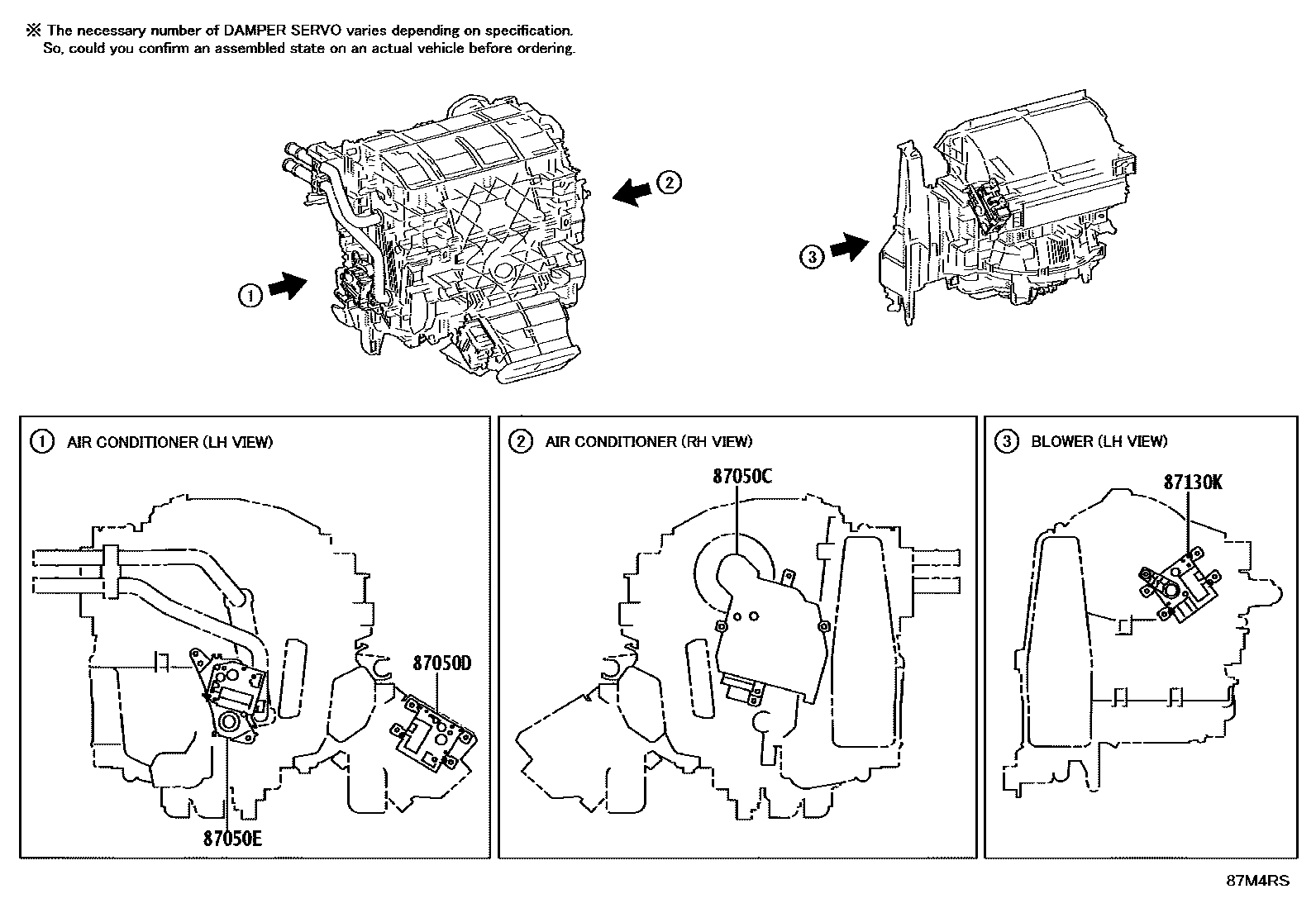

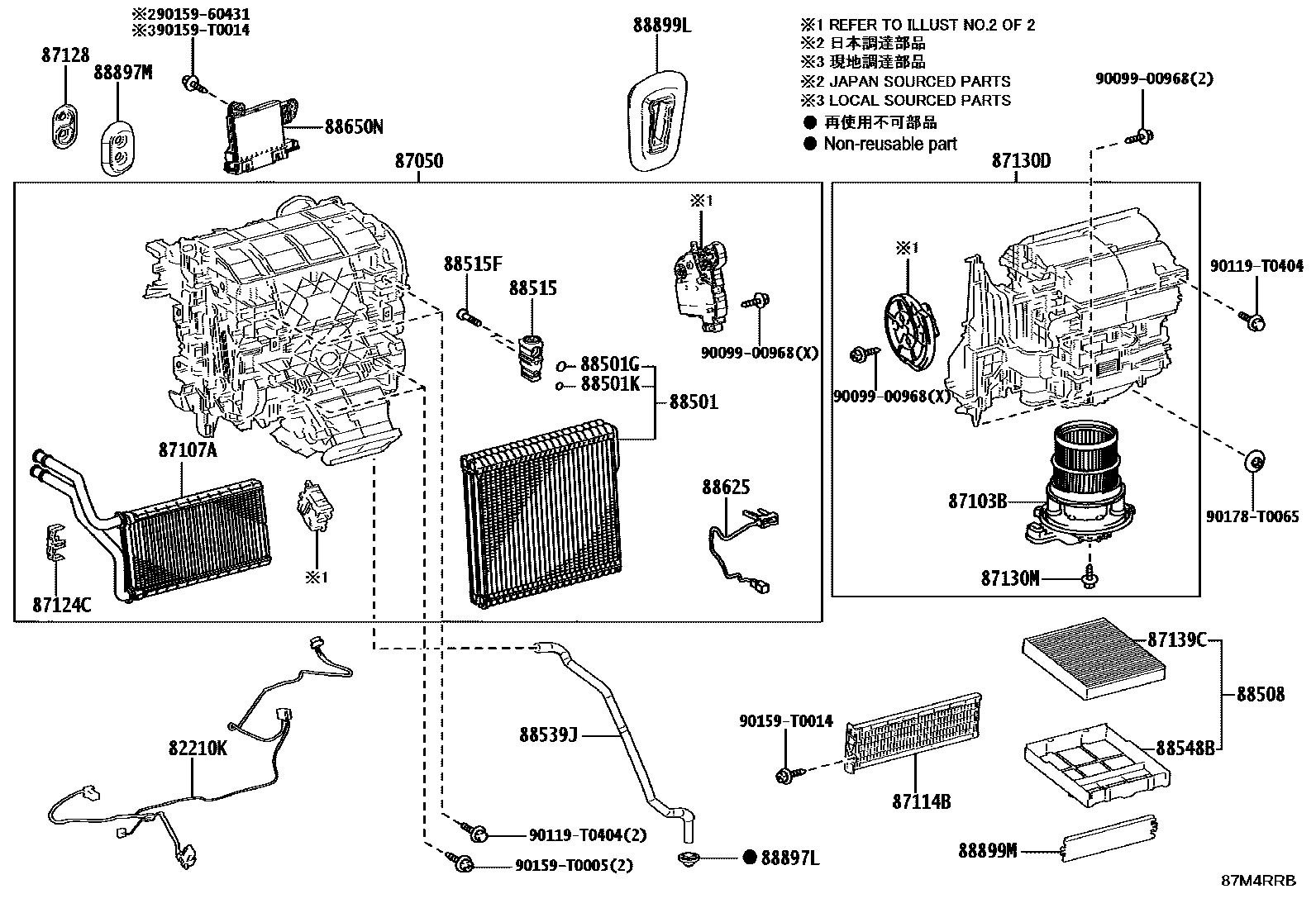

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06270 · 82212-33110 · 82212-33210 |
| 87050 | Air conditioning radiator assembly | 87050-06A10 · 87050-06B30 · 87050-33G90 · 87050-33J10 · 87050-48C30 · 87050-V2200 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-33430 · 87106-42240 · 87106-48170 · 87106-F4060 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06440 · 87106-33340 · 87106-33370 · 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-33310 · 87106-33400 |
| 87103B | Blower motor sub-assembly with fan | 87103-0A070 · 87103-52290 · 87103-78040 |
| 87107A | Heater radiator device sub-assembly | 87107-06130 · 87107-33130 · 87107-33140 |
| 87114B | heater cover | 87114-06110 |
| 87124C | heater clip | 87124-06140 · 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-42491 · 87130-48300 · 87130-F4061 · 87130-V1010 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-33330 · 87106-58050 · 87106-F4070 |
| 87130M | Screws (for blower) | 87193-87101 |
| 87139C | air purification filter | 87139-06130 · 87139-06190 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06520 · 88501-06530 · 88501-33340 · 88501-33350 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14043 · 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90068-14044 · 90099-14120 |
| 88508 | Air purification filter sub-assembly | 88899-06240 |
| 88515 | Cooler expansion valve | 88515-52120 · 88515-F4030 |
| 88515F | Bolt (for cooler expansion valve) | 90068-04062 · 90099-04542 |
| 88539J | Cooler drain hose | 88539-06190 · 88539-06200 |
| 88548B | air filter housing | 88899-06250 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 · 88620-28050 |
| 88650N | Air conditioning amplifier assembly | 886H0-06060 · 886H0-06070 · 886H0-06080 |
| 88897L | Seal (for discharge hose) | 88888-02020 · 90480-26030 |
| 88897M | Seals (for heater tubes) | 87128-06030 · 87128-33020 |
| 88899L | Cooling unit parts | 88899-06320 · 88899-33080 |
| 88899M | cover (for air cleaner) | 88899-06330 |
