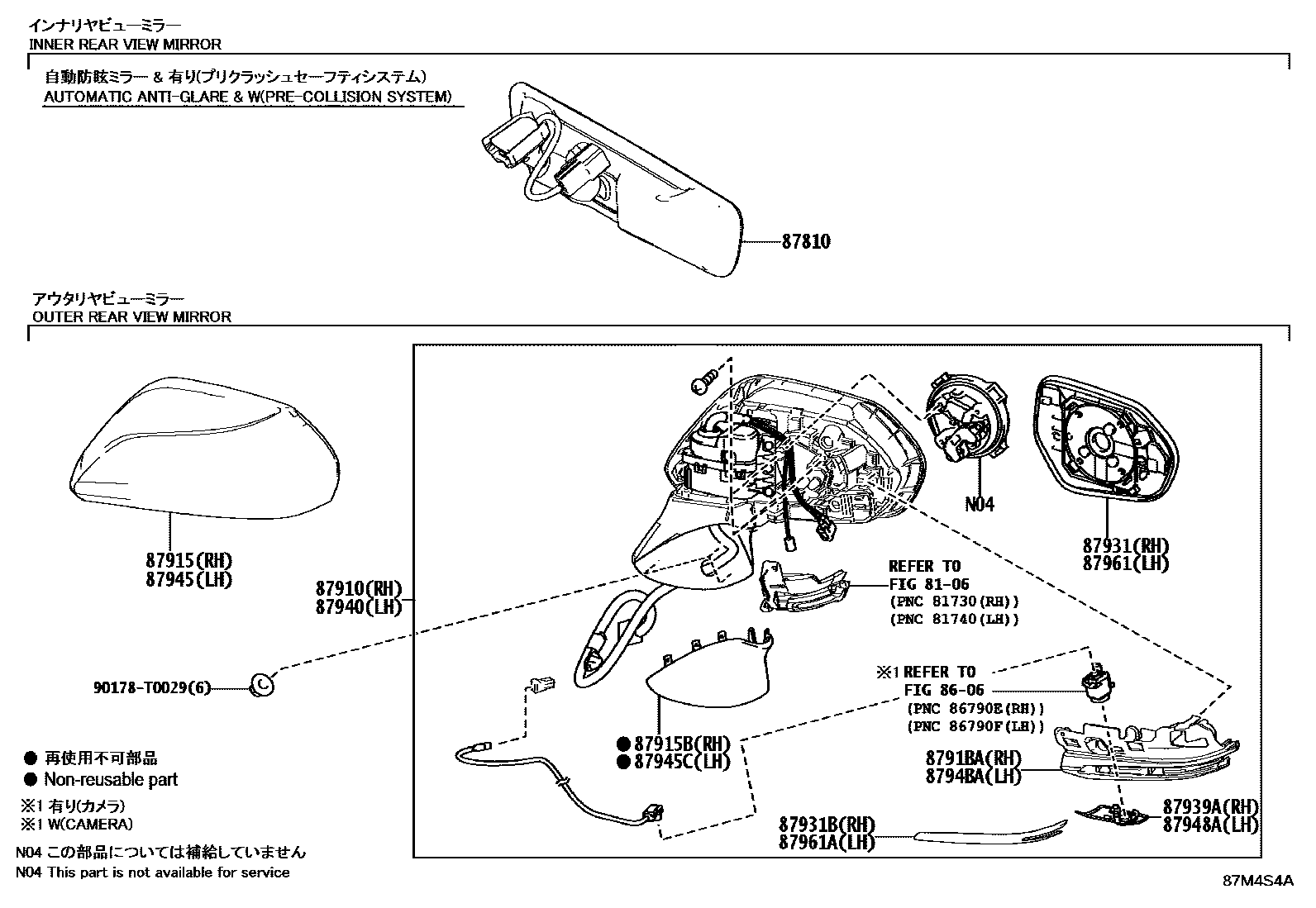

Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87840-0W460 |
| 87910 | Right exterior rearview mirror assembly | 87910-06B21 · 87910-06B61 · 87910-06D80 · 87910-06E80 · 87910-06E90 · 87910-06F00 · 87910-06F20 · 87910-06F30 |
| 87915 | Right exterior rearview mirror cover | 87915-06915 |
| 87915B | Right exterior rearview mirror lower cover | 8795A-06E80 |
| 8791BA | No. 3 right exterior mirror cover | 8791B-06E80 |
| 87931 | Right exterior rearview mirror | 87902-02100 · 87902-06201 · 87902-06221 |
| 87931B | Right exterior rearview mirror frame | 87931-06E80 |
| 87939A | Right exterior rearview mirror hole cover | 87939-06E80 |
| 87940 | Left exterior rearview mirror assembly | 87940-06B21 · 87940-06B61 · 87940-06D50 · 87940-06E80 · 87940-06E90 · 87940-06F00 · 87940-06F20 · 87940-06F30 |
| 87945 | Left exterior rearview mirror cap | 87945-06915 |
| 87945C | Left exterior rearview mirror lower cover | 8795B-06E80 |
| 87948A | Left exterior rearview mirror hole cover | 87948-06E80 |
| 8794BA | No. 3 left exterior rearview mirror cap | 8794B-06E80 |
| 87961 | Left exterior rearview mirror | 87907-02100 · 87907-02110 · 87907-06101 |
| 87961A | Left exterior rearview mirror frame | 87961-06E80 |
