Toyota CAMRY antenna — Figure 8604

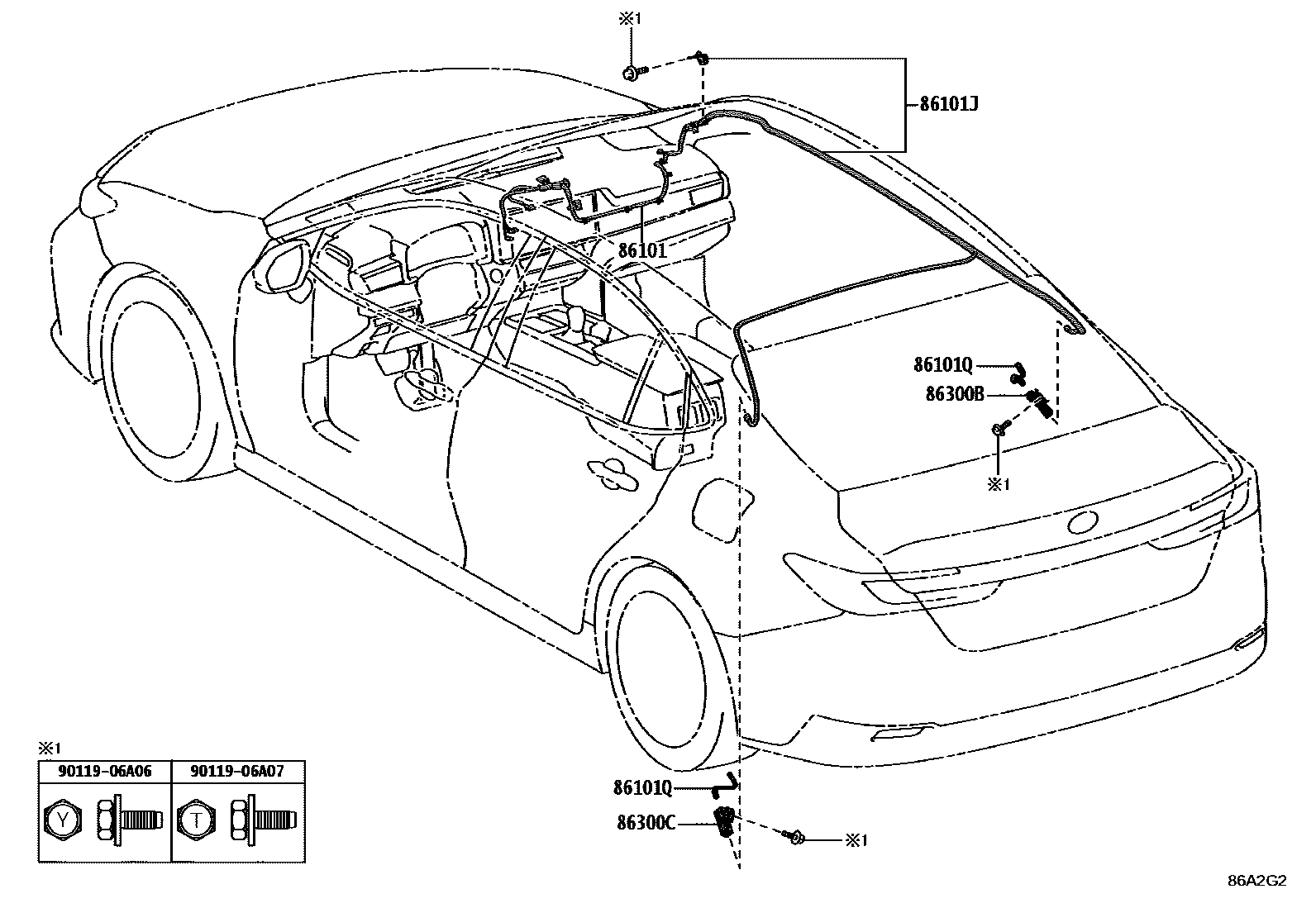

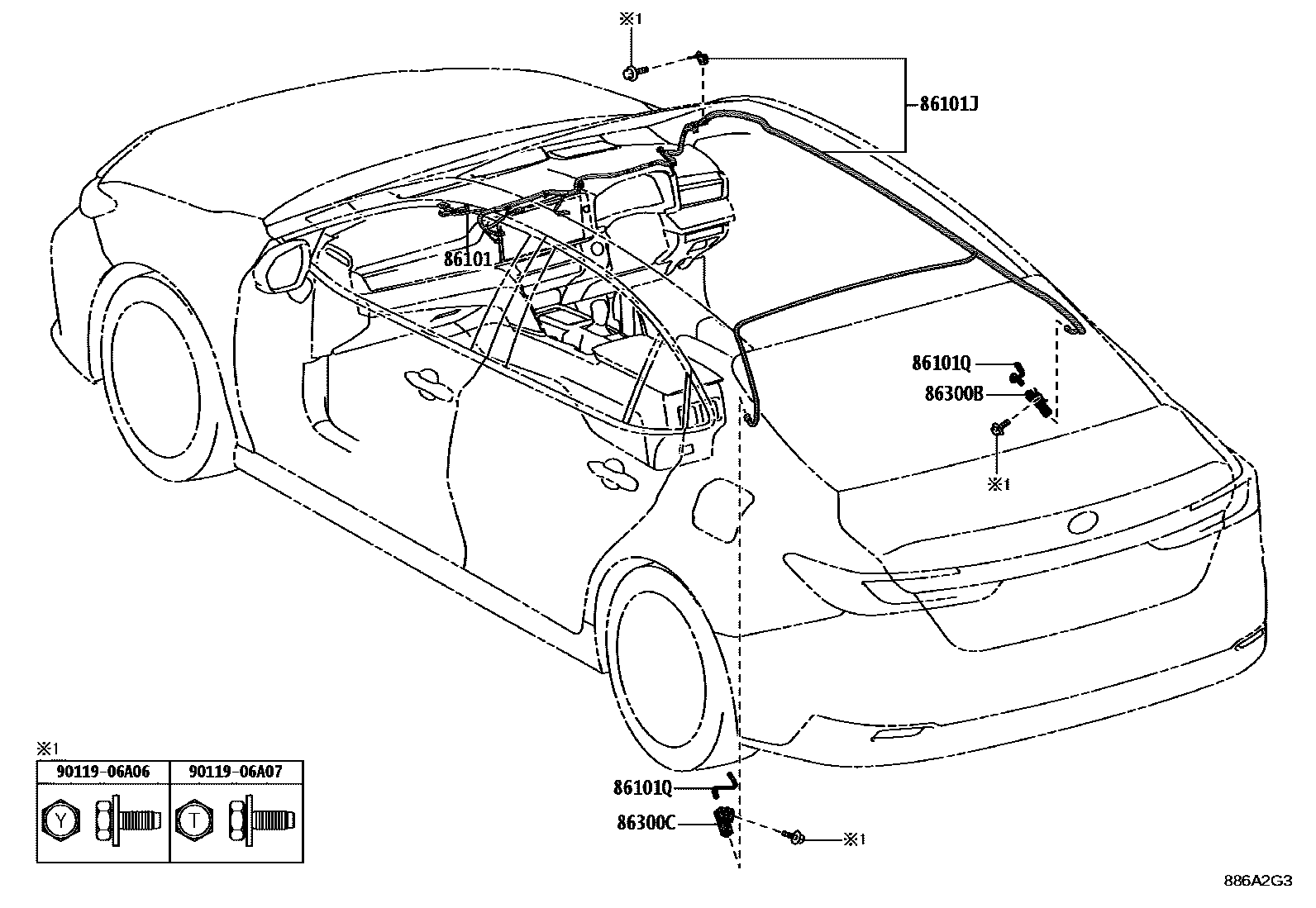

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-06P40 · 86101-06P50 · 86101-06P60 · 86101-06P70 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-06P00 · 86101-06P10 · 86101-06P20 · 86101-06P30 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-06N90 |
| 86300B | No. 1 amplifier antenna assembly | 86300-06270 |
| 86300C | No. 2 amplifier antenna assembly | 86300-06280 |
