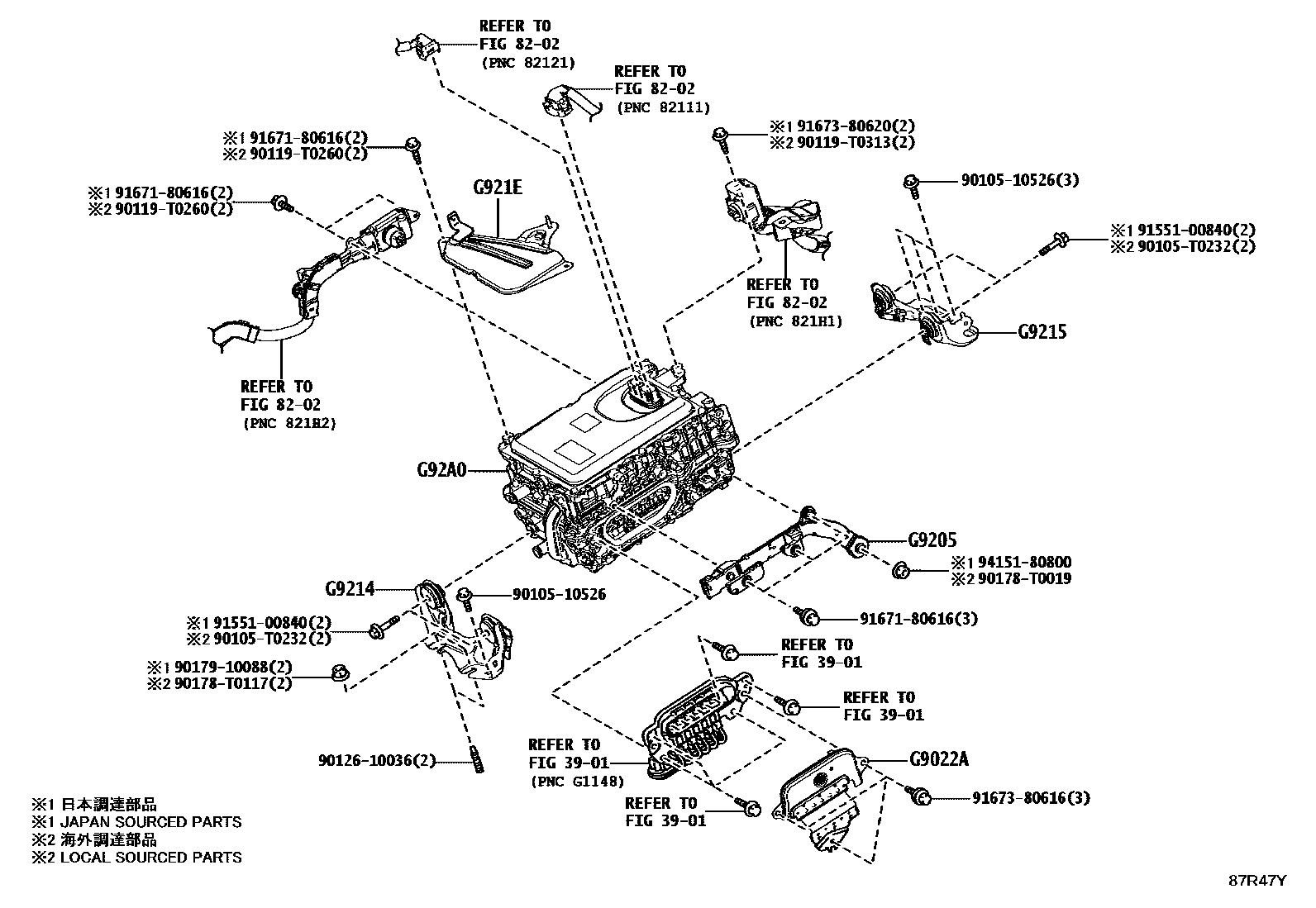

Toyota CAMRY HEV 逆变器 — Figure 8431
Toyota CAMRY EPC diagram 8431, HEV 逆变器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9022A | Inverter upper cover sub-assembly | G9022-28030 |
| G9205 | Inverter bus board sub-assembly | G9205-33040 |
| G9214 | No. 1 inverter bracket | G9214-63010 |
| G9215 | No. 2 inverter bracket | G9215-33050 |
| G921E | Inverter protection device | G921E-33040 |
| G92A0 | Hybrid motor control inverter assembly | G92A0-33050 |
