Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 2 PNC and OE references.

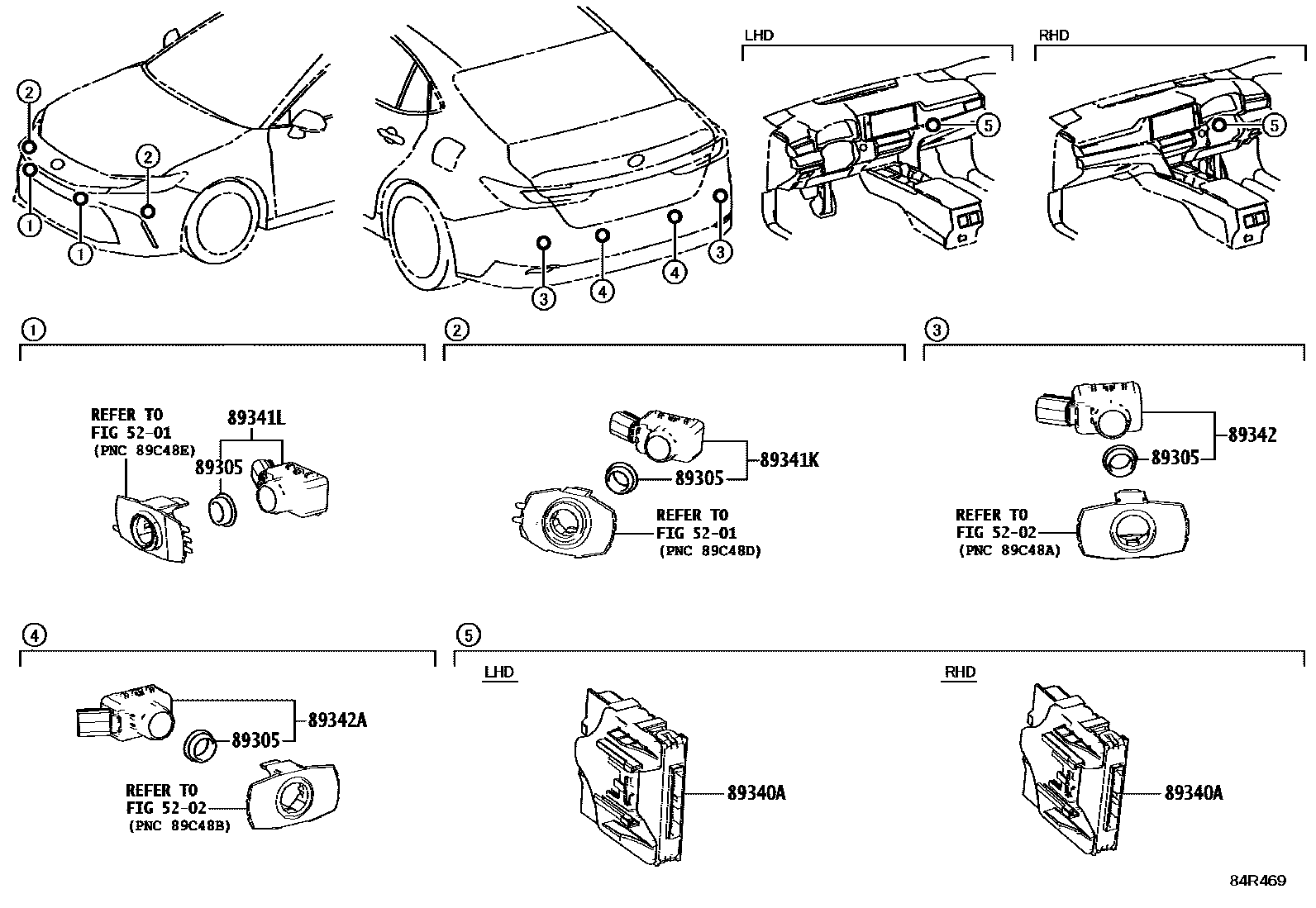

Toyota CAMRY 测距雷达和倒车雷达 EPC diagram — 84R469
测距雷达和倒车雷达 — 84R469 (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
89305Ultrasonic sensor pad assembly89305-52010
89340ADistance warning ECU assembly89340-33490 · 89340-33510
