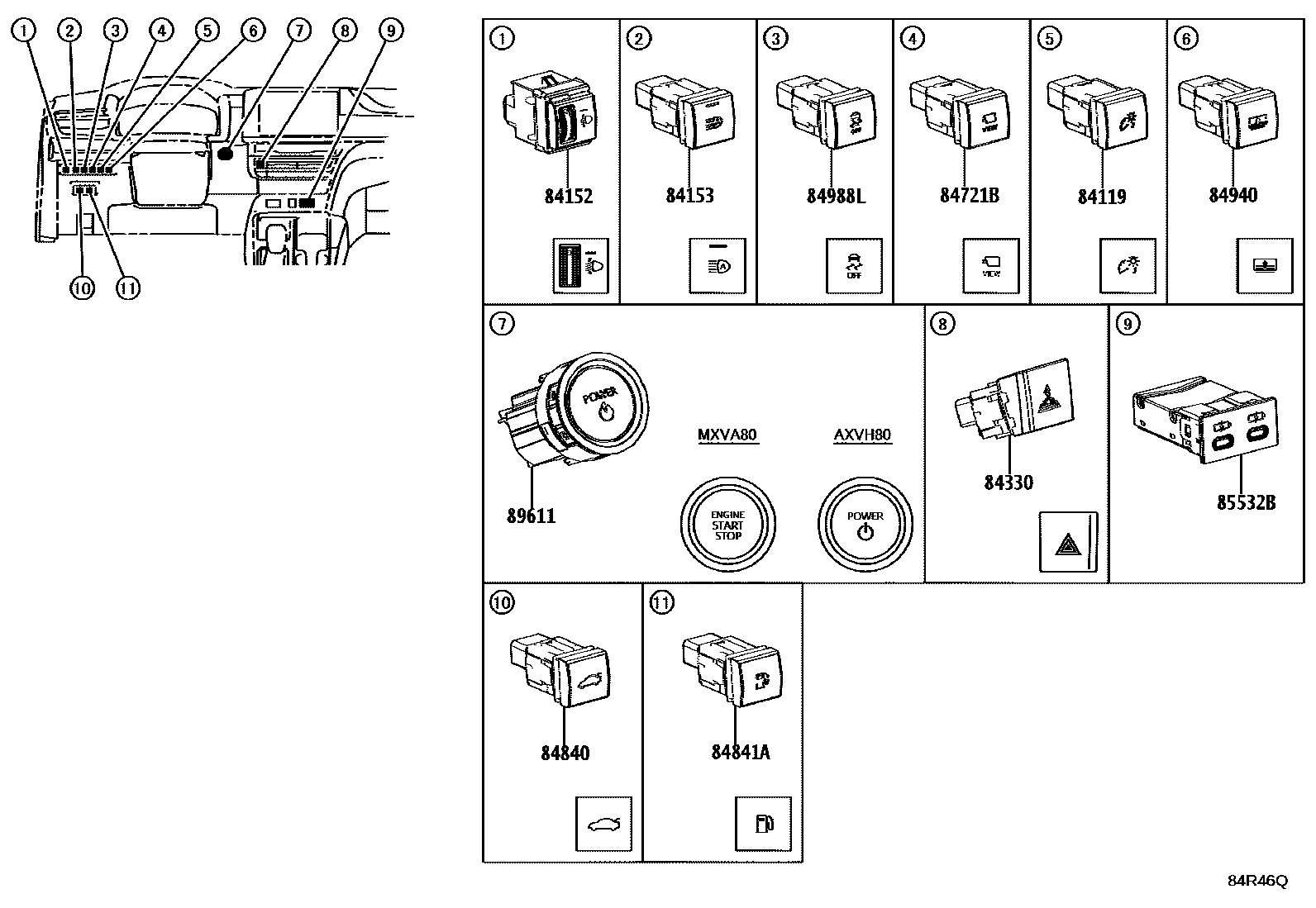

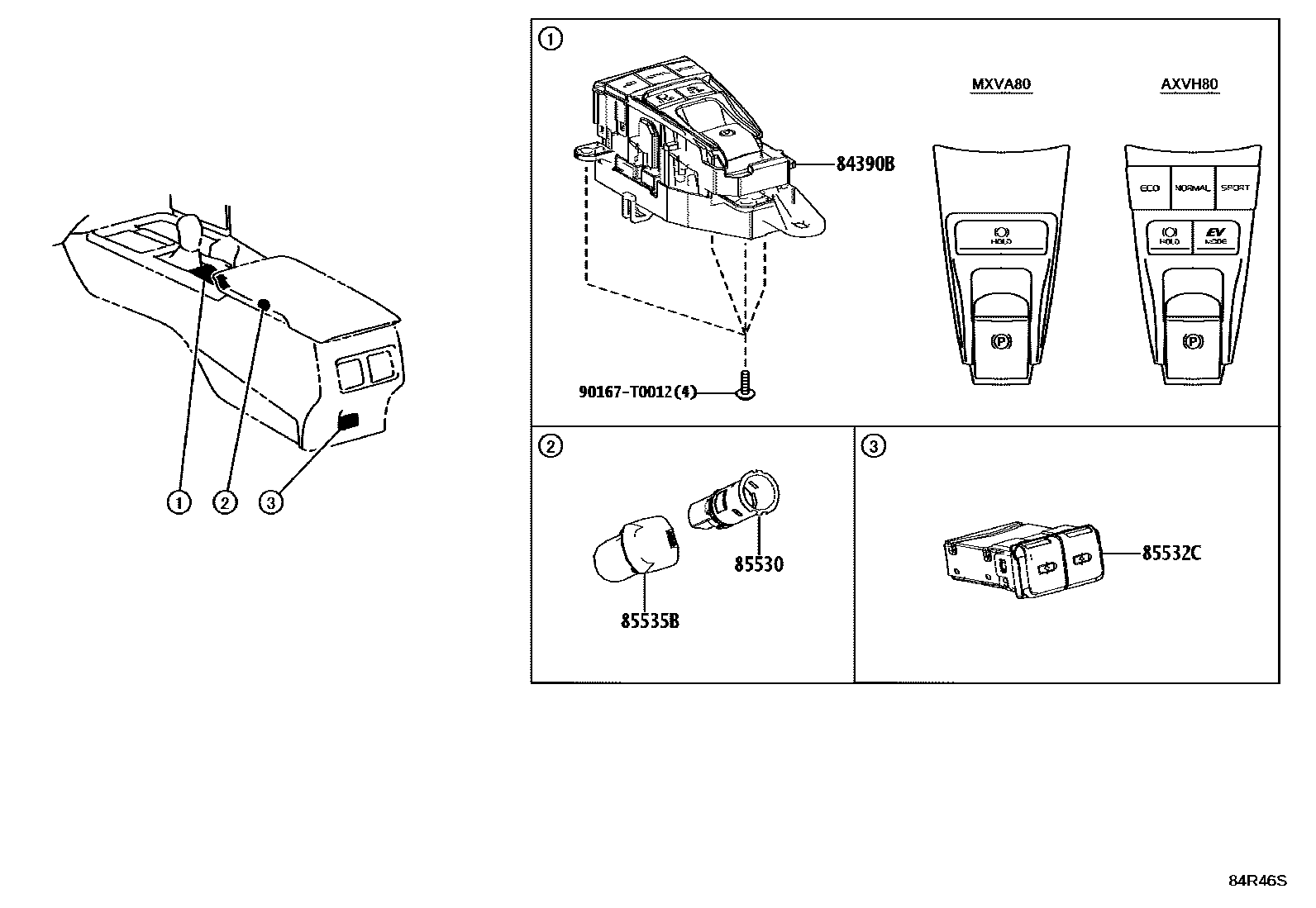

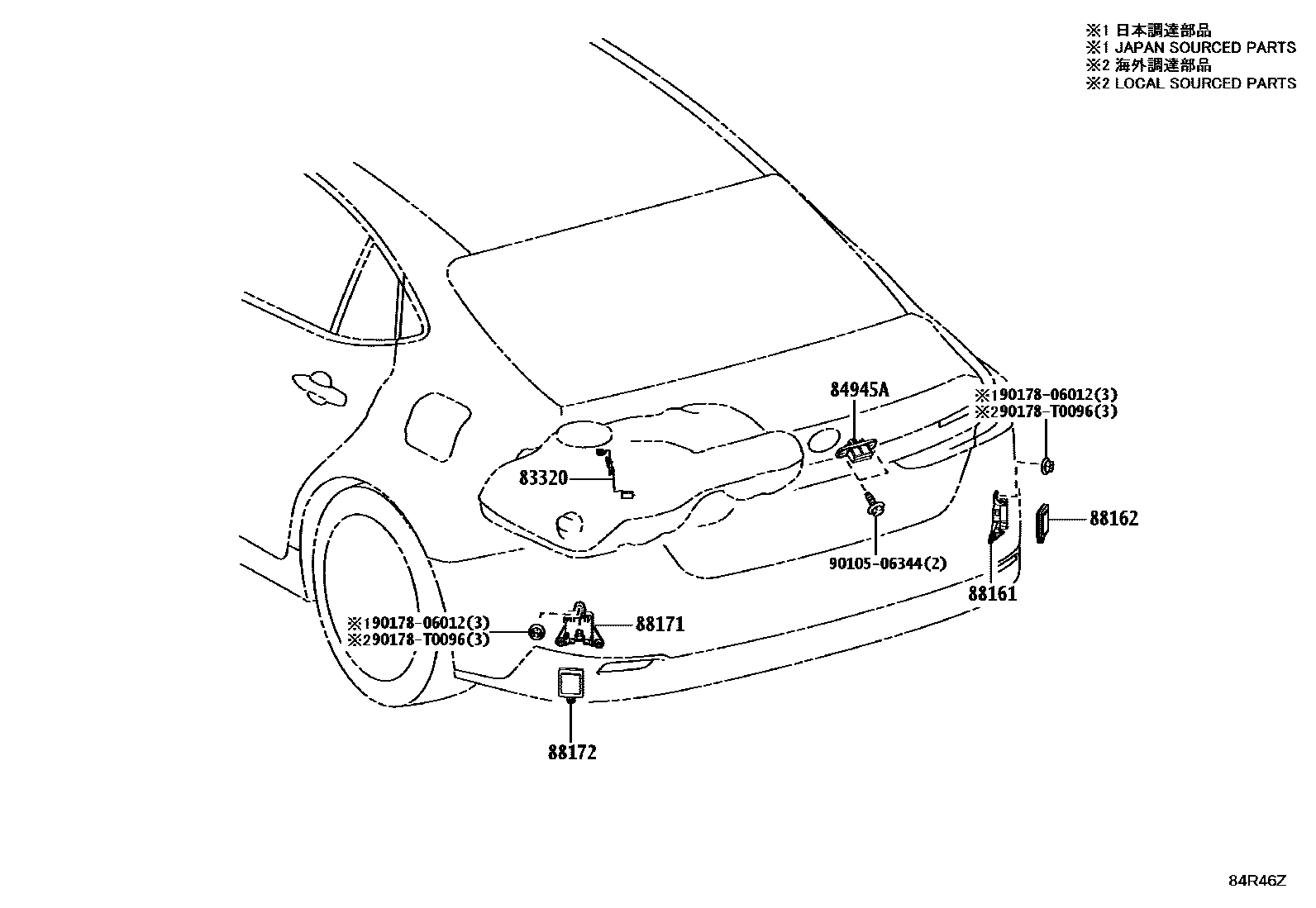

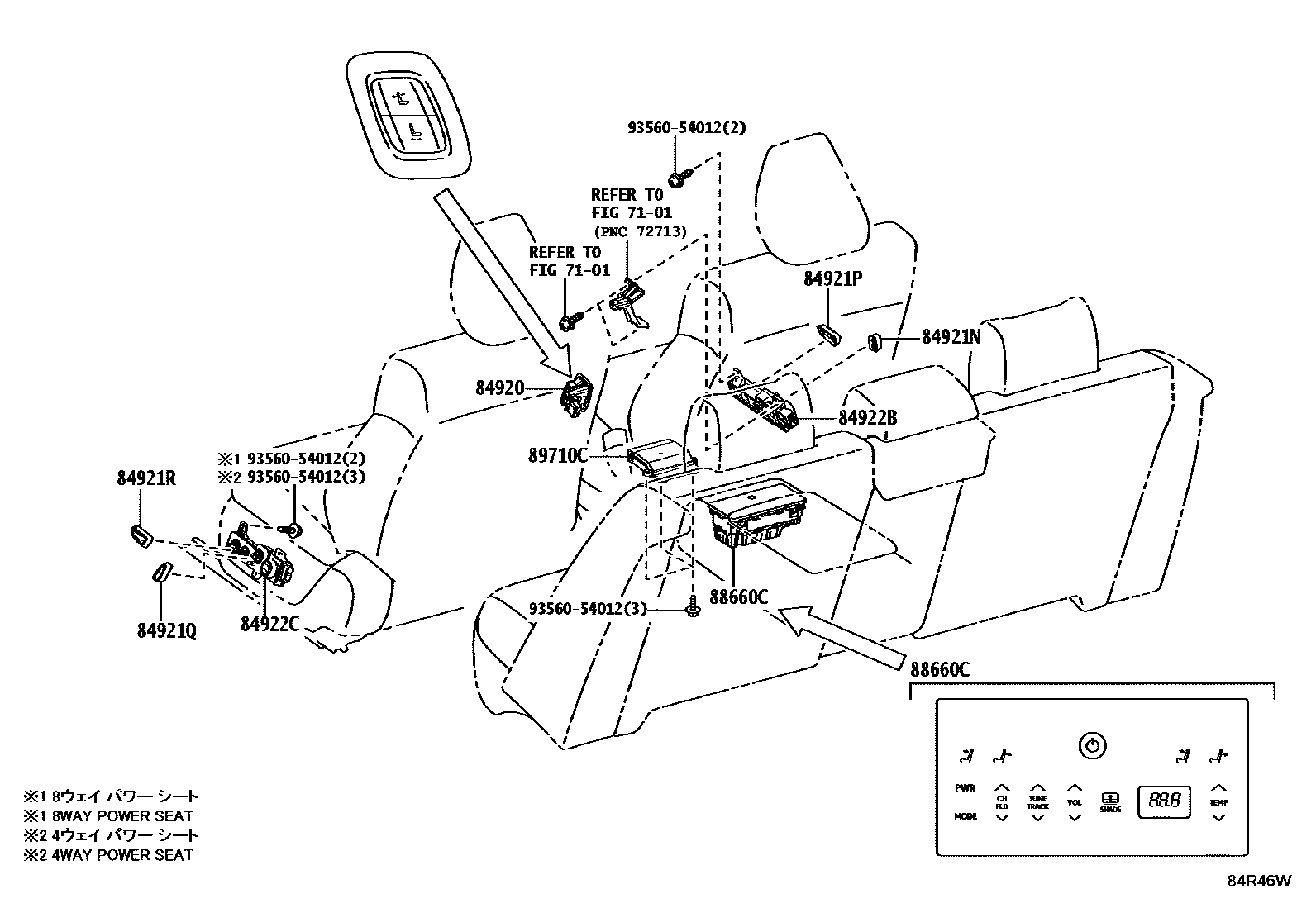

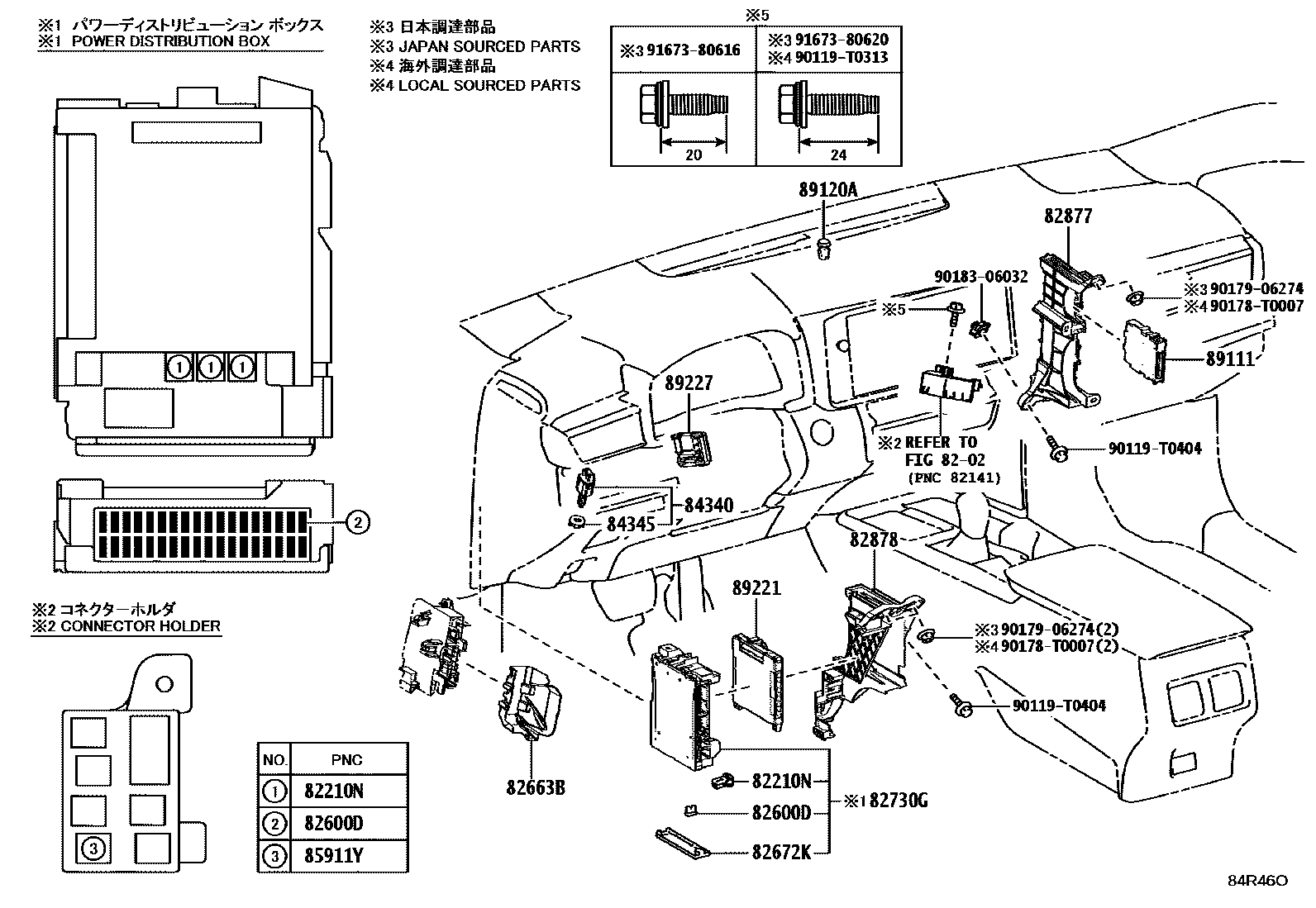

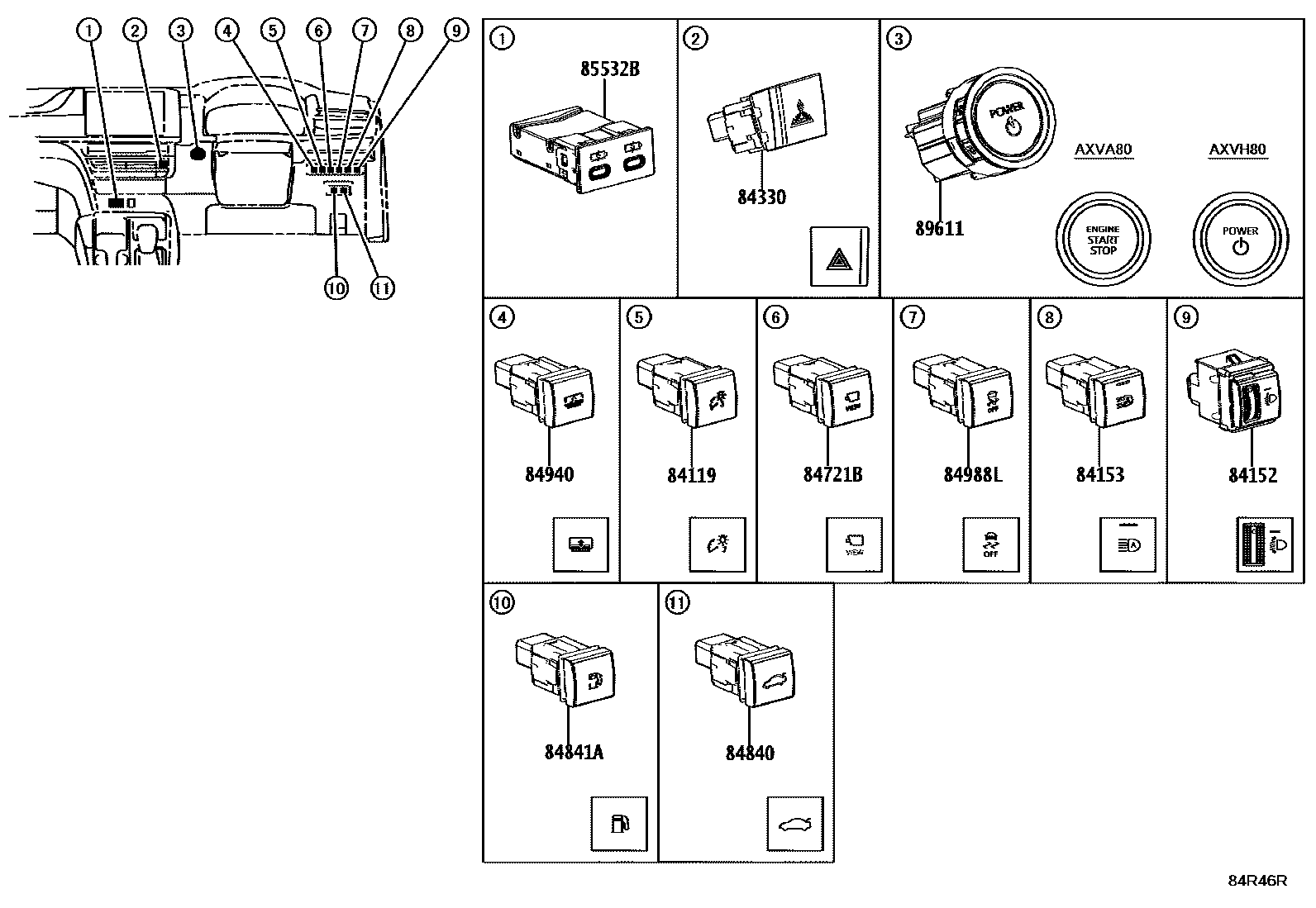

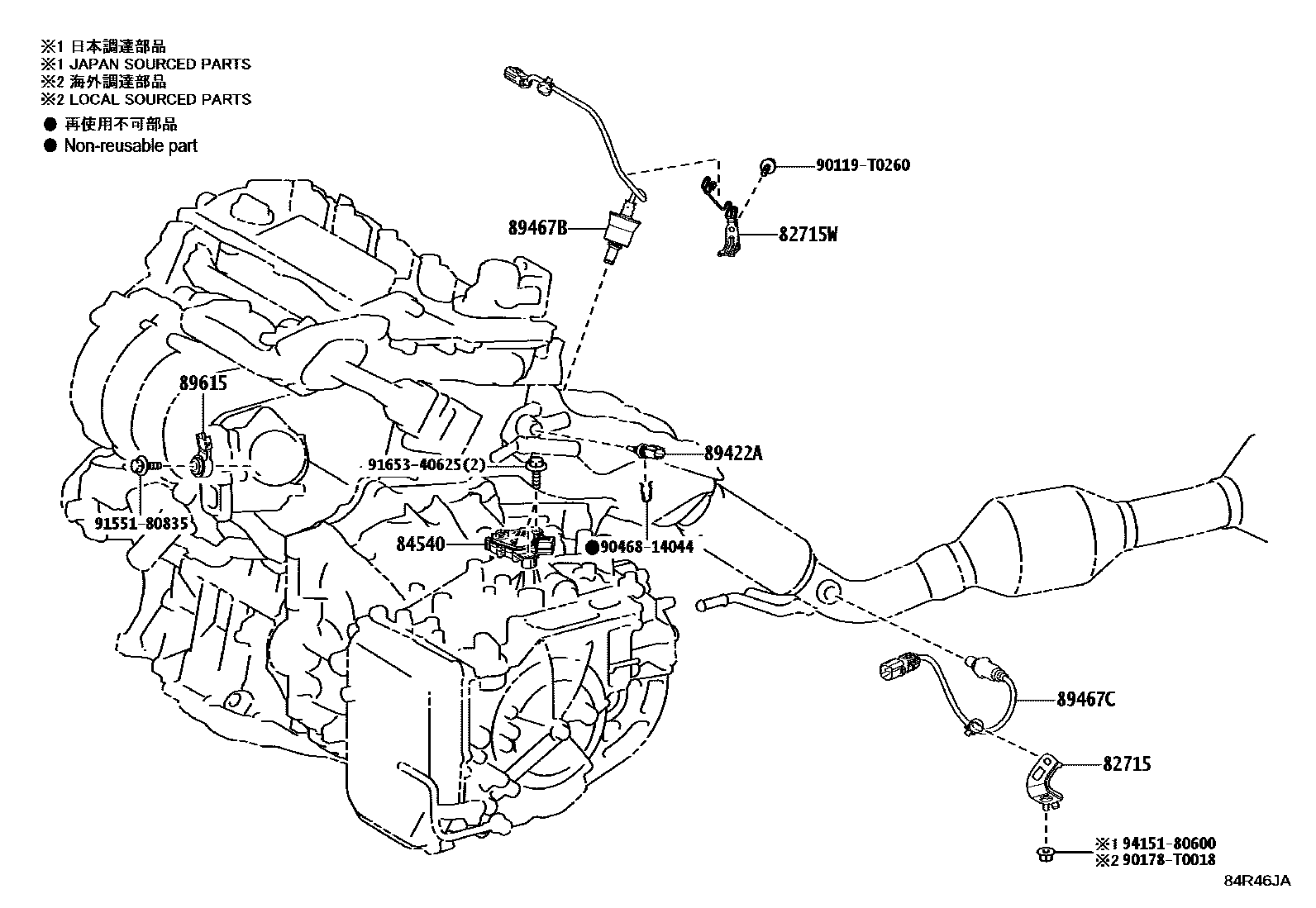

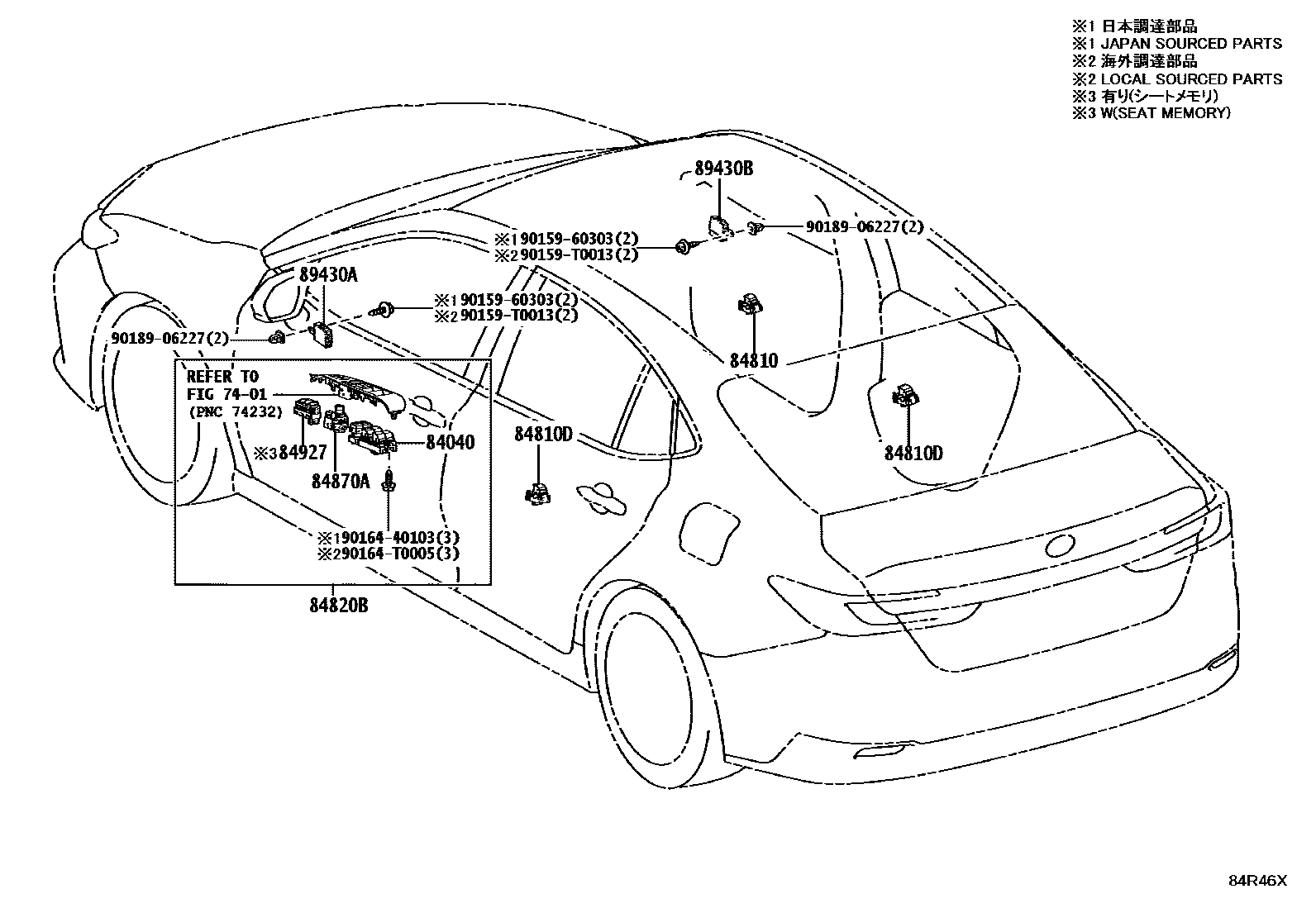

Toyota CAMRY 开关和继电器和ECU — Figure 8401

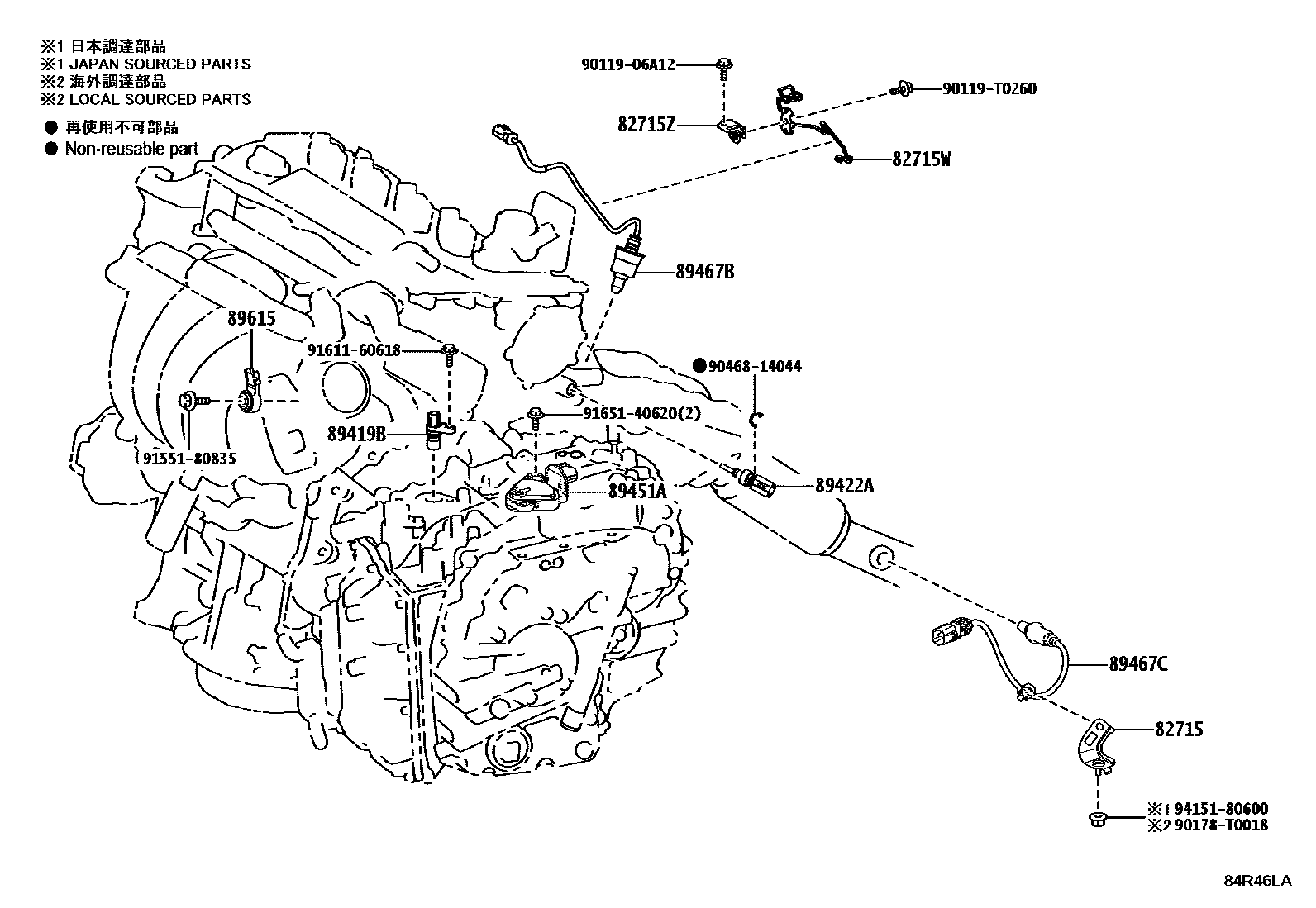

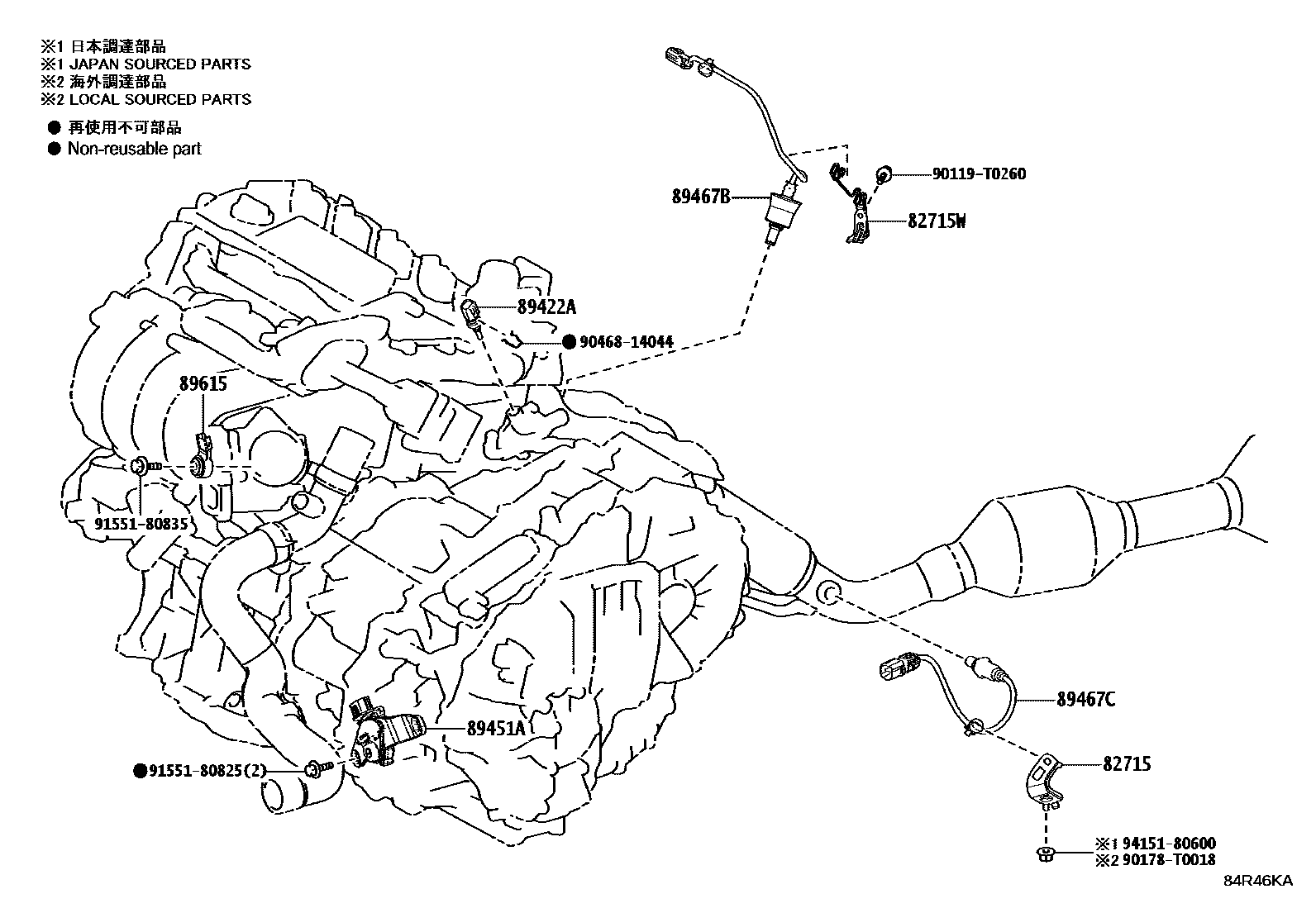

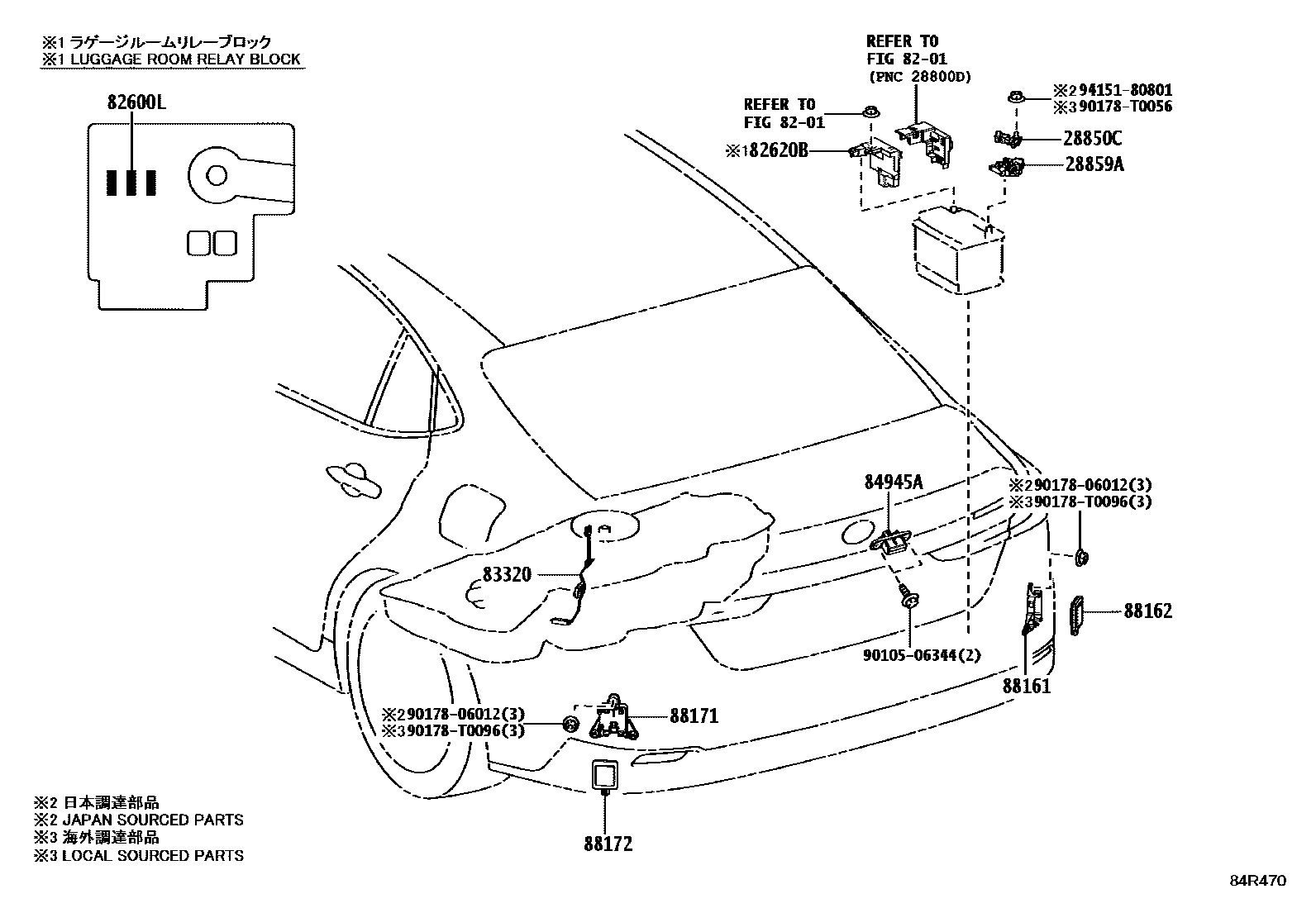

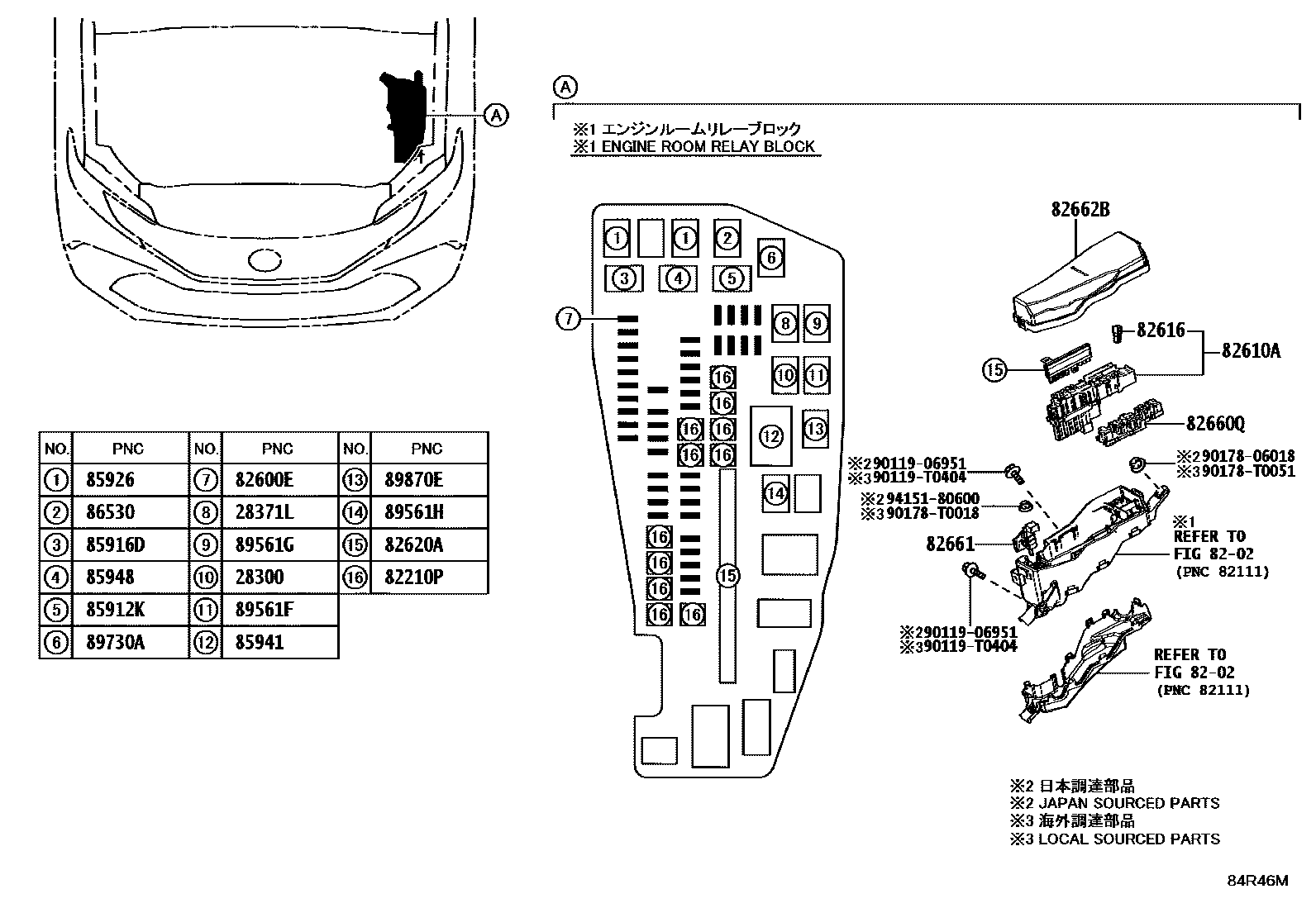

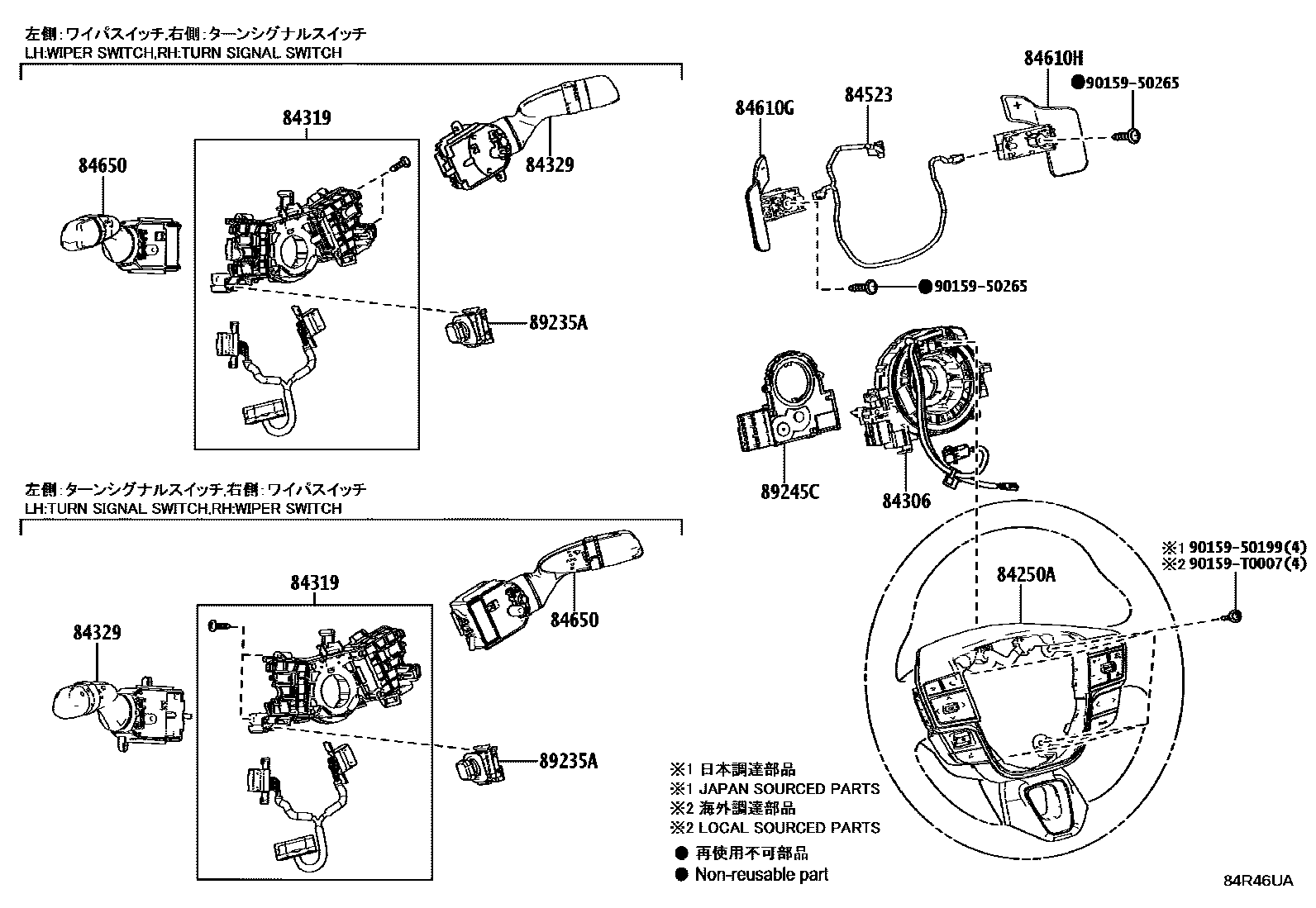

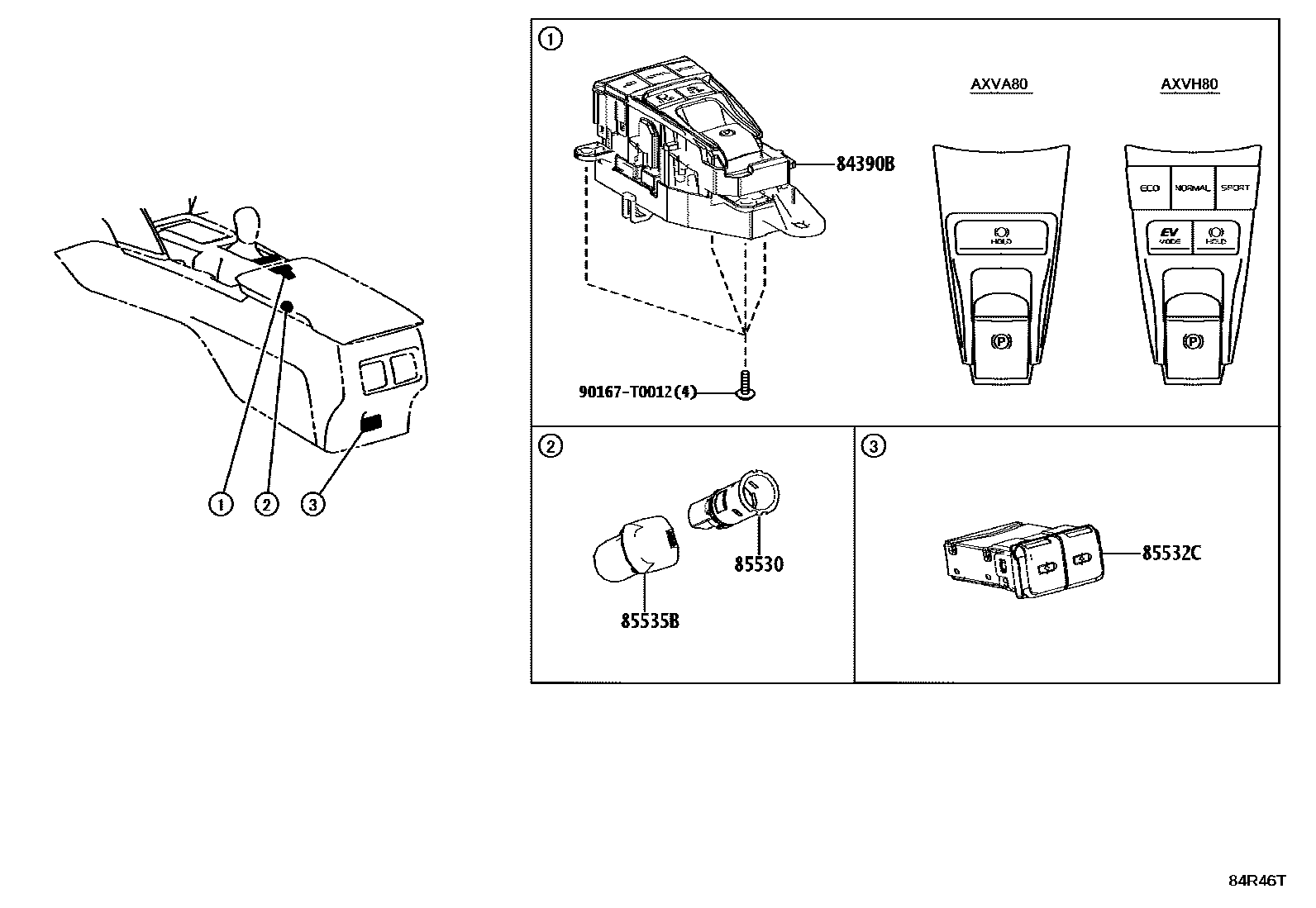

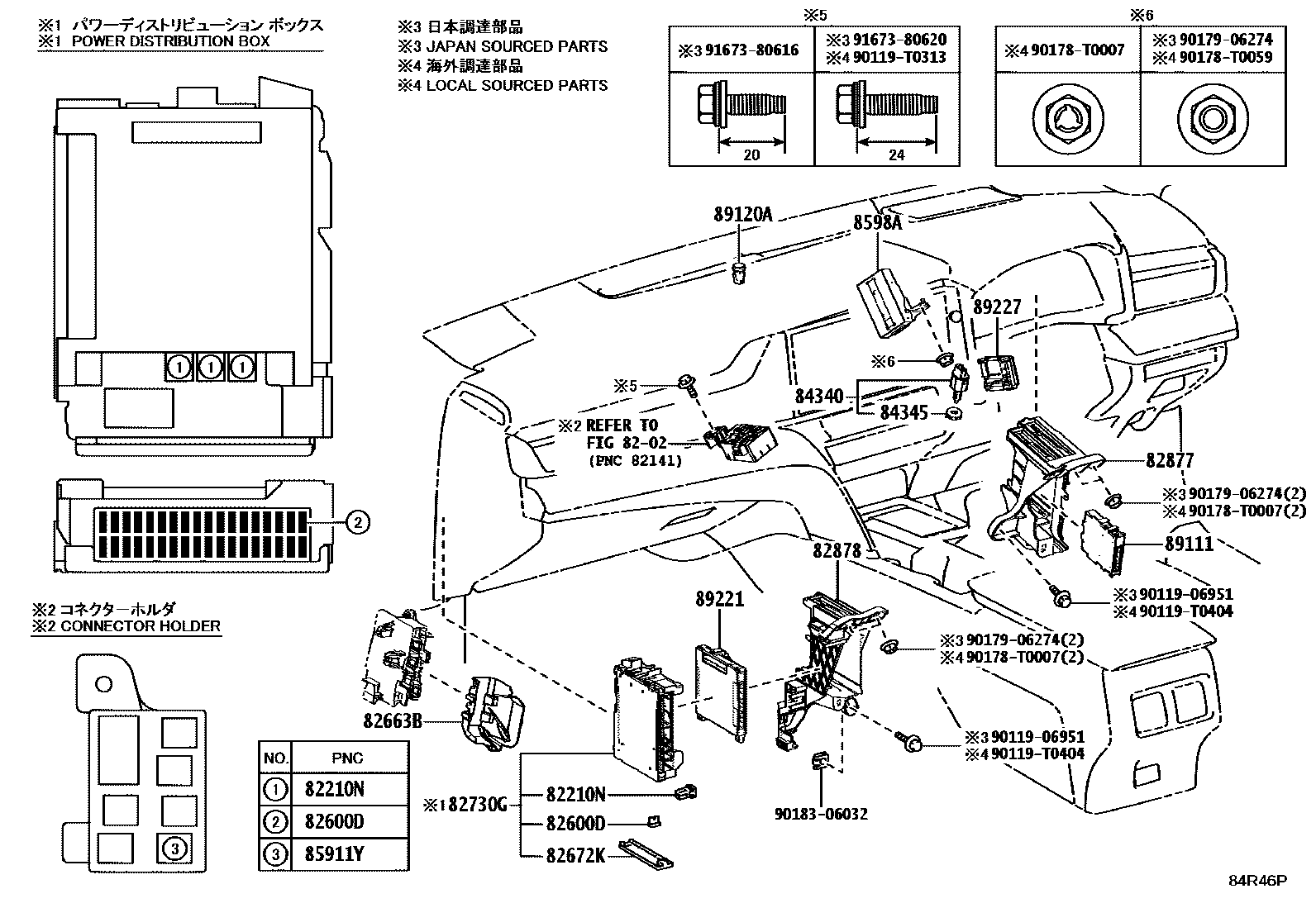

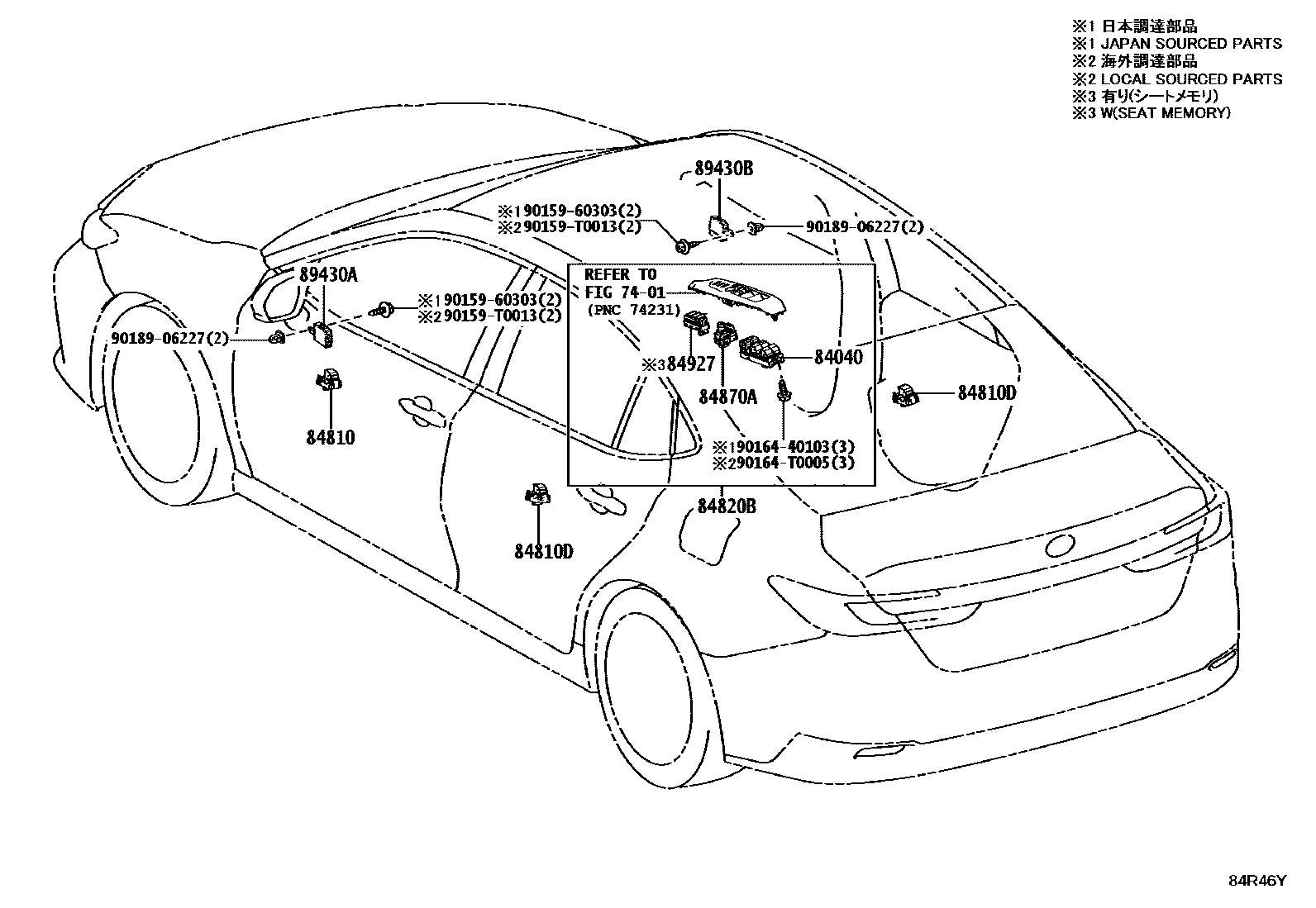

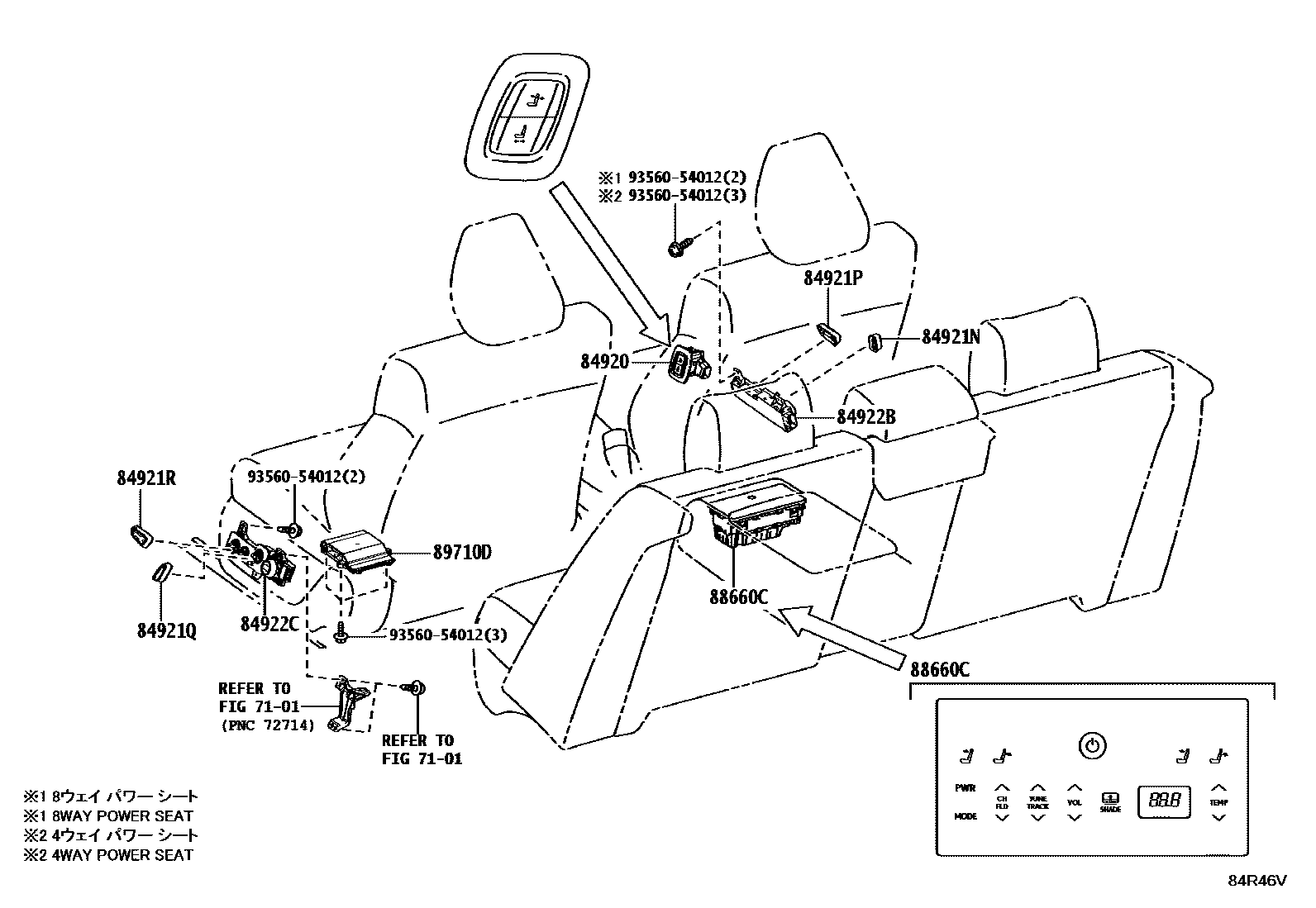

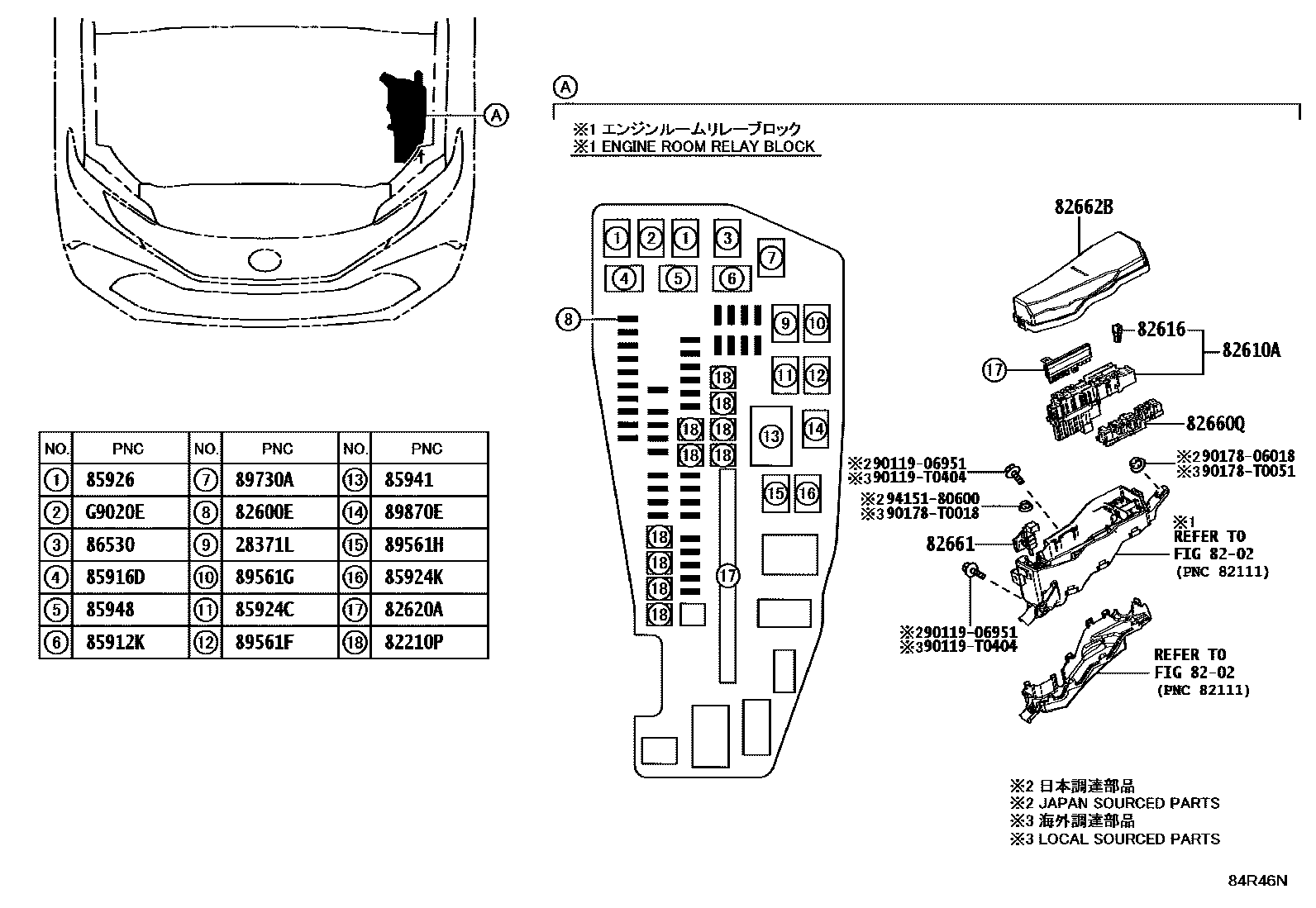

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 18 images and 96 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L011 · 28300-21020 |
| 28371L | IGP relay | 90987-02027 · 90987-T2001 |
| 28850C | Battery status sensor assembly | 28850-37080 |
| 28859A | Battery current sensor mount | 28859-F0430 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08298 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82600L | luggage fuse | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-33160 · 82610-33180 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33120 · 82620-33190 |
| 82620B | Fuse box assembly | 82620-33240 |
| 82660Q | Relay assembly | 82660-33070 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-06D00 · 82662-06D10 |
| 82663B | No. 3 relay box lower cover | 82663-33280 |
| 82672K | Electric power distribution box cover | 82672-33440 |
| 82715 | Wire harness clamp bracket | 82715-06X30 |
| 82715W | Wire harness clamp bracket | 82715-12V90 · 82715-33K11 |
| 82715Z | Wire harness clamp bracket | 82715-12X50 |
| 82730G | Distribution box assembly | 82730-33R20 · 82730-33R30 · 82730-33R40 · 82730-33R50 |
| 82877 | Right ECU integrated box | 82877-06090 · 82877-33070 |
| 82878 | Left ECU integrated box | 82878-06030 · 82878-33020 |
| 83320 | Fuel gauge sensor assembly | 83320-33150 · 83320-33160 |
| 84040 | Multi-channel network main switch assembly | 84040-06200 · 84040-06210 |
| 84119 | Light control rheostat | 84119-06070 |
| 84152 | Headlight beam height adjustment switch | 84152-VT030 |
| 84153 | Automatic high beam switch | 84153-VT030 |
| 84306 | Spiral cable sub-assembly | 84308-06050 |
| 84319 | Steering wheel switch housing | 84319-06050 · 84319-06060 · 84319-0G010 |
| 84329 | turn signal switch | 84329-06040 · 84329-06050 · 84329-06090 · 84329-06100 · 84329-06110 · 84329-06120 · 84329-0A070 · 84329-0A080 |
| 84330 | Hazard warning signal switch assembly | 84332-33190 · 84332-33200 |
| 84340 | brake light switch assembly | 84340-09430 · 84340-09530 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84390B | Electric parking brake switch assembly | 84390-33140 · 84390-33160 · 84390-33170 · 84390-33180 |
| 84523 | No. 1 switch harness | 84523-50040 |
| 84540 | Neutral start switch assembly | 84540-33021 |
| 84610G | No. 1 transmission shift switch assembly | 84610-33011 |
| 84610H | No. 2 transmission shift switch assembly | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-06420 · 84652-06440 |
| 84721B | Panoramic display switch | 84721-06040 |
| 84810 | Electric window lift switch assembly | 84810-06200 |
| 84810D | Rear electric window lift switch assembly | 84810-06200 |
| 84820B | Power window switch assembly | 84802-06D60 · 84802-06D70 · 84802-06D80 · 84802-06D90 |
| 84840 | Trunk door opening switch assembly | 84840-06110 |
| 84841A | Fuel filler cap opener switch | 84841-06060 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02880 · 84872-02A10 · 84872-02A20 · 84872-02A40 |
| 84922B | Front right electric seat switch | 84922-33140 |
| 84922C | Front left electric seat switch | 84922-33180 |
| 84927 | Seat memory switch | 84927-06050 · 84927-06060 |
| 84940 | Curtain switch assembly | 84940-06070 |
| 84945A | Luggage electronic key switch | 84945-12070 |
| 84988L | VSC off switch | 84988-06080 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532B | USB charging socket | 85532-06100 |
| 85532C | USB charging socket No. 2 | 85532-06120 |
| 85535B | No. 1 power outlet cover | 85535-06090 · 85535-0K190 |
| 85911Y | Front seat heater relay | 90987-02027 · 90987-T2001 |
| 85912K | VVT relay | 90987-02027 · 90987-T2001 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85924C | IGCT relay | 90987-02027 · 90987-T2001 |
| 85924K | No. 2 IGCT relay | 90987-02027 · 90987-T2001 |
| 85926 | Headlight dimmer relay | 90987-02027 · 90987-T2001 |
| 85941 | windshield washer relay | 90987-02025 · 90987-T2002 |
| 85948 | windshield wiper relay | 90987-02027 · 90987-T2001 |
| 8598A | door control battery | 8598A-06060 |
| 86530 | Speaker relay assembly | 90987-02027 · 90987-T2001 |
| 88161 | Blind spot monitor right bracket | 88161-06030 |
| 88162 | Blind spot monitor right sensor | 88162-06140 |
| 88171 | Blind spot monitor left bracket | 88161-06030 |
| 88172 | Blind spot monitor left sensor | 88162-06140 |
| 88660C | Cooler control switch assembly | 84660-33420 |
| 89111 | Network gateway ECU | 89111-12170 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89221-06530 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245C | steering sensor | 8924B-06030 |
| 89419B | gear shift sensor | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-06130 · 89430-33340 |
| 89430B | Right exterior mirror control ECU assembly | 89430-06140 · 89430-33350 |
| 89451A | shift lever position sensor | 89451-28020 · 89451-42010 |
| 89467B | air fuel ratio sensor | 89467-33350 · 89467-47040 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33360 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2001 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2001 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02033 |
| 89611 | One-button start switch | 89611-02290 · 89611-02300 · 89611-VT010 · 89611-VT020 · 89611-VT040 |
| 89615 | knock control sensor | 89615-20090 |
| 89710C | Right position control ECU assembly | 89710-30220 |
| 89710D | Left position control ECU assembly | 89710-30230 |
| 89730A | Relay (for safety warnings) | 90987-T2001 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2001 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2001 |
