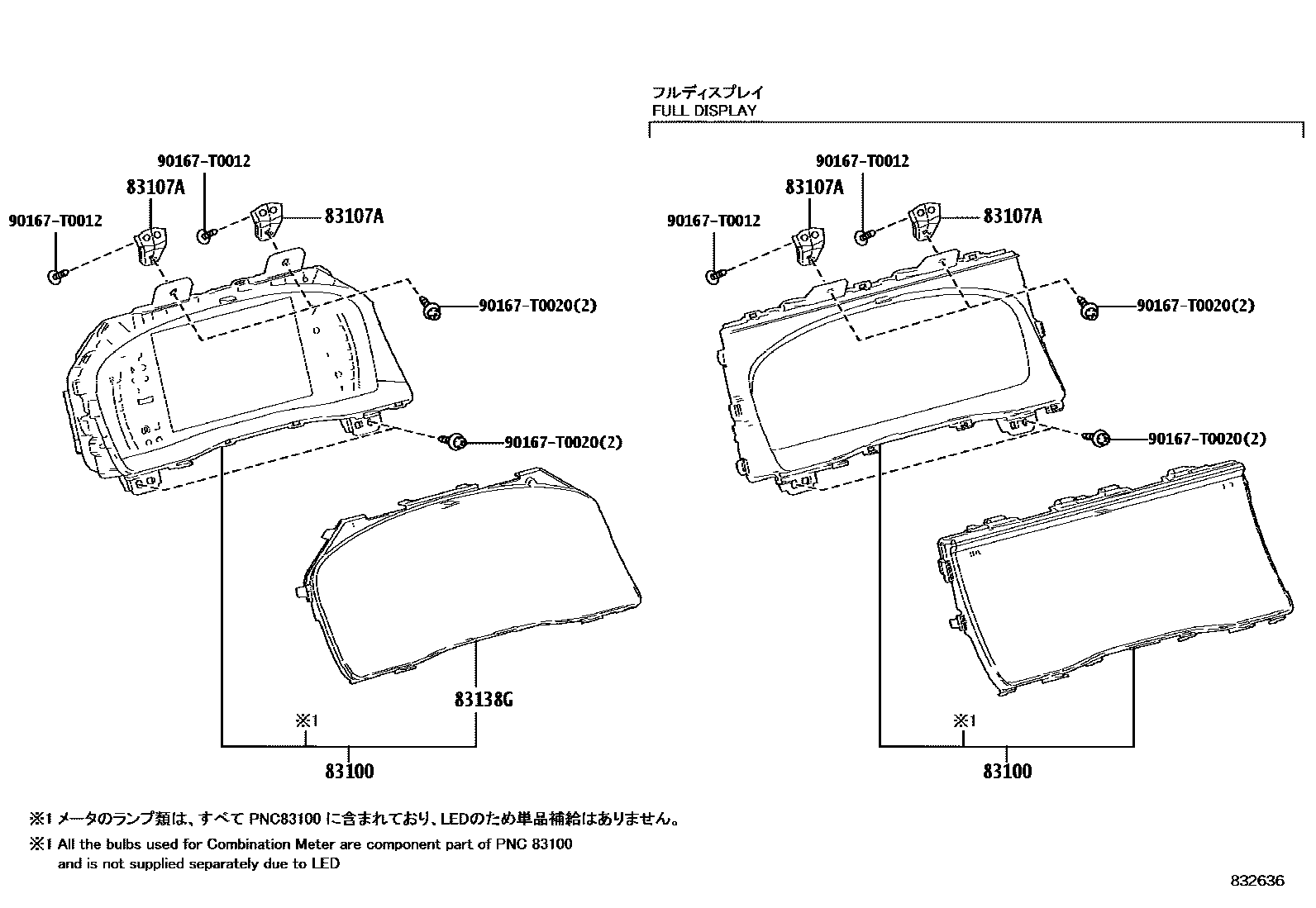

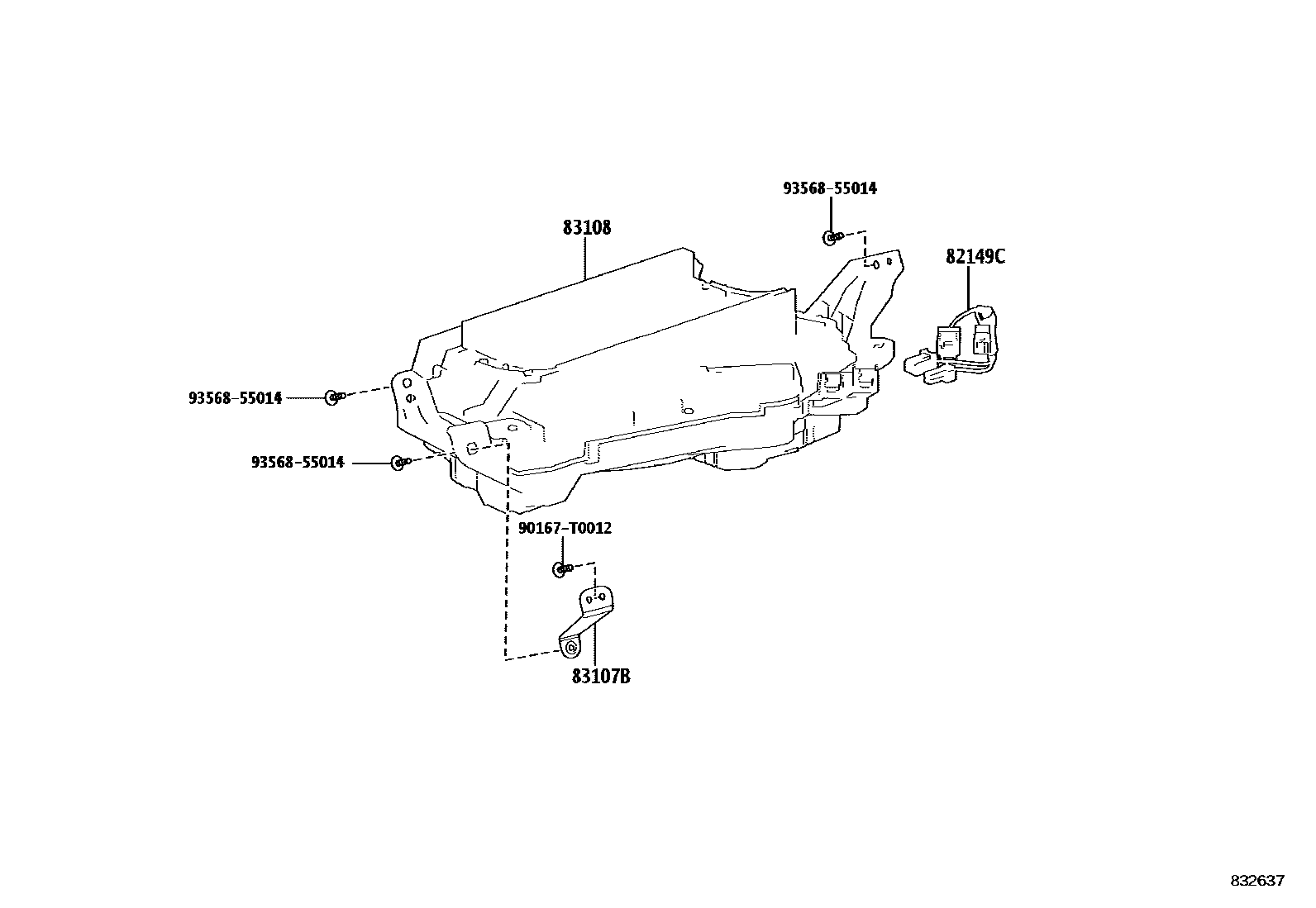

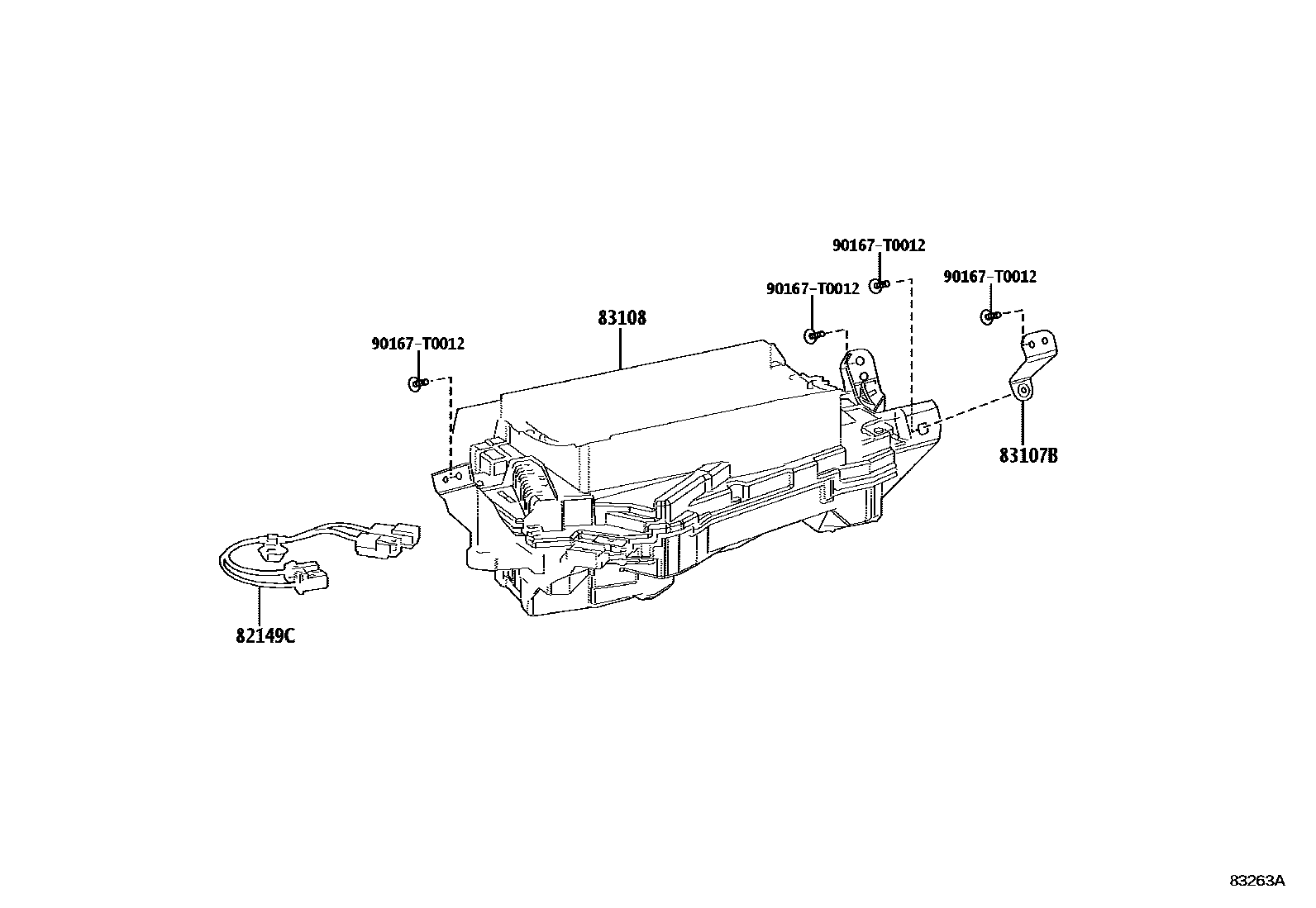

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82149C | Instrument mirror wiring harness | 82149-06060 · 82149-06070 |
| 83100 | Combined instrument assembly | 83800-0XQ10 · 83800-0XQ11 · 83800-0XQ20 · 83800-0XQ21 · 83800-0XR30 · 83800-0XR31 · 83800-0XR40 · 83800-0XR41 |
| 83107A | No. 1 instrument bracket sub-assembly | 83107-06050 · 83107-33010 |
| 83107B | No. 2 instrument bracket sub-assembly | 83107-06040 · 83107-33020 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-33170 · 83108-33171 · 83108-A6010 · 83108-A6011 |
| 83138G | Instrument cluster glass | 83852-0XQ10 |
