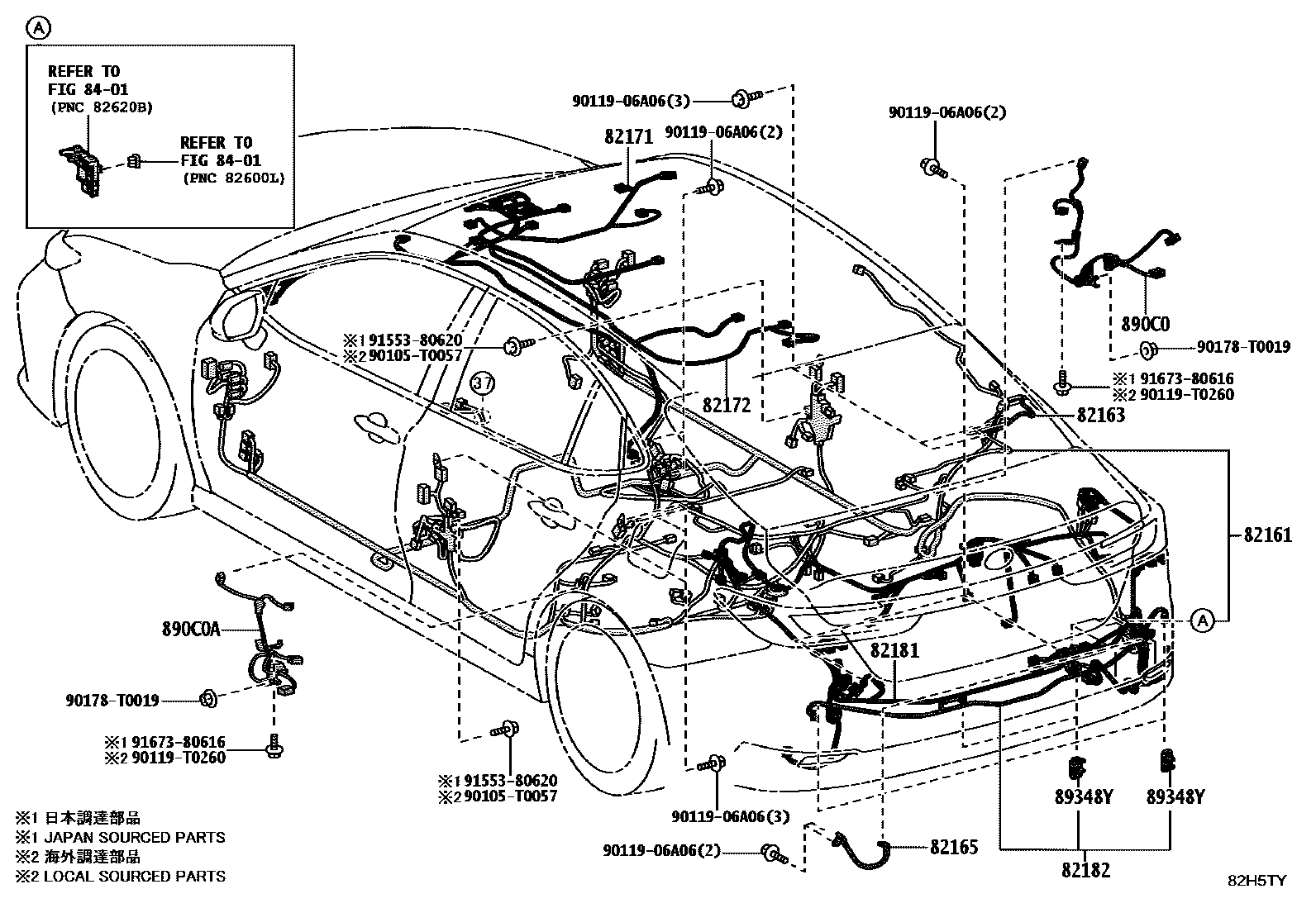

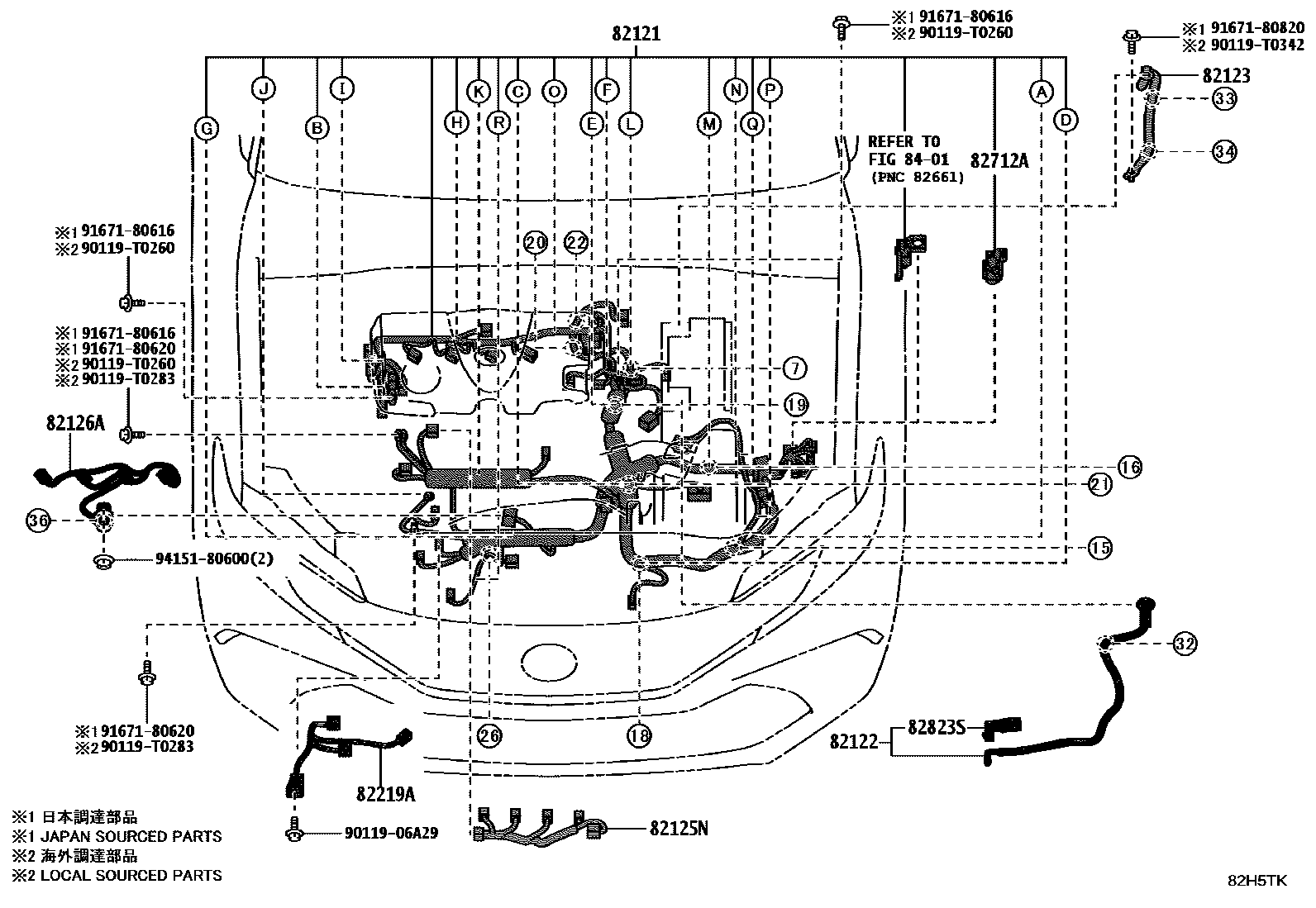

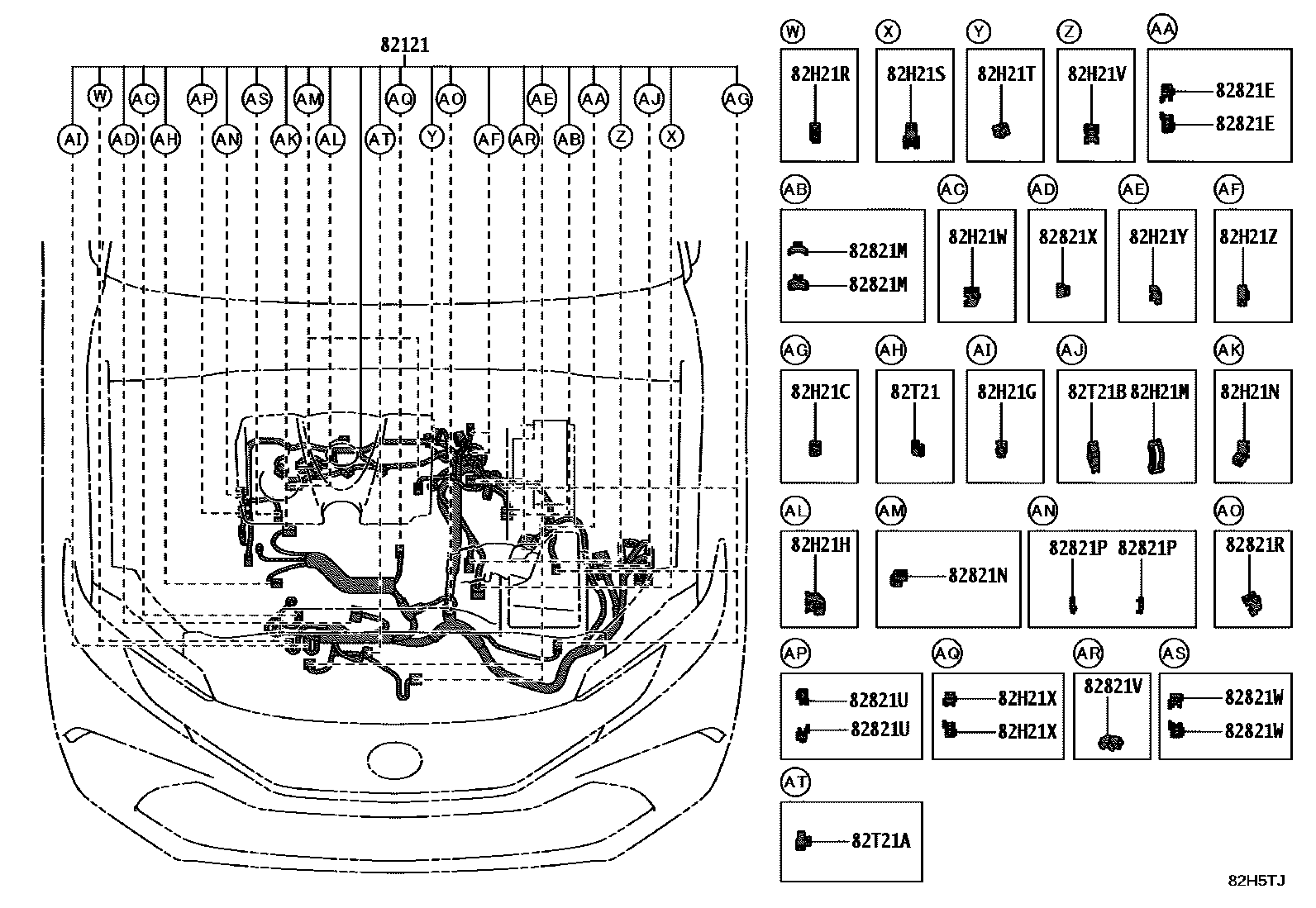

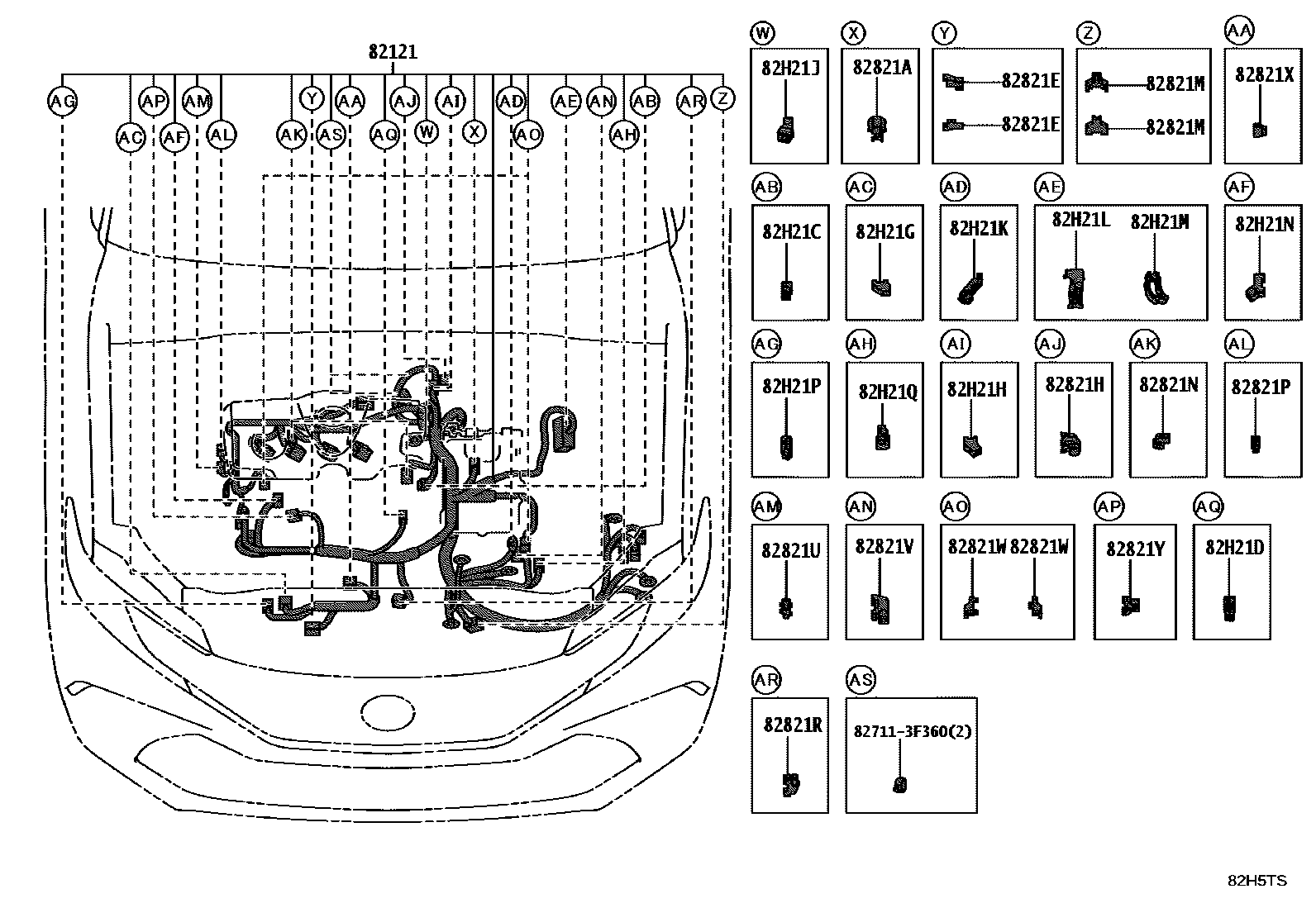

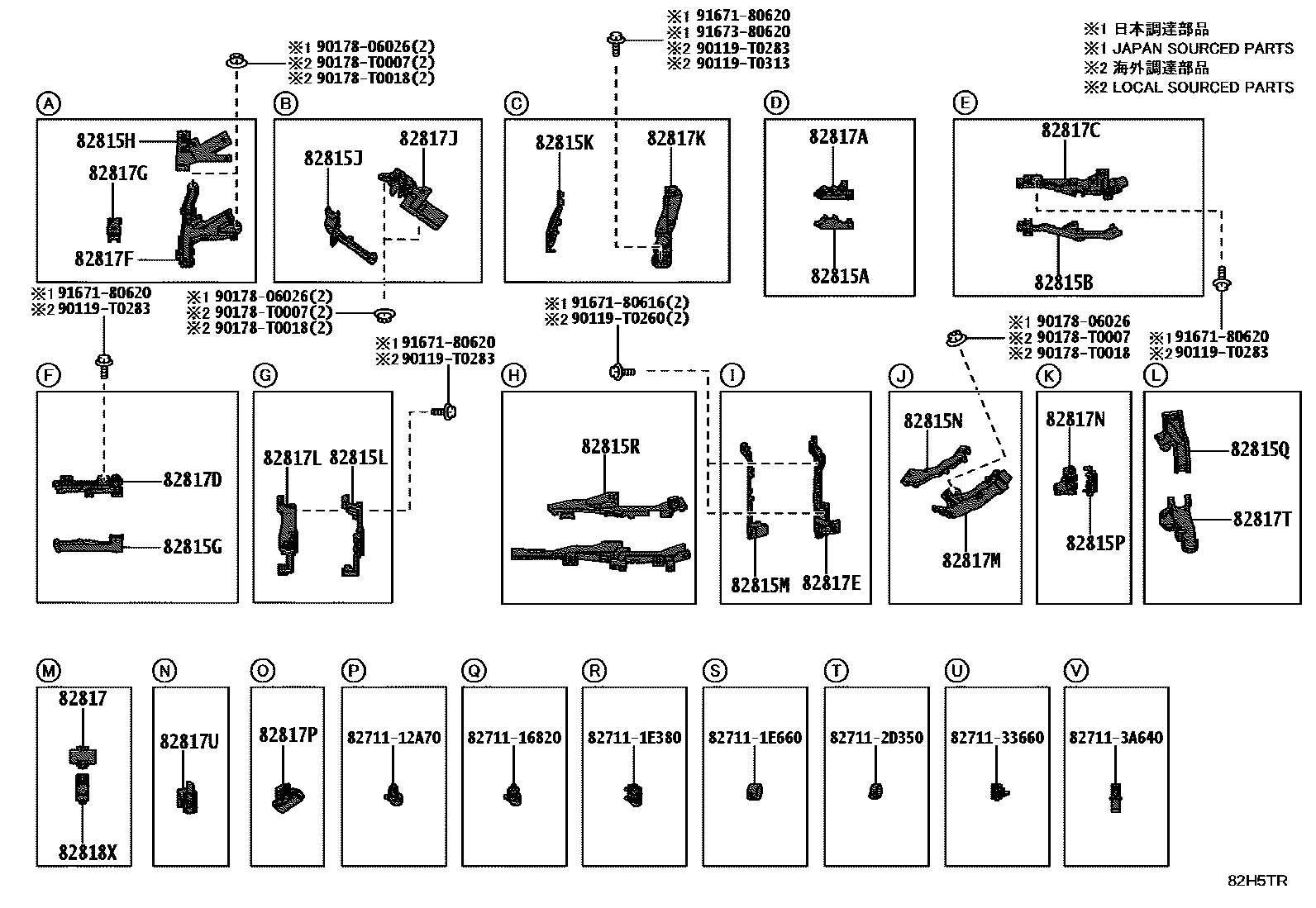

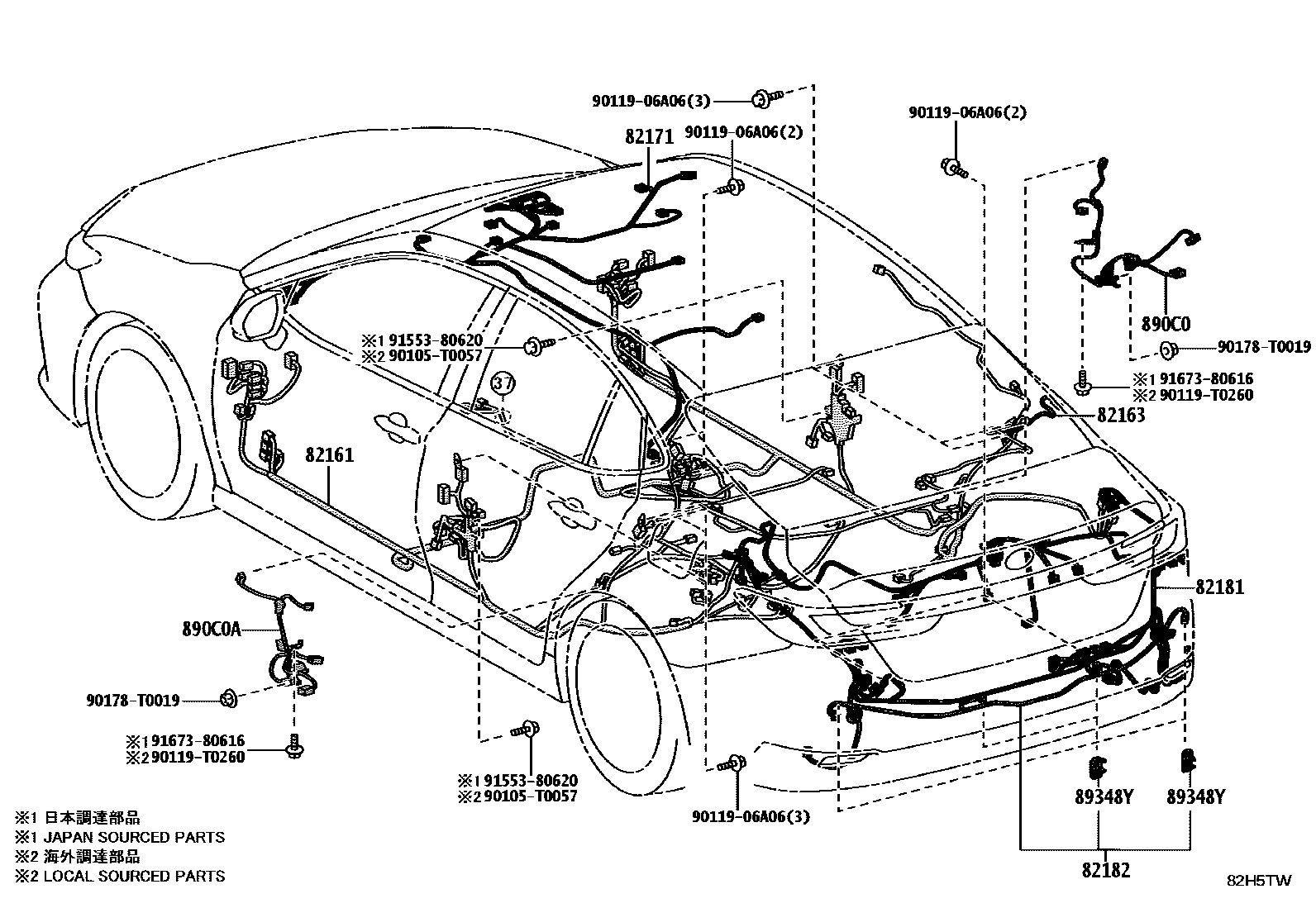

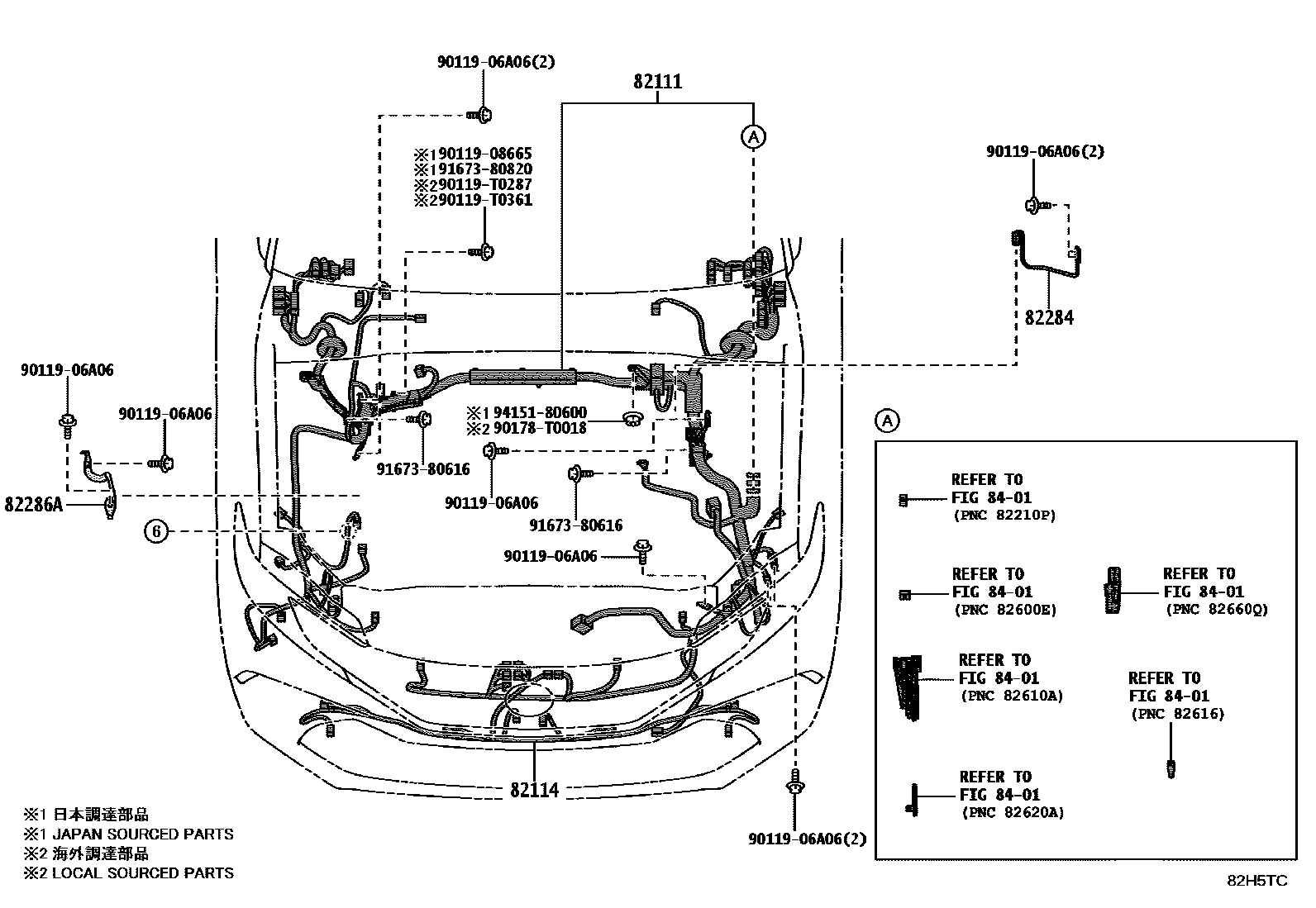

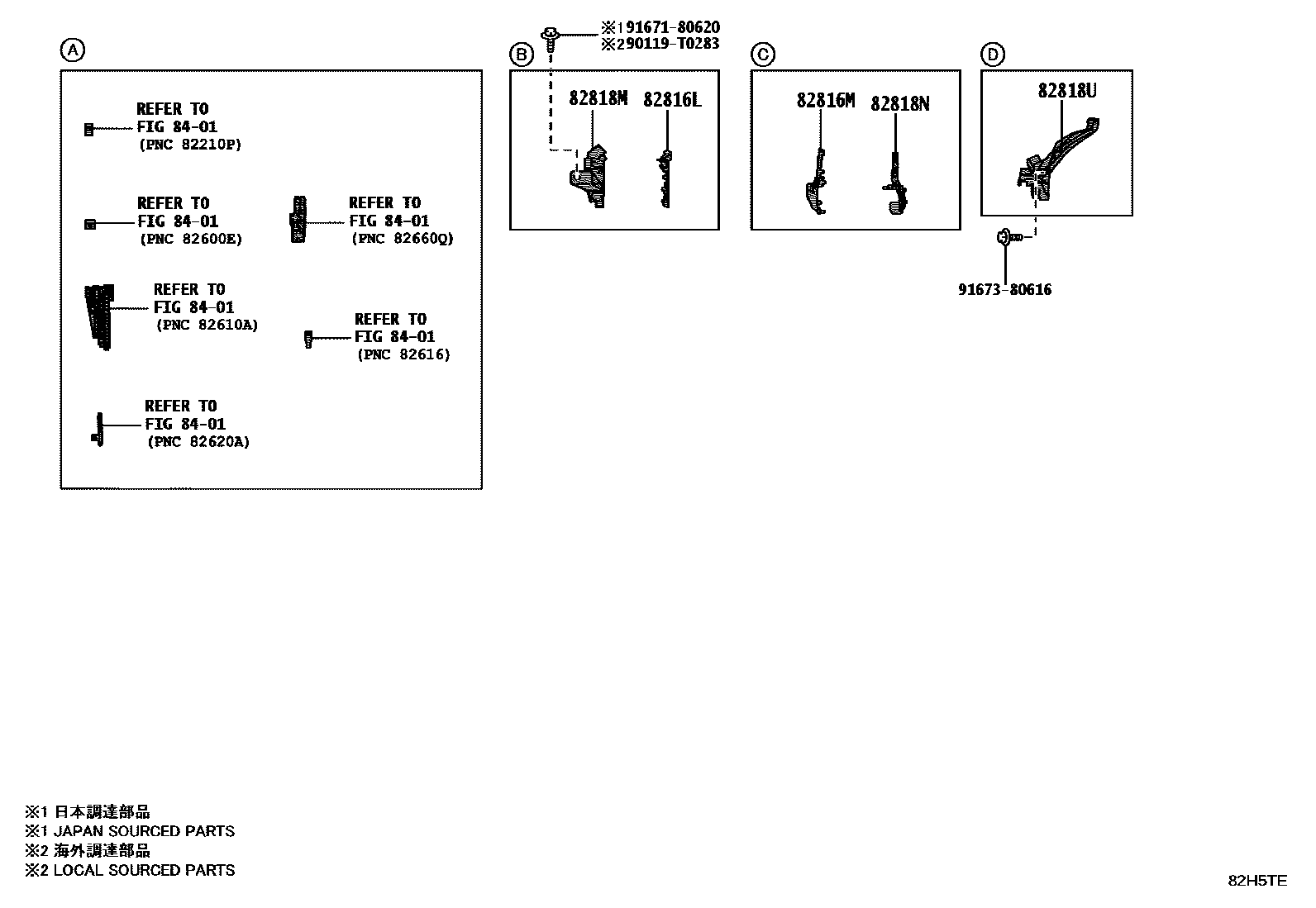

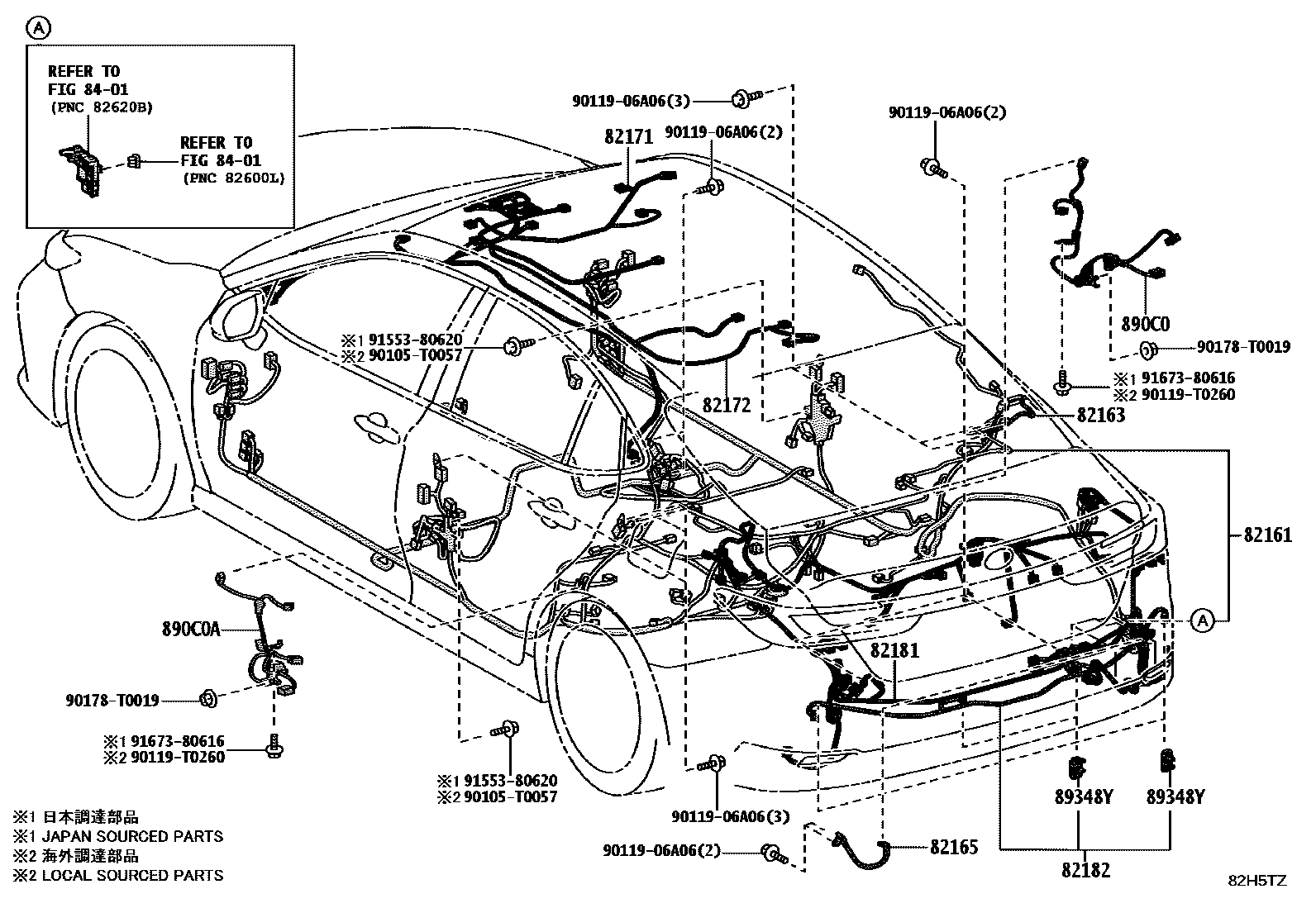

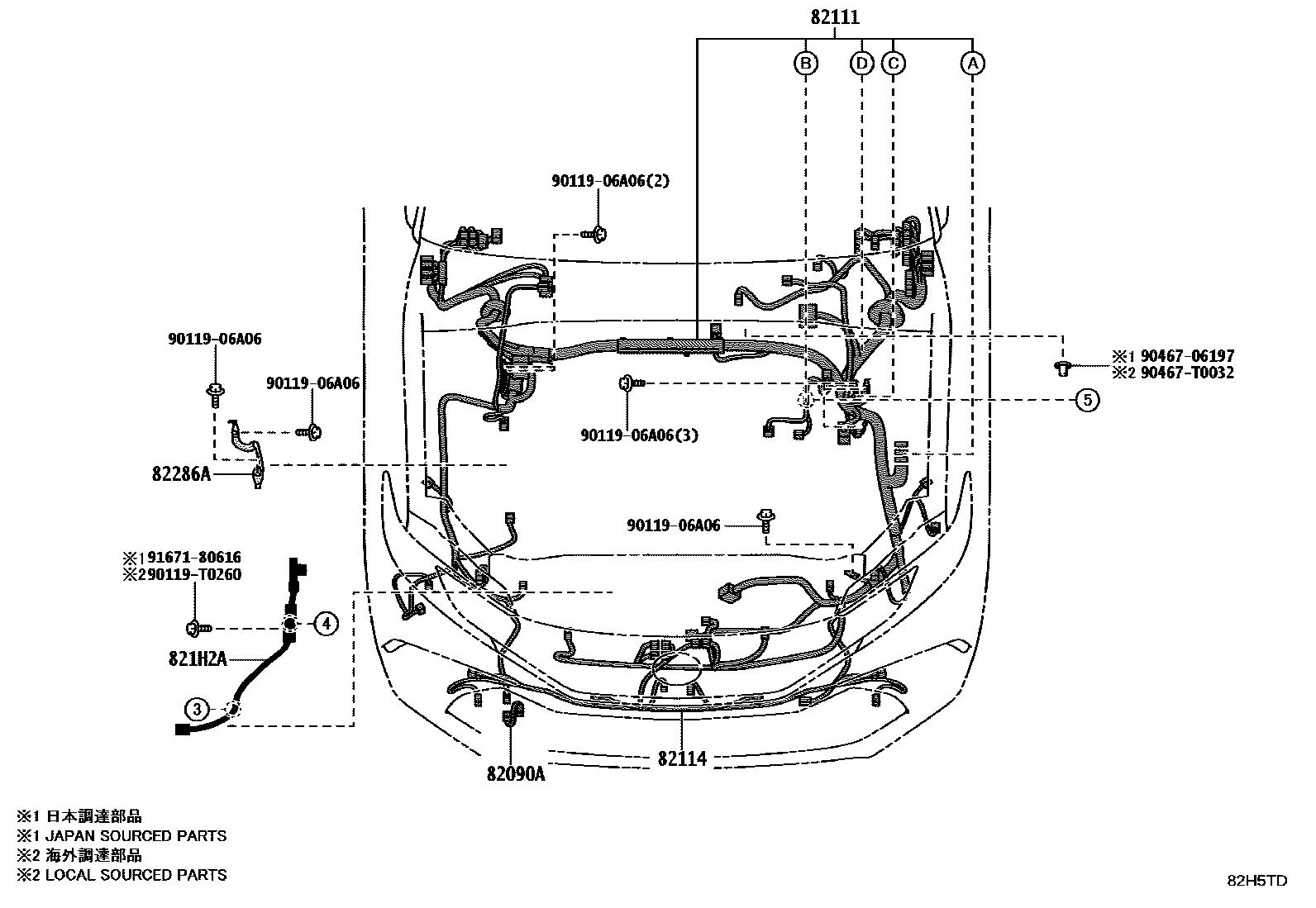

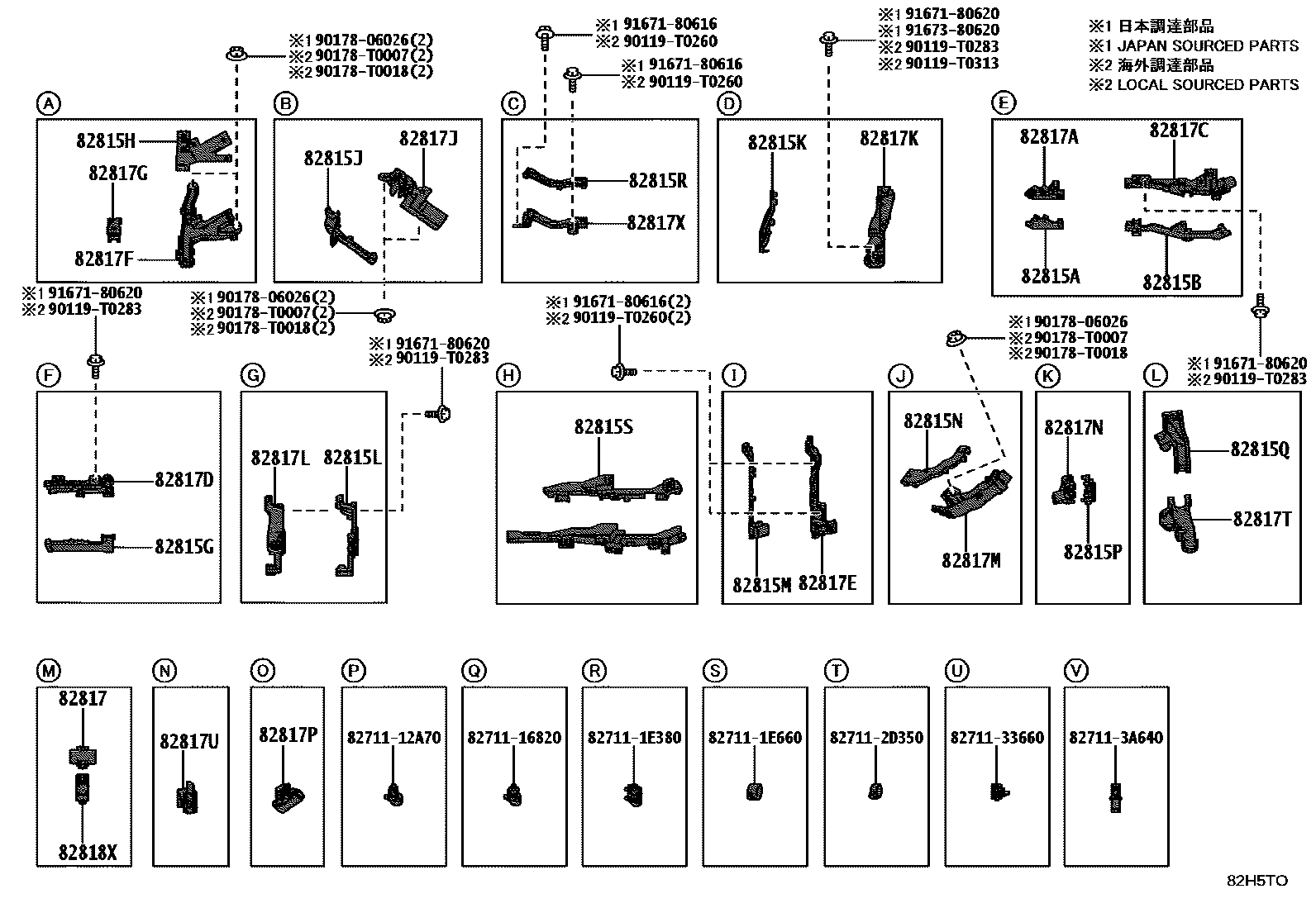

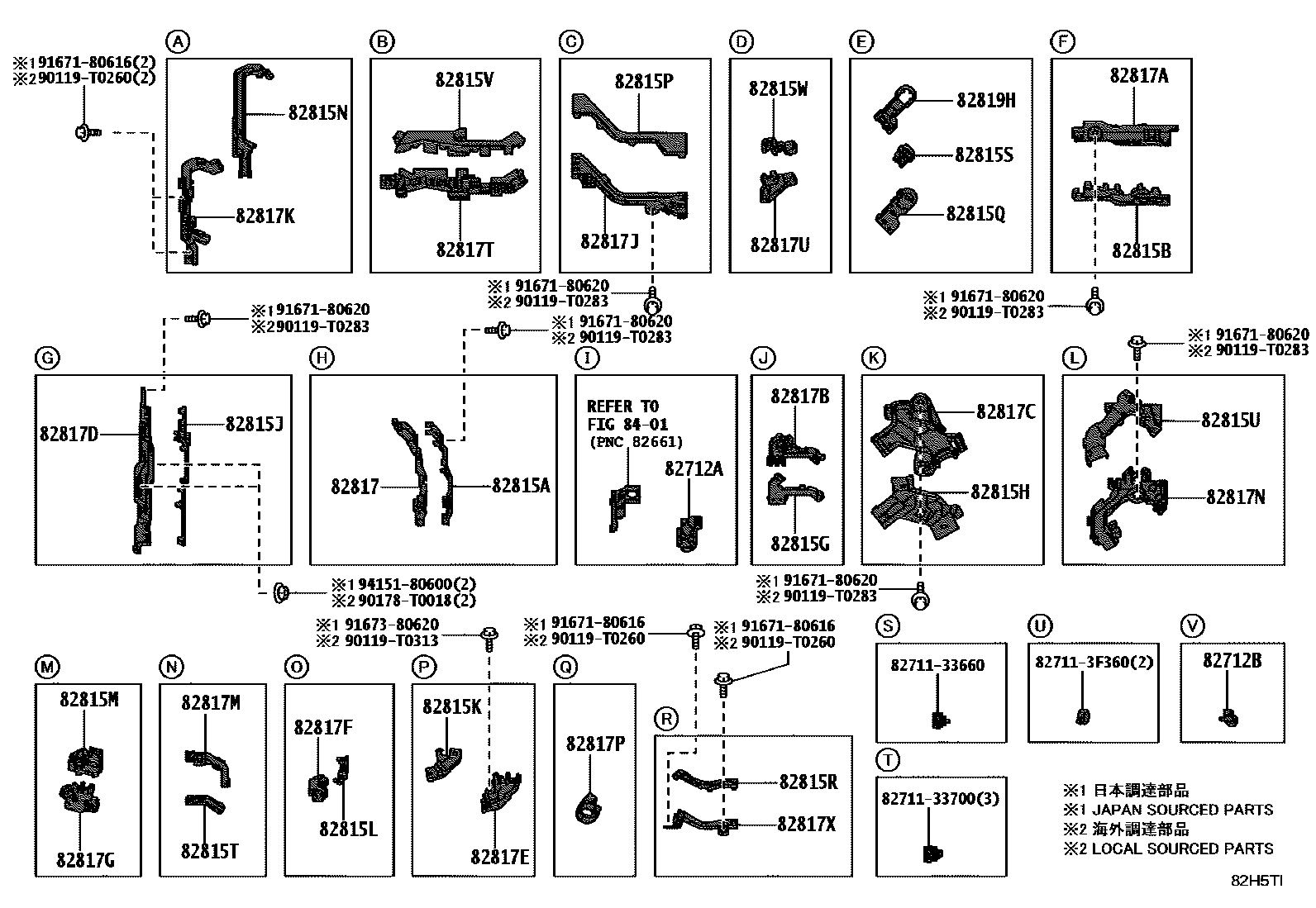

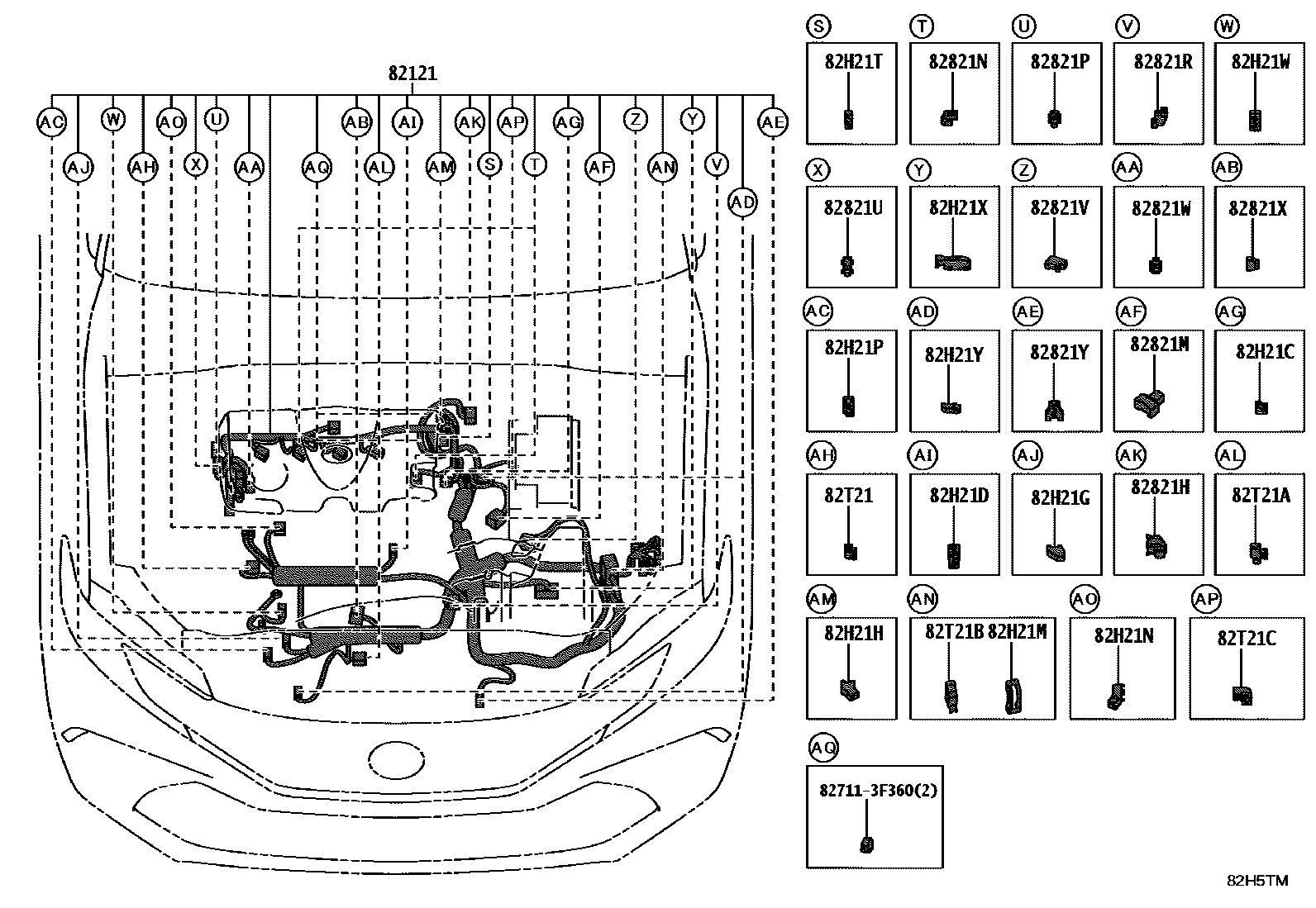

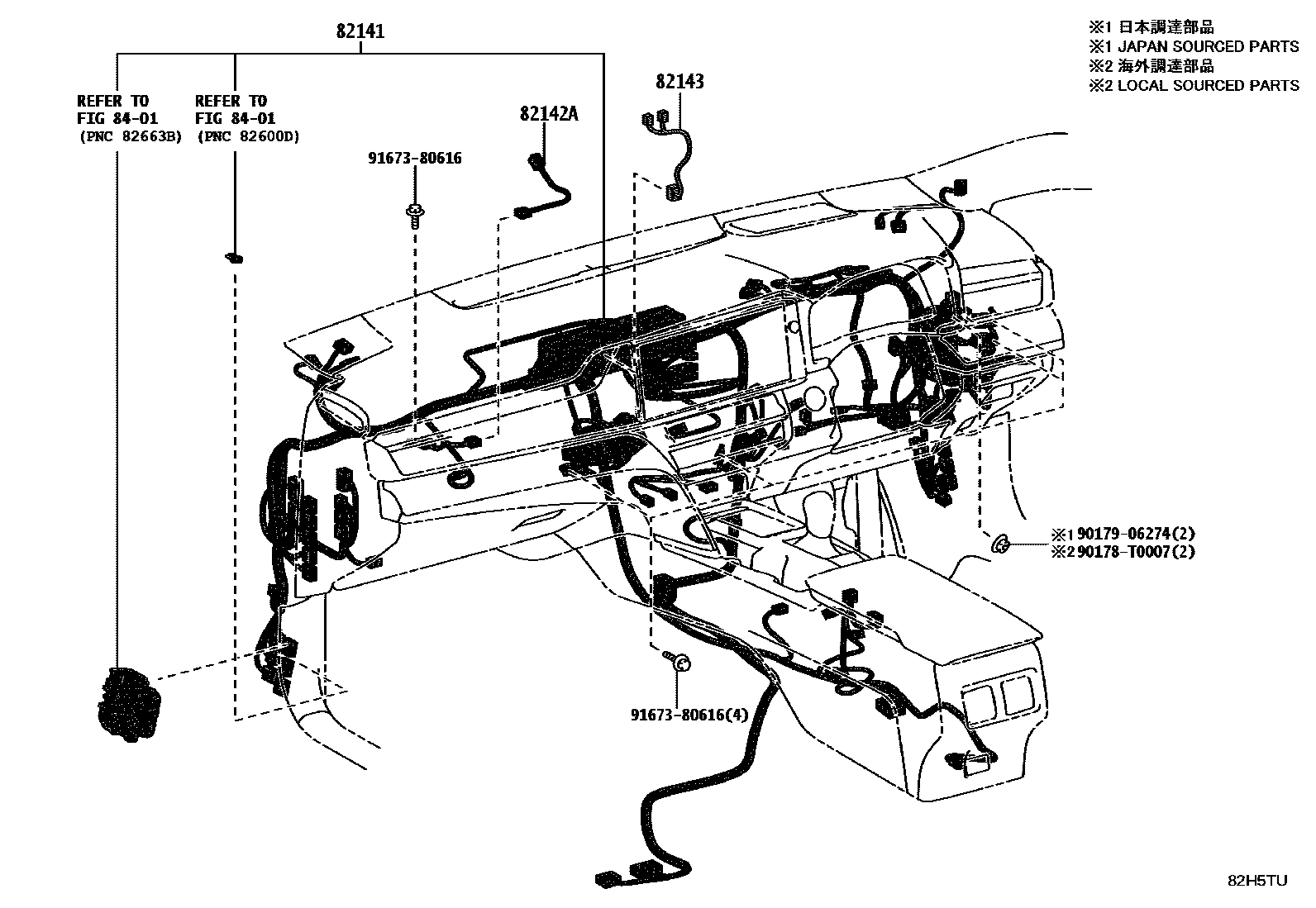

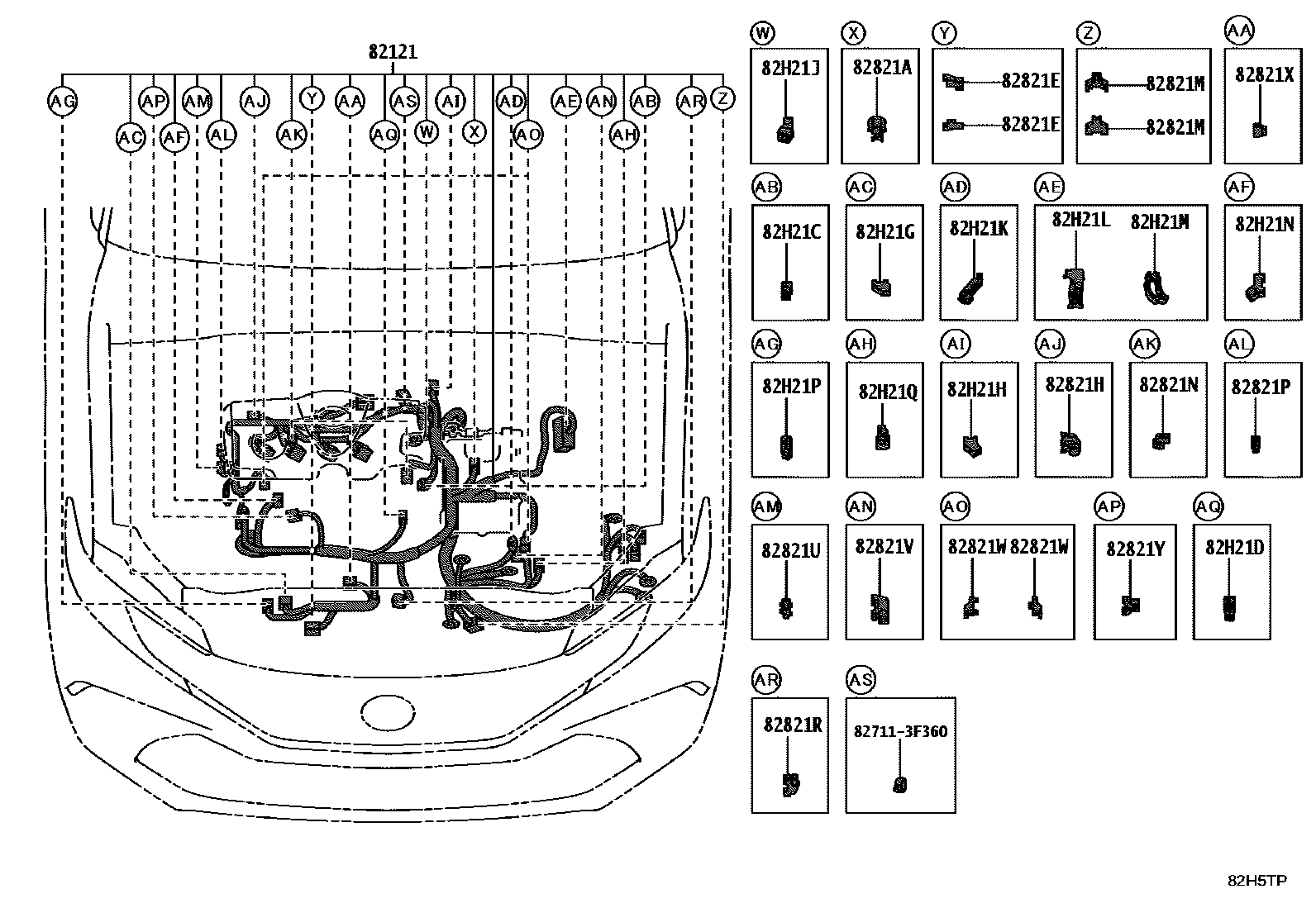

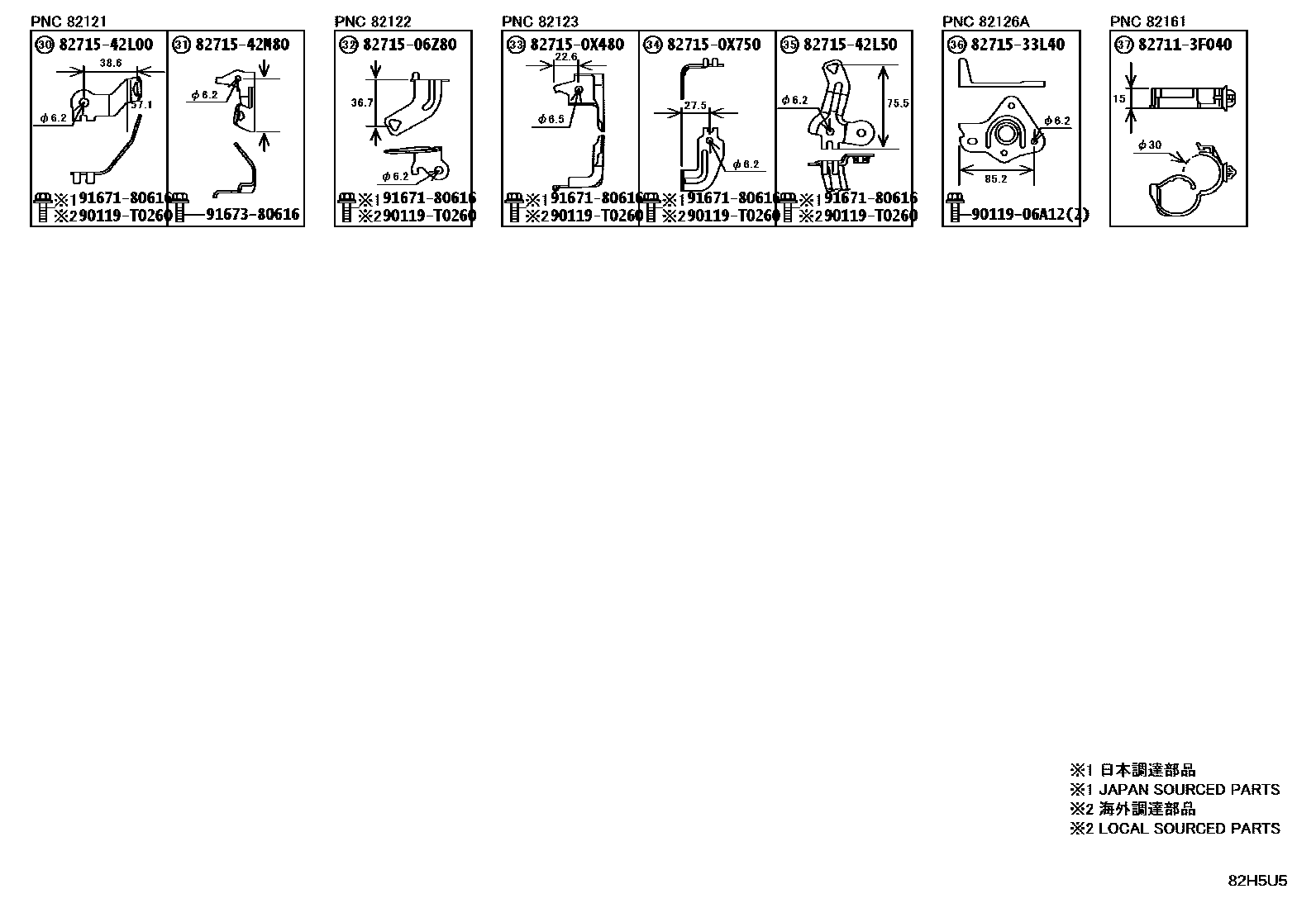

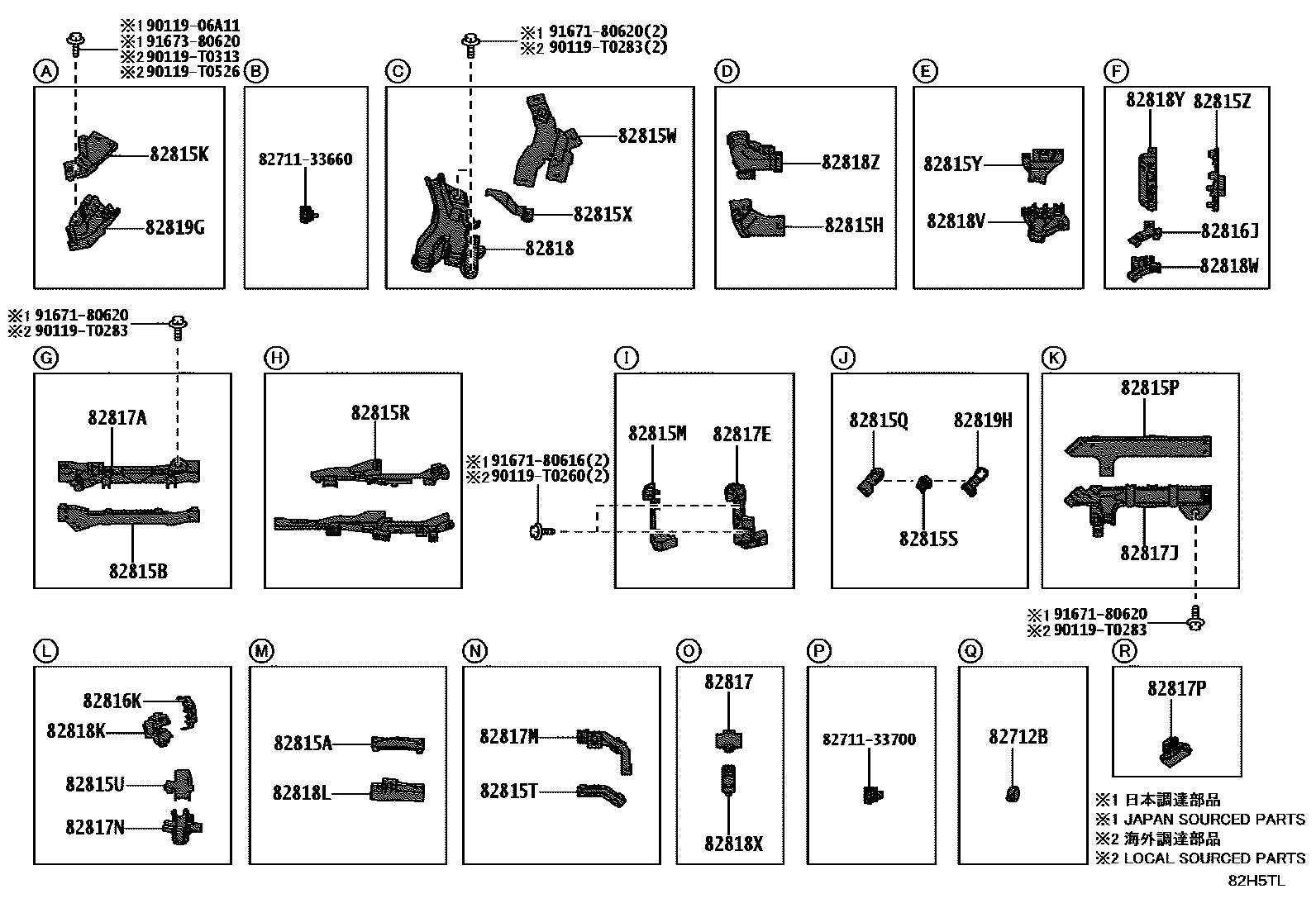

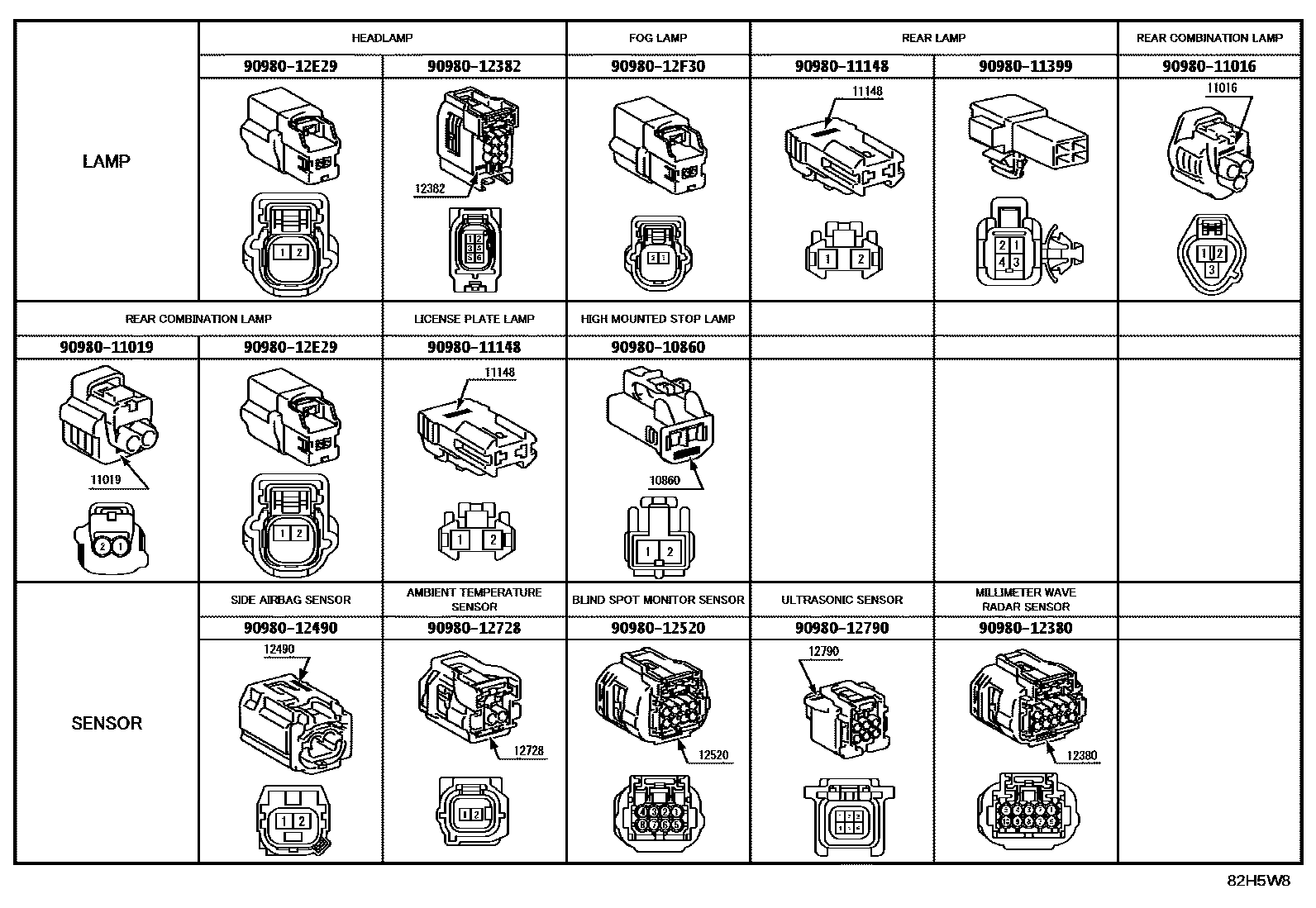

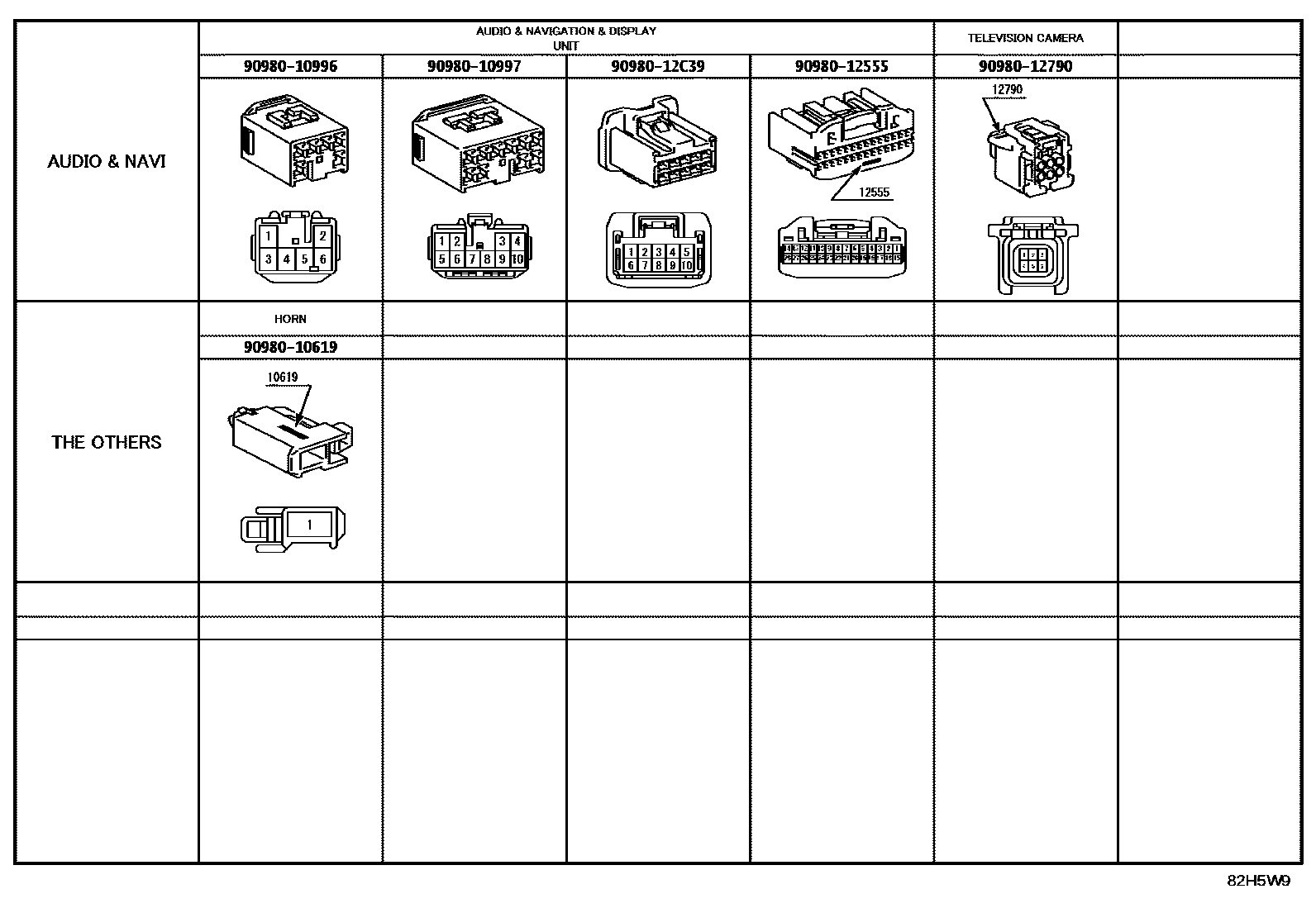

Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 33 images and 144 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82090A | Extension cord assembly | 82090-33030 |

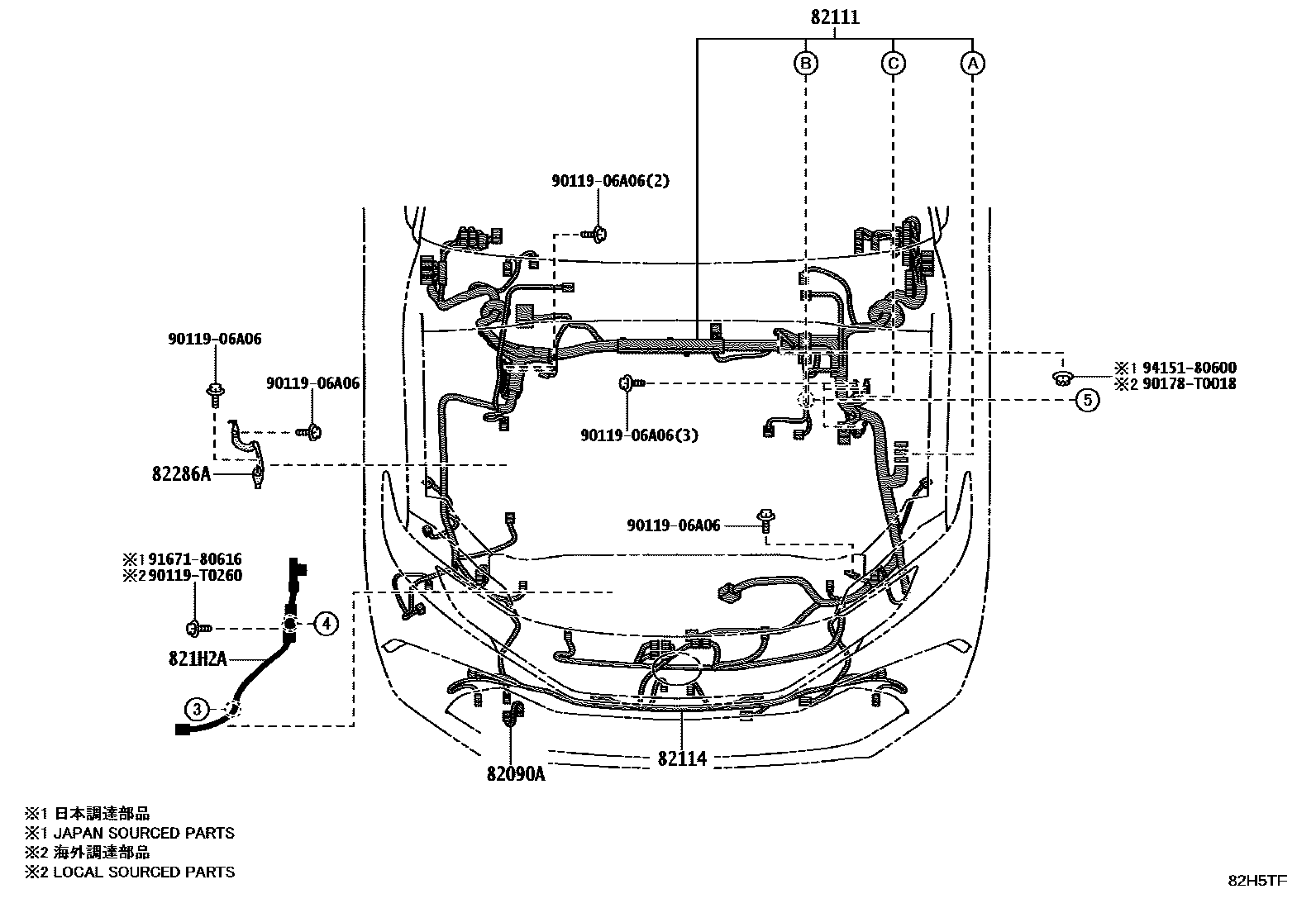

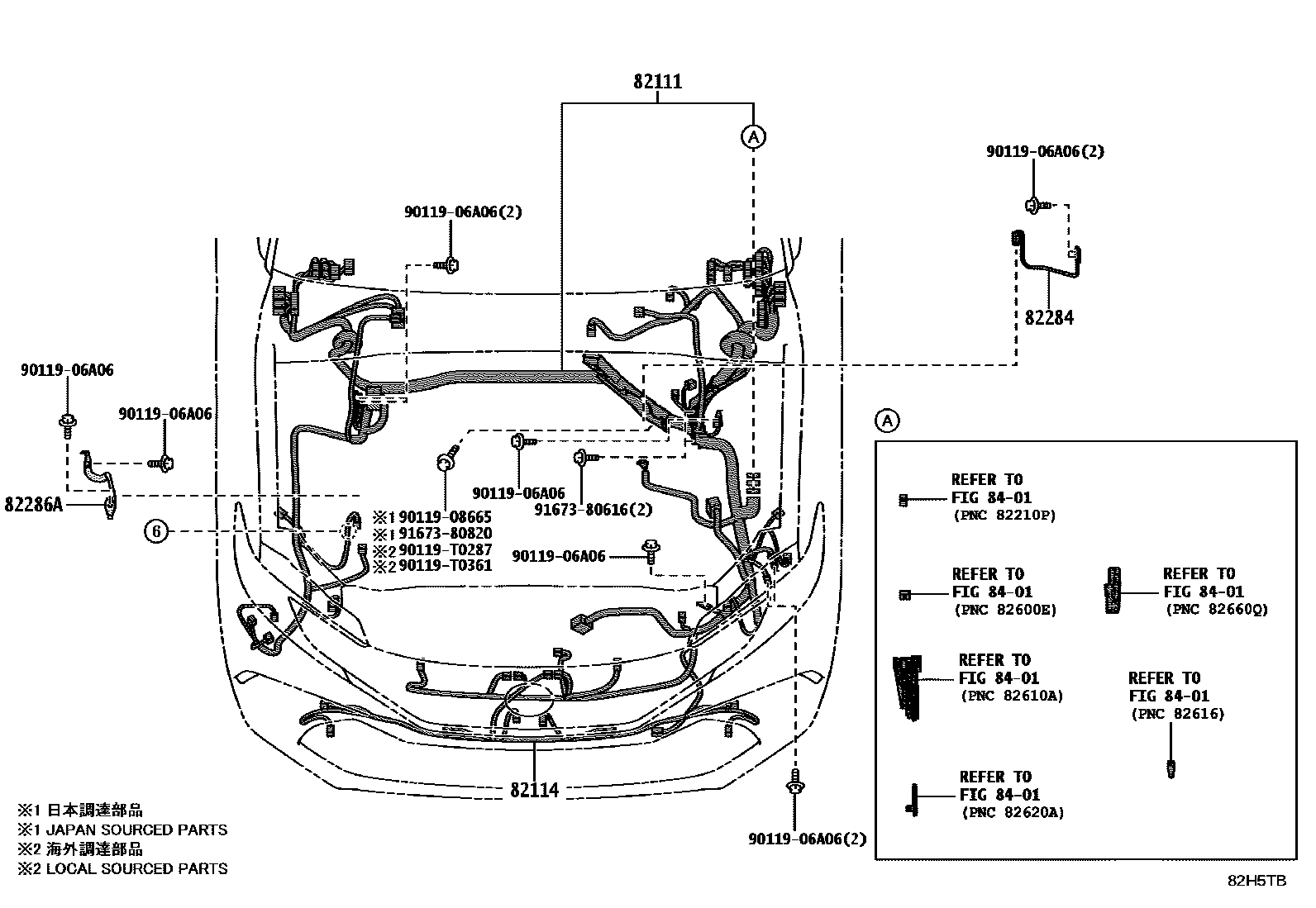

| 82111 | Engine room main wiring harness | 82115-06Z30 · 82115-06Z40 · 82116-06300 · 82116-06430 · 82116-06N40 · 82116-06N50 · 82116-06S00 · 82116-06S10 · 82116-06S20 · 82116-06S30 · 82116-06T00 · 82116-06T10 · 82116-06T20 · 82116-06T70 |
| 82114 | Engine room wiring harness No. 4 | 82114-06370 · 82114-06520 · 82114-06530 · 82114-06540 |

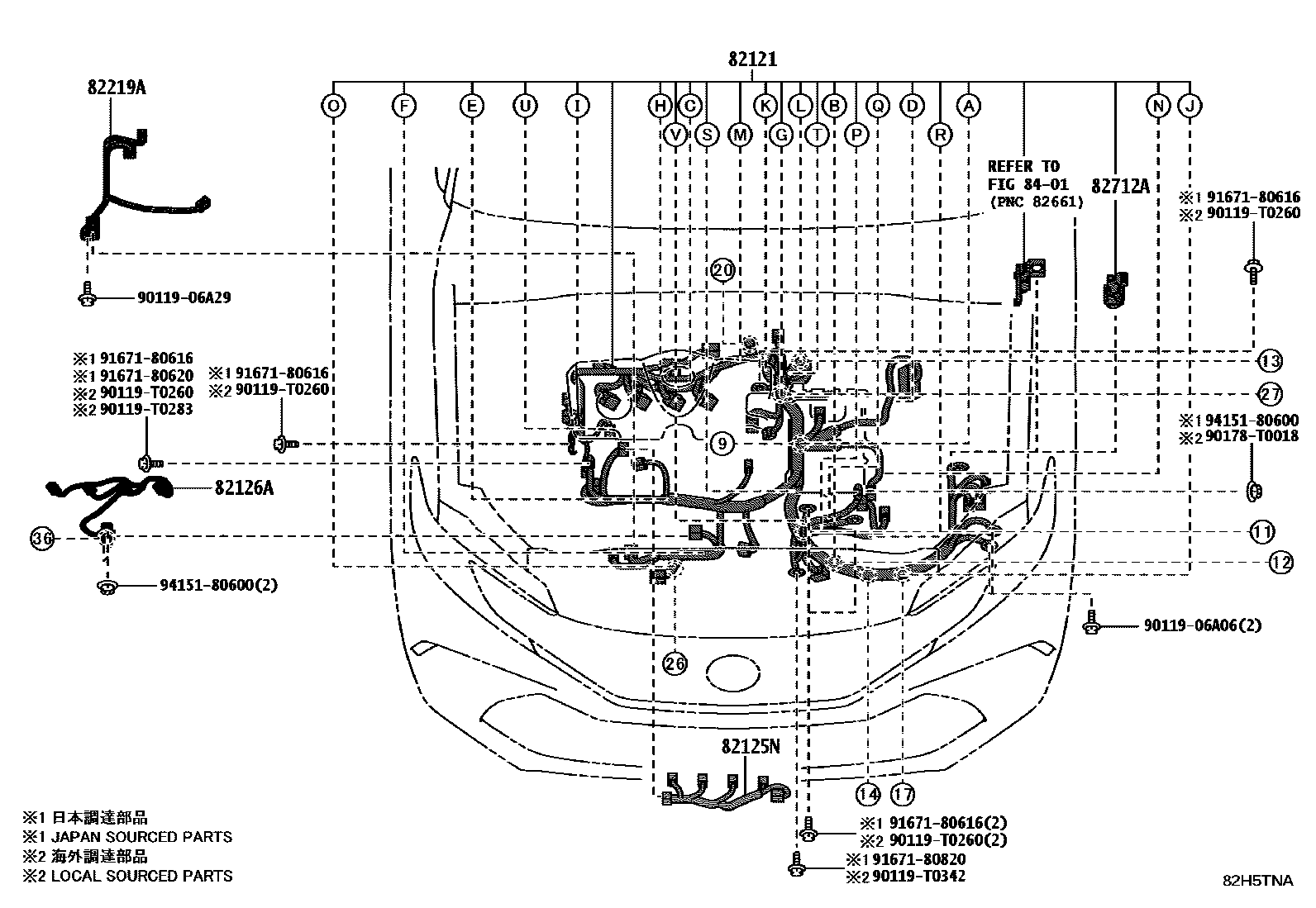

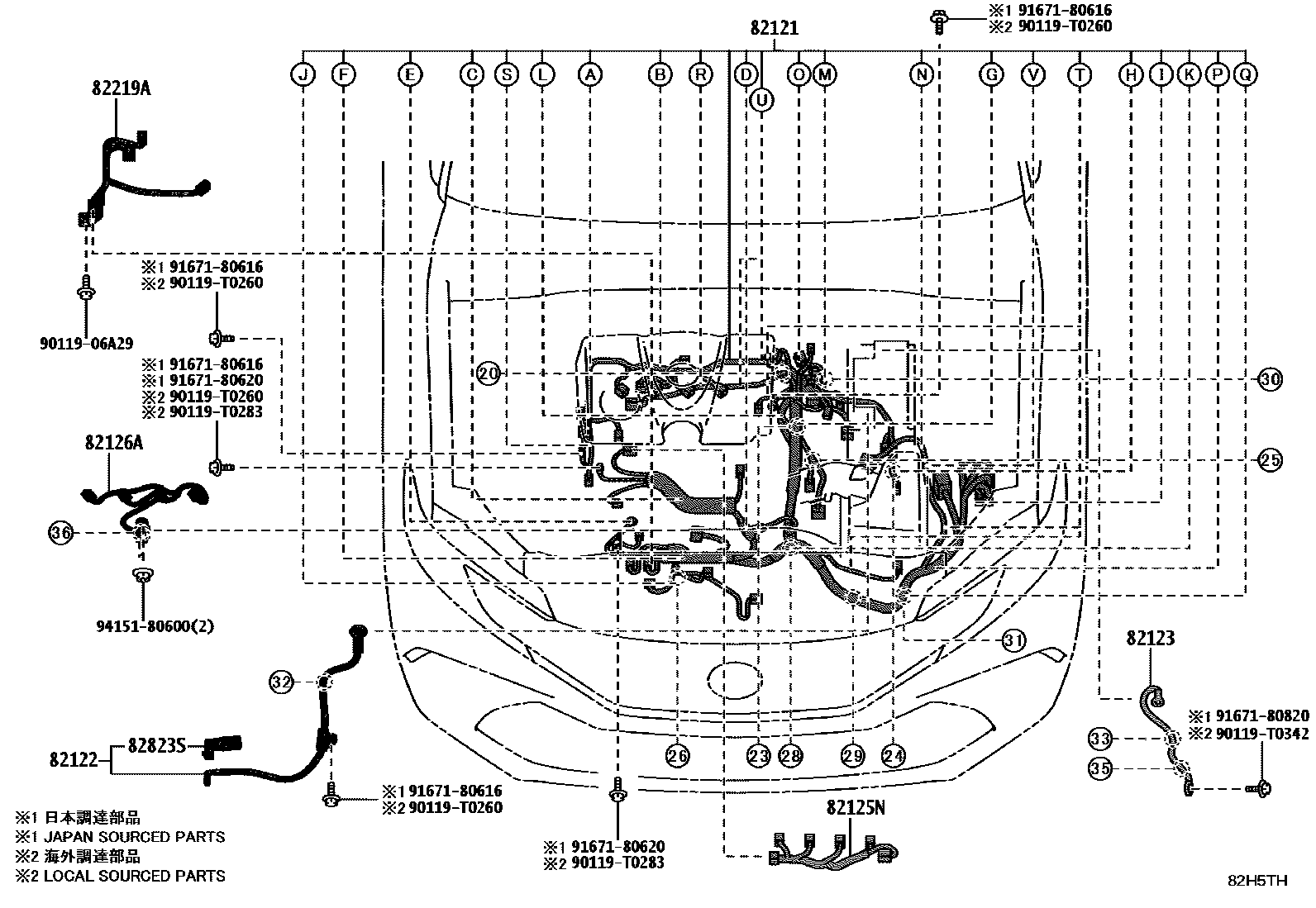

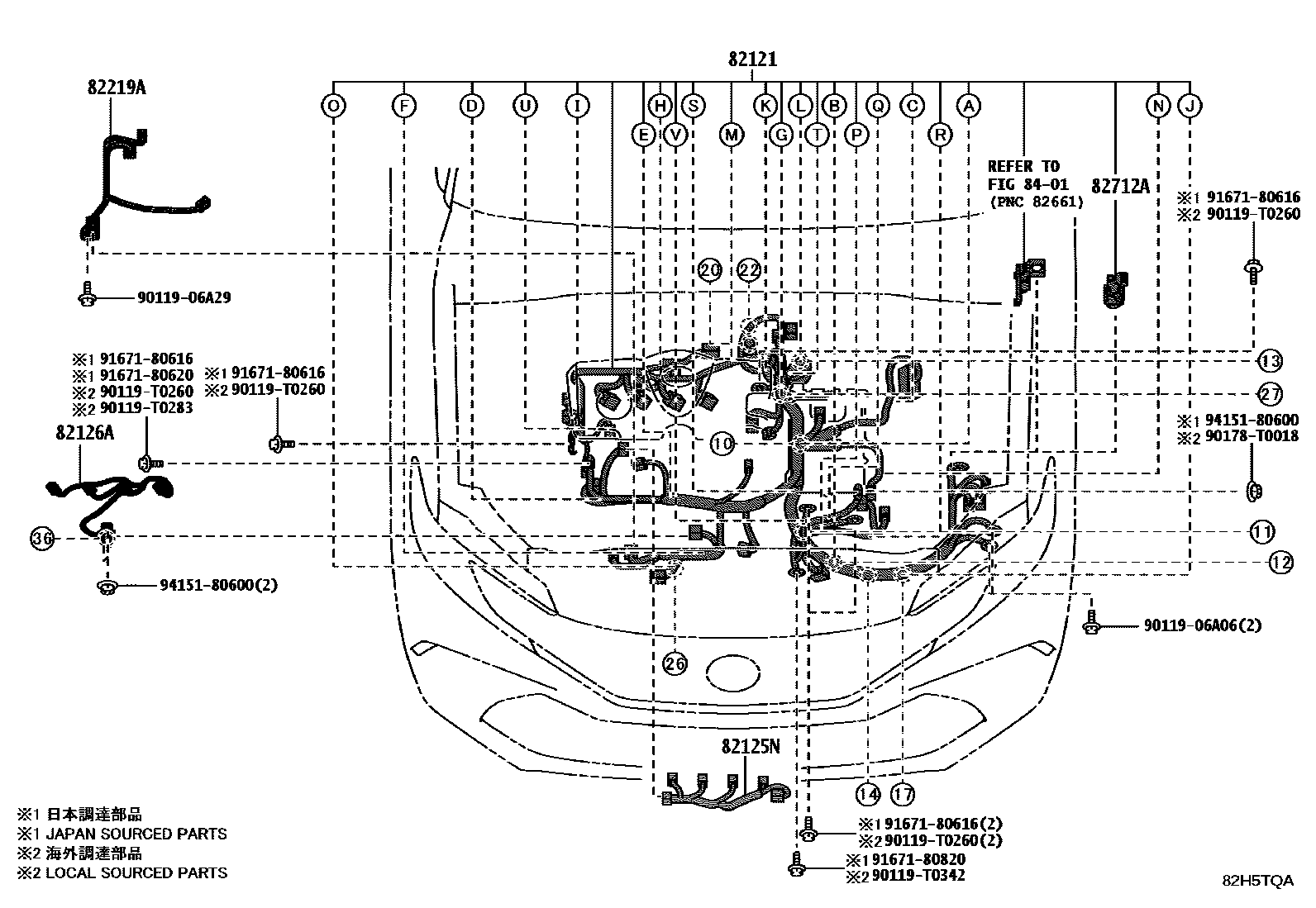

| 82121 | Engine wiring harness | 82121-06J30 · 82121-06S30 · 82121-06S40 · 82121-06S50 |
| 82122 | Engine No. 2 wiring harness | 82122-06370 · 82122-06460 |
| 82123 | Engine No. 3 wiring harness | 82123-06120 · 82123-06160 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 · 82125-33180 |
| 82126A | No. 6 engine wiring harness | 82126-12010 · 82126-33050 |

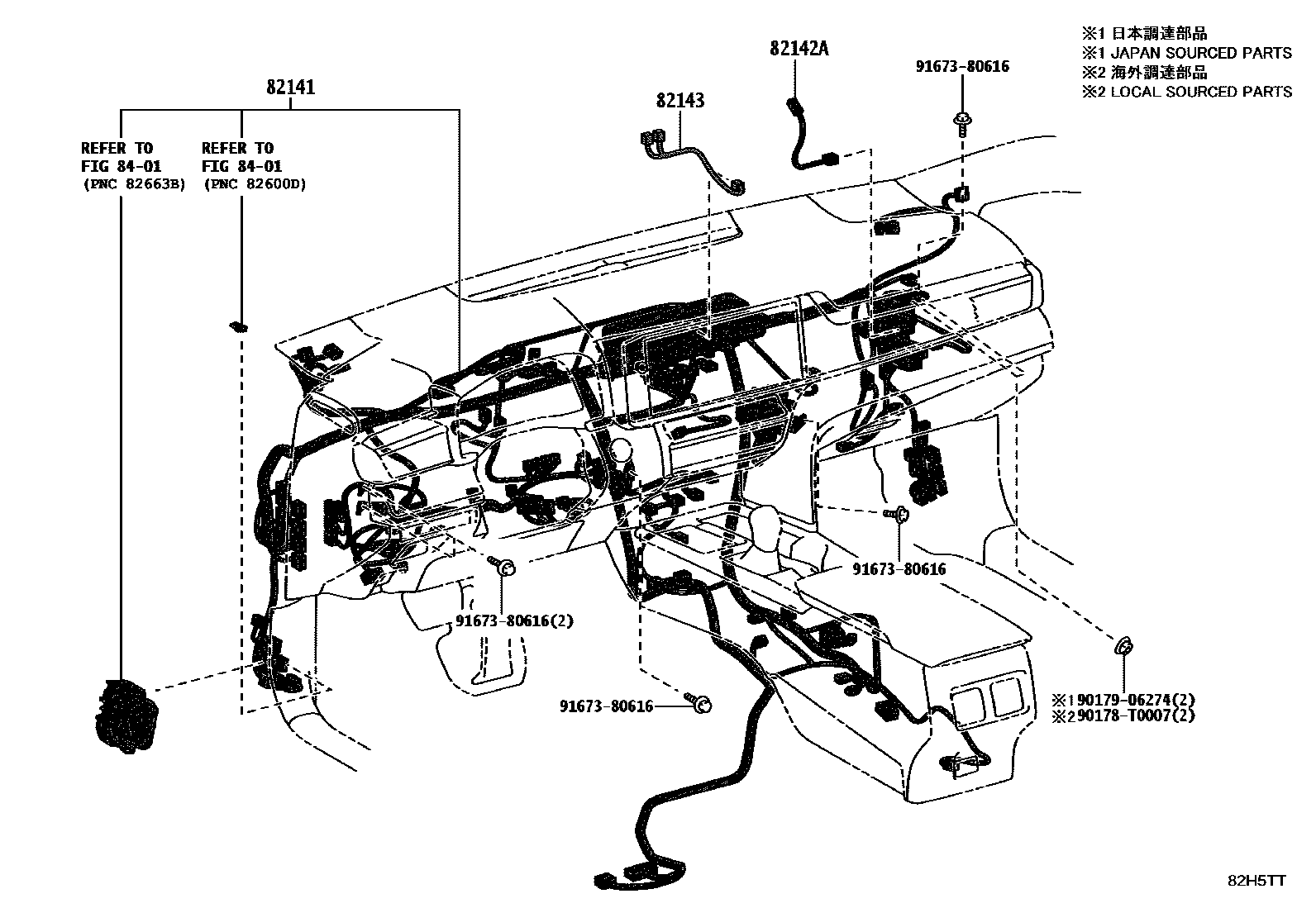

| 82141 | Dashboard wiring harness | 82145-06880 · 82146-06570 · 82146-06590 · 82146-06750 · 82146-06800 · 82146-06810 · 82146-06830 · 82146-06850 · 82146-06870 · 82146-06880 · 82146-06890 · 82146-06A10 · 82146-06A20 · 82146-06A40 · 82146-06A60 · 82146-06A70 · 82146-06A80 · 82146-06A90 · 82146-06B00 · 82146-06B10 · 82146-06B20 · 82146-06B30 · 82146-06B40 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-33092 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-06620 |

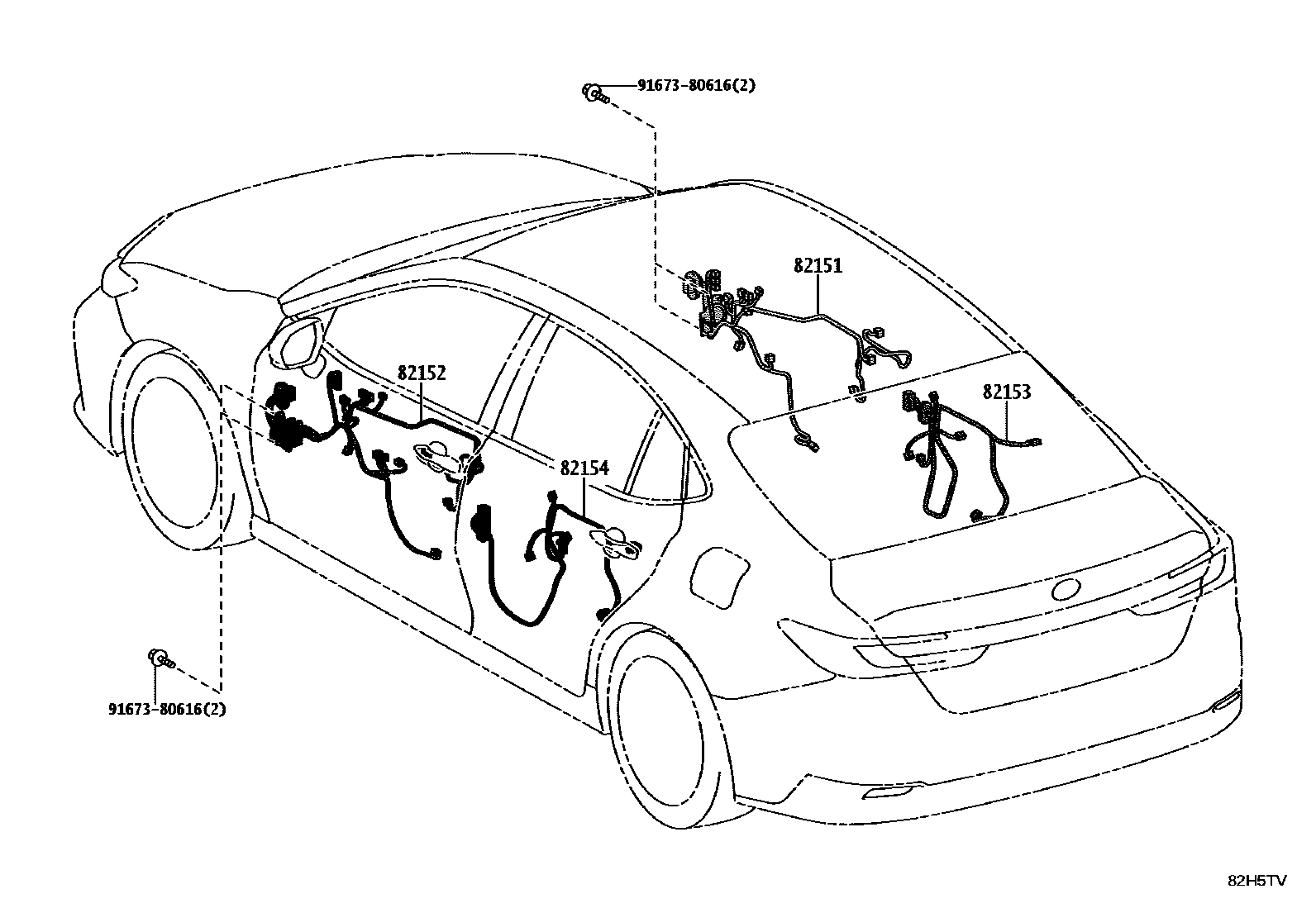

| 82151 | Right front door wiring harness | 82151-06M30 · 82151-06Y40 · 82151-06Y60 · 82151-06Z30 · 82151-06Z50 · 82151-06Z60 · 82151-06Z70 · 82151-0X010 |
| 82152 | Left front door wiring harness | 82152-06W80 · 82152-0X040 · 82152-0X060 · 82152-0X130 · 82152-0X150 · 82152-0X160 · 82152-0X170 · 82152-0X200 |
| 82153 | Rear door wiring harness No. 1 | 82153-06B50 |
| 82154 | Rear door wiring harness No. 2 | 82154-06B50 |

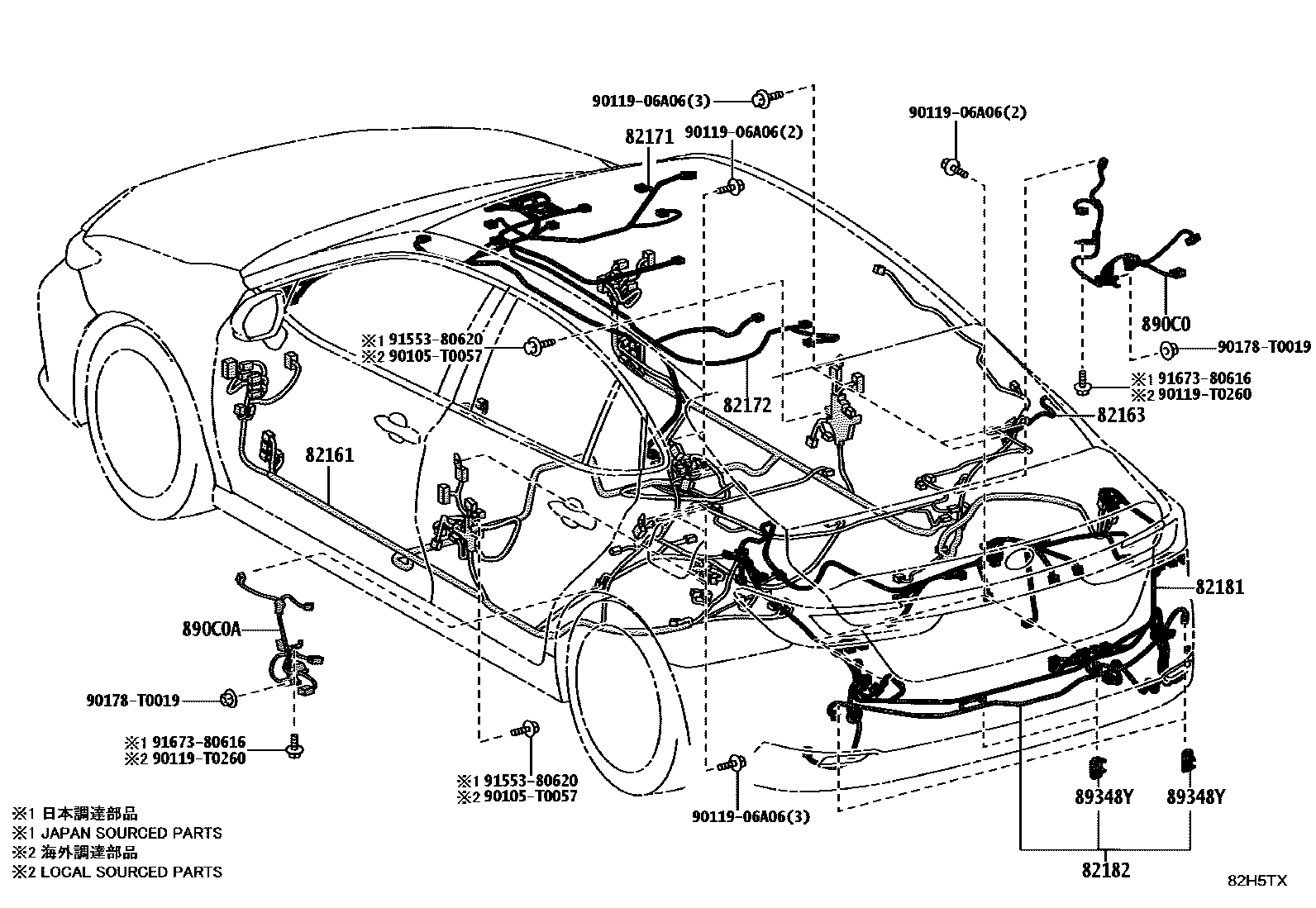

| 82161 | floor wiring harness | 82199-06W80 · 82199-06W90 · 82199-06X00 · 82199-06Y60 · 82199-06Y70 · 82199-06Y80 · 82199-06Y90 · 82199-06Z10 · 82199-06Z20 · 82199-06Z30 · 82199-06Z40 · 82199-06Z50 · 82199-06Z60 · 82199-06Z70 · 82199-06Z80 · 82199-0X020 · 82199-0X030 |
| 82163 | Floor wiring harness No. 3 | 82163-33140 |
| 82165 | No. 2 frame wiring harness | 82165-06150 |
| 82171 | Roof No. 1 wiring harness | 82171-0X580 · 82171-0XA50 · 82171-0XA60 · 82171-0XA90 · 82171-0XB10 · 82171-0XB30 · 82171-0XB40 |
| 82172 | Roof No. 2 wiring harness | 82172-33040 |
| 82176 | Rear armrest box wiring harness | 82176-06030 |
| 82181 | Luggage No. 1 wiring harness | 82181-06Z70 · 82181-0X300 · 82181-0X720 · 82181-0X740 · 82181-0X750 · 82181-0X790 · 82181-0X810 · 82181-0X820 · 82181-0X830 |
| 82182 | Luggage No. 2 wiring harness | 82182-06770 |

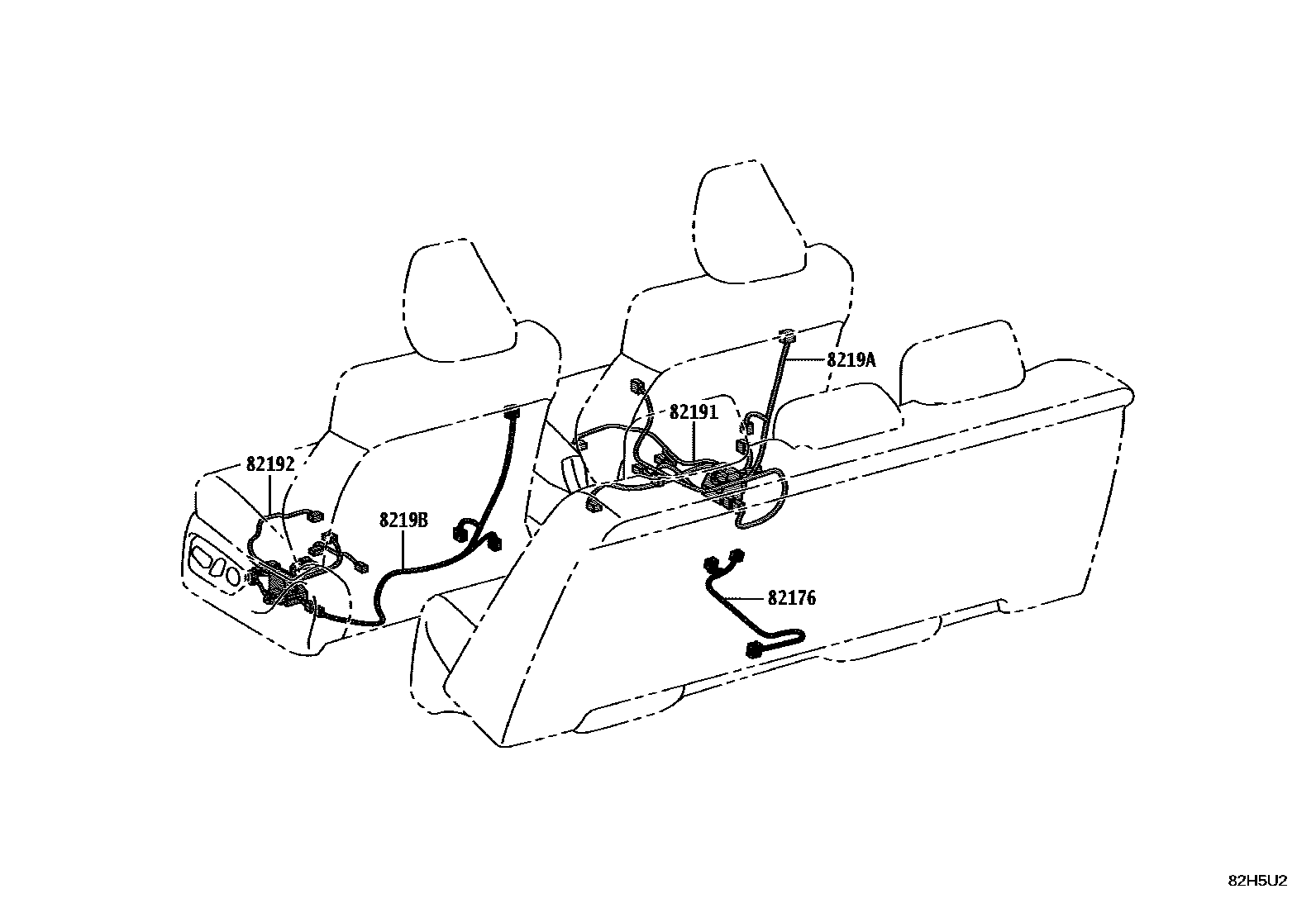

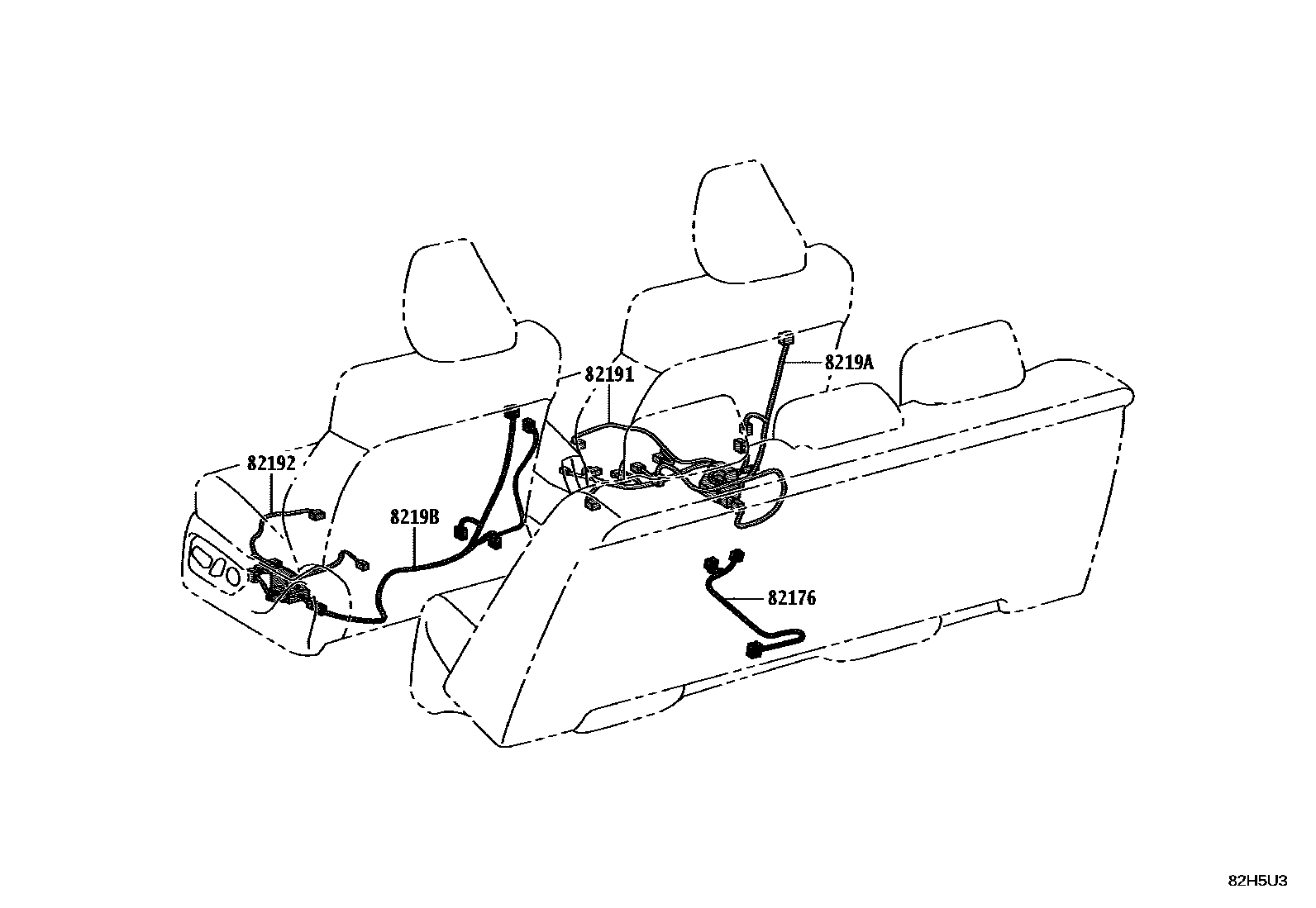

| 82191 | Front right seat wiring harness | 82191-06A60 · 82191-06A70 · 82191-06B10 · 82191-06B20 |
| 82192 | Front left seat wiring harness | 82192-06A00 · 82192-06A10 · 82192-06A60 · 82192-06A70 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-06510 · 8219A-06520 · 8219A-06530 · 8219A-06540 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-06530 · 8219B-06540 · 8219B-06550 · 8219B-06560 |

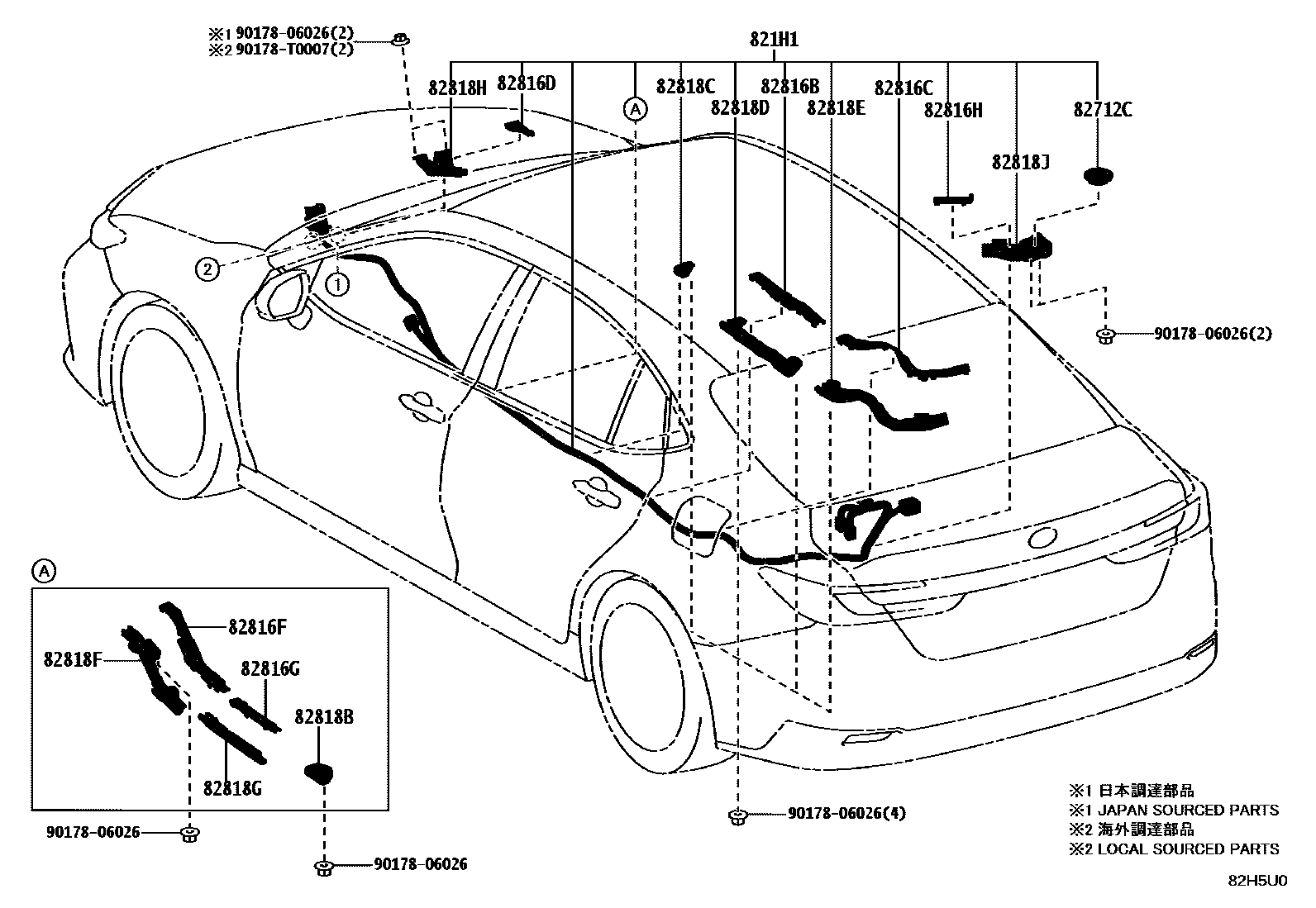

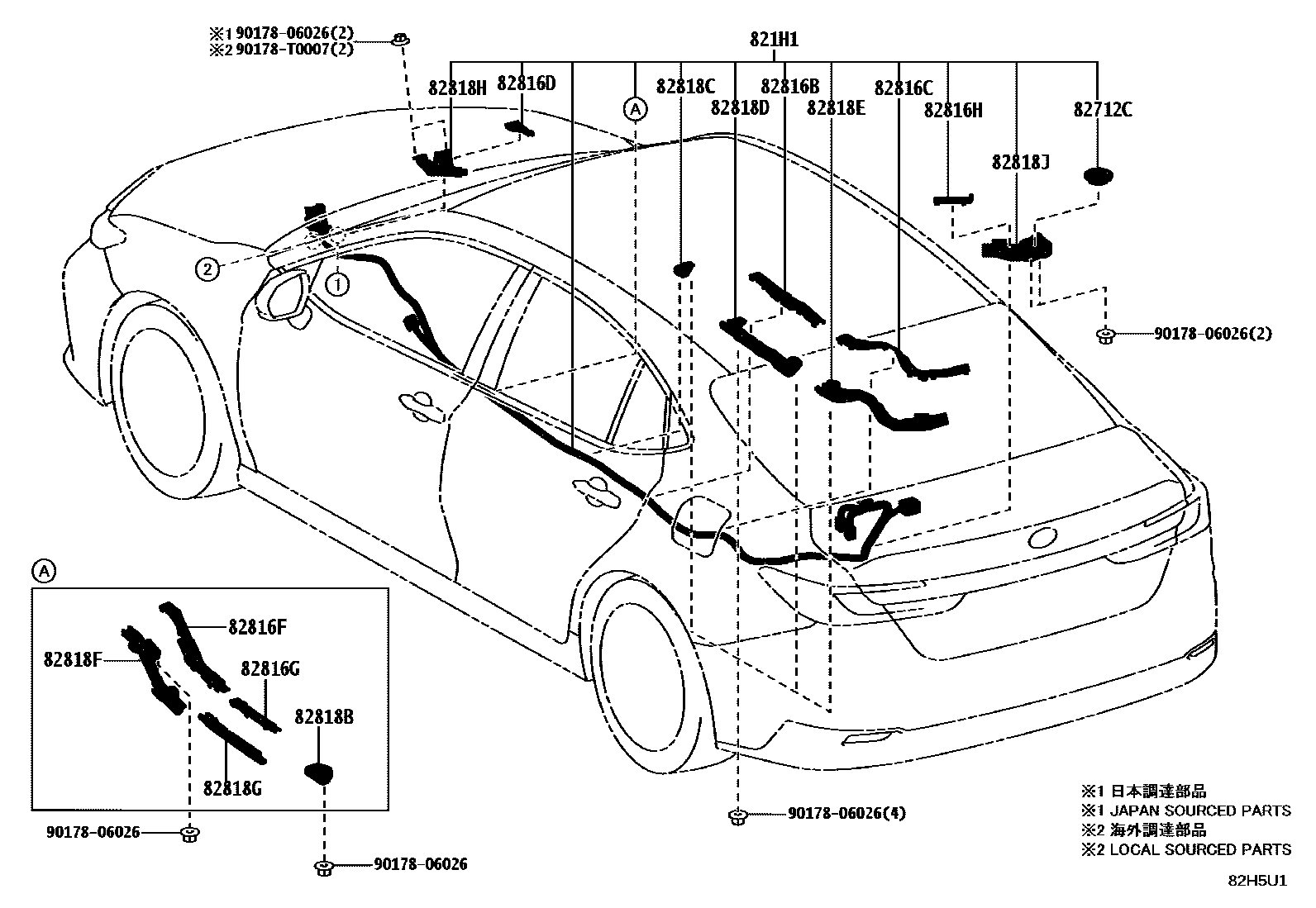

| 821H1 | Underfloor wiring harness | 821H1-06120 |
| 821H2A | CABLE, CLIMATISATION HAUTE TENSION | 821H2-33040 |
| 82219A | sensor harness | 82219-33141 · 82219-76020 |
| 82284 | Ground wire | 82284-33140 |
| 82286A | Line 2 | 82286-33020 |

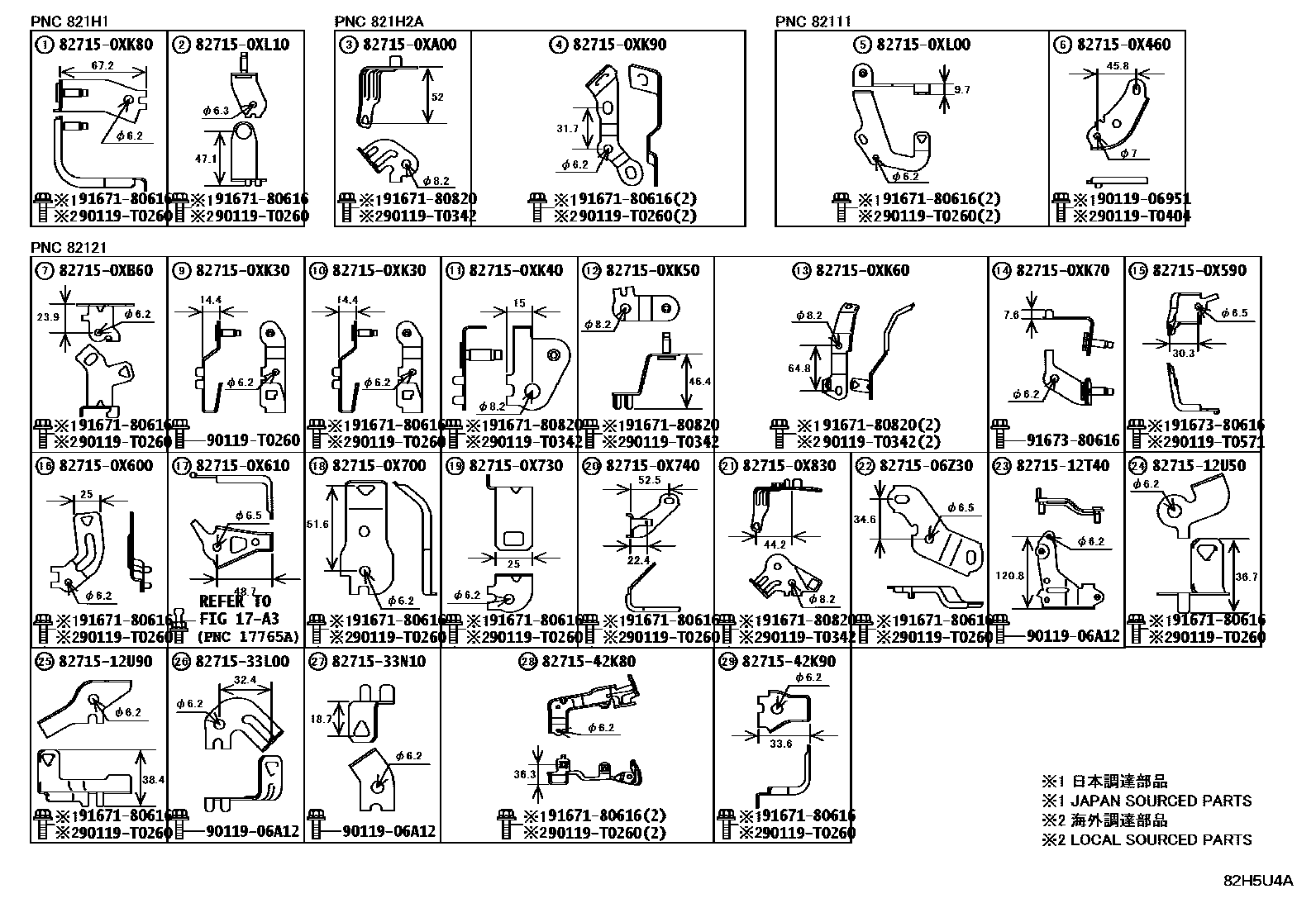

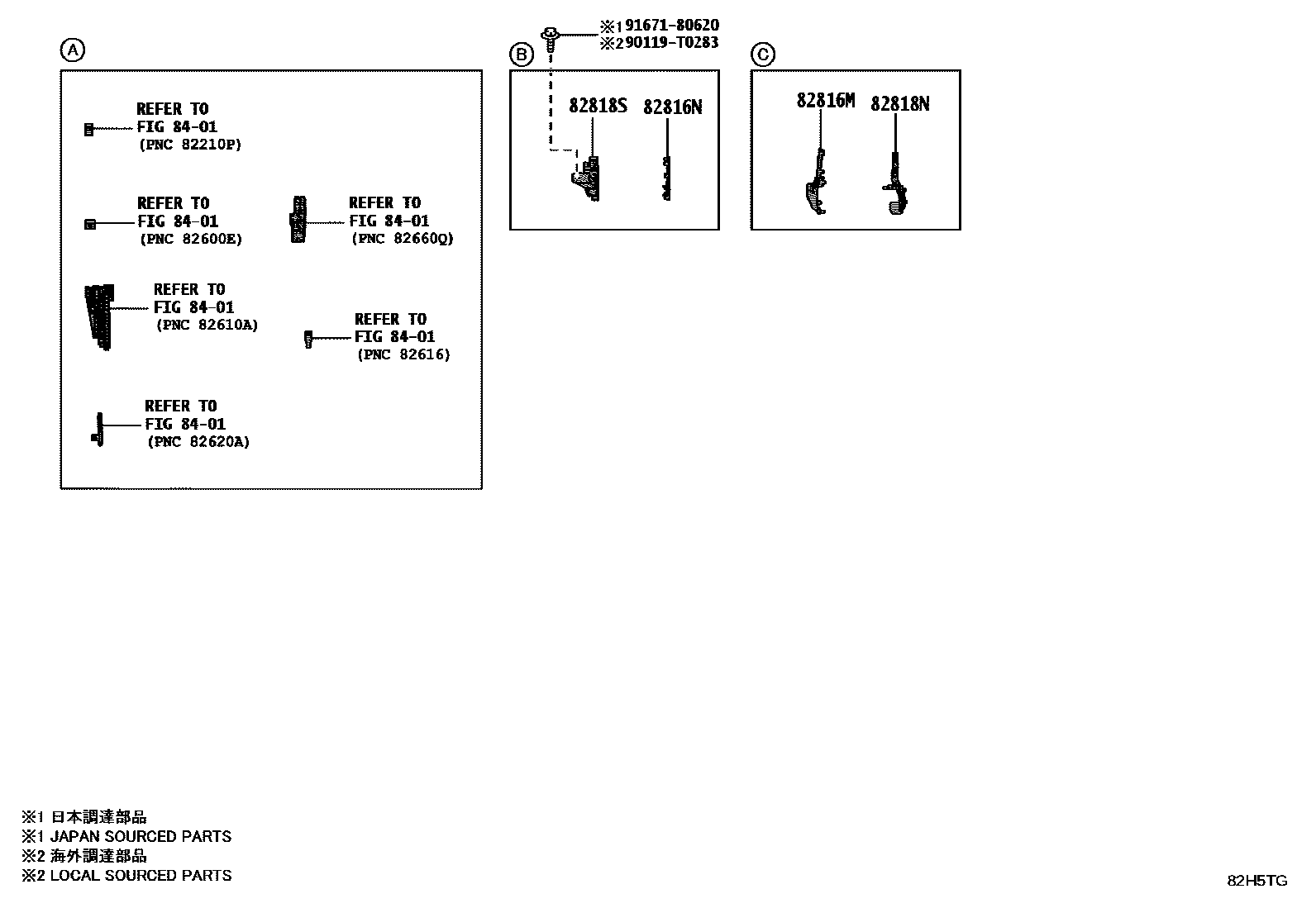

| 82712A | Wire harness bracket | 82712-33160 |
| 82712B | Wire harness bracket | 82712-47450 |
| 82712C | No. 1 wiring harness bracket | 82712-16040 |
| 82815A | Wiring harness protector cover | 82815-06100 · 82815-0R110 · 82815-33K60 |
| 82815B | Wiring harness protector cover | 82815-0R130 · 82815-0R290 · 82815-33G80 |
| 82815G | No. 5 wire harness protector cover | 82815-0R160 · 82815-0R330 |
| 82815H | No. 6 wire harness protector cover | 82815-0R170 · 82815-33D10 · 82815-33F20 |
| 82815J | No. 7 wire harness protector cover | 82815-0R180 · 82815-33D90 |
| 82815K | No. 8 wire harness protector cover | 82815-0R190 · 82815-33C60 · 82815-33F00 |
| 82815L | No. 9 wire harness protector cover | 82815-0R200 · 82815-33G70 |
| 82815M | No. 10 wire harness protector cover | 82815-0R210 · 82815-33J00 |
| 82815N | No. 11 wire harness protector cover | 82815-12B00 · 82815-33K00 |
| 82815P | No. 12 wire harness protector cover | 82815-12D80 · 82815-33J50 · 82815-33L30 |
| 82815Q | No. 13 wire harness protector cover | 82815-33J10 · 82815-33R10 |
| 82815R | No. 14 wire harness protector cover | 82815-33E80 · 82815-33G90 |
| 82815S | No. 15 wire harness protector cover | 82815-33G90 · 82815-33K90 |
| 82815T | No. 16 wire harness protector cover | 82815-33N00 |
| 82815U | No. 17 wire harness protector cover | 82815-33J80 · 82815-42C70 |
| 82815V | No. 1 wire harness protector cover | 82815-F4550 |
| 82815W | No. 2 wire harness protector cover | 82815-33F10 · 82815-F4570 |
| 82815X | No. 3 wire harness protector cover | 82815-33L60 |
| 82815Y | No. 4 wire harness protector cover | 82815-33F30 |
| 82815Z | No. 18 wire harness protector cover | 82815-33F40 |
| 82816B | No. 1 wire harness protector cover | 82815-33A60 |
| 82816C | No. 2 wire harness protector cover | 82815-33A70 |
| 82816D | No. 3 wire harness protector cover | 82815-33L20 |
| 82816F | No. 4 wire harness protector cover | 82815-33L70 |
| 82816G | No. 5 wire harness protector cover | 82815-33N60 |
| 82816H | No. 6 wire harness protector cover | 82815-33P30 |
| 82816J | No. 7 wire harness protector cover | 82815-33J60 |
| 82816K | No. 8 wire harness protector cover | 82815-33J90 |
| 82816L | No. 9 wire harness protector cover | 82815-33Q80 |
| 82816M | No. 10 wire harness protector cover | 82815-33R00 |
| 82816N | No. 11 wire harness protector cover | 82815-33Q90 |
| 82817 | No. 1 wire harness protection device | 82817-06240 · 82817-0R580 |
| 82817A | No. 2 wire harness protection device | 82817-0R590 · 82817-0R610 · 82817-33S40 |
| 82817B | No. 3 wire harness protection device | 82817-0R630 |
| 82817C | No. 4 wire harness protection device | 82817-0R640 · 82817-0R790 |
| 82817D | No. 5 wire harness protection device | 82817-0R650 · 82817-0R830 |
| 82817E | No. 6 wire harness protection device | 82817-0R660 · 82817-33S60 |
| 82817F | No. 7 wire harness protection device | 82817-0R670 · 82817-3T270 |
| 82817G | No. 8 wire harness protection device | 82817-0R680 · 82817-3T280 |
| 82817J | No. 9 wire harness protection device | 82817-12R80 · 82817-33T20 · 82817-3T290 |
| 82817K | No. 10 wire harness protection device | 82817-12V00 · 82817-3T410 |
| 82817L | No. 11 wire harness protection device | 82817-3T490 |
| 82817M | No. 12 wire harness protection device | 82817-3T250 · 82817-3T520 |
| 82817N | No. 13 wire harness protection device | 82817-33X60 · 82817-3T690 · 82817-42J50 |
| 82817P | No. 14 wire harness protection device | 82817-3T860 · 82817-42J70 |
| 82817T | No. 15 wire harness protection device | 82817-3T870 · 82817-F4770 |
| 82817U | No. 16 wire harness protection device | 82817-42N60 · 82817-F4790 |
| 82817X | No. 17 wire harness protection device | 82817-33X40 |
| 82818 | No. 2 wire harness protection device | 82817-33Q70 |
| 82818B | No. 3 wire harness protection device | 82817-33P30 |
| 82818C | No. 4 wire harness protection device | 82817-33P40 |
| 82818D | No. 5 wire harness protection device | 82817-33U50 |
| 82818E | No. 6 wire harness protection device | 82817-33U60 |
| 82818F | No. 7 wire harness protection device | 82817-3T080 |
| 82818G | No. 8 wire harness protection device | 82817-3T350 |
| 82818H | No. 9 wire harness protection device | 82817-3T680 |
| 82818J | No. 10 wire harness protection device | 82817-3T750 |
| 82818K | No. 11 wire harness protection device | 82817-33X70 |
| 82818L | No. 12 wire harness protection device | 82817-33Y60 |
| 82818M | No. 13 wire harness protection device | 82817-3T790 |
| 82818N | No. 14 wire harness protection device | 82817-3T810 |
| 82818S | No. 15 wire harness protection device | 82817-3T800 |
| 82818U | No. 17 wire harness protection device | 82817-3T760 |
| 82818V | No. 18 wire harness protection device | 82817-33Q90 |
| 82818W | No. 19 wire harness protection device | 82817-33X30 |
| 82818X | No. 20 wire harness protection device | 82817-0R690 |
| 82818Y | No. 21 wire harness protection device | 82817-33R00 |
| 82818Z | No. 22 wire harness protection device | 82817-33Q80 |
| 82819G | No. 23 wire harness protection device | 82817-33V40 |
| 82819H | No. 24 wire harness protection device | 82817-33S70 |
| 82821A | Connector cover | 82821-28420 |
| 82821E | Connector cover | 82821-30600 |
| 82821H | Connector cover | 82821-33460 |
| 82821M | Connector cover | 82821-33490 |
| 82821N | Connector cover | 82821-33590 |
| 82821P | Connector cover | 82821-33610 |
| 82821R | Connector cover | 82821-33620 |
| 82821U | Connector cover | 82821-33650 |
| 82821V | Connector cover | 82821-33690 |
| 82821W | Connector cover | 82821-33700 |
| 82821X | Connector cover | 82821-33750 |
| 82821Y | Connector cover | 82821-33780 |
| 82823S | starter terminal cover | 82823-33070 |
| 82H21C | Connector cover | 82821-33810 |
| 82H21D | Connector cover | 82821-33840 |
| 82H21G | Connector cover | 82821-33860 |
| 82H21H | Connector cover | 82821-33460 · 82821-33A50 |
| 82H21J | Connector cover | 82821-33A60 |
| 82H21K | Connector cover | 82821-33B80 |
| 82H21L | Connector cover | 82821-33C00 |
| 82H21M | Connector cover | 82821-42360 |
| 82H21N | Connector cover | 82821-50510 |
| 82H21P | Connector cover | 82821-78050 |
| 82H21Q | Connector cover | 82821-V1030 |
| 82H21R | Connector cover | 82821-12600 |
| 82H21S | Connector cover | 82821-12B40 |
| 82H21T | Connector cover | 82821-20510 |
| 82H21V | CACHE, CONNECTEUR | 82821-30570 |
| 82H21W | CACHE, CONNECTEUR | 82821-33630 |
| 82H21X | CACHE, CONNECTEUR | 82821-33660 · 82821-33680 |
| 82H21Y | CACHE, CONNECTEUR | 82821-33770 |
| 82H21Z | CACHE, CONNECTEUR | 82821-33800 |
| 82T21 | CACHE, CONNECTEUR | 82821-33830 |
| 82T21A | CACHE, CONNECTEUR | 82821-33A00 |
| 82T21B | CACHE, CONNECTEUR | 82821-33B00 |
| 82T21C | CACHE, CONNECTEUR | 82821-33420 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-06110 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-06120 |
| 89348Y | Rear corner ultrasonic sensor clip | 89348-58130 |
