Toyota CAMRY Headlamp — Figure 8101

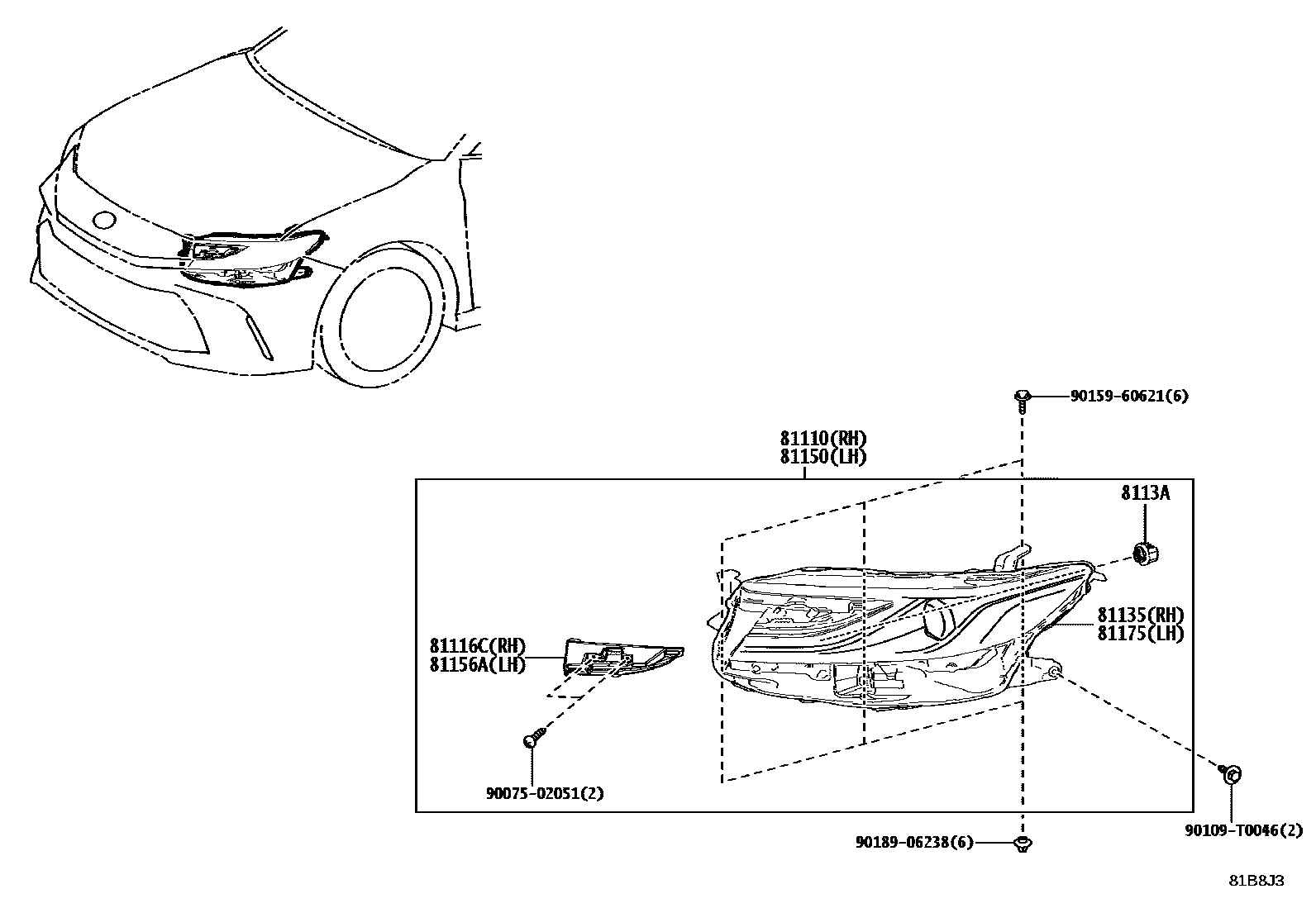

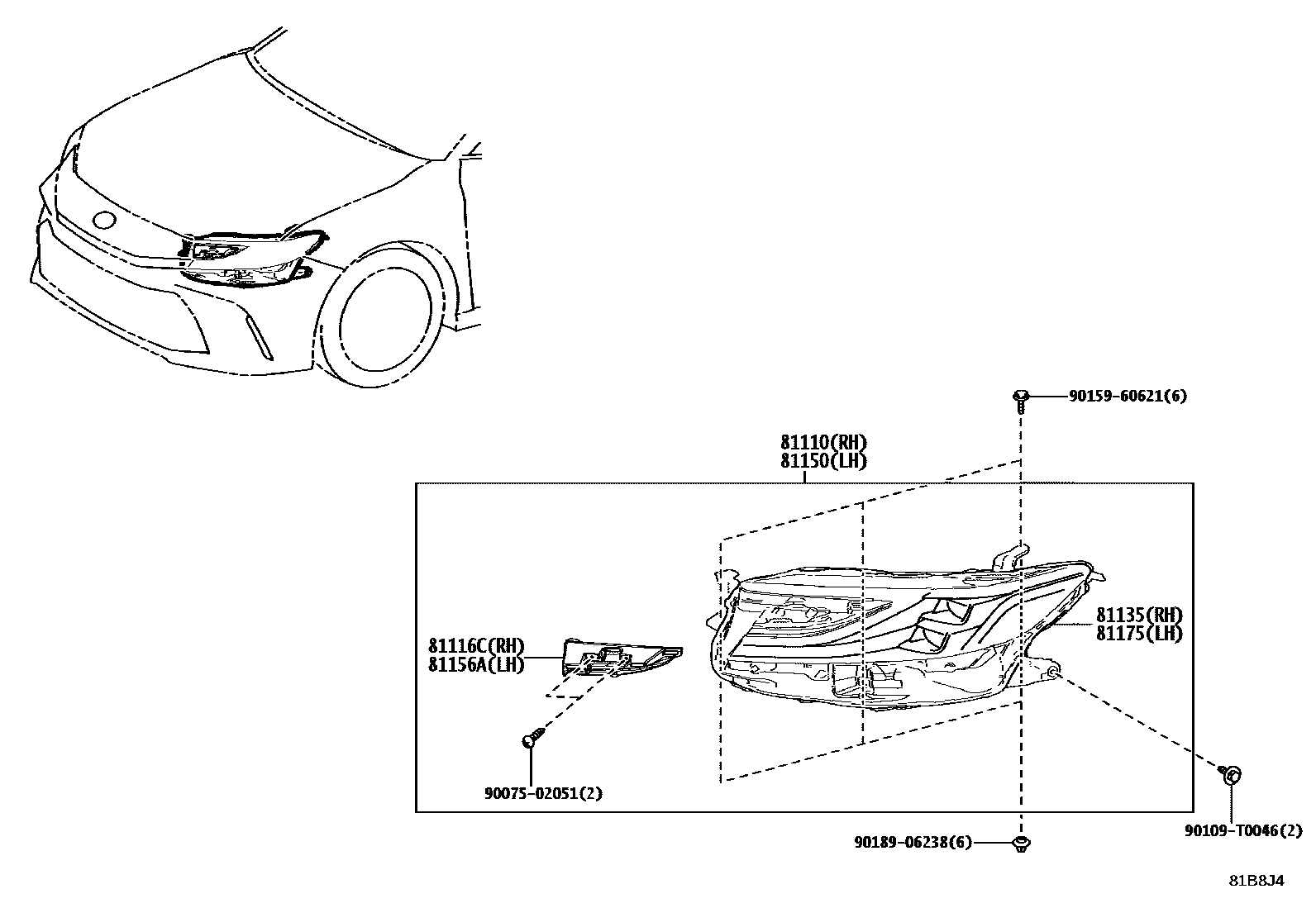

Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-06F80 · 81110-06J10 · 81110-06J20 |
| 81116C | Right headlight bracket | 81116-06F80 |
| 81135 | Right headlight assembly assembly | 81140-06F80 · 81140-06J10 · 81140-06J20 |
| 8113A | Headlight turn signal LED | 81965-48030 |
| 81150 | Left headlight assembly | 81150-06F80 · 81150-06J10 · 81150-06J20 |
| 81156A | Left headlight bracket | 81156-06F80 |
| 81175 | Left headlight assembly assembly | 81070-06F80 · 81070-06J10 · 81070-06J20 |
