Toyota CAMRY 侧防护条 — Figure 7503

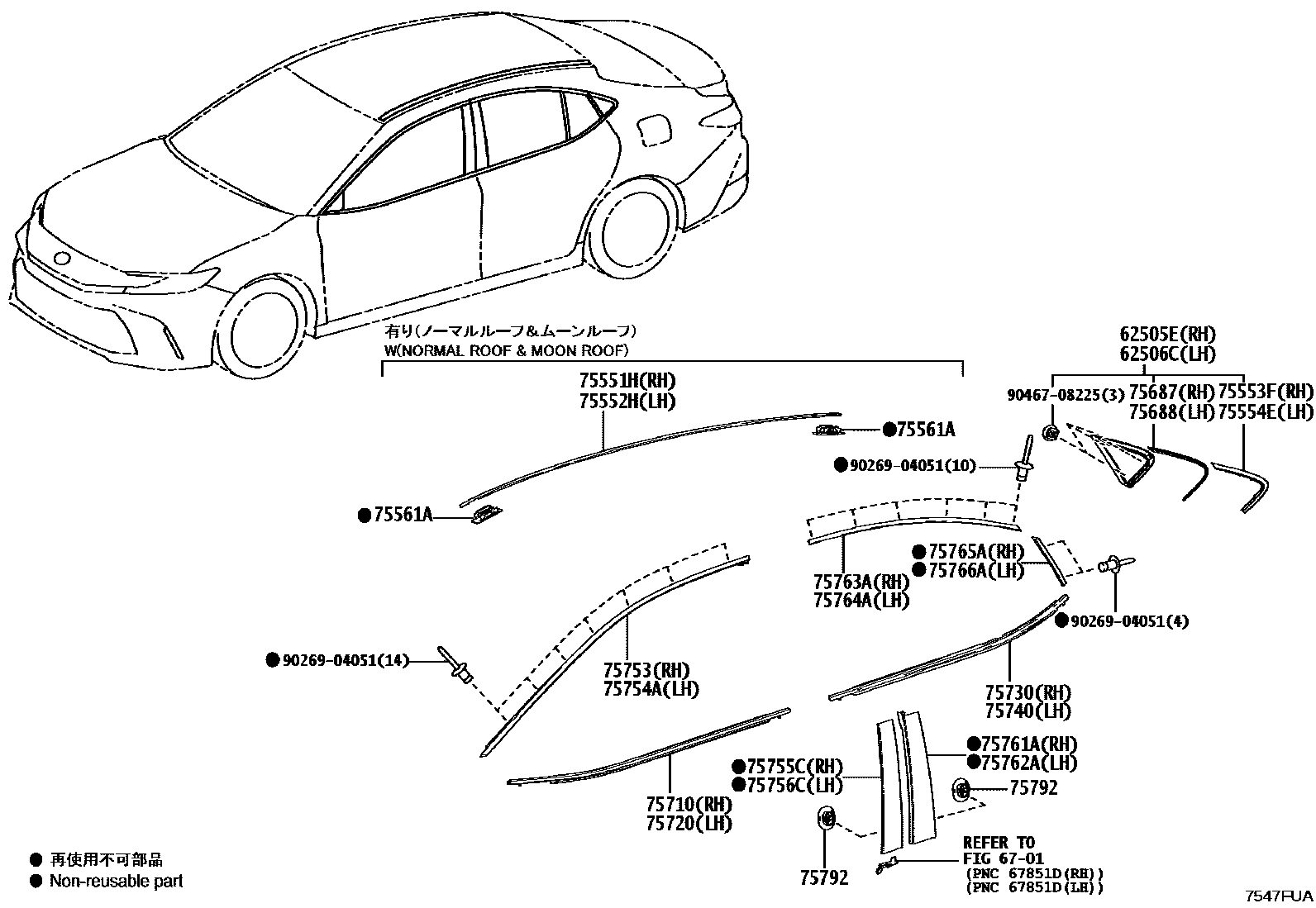

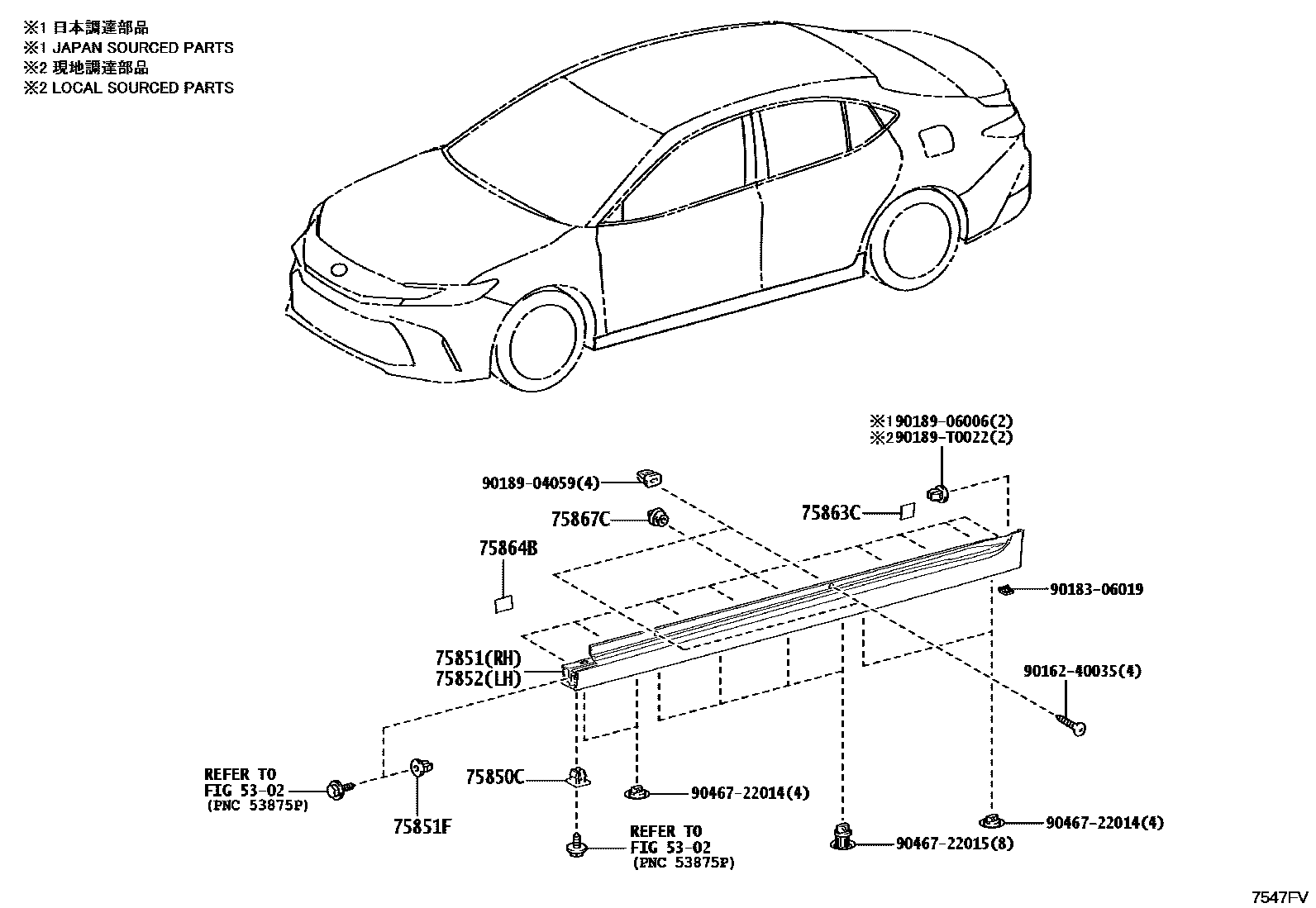

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62505E | Right corner window pillar cover sub-assembly | 62505-06030 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-06030 |
| 75551H | Drainage groove side on the right side of the roof | 75555-06150 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-06170 |
| 75553F | Right side enclosure decorative panel protective strip | 75553-06070 |
| 75554E | Left side enclosure decorative panel protective strip | 75554-06070 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52040 |
| 75687 | Right rear side panel lower protective strip protection device | 75687-06020 |
| 75688 | Left rear side panel lower protective strip protection device | 75688-06020 |
| 75710 | Right front door waistline protection strip assembly | 75710-06240 |
| 75720 | Left front door waistline protection strip assembly | 75720-06240 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06310 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06310 |
| 75753 | Protective strip on right front door window frame | 75753-06171 |
| 75754A | Protective strip on left front door window frame | 75754-06171 |
| 75755C | Right front door window frame rear protective strip | 75755-06220 |
| 75756C | Left front door window frame rear protective strip | 75756-06220 |
| 75761A | Right rear door window frame front protective strip | 75761-06220 |
| 75762A | Left rear door window frame front protective strip | 75762-06220 |
| 75763A | Protective strip on right rear door window frame | 75763-06280 |
| 75764A | Protective strip on left rear door window frame | 75764-06280 |
| 75765A | Right rear door window frame rear protective strip | 75765-06170 |
| 75766A | Left rear door window frame rear protective strip | 75766-06170 |
| 75792 | Car door window frame protective strip clip | 75792-0D020 |
| 75850C | Gasket No. 1 | 90189-06193 |
| 75851 | Right side door sill panel protective strip | 75851-06945 |
| 75851F | Gasket (for body sill protection strip) | 90189-06006 · 90189-T0022 |
| 75852 | Left side door sill panel protective strip | 75852-06945 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06260 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06240 |
| 75867C | Door sill panel protective strip clip | 75867-68010 |
