Toyota CAMRY 扶手和遮阳板 — Figure 7401

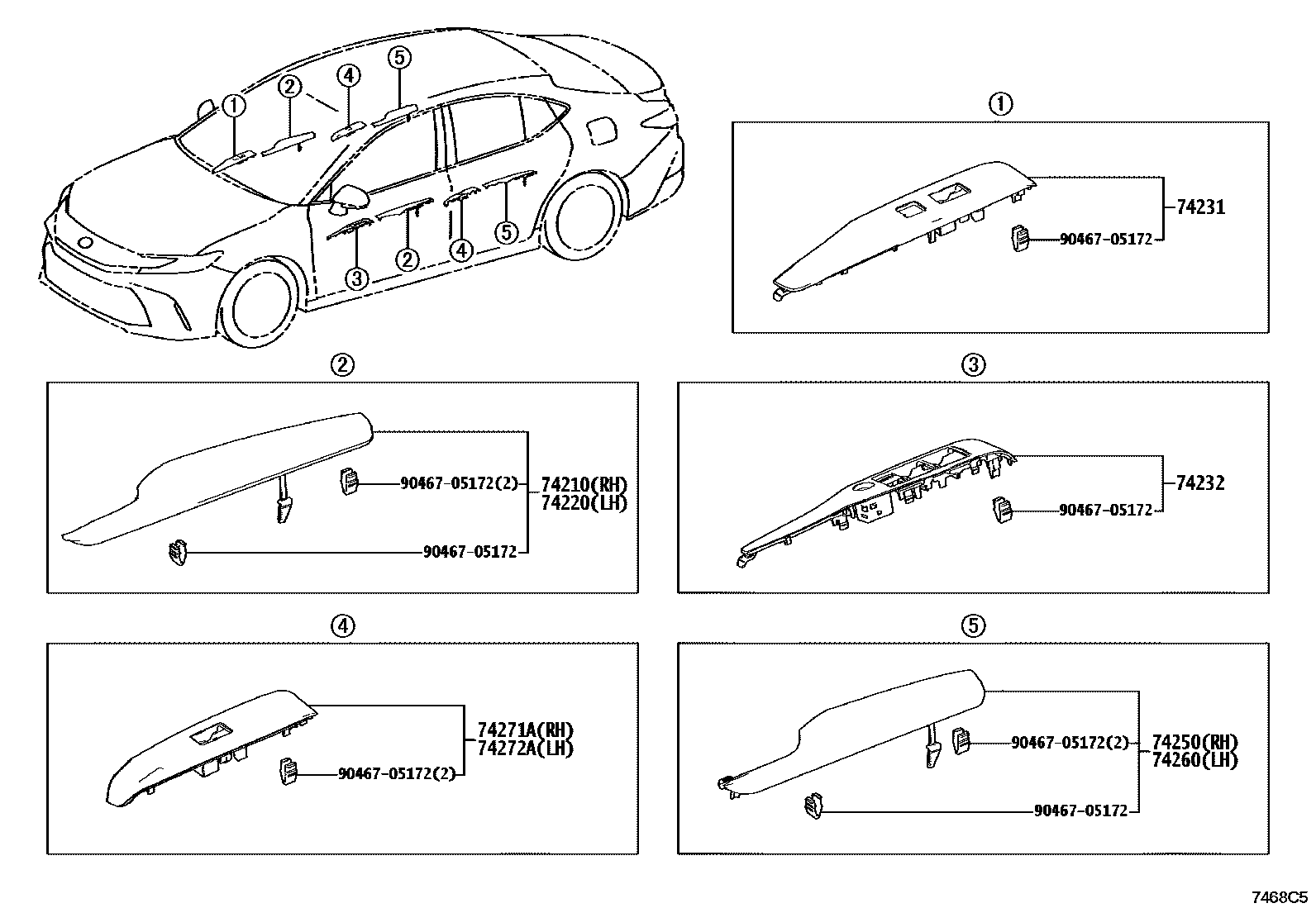

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-06740 · 74231-06750 · 74231-06760 |
| 74232 | Left front armrest upper panel | 74232-06760 · 74232-06770 · 74232-06780 |
| 74271A | Right rear door armrest upper panel | 74271-06881 |
| 74272A | Left rear door armrest upper panel | 74272-06881 |
| 74614B | Auxiliary handle locking plate | 74614-06010 |
| 74614C | Auxiliary handle locking plate | 74614-06010 |
