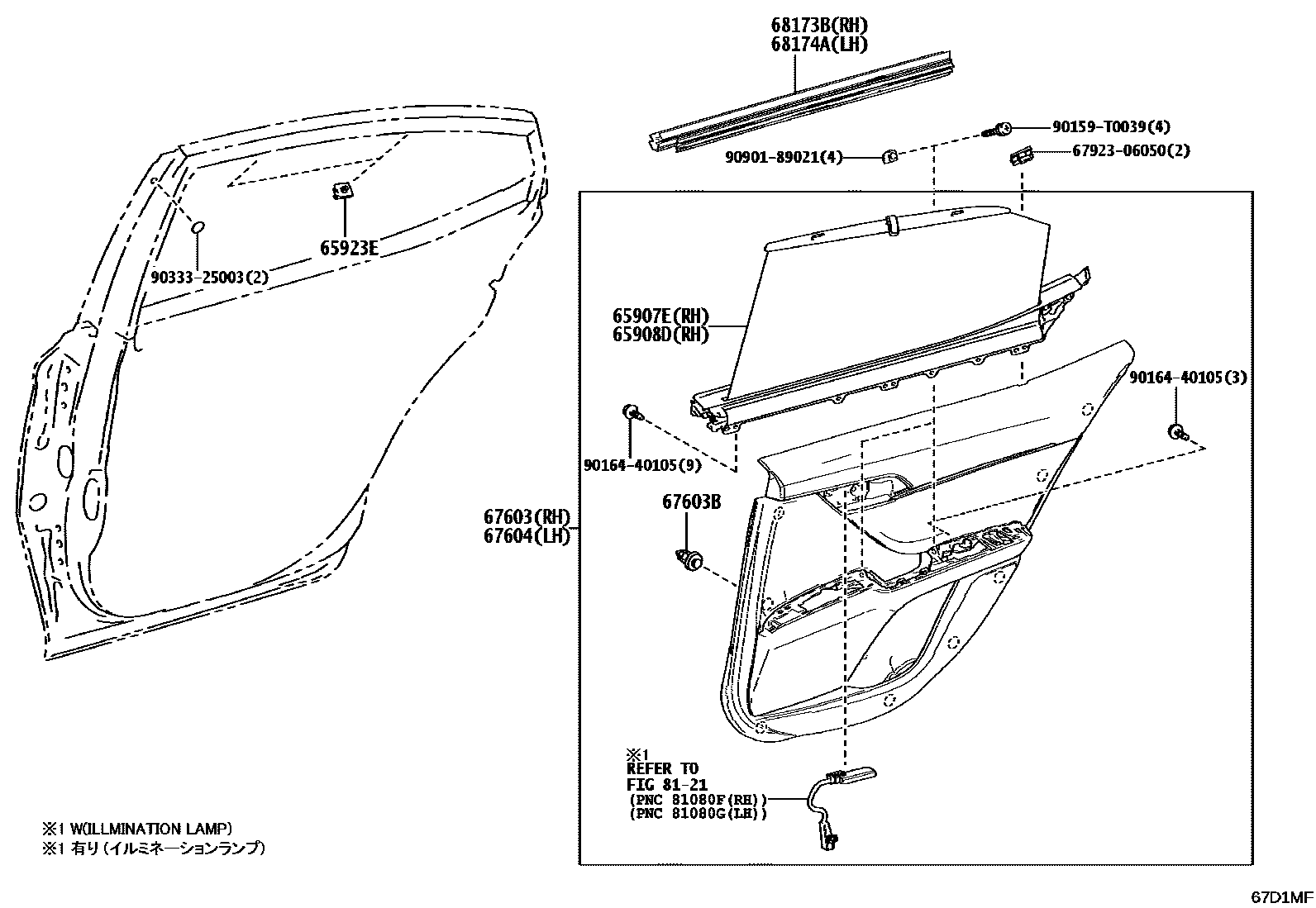

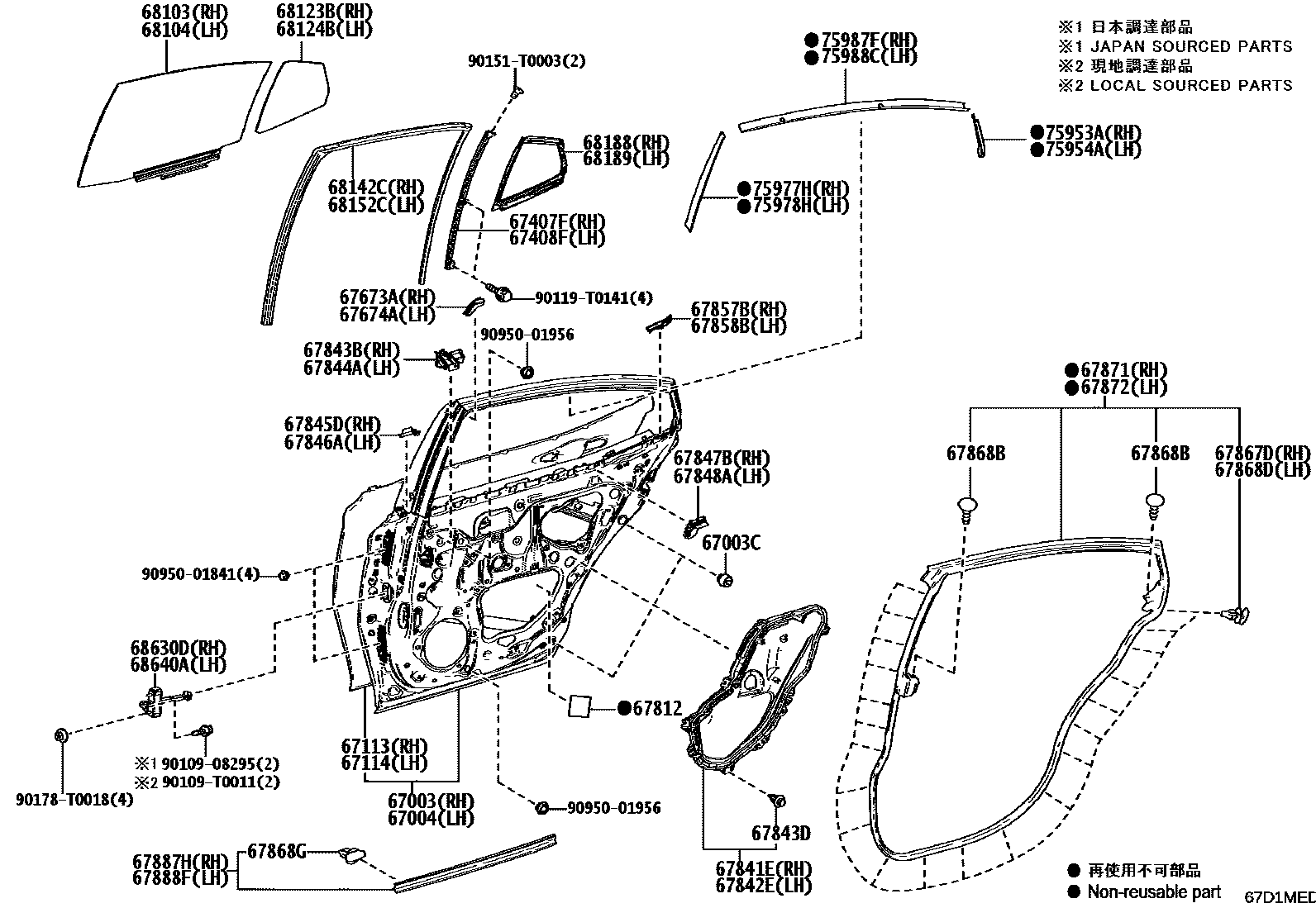

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-06040 |
| 67003 | Right rear door panel sub-assembly | 67003-06430 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-06430 |
| 67113 | Right rear door outer panel | 67113-06260 |
| 67114 | Left rear door outer panel | 67114-06260 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-06200 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-06200 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-06170 |
| 67674A | Left rear door frame decorative strip | 67674-06170 |
| 67812 | Rear door silencer pad | 67811-0D010 |
| 67841E | Right rear door access hole cover | 67841-06310 |
| 67842E | Left rear door access hole cover | 67842-06310 |
| 67843B | Right rear door No. 2 access hole cover | 67843-06140 |
| 67843D | Rear door access hole clip | 90467-T0019 |
| 67844A | Left rear door No. 2 access hole cover | 67844-06120 |
| 67845D | Right rear door front outer seal | 67845-06120 |
| 67846A | Left rear door front outer seal | 67846-06080 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-06080 |
| 67848A | No. 1 left rear door ventilator seal | 67848-06060 |
| 67857B | Right rear door panel protector | 67857-06060 |
| 67858B | Left rear door panel protector | 67858-06060 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67868-30030 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67868G | door seal fixings | 67867-0D040 |
| 67871 | Right rear door sealing strip | 67871-06260 |
| 67872 | Left rear door sealing strip | 67872-06260 |
| 67887H | Right rear door seal No. 2 | 67887-06140 |
| 67888F | Left rear door seal No. 2 | 67887-06140 |
| 68103 | Right rear door glass sub-assembly | 68113-06430 · 68113-06440 |
| 68104 | Left rear door glass sub-assembly | 68114-06430 · 68114-06440 |
| 68123B | Right rear door corner window glass | 68123-06400 · 68123-06410 |
| 68124B | Left rear door corner window glass | 68124-06400 · 68124-06410 |
| 68142C | Right rear door glass lift slot | 68142-06250 |
| 68152C | Left rear door glass lift slot | 68152-06250 |
| 68173B | Right rear door glass inner sealing strip | 68173-06200 |
| 68174A | Left rear door glass inner sealing strip | 68174-06200 |
| 68188 | Right rear door corner window seal | 68188-06230 |
| 68189 | Left rear door corner window seal | 68189-06230 |
| 68630D | Right rear door opening limiter assembly | 68630-06180 |
| 68640A | Left rear door opening limiter assembly | 68630-06180 |
| 75953A | Inner right rear light-shielding film | 75953-06020 |
| 75954A | Inner left rear light-shielding film | 75954-06020 |
| 75977H | Right rear door outer lower trim strip | 75977-06180 |
| 75978H | Left rear door outer lower trim strip | 75978-06180 |
| 75987F | Right rear door outer trim | 75987-06320 |
| 75988C | Left rear door outer trim | 75988-06320 |
