Toyota CAMRY 前门锁和车门把手 — Figure 6703

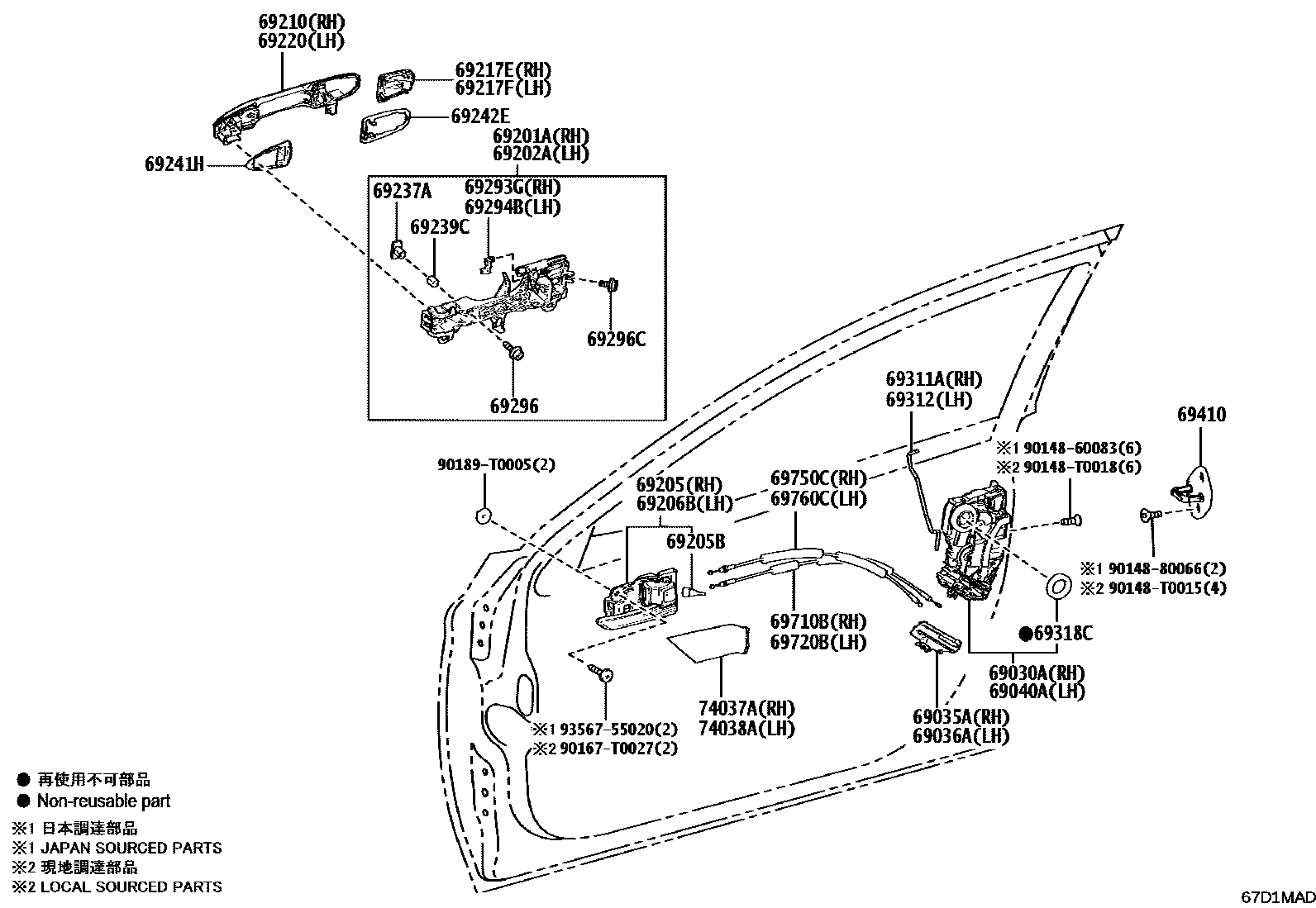

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-28190 · 69030-42290 |
| 69035A | Right front door lock cover sub-assembly | 69035-28010 |
| 69036A | Left front door lock cover sub-assembly | 69036-28010 |
| 69040A | Left front door door lock assembly with motor | 69040-28220 · 69040-42310 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-06180 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-06180 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69217E | Right front door outer handle cover | 69217-06210 |
| 69217F | Left front door outer handle cover | 69217-06210 |
| 69237A | Front door handle nut | 69237-0K040 |
| 69239C | Front door handle bushing | 69239-06060 |
| 69241H | Front door exterior handle pad | 69241-06140 |
| 69242E | Front door rear outer handle pad | 69242-06140 |
| 69293G | Right front door outer handle buckle | 69293-06030 |
| 69294B | Left front door outer handle buckle | 69293-06040 |
| 69296 | Car door inner handle screws | 90148-50006 |
| 69296C | Car door inner handle screws | 90148-50003 |
| 69311A | Right front door lock opening lever | 69311-06220 |
| 69312 | Left front door lock opening lever | 69312-06220 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0K070 |
| 69710B | Right front door lock remote control cable assembly | 69710-06250 |
| 69720B | Left front door lock remote control cable assembly | 69710-06250 |
| 69750C | Right front door inner lock cable assembly | 69750-06240 |
| 69760C | Left front door inner lock cable assembly | 69750-06240 |
| 74037A | Right front door armrest cover sub-assembly | 74037-06090 |
| 74038A | Left front door armrest cover sub-assembly | 74038-06090 |
