Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 6 PNC and OE references.

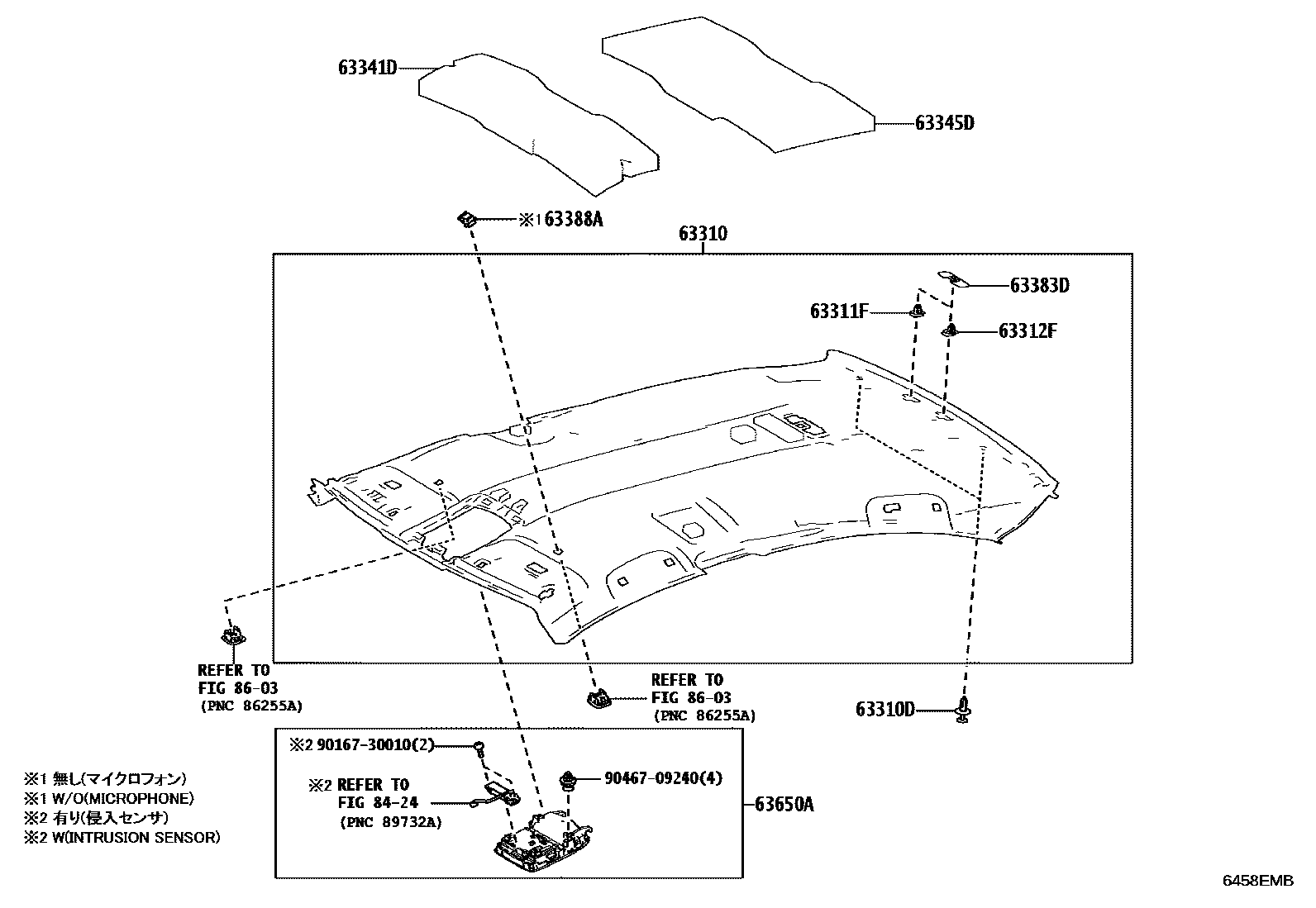

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458EMB
车顶内衬和消声垫 — 6458EMB (202410 – 999999)

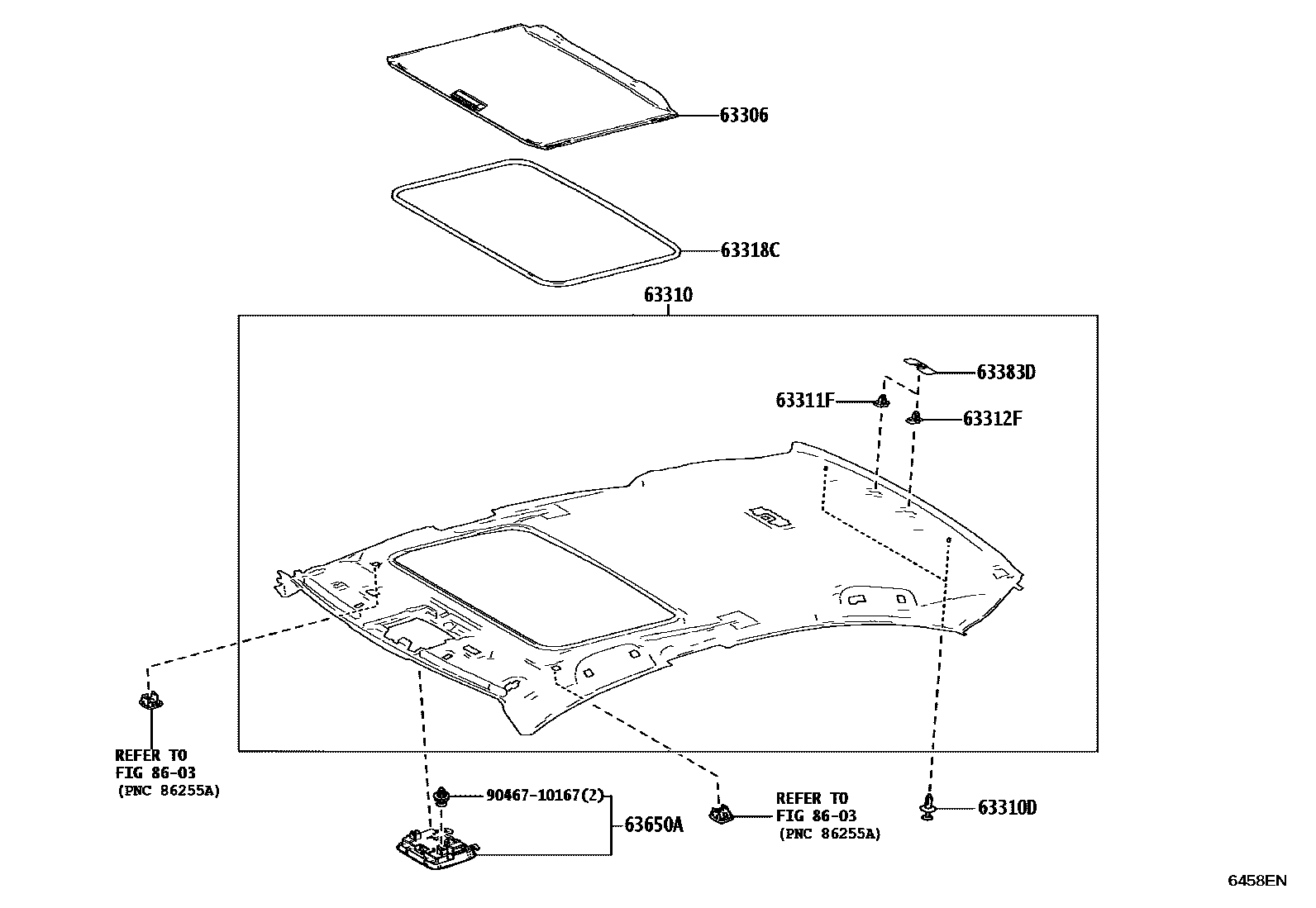

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458EN
车顶内衬和消声垫 — 6458EN (202410 – 999999)

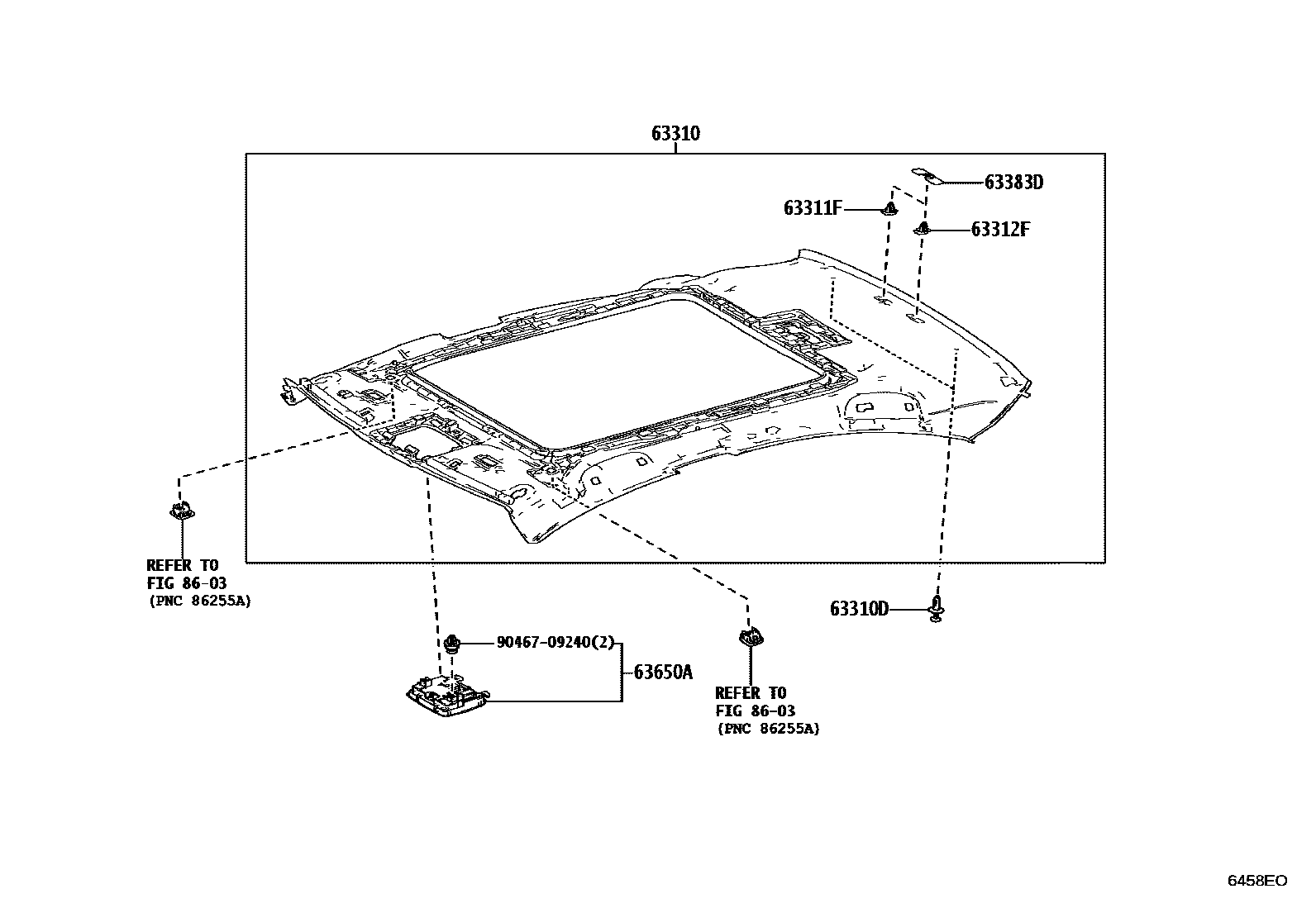

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458EO
车顶内衬和消声垫 — 6458EO (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
63311FNo. 1 headliner clip90467-10181
63312FNo. 2 headliner clip90467-09126
63341DFront roof silencer pad63341-06240
63345DCenter roof muffler pad63343-06240
63383DRear headliner fixings63383-24030
63388Aheadliner fixing cover63388-52030
