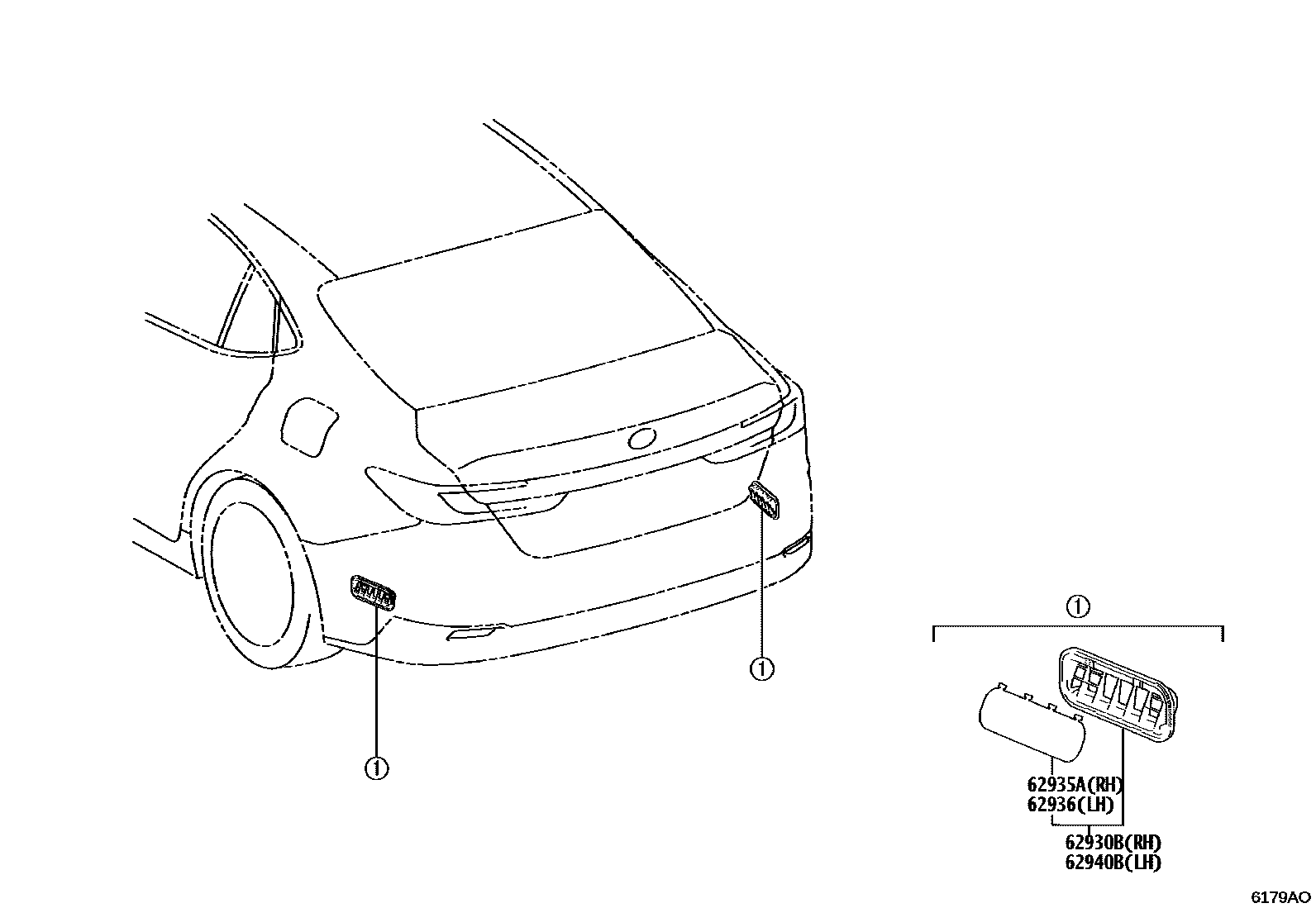

Toyota CAMRY 车侧通风装置 — Figure 6102
Toyota CAMRY EPC diagram 6102, 车侧通风装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62930B | Right side ventilation duct assembly | 62940-0D060 |
| 62935A | PAPILLON, EVENT CUSTODE, MD | 62935-0D090 |
| 62936 | PAPILLON, EVENT CUSTODE, MG | 62935-0D090 |
| 62940B | Left side ventilation duct assembly | 62940-0D060 |
