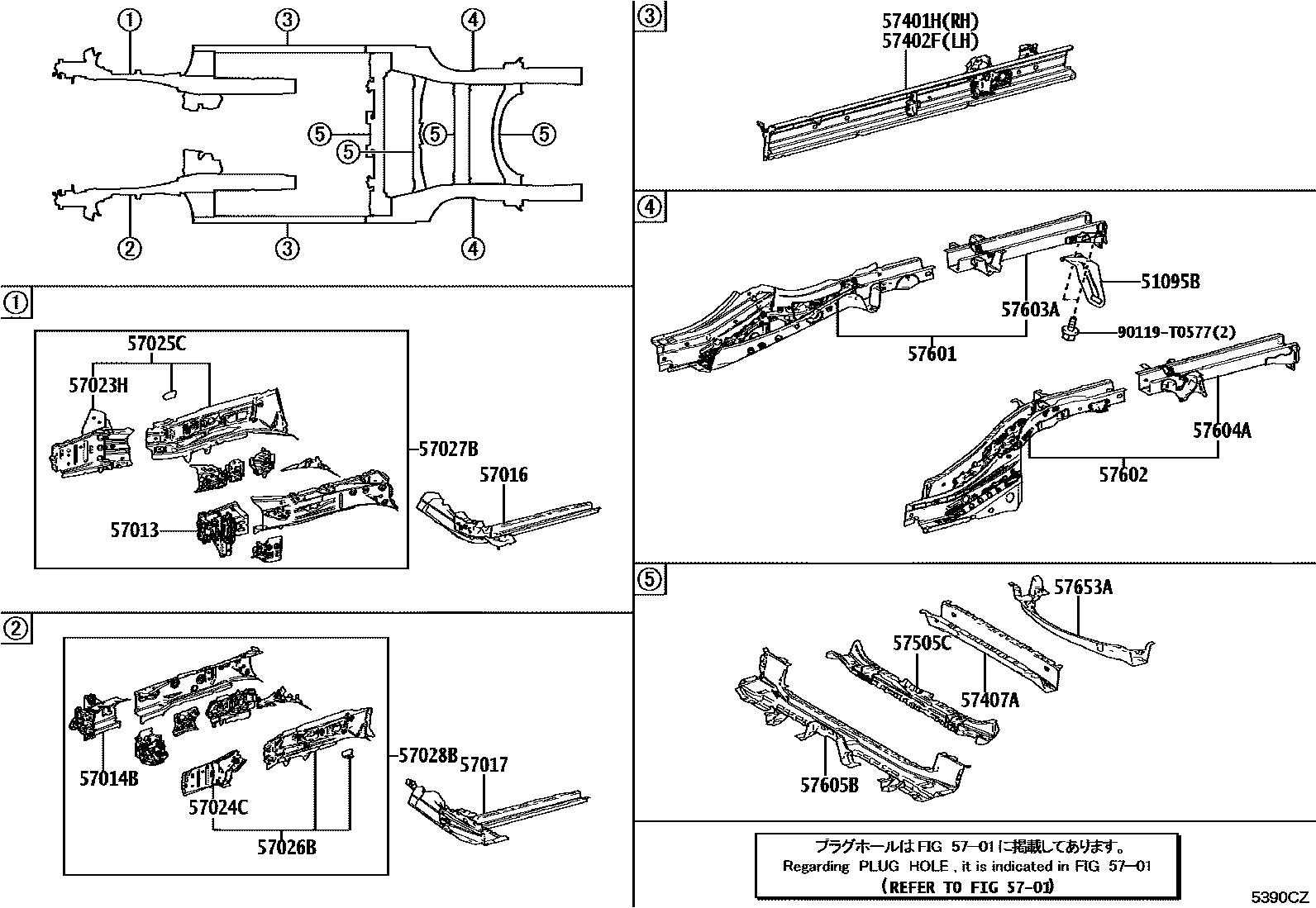

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-06020 |
| 57013 | Right front longitudinal beam bracket sub-assembly | 57013-06051 |
| 57014B | Left front longitudinal beam bracket sub-assembly | 57014-06041 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06220 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06200 |
| 57023H | Right body No. 2 mounting bracket sub-assembly | 57023-06030 |
| 57024C | Left body No. 2 mounting bracket sub-assembly | 57024-06030 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-06170 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-06170 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-06907 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-06905 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-06310 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-06320 |
| 57407A | Center floor beam sub-assembly | 57407-06061 · 57407-33011 |
| 57505C | Front underfloor reinforcement sub-assembly | 57505-06080 · 57505-33030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06460 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06290 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-06050 · 57603-33030 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-06080 · 57604-33030 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06261 · 57605-06270 · 57605-33131 · 57605-33140 |
| 57653A | No. 2 rear floor cross member | 57653-06140 · 57653-33100 |
