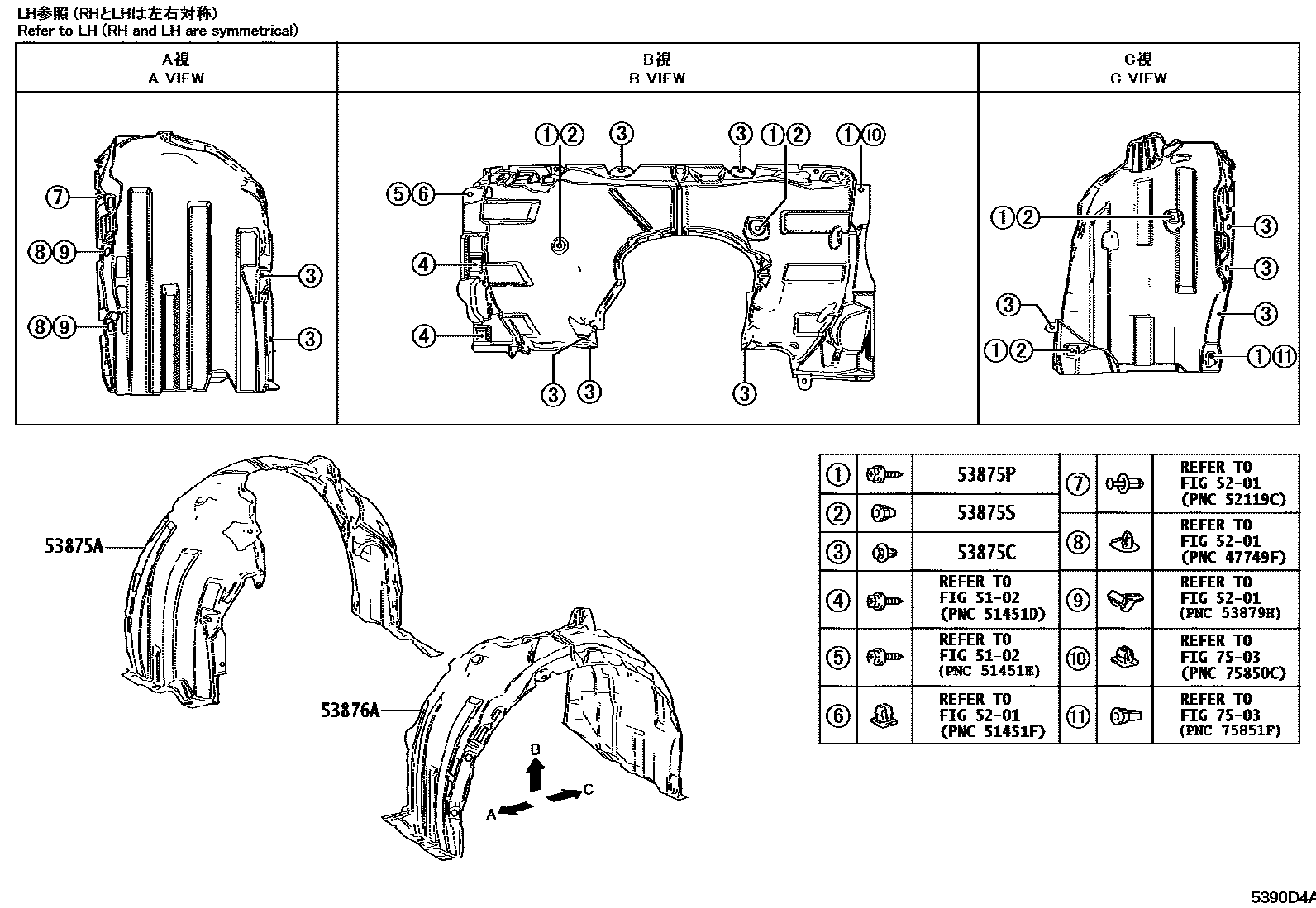

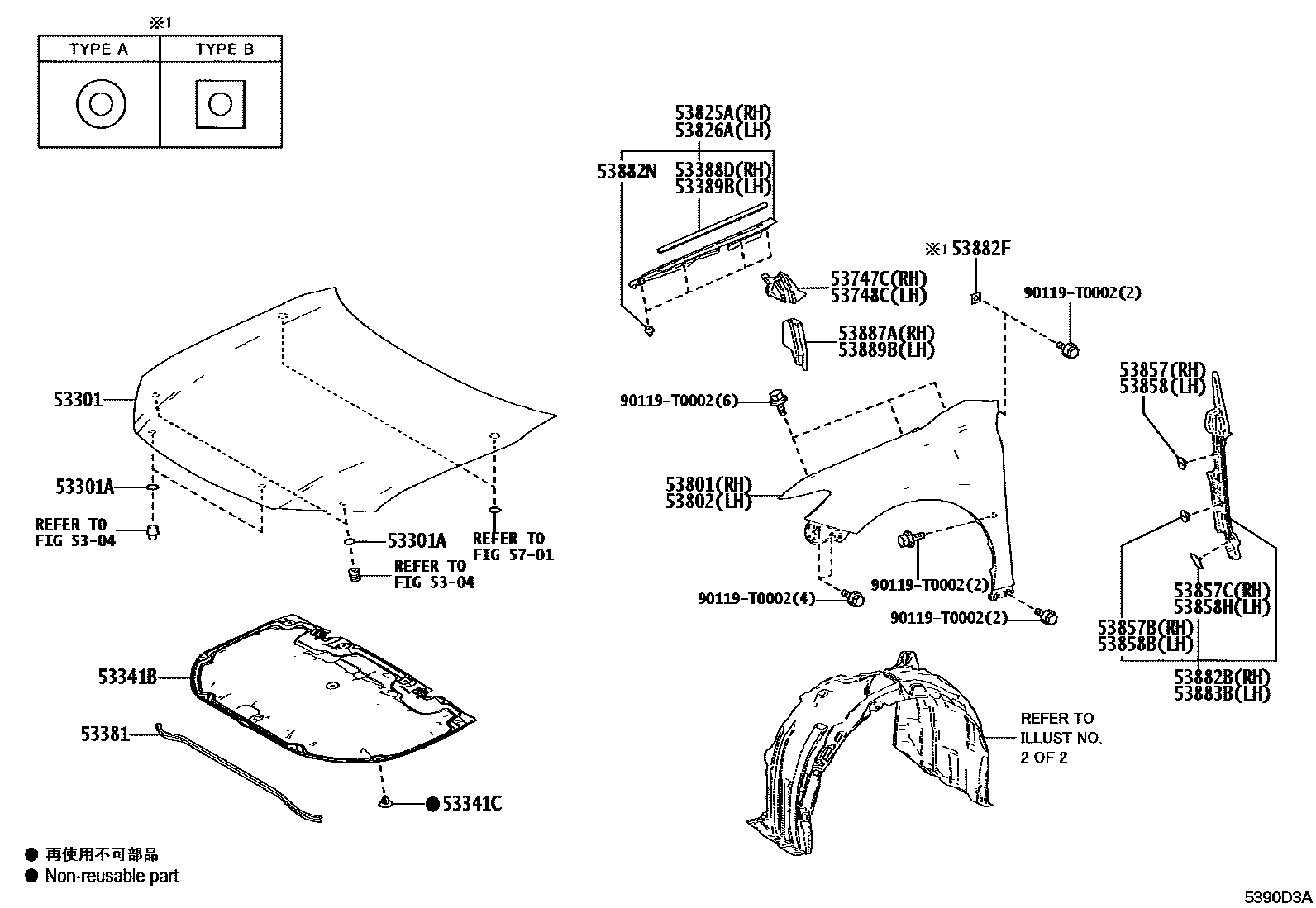

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06310 |
| 53301A | Hole plug (for engine cover) | 90950-06124 · 90950-T6002 |
| 53341B | engine cover gasket | 53341-06500 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-06230 |
| 53388D | Engine cover to right front fender seal | 53388-06230 |
| 53389B | Engine cover to left front fender seal | 53388-06230 |
| 53747C | Right air sealing plate | 53747-06080 |
| 53748C | Left air sealing plate | 53748-06080 |
| 53801 | Right front fender sub-assembly | 53801-06240 |
| 53802 | Left front fender sub-assembly | 53802-06250 |
| 53825A | Right front fender protection piece | 53825-06160 |
| 53826A | Protection piece on left front fender | 53826-06160 |
| 53857 | Right front fender external panel fixing piece | 53857-06030 · 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-06030 |
| 53857C | Right front fender external panel fixing piece | 53857-12010 |
| 53858 | Left front fender external panel fixing piece | 53857-06030 · 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-06030 |
| 53858H | Left front fender external panel fixing piece | 53857-12010 |
| 53875A | Right front fender lining | 53805-06310 |
| 53875C | Front fender lining clip | 90467-T0039 |
| 53875P | Screw No. 1 | 90159-60623 |
| 53875S | Gasket No. 1 | 90189-06236 · 90189-T0018 |
| 53876A | Left front fender lining | 53806-06320 |
| 53882B | Right front fender seal | 53882-06210 |
| 53882F | front fender seal | 53882-30030 · 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-T0011 |
| 53883B | Left front fender seal | 53883-06200 |
| 53887A | No. 1 front fender splash guard seal | 53887-06050 |
| 53889B | No. 2 left front fender splash guard seal | 53889-06140 |
