Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

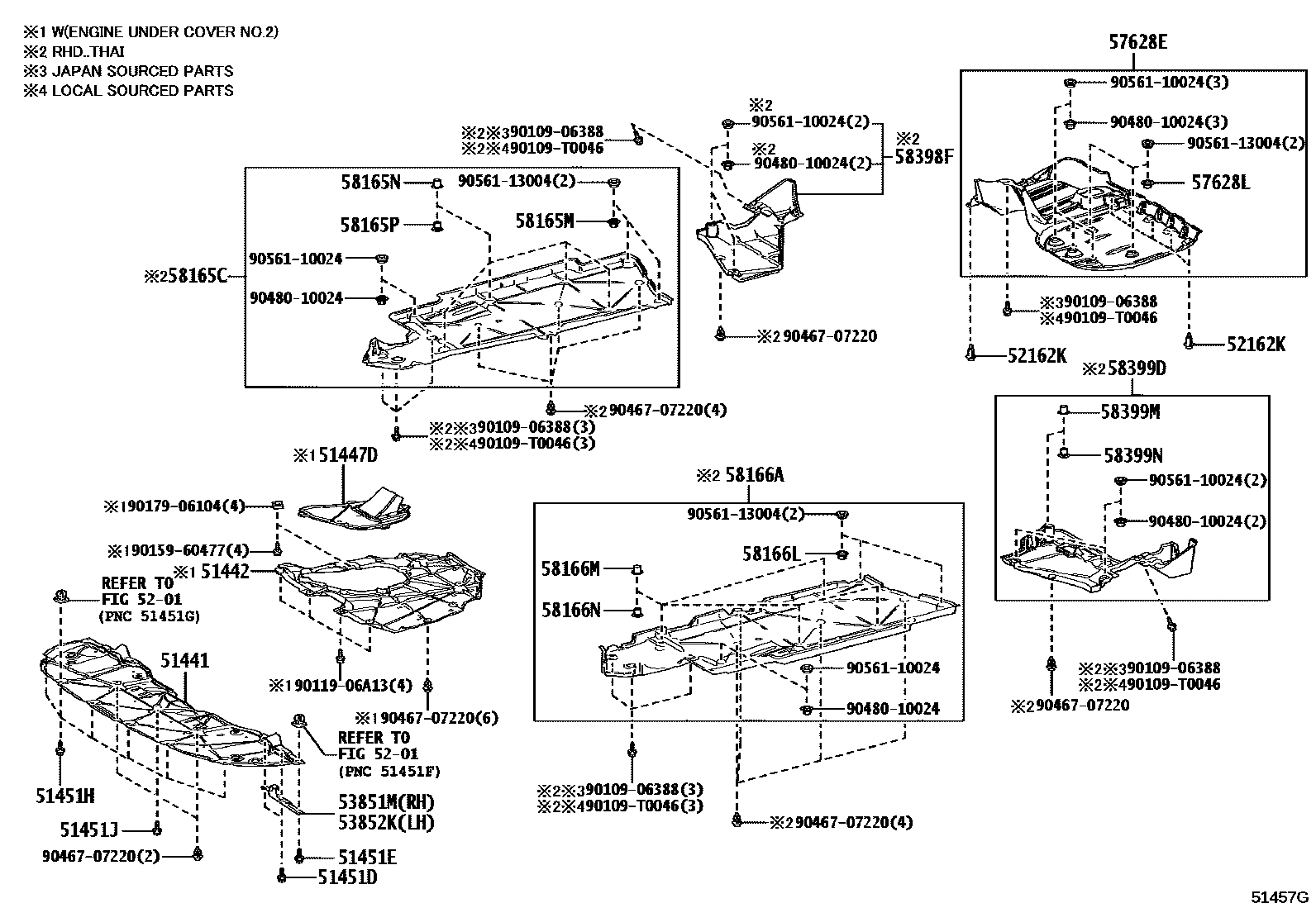

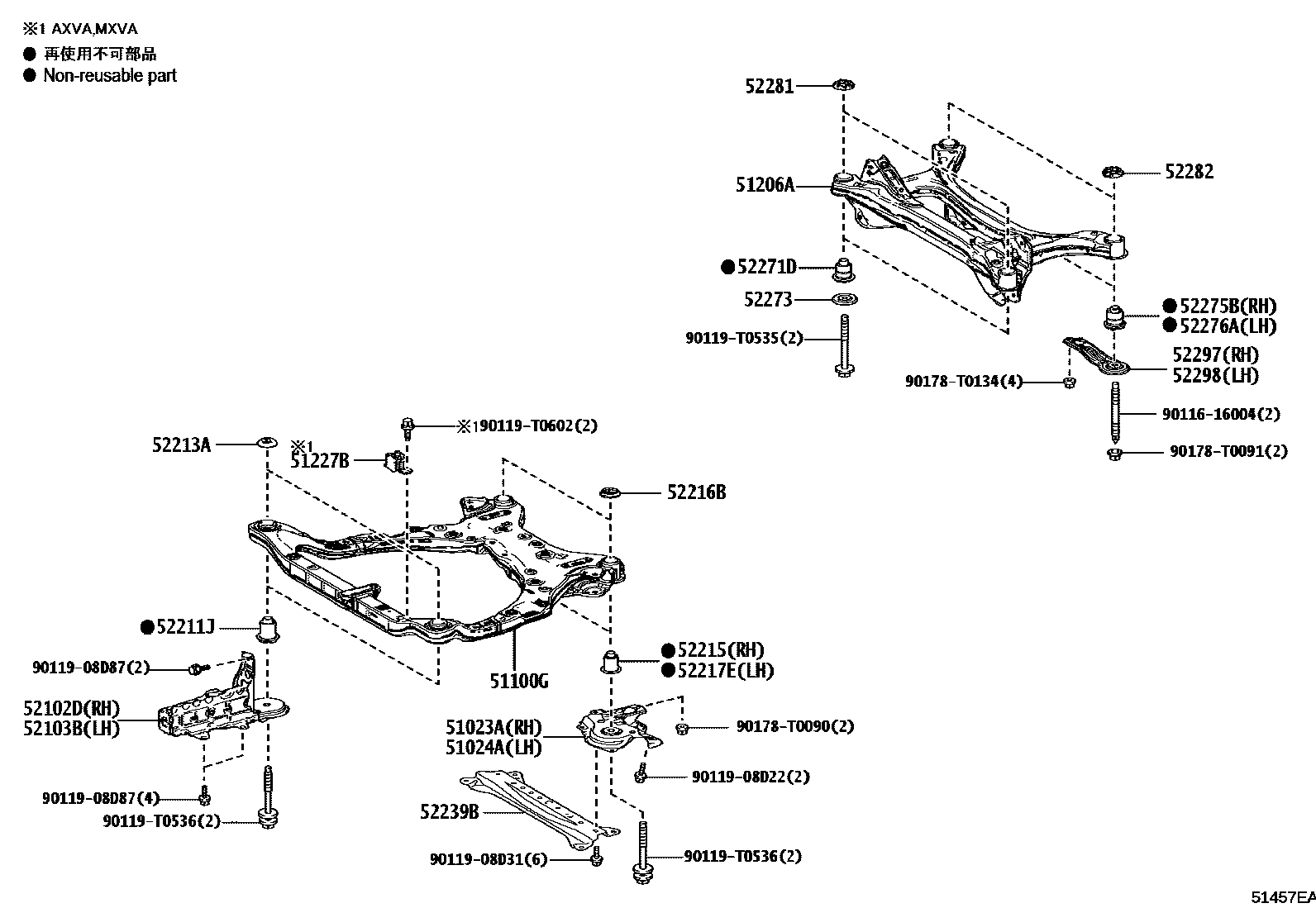

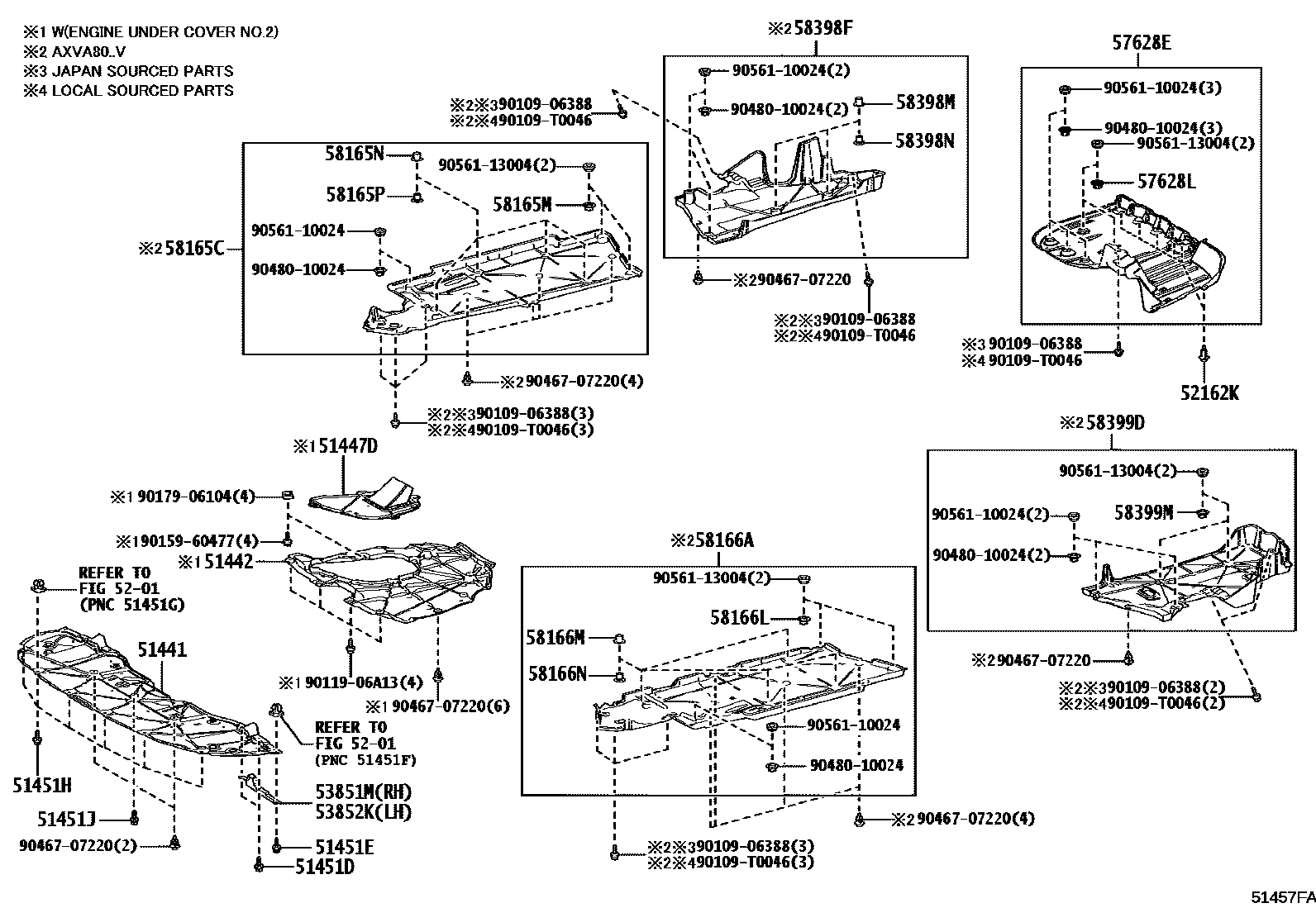

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-06090 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-06080 |
| 51100G | Front frame assembly | 51100-33130 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06160 |
| 51227B | Front suspension beam dynamic damper | 51227-33120 |
| 51441 | No. 1 engine bottom cover | 51441-06340 |
| 51442 | No. 2 engine bottom cover | 51442-06300 |
| 51447D | No. 4 engine center bottom cover | 51447-06901 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51451E | No. 2 screw | 90159-60477 · 90159-T0028 |
| 51451H | No. 3 screw | 90159-60477 · 90159-T0028 |
| 51451J | Bolt No. 1 | 90119-06A13 |
| 52102D | Front bumper right extension section sub-assembly | 52102-06040 |
| 52103B | Front bumper left extension section sub-assembly | 52103-06040 |
| 52162K | Rear bumper insert | 52161-0K040 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33100 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06200 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33110 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06180 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-33040 |
| 52239B | body mounting plate | 52239-06060 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06160 |
| 52273 | Rear suspension cross member lower block | 52273-06070 |
| 52275B | Rear suspension cross member right rear body fixed cushion | 52275-06180 |
| 52276A | Rear suspension cross member left rear body fixed buffer pad | 52276-06040 |
| 52281 | Differential support beam cushion | 52281-06070 |
| 52282 | Differential support beam upper stop | 52282-06100 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-06040 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-06040 |
| 53851M | Right front fender outer panel pad | 53851-06170 |
| 53852K | Left front fender exterior panel pad | 53852-06170 |
| 57628E | Rear floor left longitudinal member cover | 57628-06210 · 57628-06230 |
| 57628L | Rear floor longitudinal beam cover No. 1 clip | 90467-14053 |
| 58165C | Front floor right cover | 58165-06060 |
| 58165M | Front floor cover clip No. 1 | 90467-14053 |
| 58166A | Front floor left cover | 58166-06060 |
| 58166L | Front floor cover clip No. 1 | 90467-14053 |
| 58398F | No. 1 floor under cover | 58398-06190 · 58398-06200 |
| 58399D | Floor No. 2 lower cover | 58399-06190 · 58399-06200 |
| 58399M | Lower floor cover clip No. 1 | 90467-14053 |
