Toyota CAMRY 制动助力器和真空管 — Figure 4703

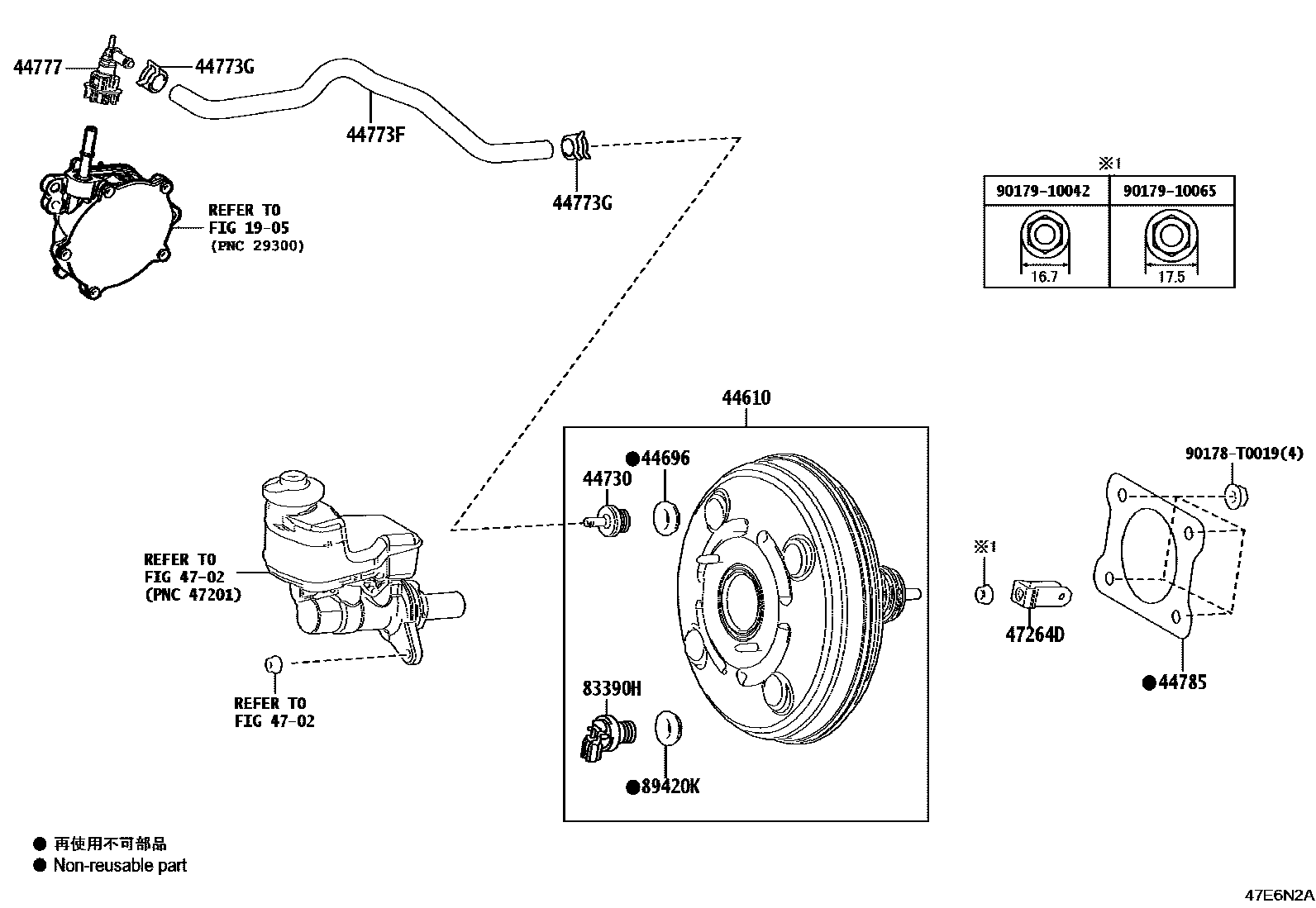

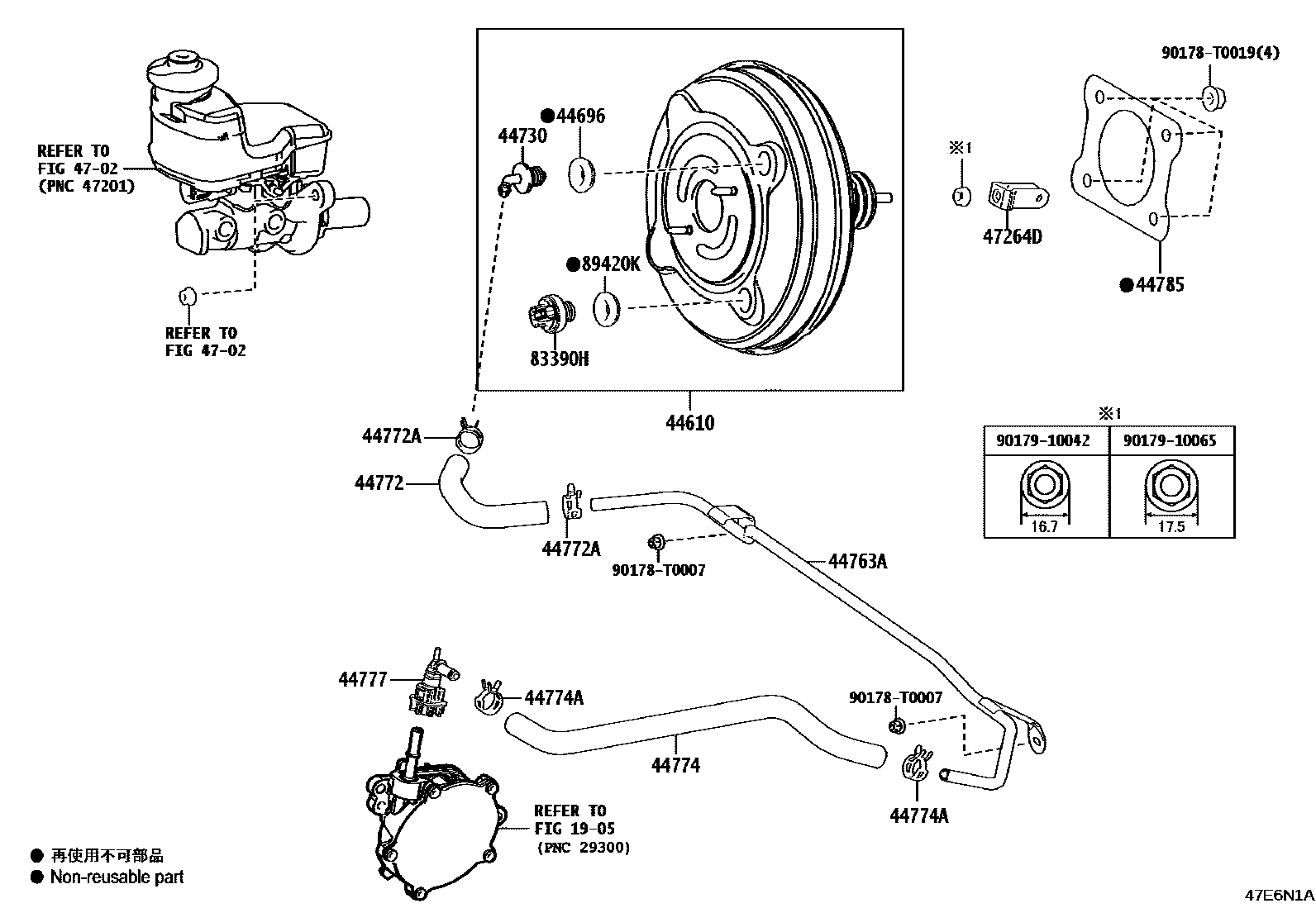

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06680 · 44610-06710 |
| 44696 | One-way valve seal | 90480-24015 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10020 · 44730-28030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-06130 |
| 44772 | Hoses (check valve to connector tube) | 44772-06400 |
| 44772A | Clip (for check valve to connector tube) | 90466-T0054 · 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-33180 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-06180 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-T0054 · 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-33010 |
| 44785 | brake booster pad | 44785-0D040 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-33030 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 89420K | Vacuum sensor seal | 90480-24015 |
