Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

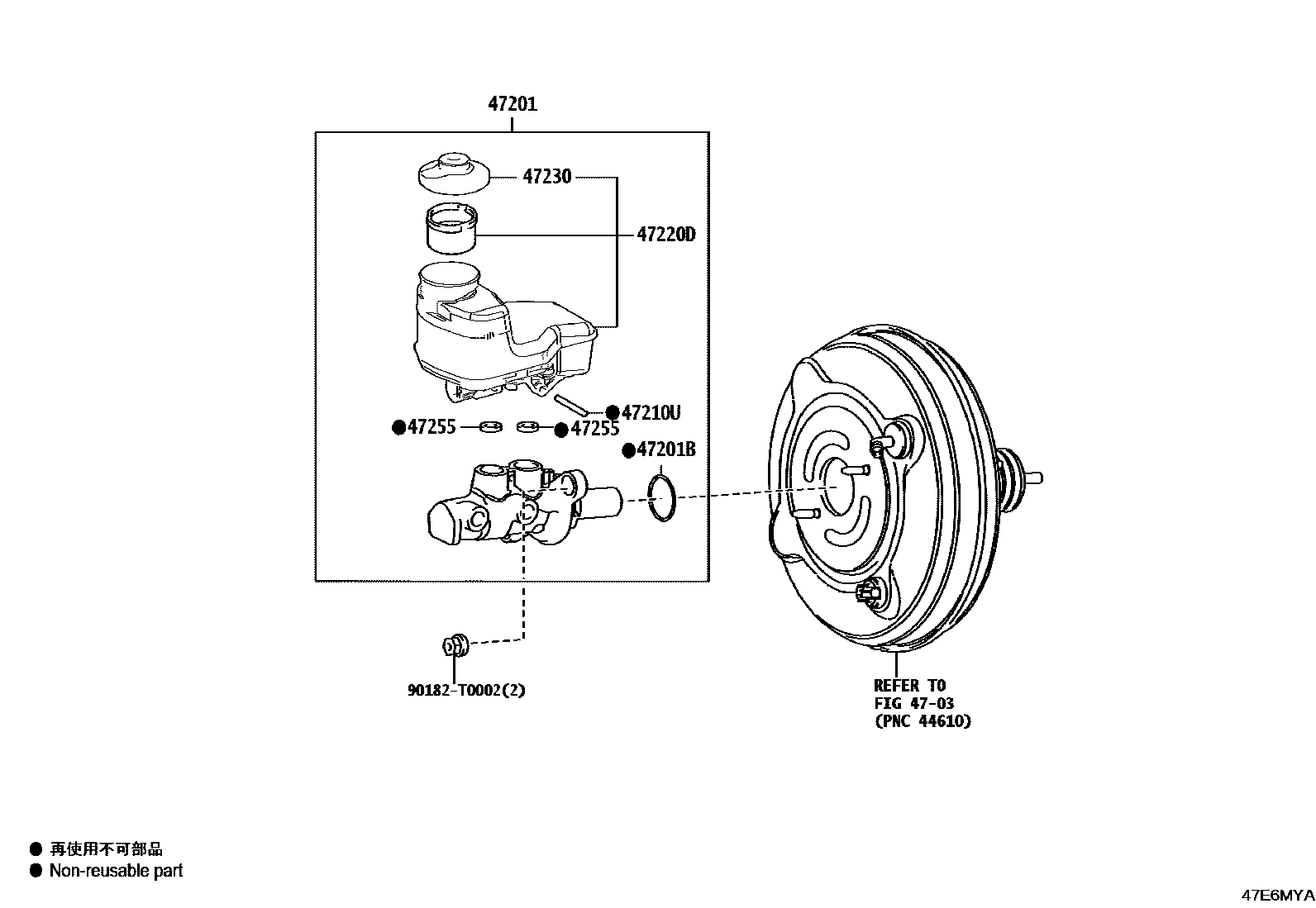

| 47201 | Brake master cylinder sub-assembly | 47201-06520 · 47201-06540 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |

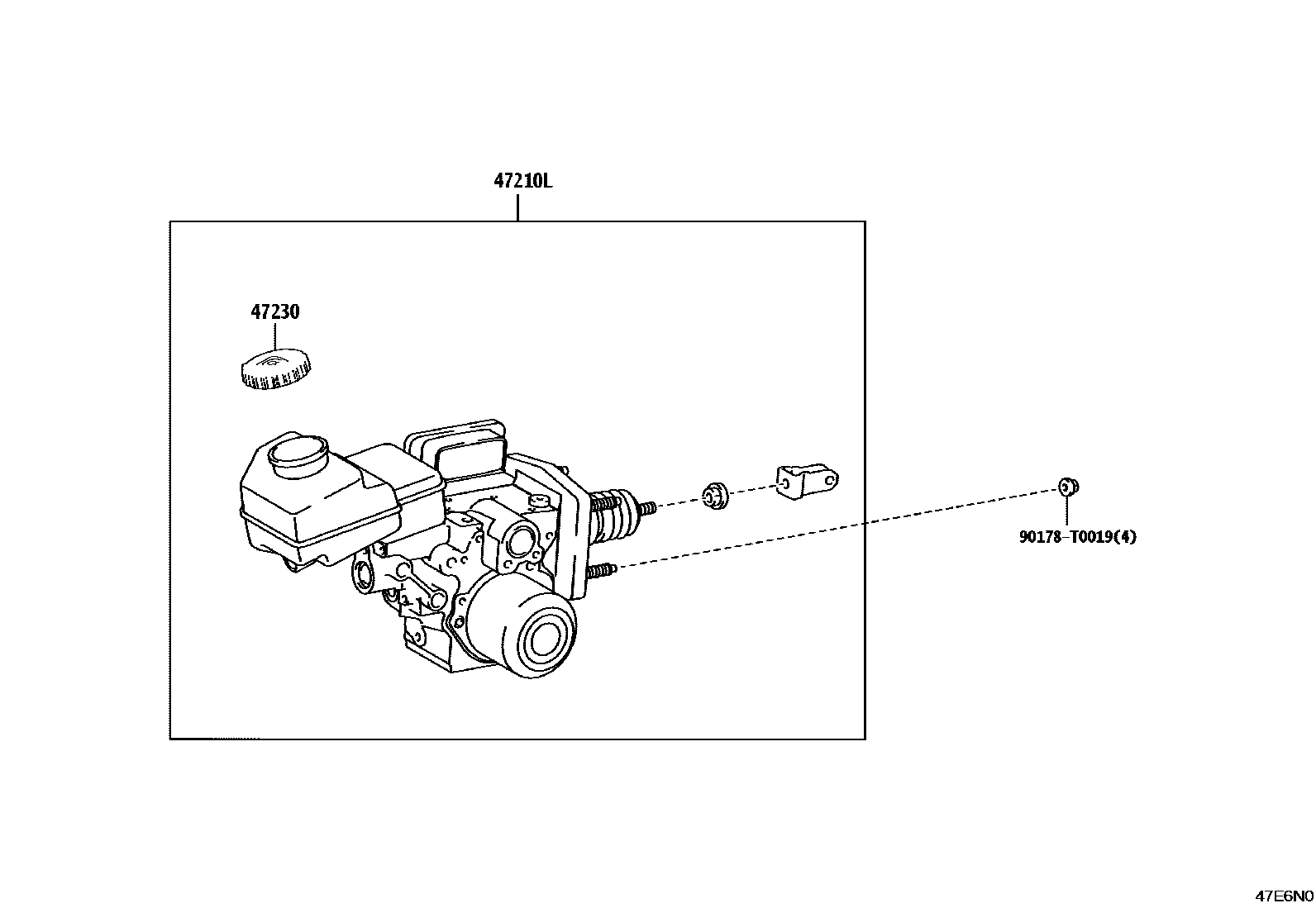

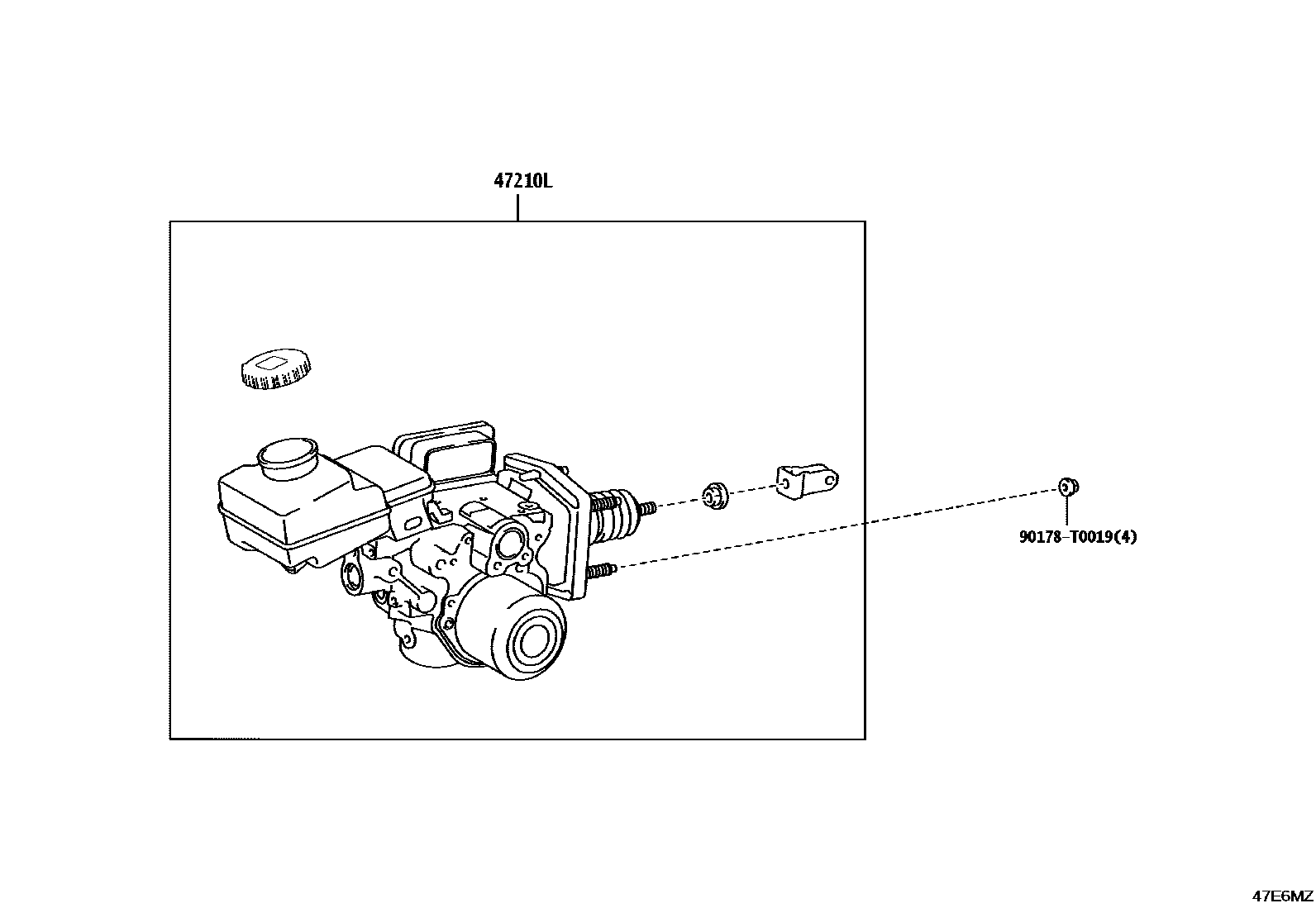

| 47210L | Brake booster assembly with master cylinder | 47050-33A90 · 47050-33B00 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06270 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 · 47230-BZ080 |
| 47255 | Master pump reservoir seal | 90015-AT001 |
