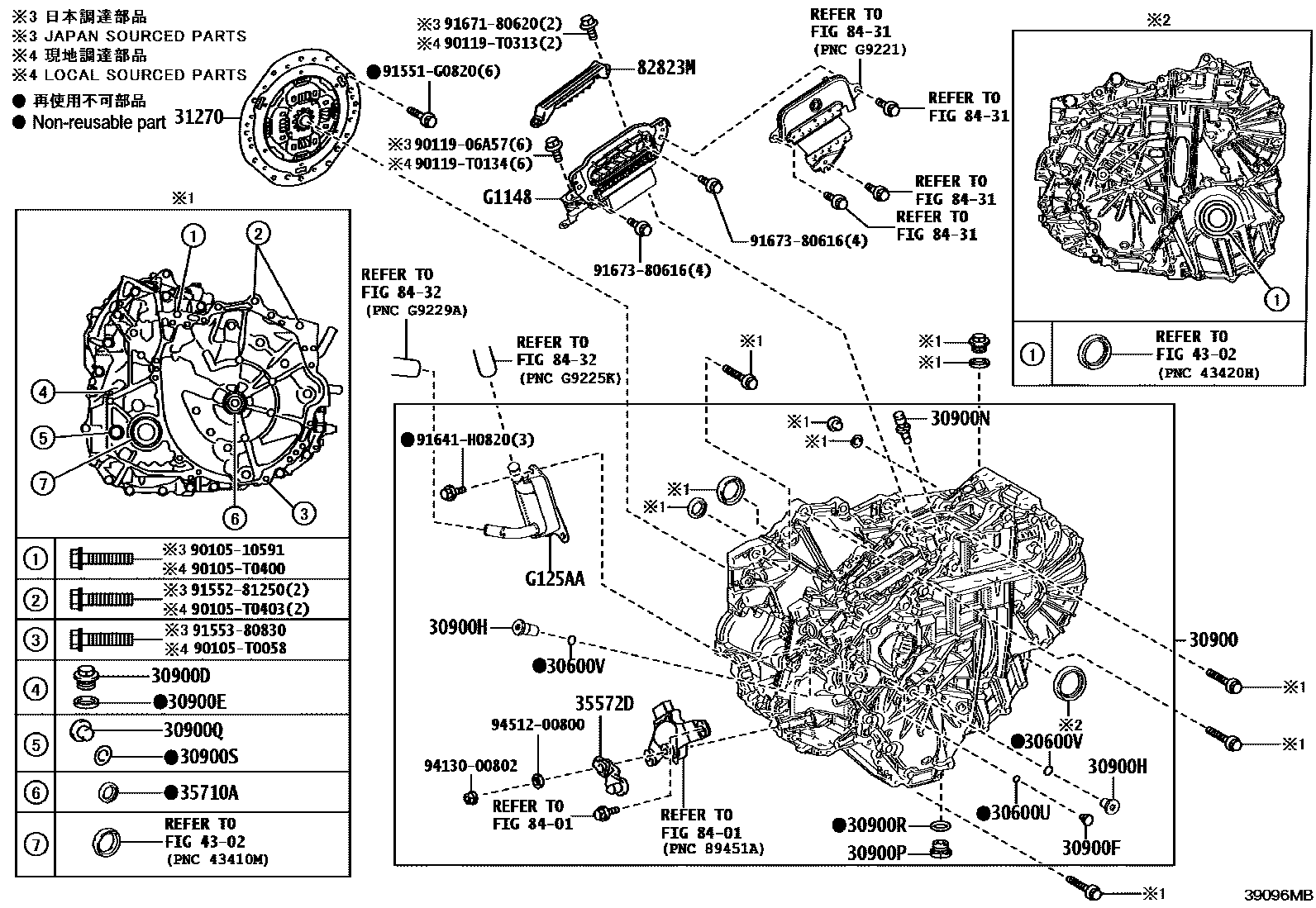

Toyota CAMRY 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901
Toyota CAMRY EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30600U | No. 2 transmission axle housing O-ring | 90301-06196 |
| 30600V | Transmission axle housing No. 3 O-ring | 90301-15004 |
| 30900 | Hybrid vehicle transmission axle assembly | 30900-33150 · 30900-33160 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900F | No. 2 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-08001 |
| 30900H | No. 3 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18020 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18090 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-33040 |
| 35572D | transmission control lever | 35572-63020 |
| 35710A | T-type oil seal (for input shaft) | 90311-27012 |
| 82823M | Terminal cover | 82823-28110 |
| G1148 | Motor cable | G1148-63011 |
| G125AA | Motor cooler | G125A-63010 |
