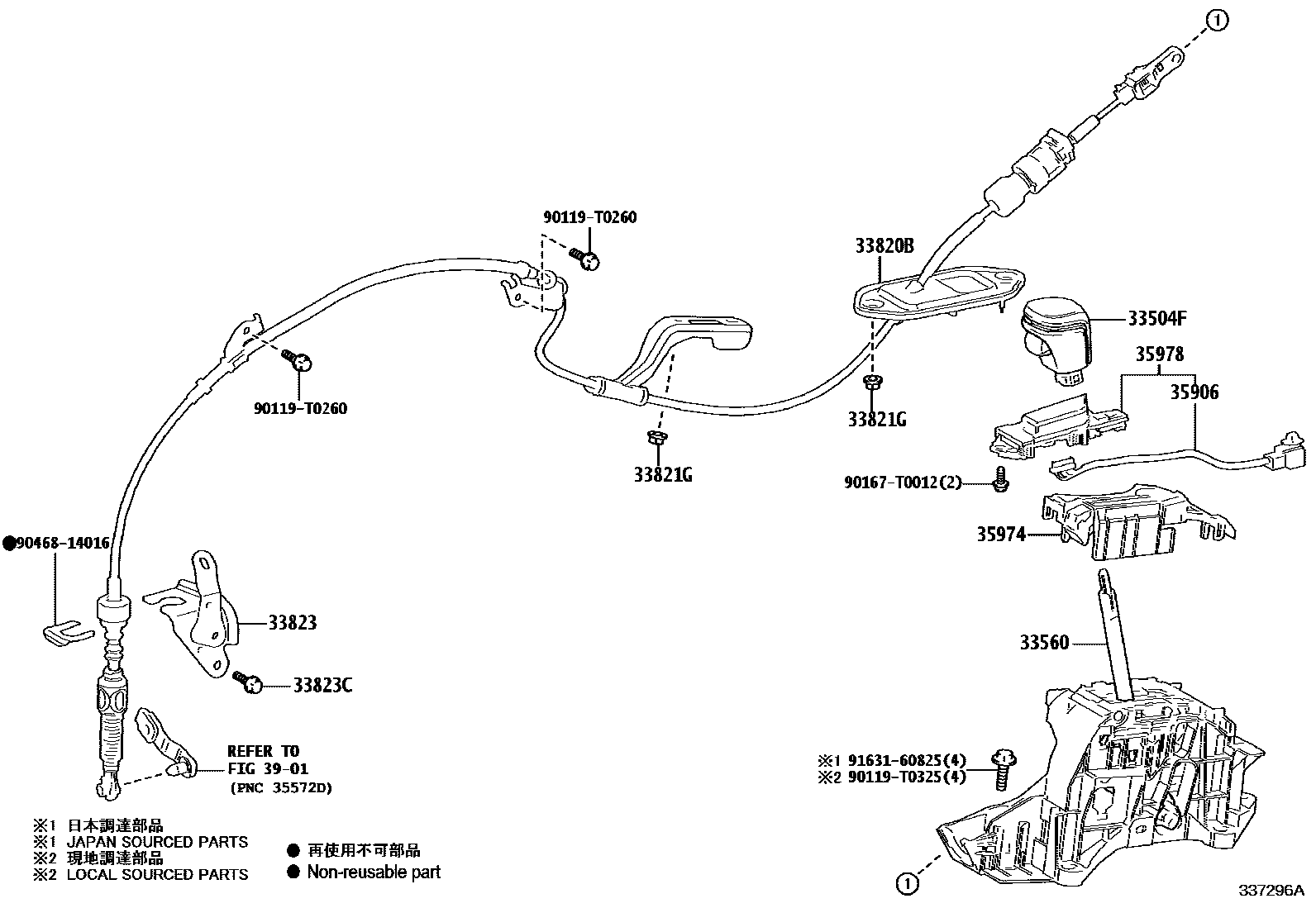

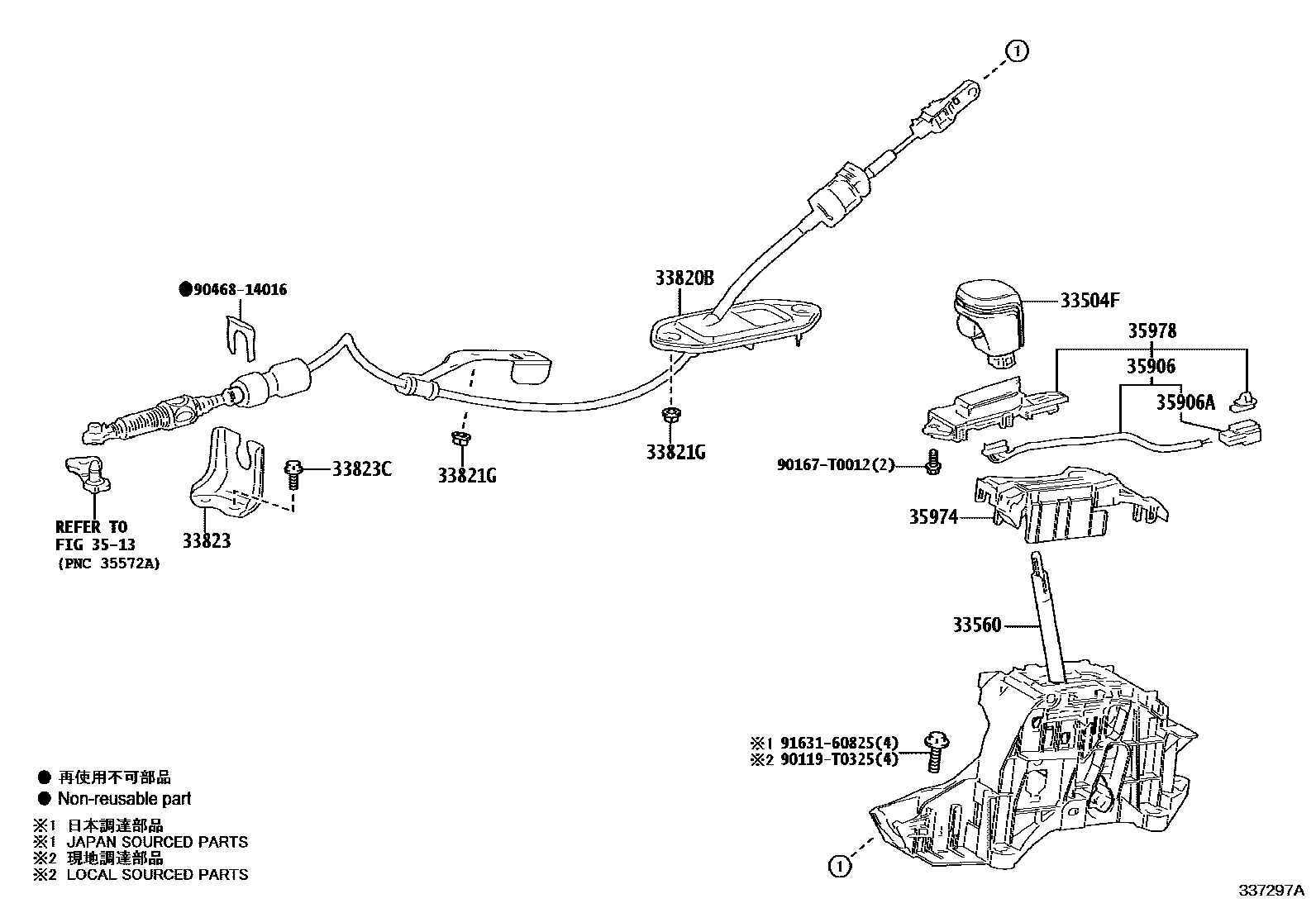

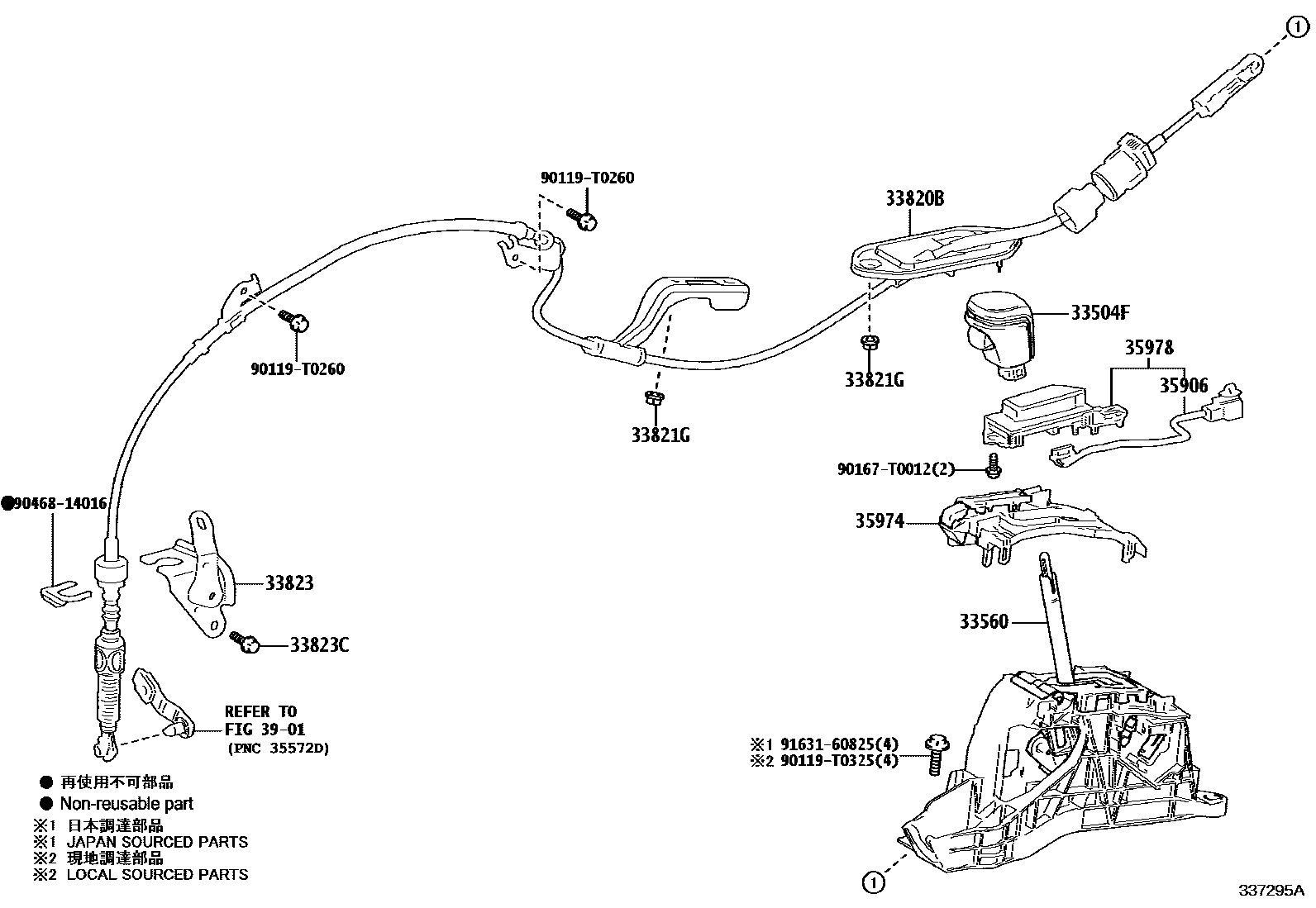

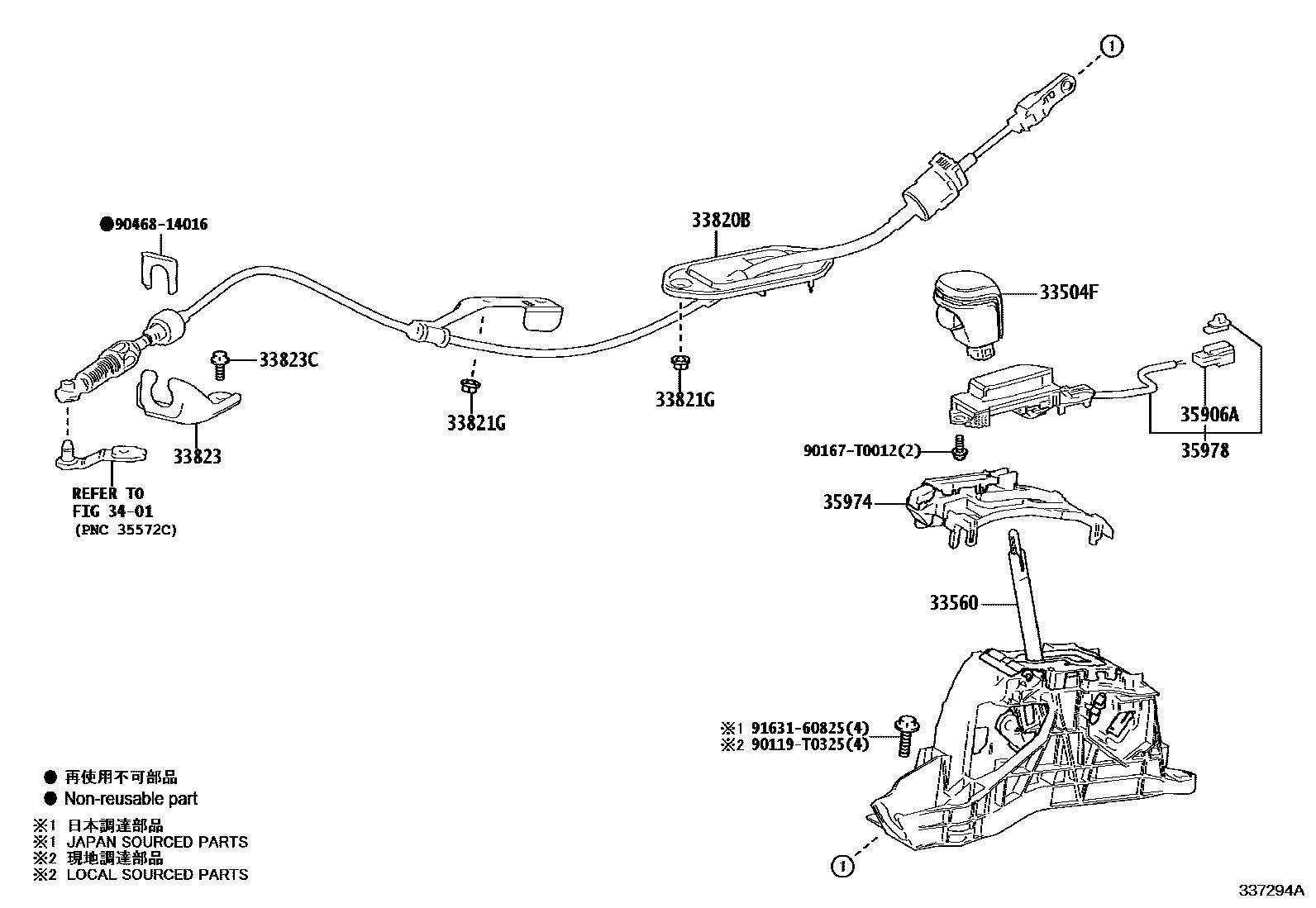

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-06460 · 33560-33380 · 33560-33400 |
| 33820B | Transmission control cable assembly | 33820-06560 · 33820-06680 · 33820-06720 · 33820-06730 |
| 33821G | Nut (for transmission control cable) | 90178-T0007 · 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-06110 · 33823-06160 · 33823-06180 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0342 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06310 · 35906-33190 · 35906-33210 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-06180 · 35974-33240 · 35974-33250 |
| 35978 | Shift lever position indicator light | 35978-06290 · 35978-33190 · 35978-33210 · 35978-33430 |
