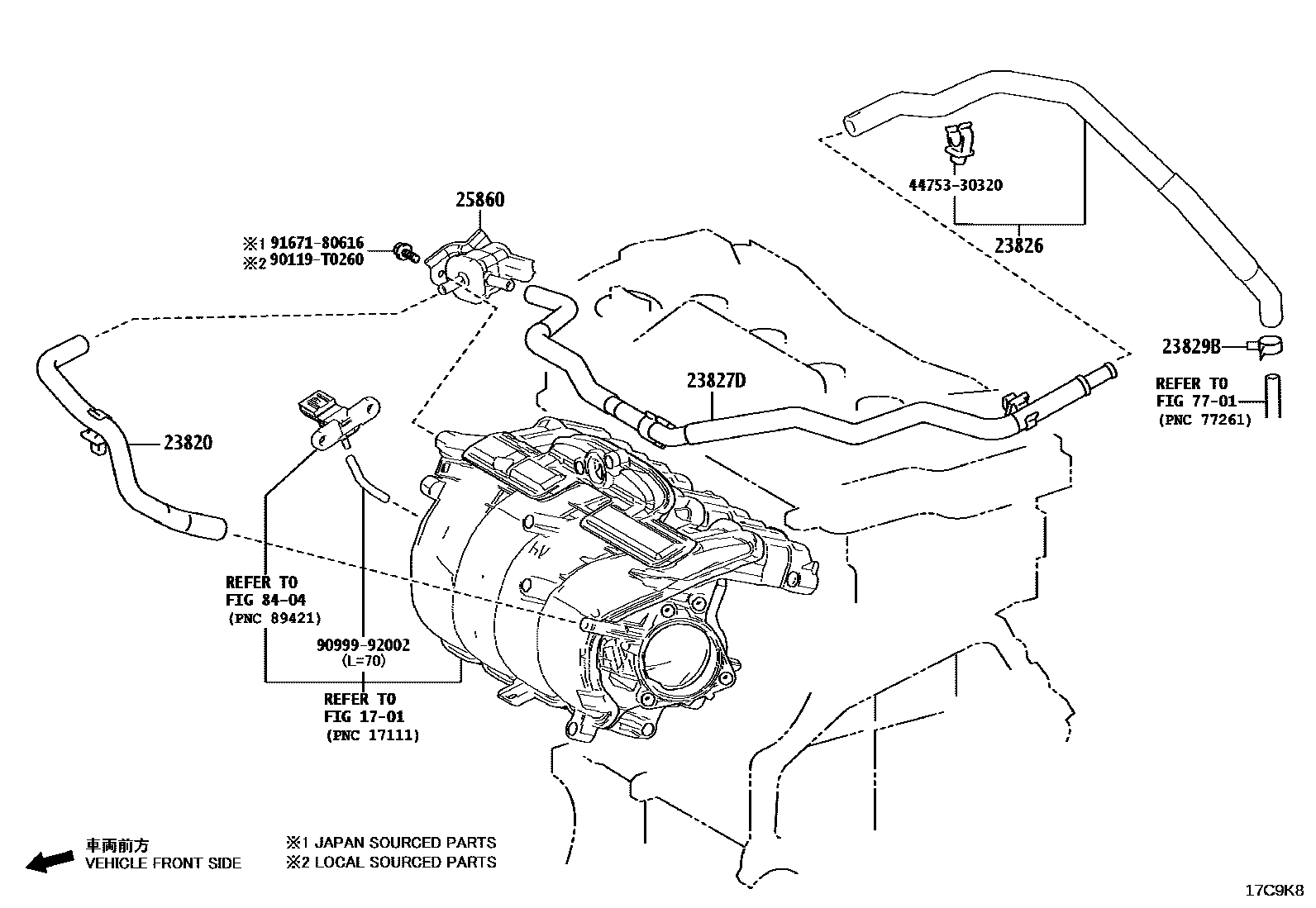

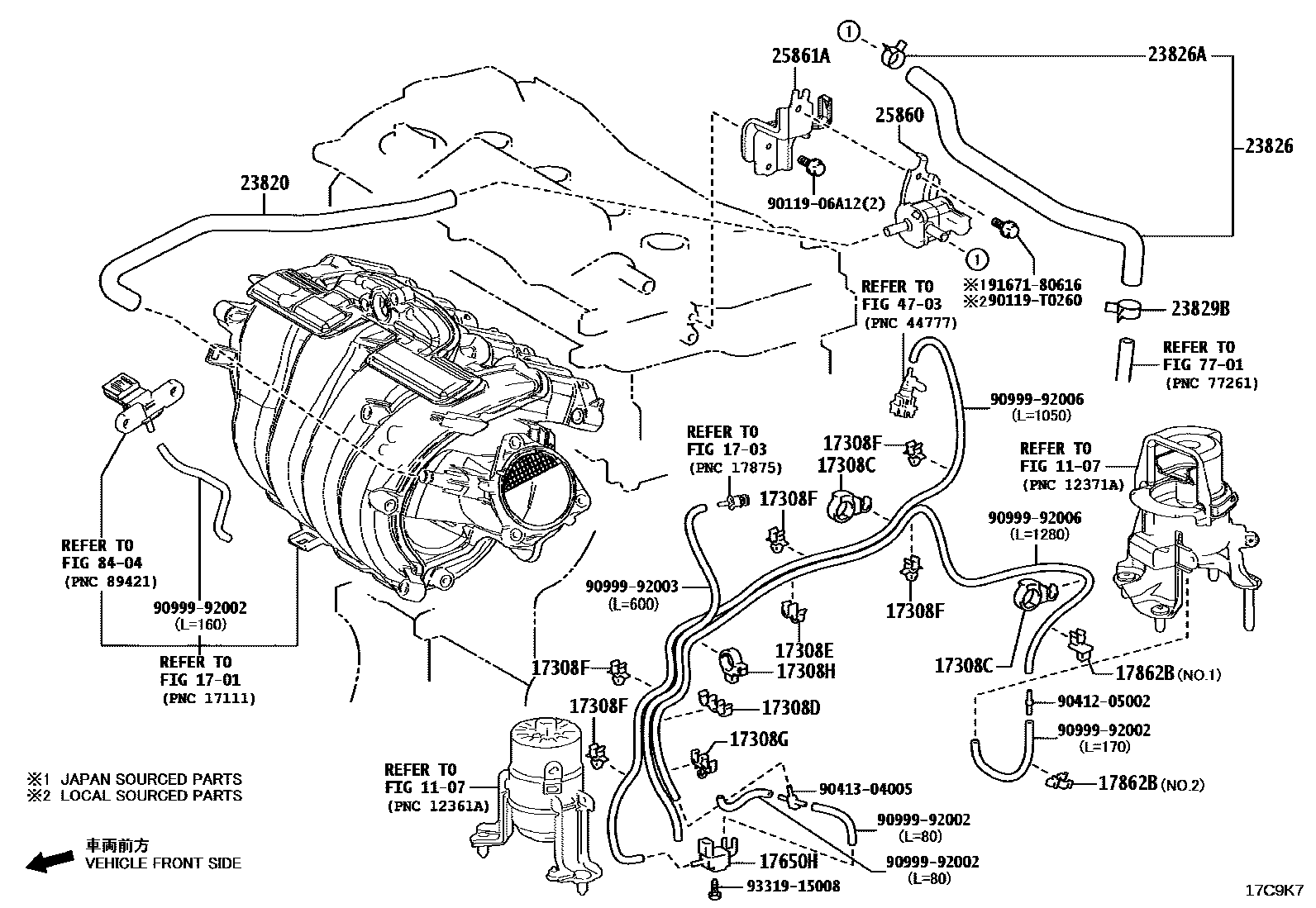

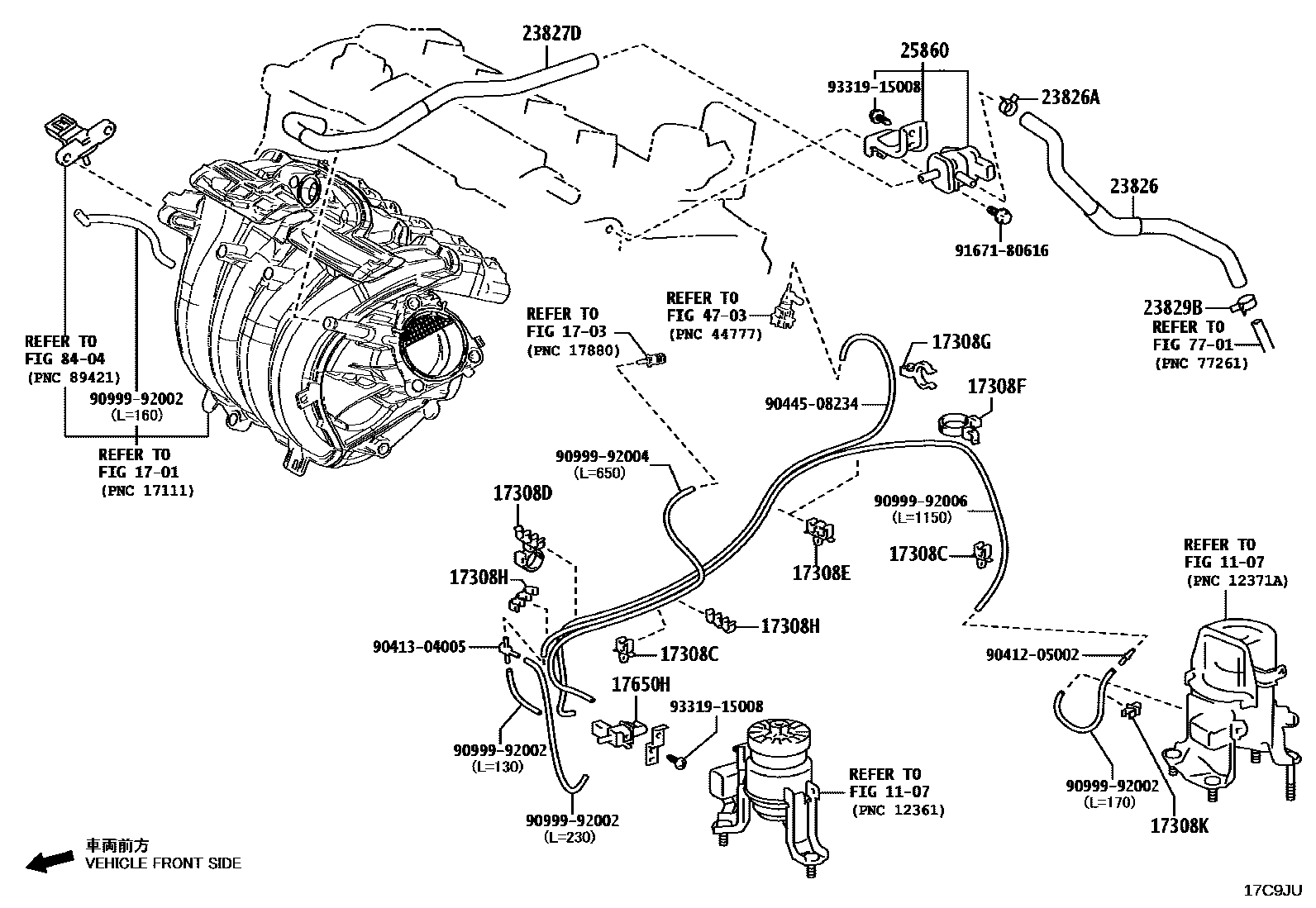

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-33060 · 44783-42040 |
| 17308D | Clamp No. 2 (for vacuum hose) | 44783-42070 · 90464-00074 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42080 |
| 17308F | No. 4 clamp (for vacuum hose) | 44783-42040 · 44783-42090 |
| 17308G | No. 5 clamp (for vacuum hose) | 44783-42100 · 90469-07012 |
| 17308H | Clamp No. 6 (for vacuum hose) | 90464-00074 · 90959-01434 |
| 17308K | No. 7 clamp (for vacuum hose) | 44783-42040 |
| 17650H | Vacuum switch valve | 90910-12059 |
| 17862B | hose clamp | 44783-42040 · 44783-42060 |
| 23820 | Fuel vapor supply hose assembly | 23820-25071 · 23820-25130 |
| 23826 | No. 1 fuel vapor supply hose | 23820-F0640 · 23826-F0630 · 23826-F0640 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-13005 |
| 23827D | No. 2 fuel vapor supply hose | 23820-25620 · 23826-24020 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41901 · 96138-41501 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24020 · 25860-25020 · 25860-25040 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-25011 |
