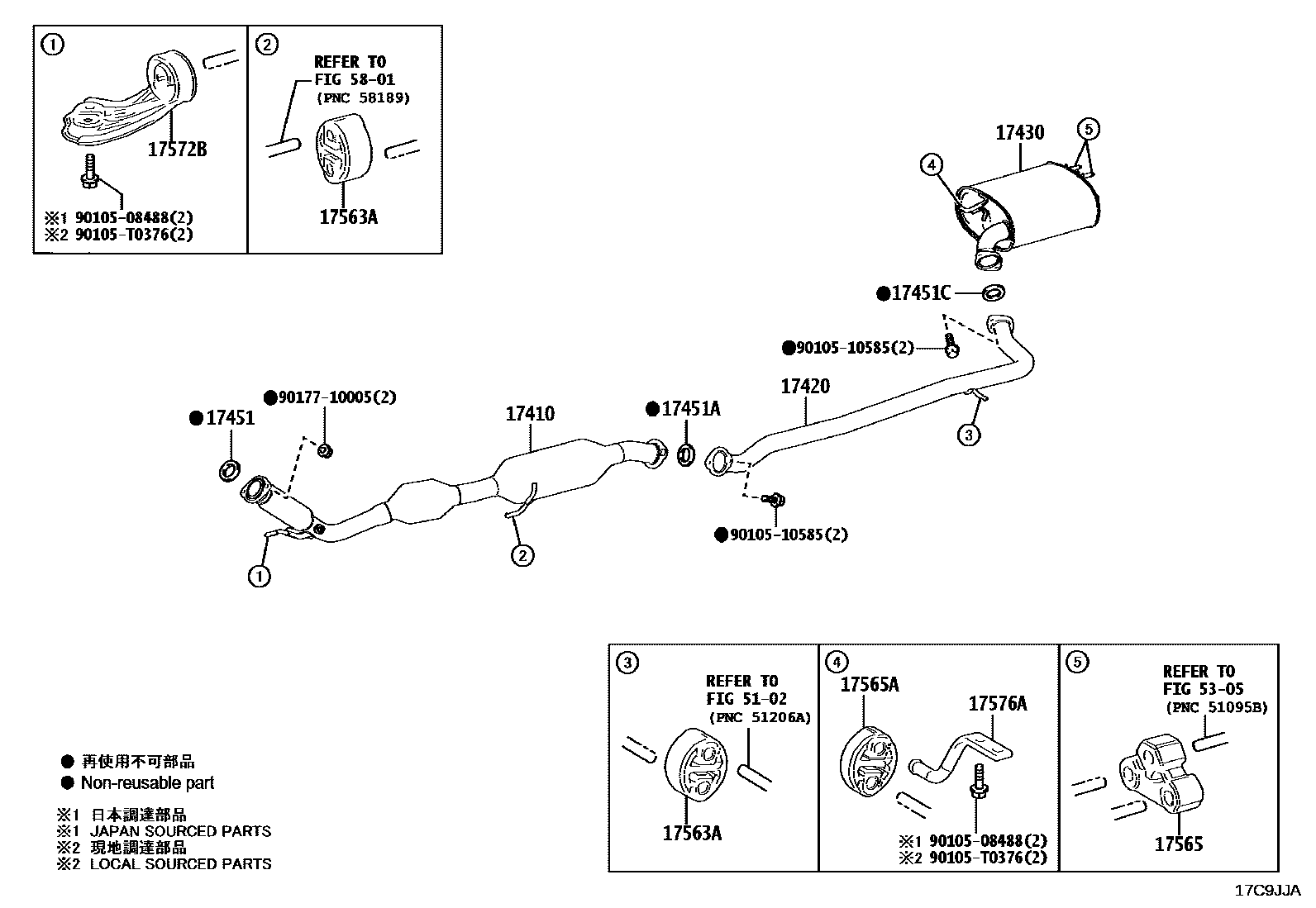

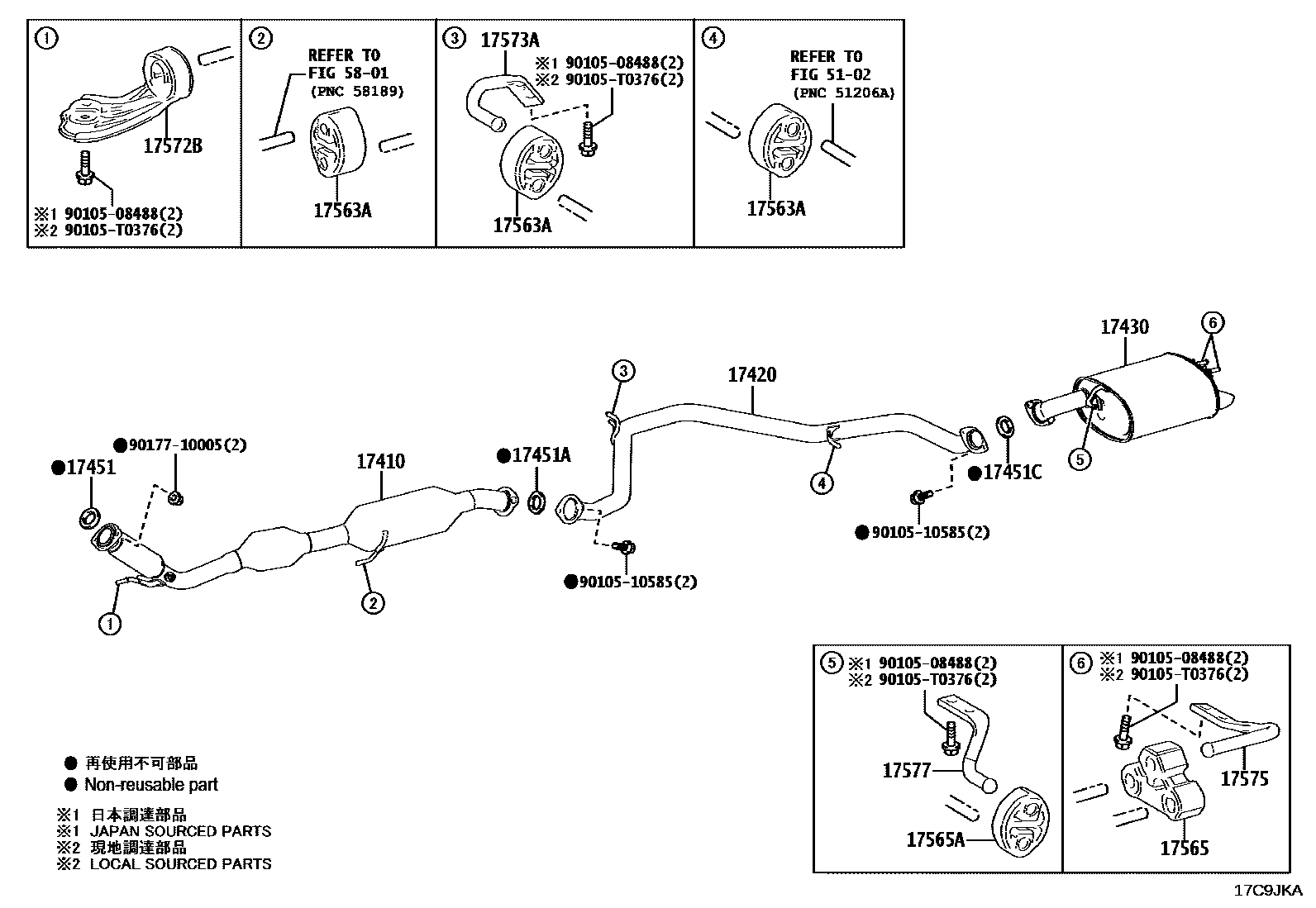

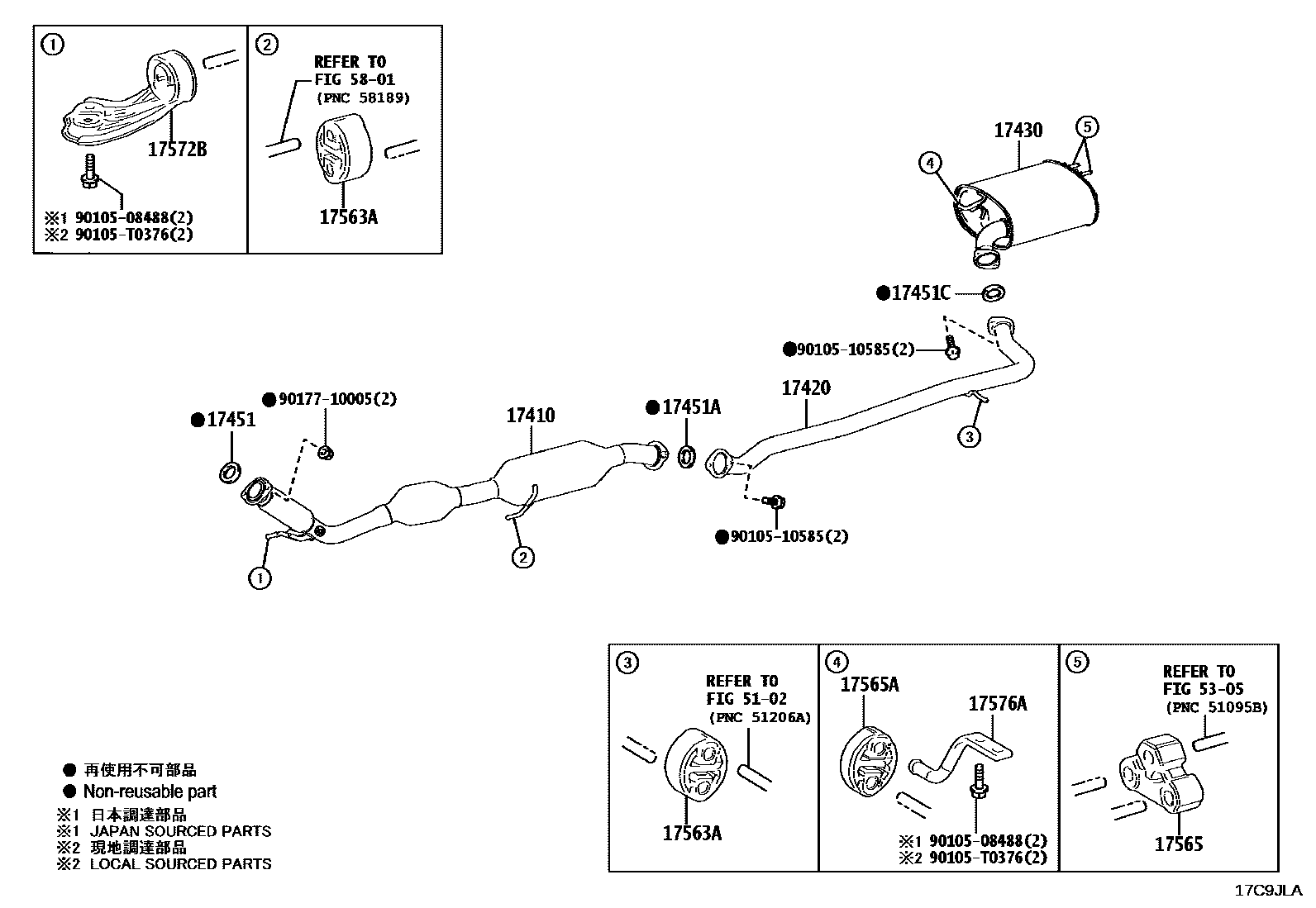

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-F0780 · 17410-F0790 · 17410-F2280 |
| 17420 | Central exhaust pipe assembly | 17420-F0060 · 17420-F2010 |
| 17430 | Exhaust tailpipe assembly | 17430-F0560 · 17440-F0200 |
| 17451 | Exhaust pipe gasket | 90917-06078 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06072 |
| 17451C | No. 3 exhaust pipe gasket | 90917-06066 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0P110 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-F0030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P090 |
| 17572B | No. 2 exhaust pipe bracket | 17572-31150 |
| 17573A | No. 3 exhaust pipe bracket | 17573-F0020 |
| 17575 | No. 5 exhaust pipe bracket | 17575-31160 · 17575-F0020 |
| 17576A | No. 6 exhaust pipe bracket | 17576-F0020 |
| 17577 | No. 7 exhaust pipe bracket | 17577-F0020 |
