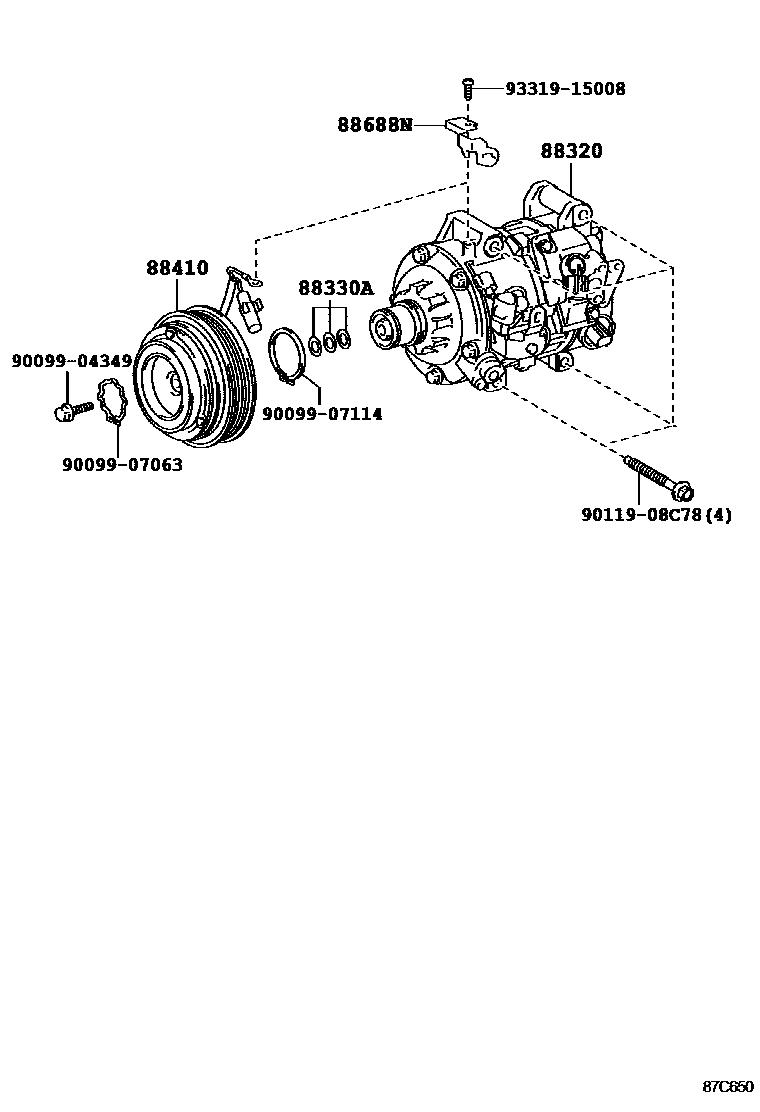

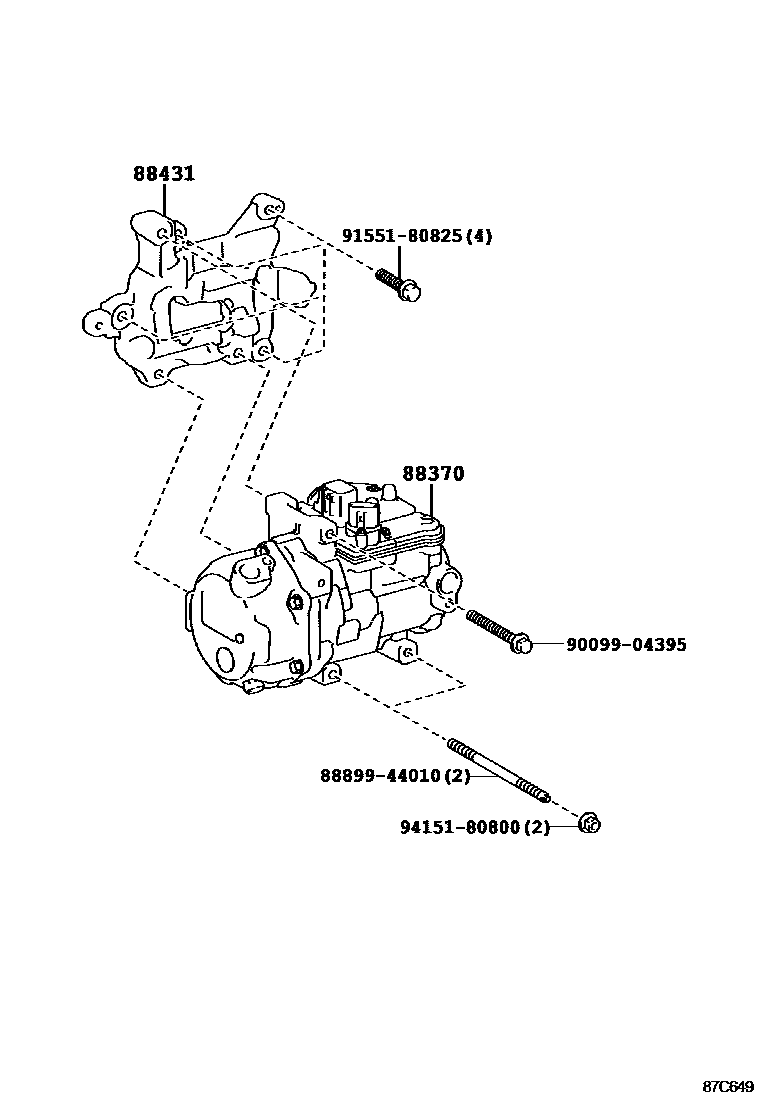

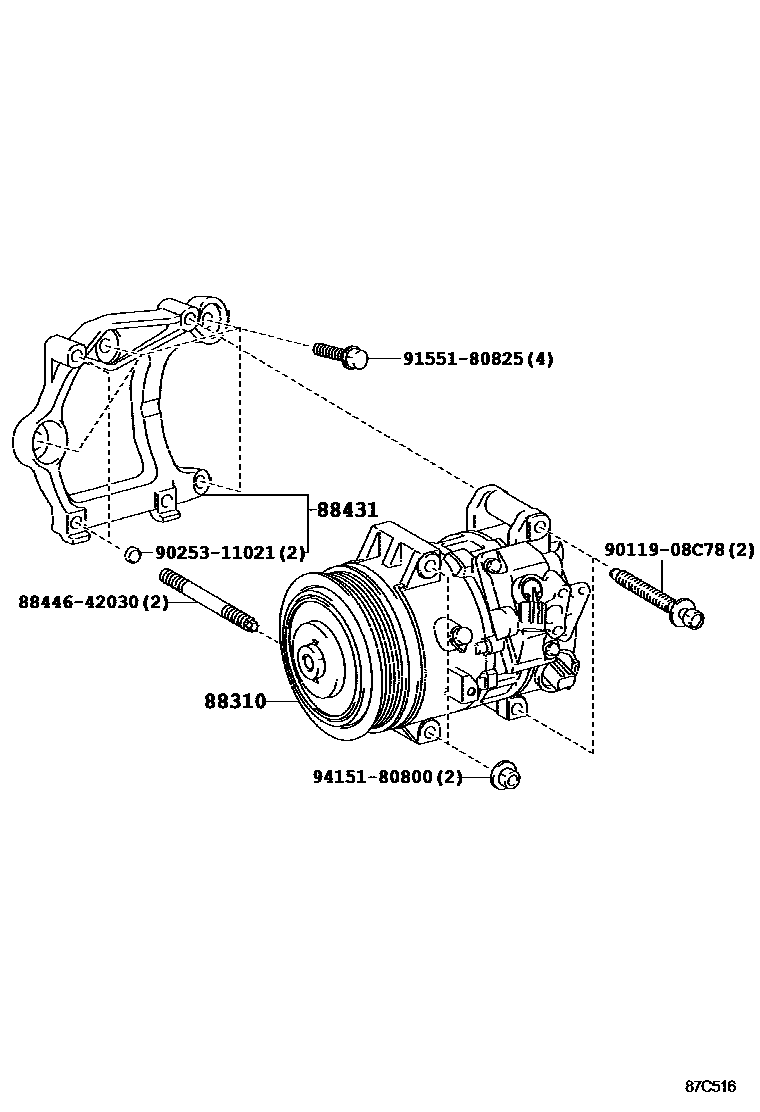

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-06440 · 88310-06441 |
| 88320 | Cooler Compressor Assembly | 88320-06160 · 88320-06190 · 88320-33260 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88370 | Compressor assembly with motor | 88370-33020 |
| 88410 | Magnetic Clutch Assembly | 88410-33180 · 88410-33190 |
| 88431 | Compressor No. 1 mounting bracket | 12502-0V030 · 88431-33050 |
| 88688N | cooler bracket | 88688-33570 |
