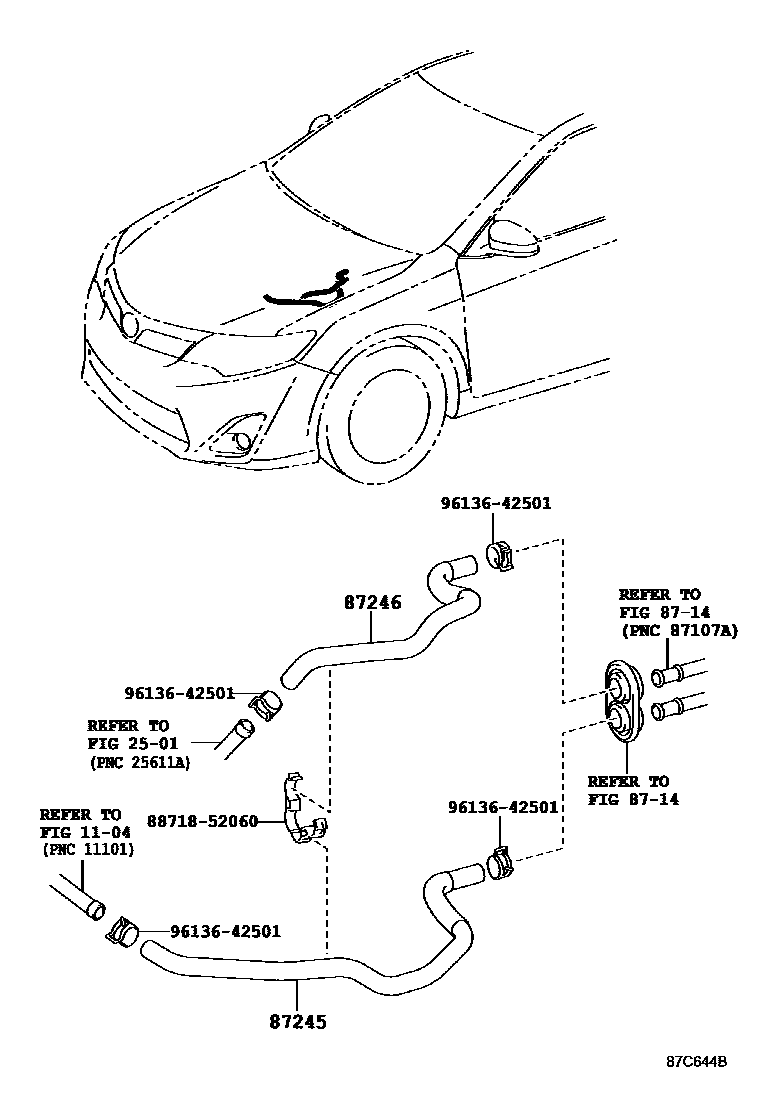

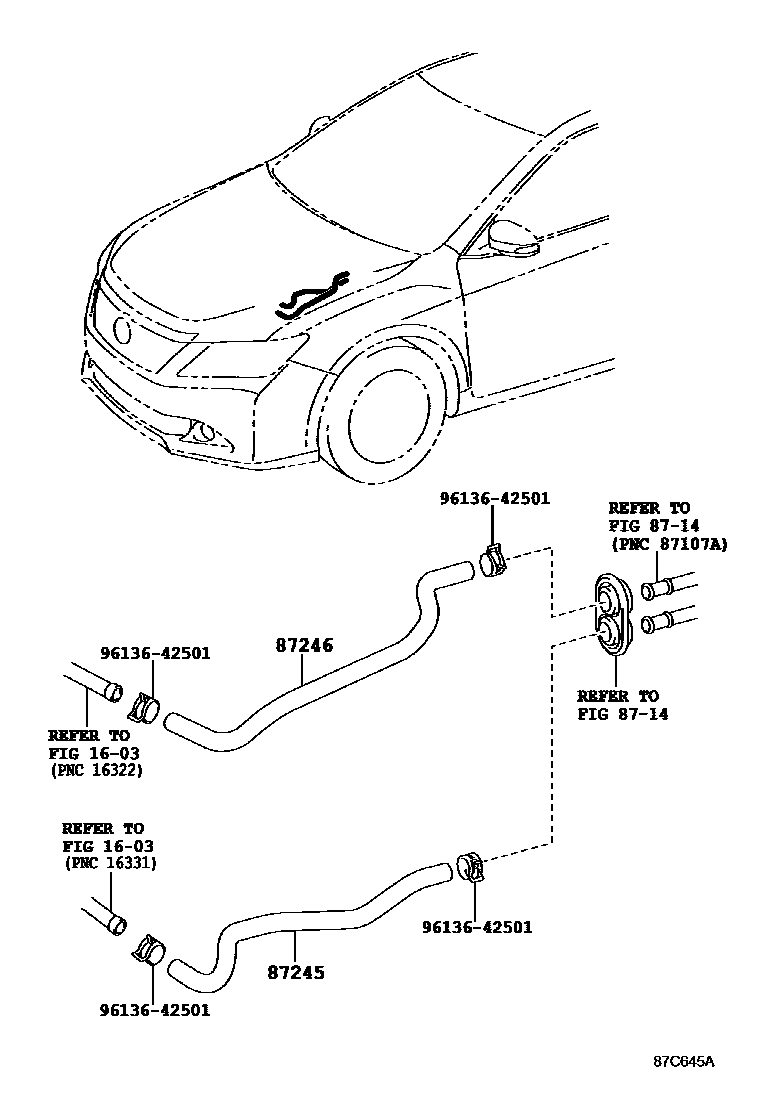

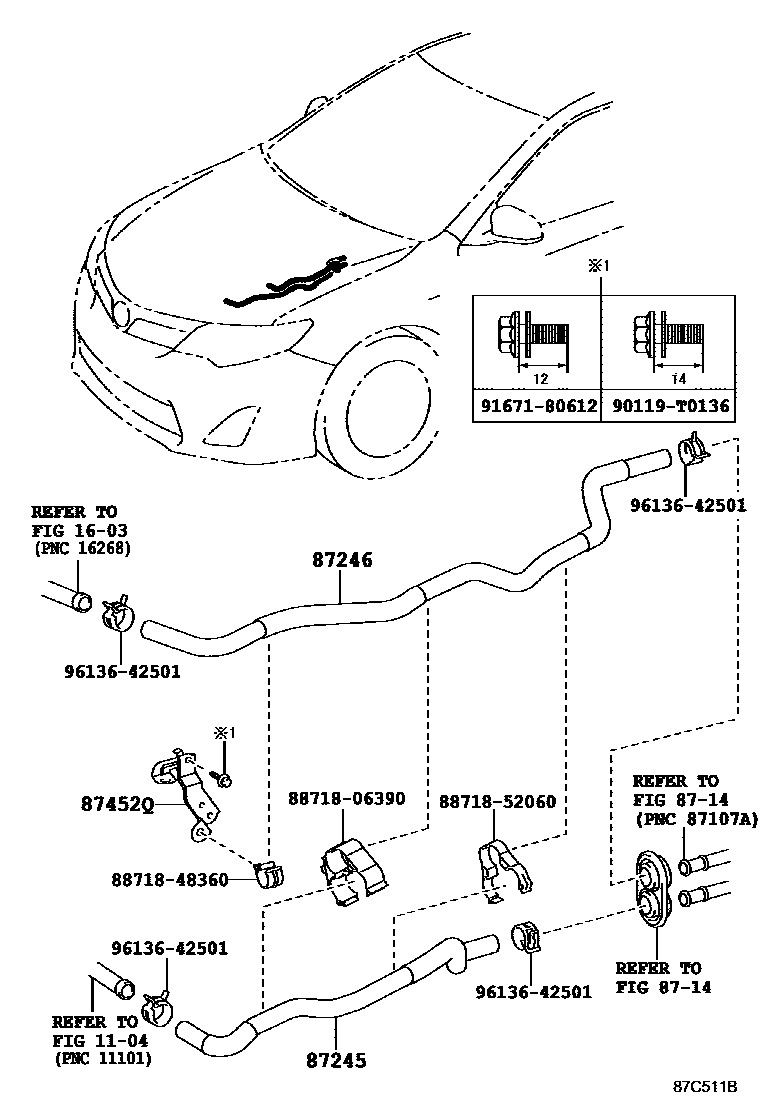

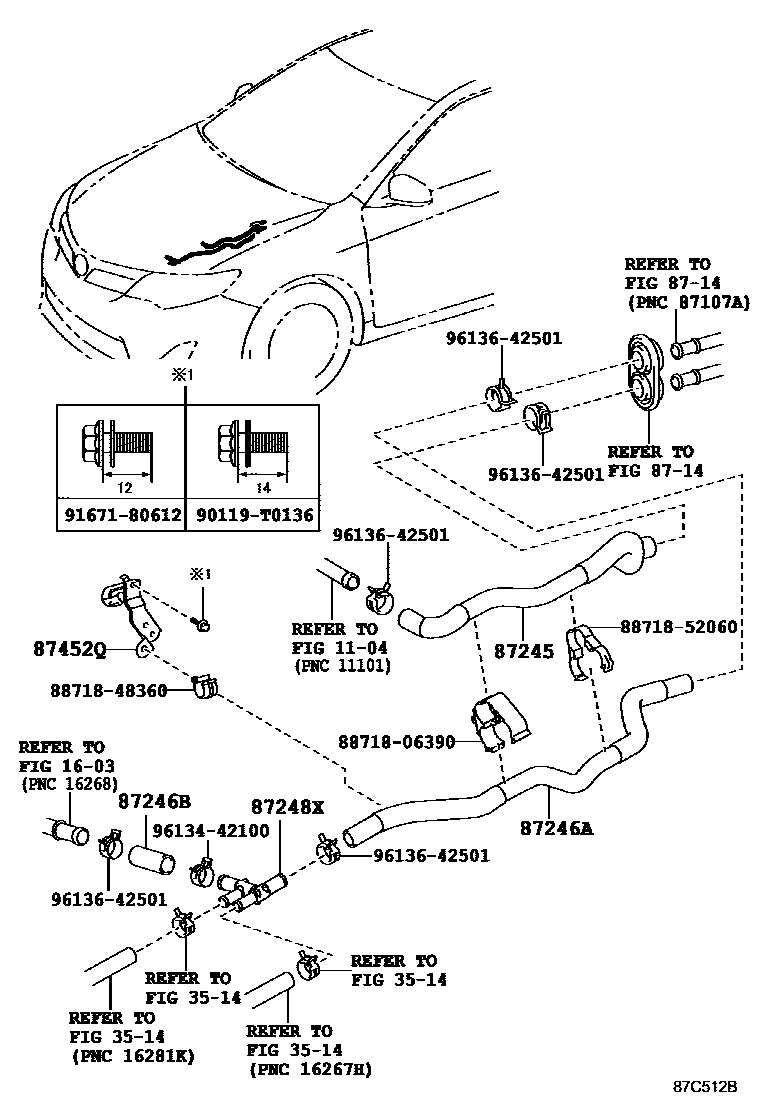

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-06880 · 87245-06A10 · 87245-06C10 |
| 87246 | Heater outlet hose | 87245-06A00 · 87245-06A20 · 87245-06C20 |
| 87246A | Heater outlet hose A | 87245-06890 |
| 87246B | Heater outlet hose B | 87245-33760 |
| 87248X | heater water pipe | 87248-33020 |
| 87452Q | Heater Bracket No. 1 | 87121-33010 · 87452-33040 |
