Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

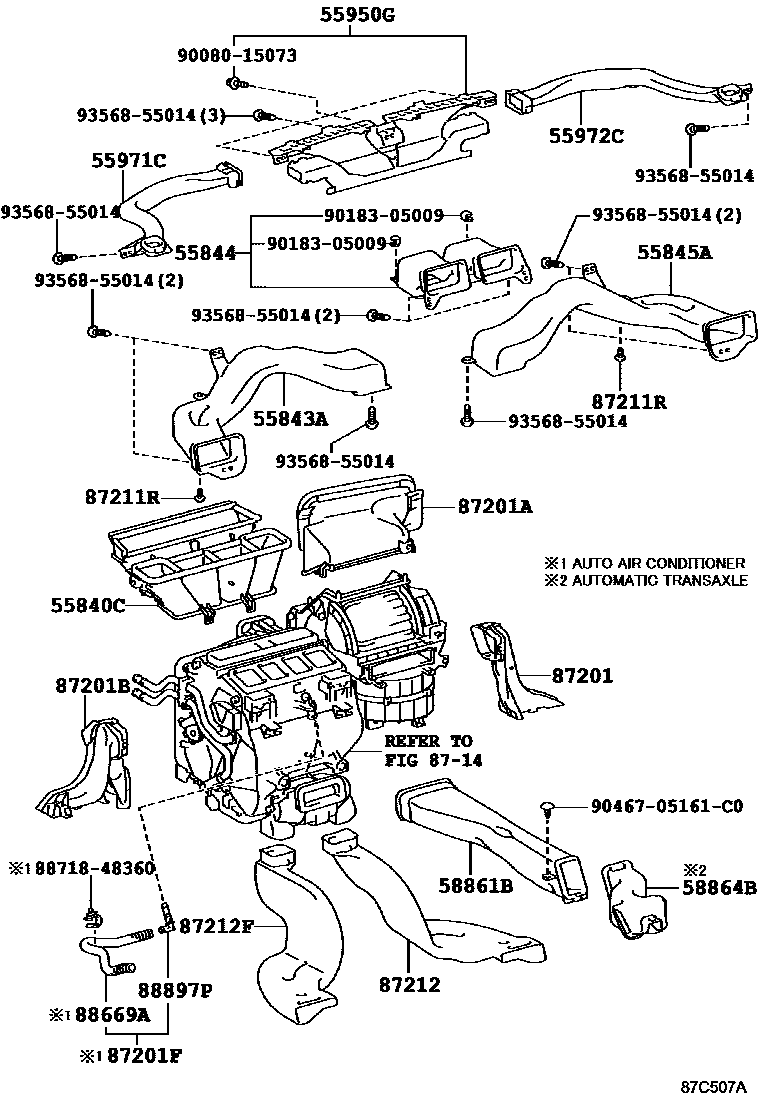

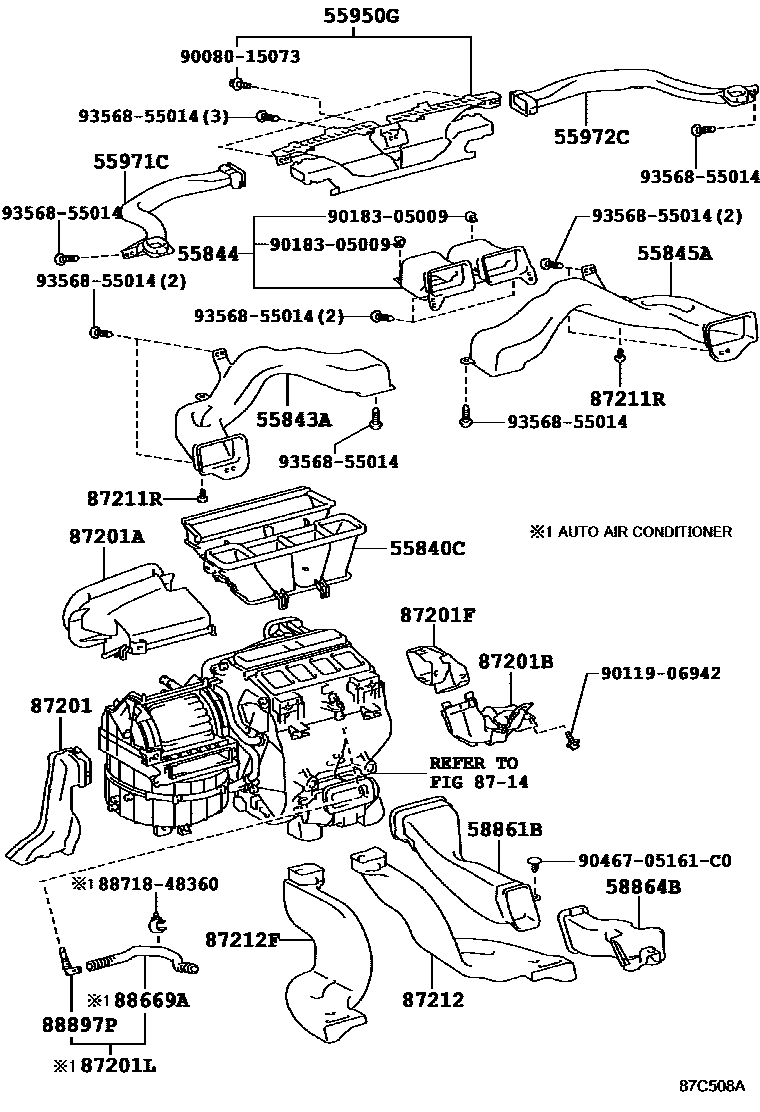

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06061 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06170 · 55843-06240 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06120 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06110 |

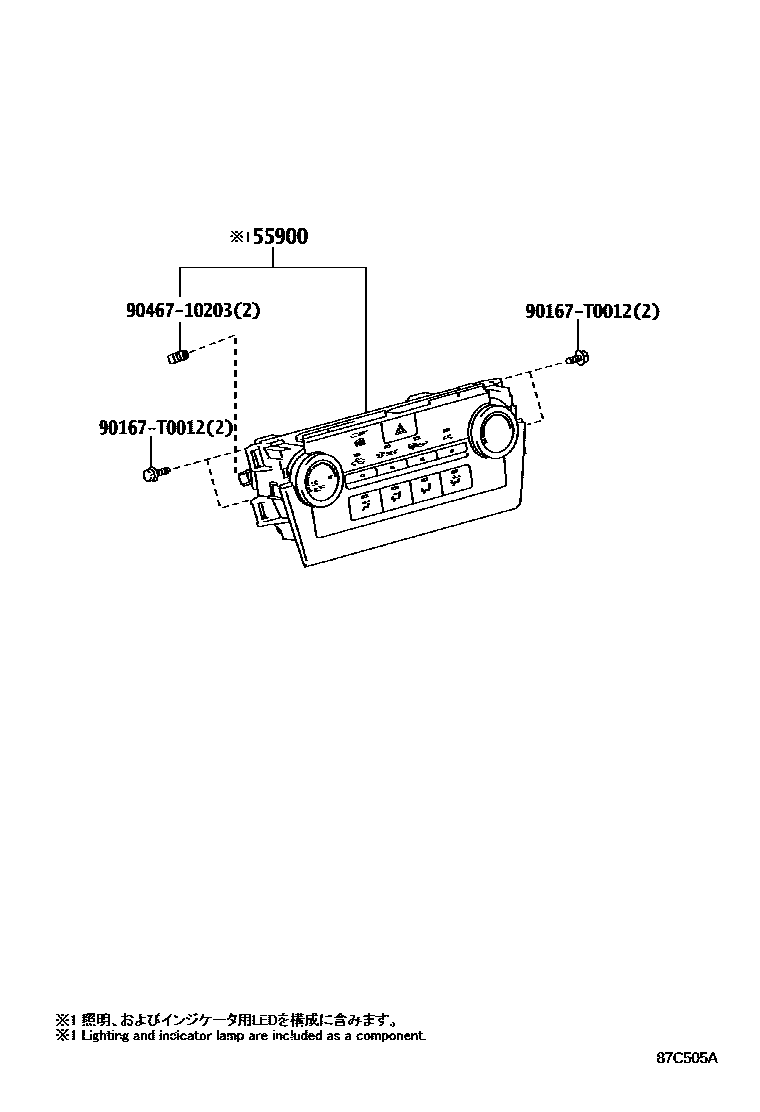

| 55900 | Air conditioning control assembly | 55900-06390 · 55900-06410 · 55900-06440 · 55900-06450 · 55900-33E00 · 55900-33E40 · 55900-33F10 · 55900-33F30 |

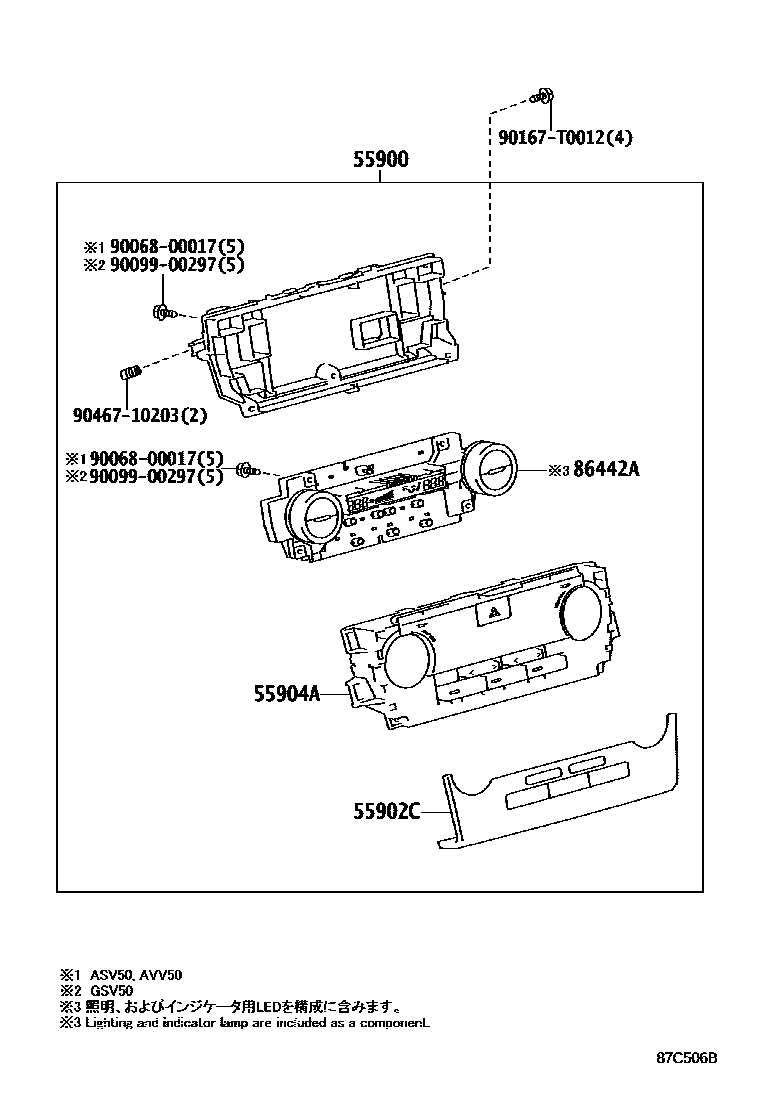

| 55902C | Air conditioning panel sub-assembly | 55902-06240 · 55902-33A80 |
| 55904A | Heater control housing sub-assembly | 55904-06080 · 55904-06090 · 55904-33270 · 55904-33280 · 55904-33410 · 55904-33420 |
| 55950G | Defroster nozzle assembly | 55950-06110 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06090 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06090 |
| 58861B | Air duct No. 1 for armrest box | 58861-06070 · 58861-06120 · 58861-06130 |
| 58864B | Armrest box No. 4 air duct | 58864-06050 · 58864-06060 |

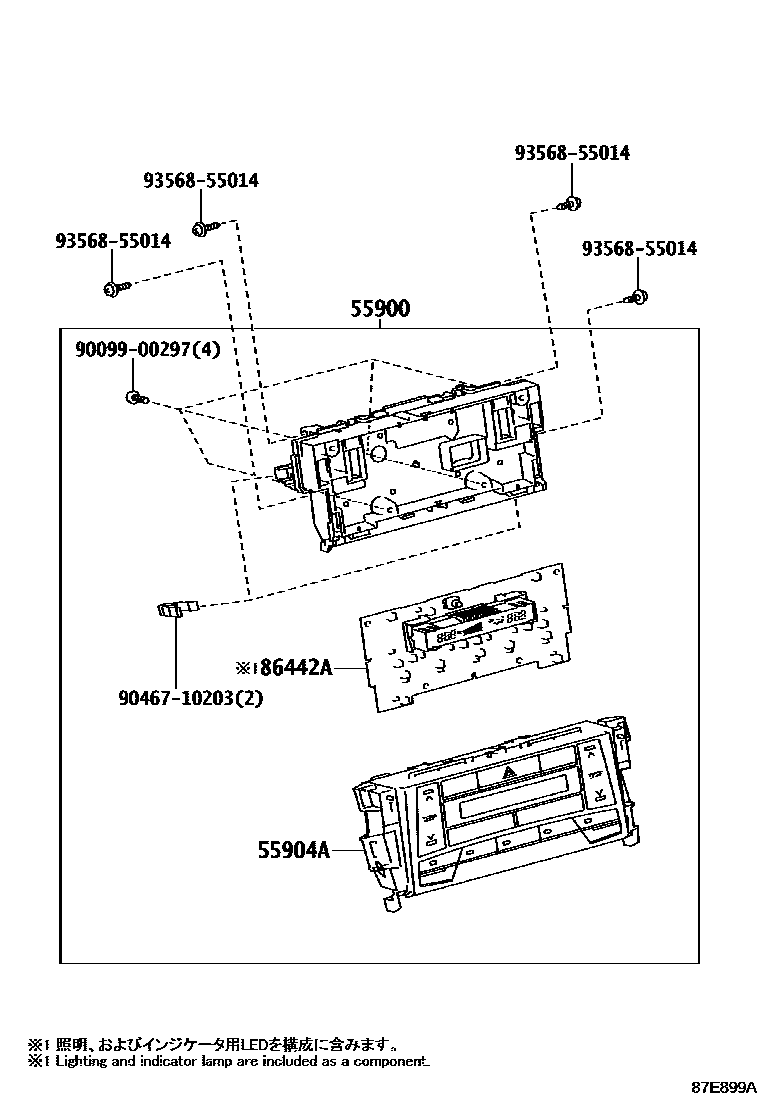

| 86442A | Heater control switch board | 86442-06020 · 86442-06030 · 86442-33040 · 86442-33080 · 86442-33130 · 86442-33140 |
| 87201 | No. 1 air duct sub-assembly | 87201-06320 · 87201-06370 |
| 87201A | Air duct sub-assembly | 87201-06460 · 87201-06480 |
| 87201B | No. 2 air duct sub-assembly | 87201-06470 · 87201-06510 |
| 87201F | No. 3 air duct sub-assembly | 87201-06490 · 87201-06500 |
| 87201L | No. 4 air duct sub-assembly | 87201-06500 |
| 87212 | No. 1 rear air duct | 87212-06060 |
| 87212F | No. 2 rear air duct | 87213-06060 |

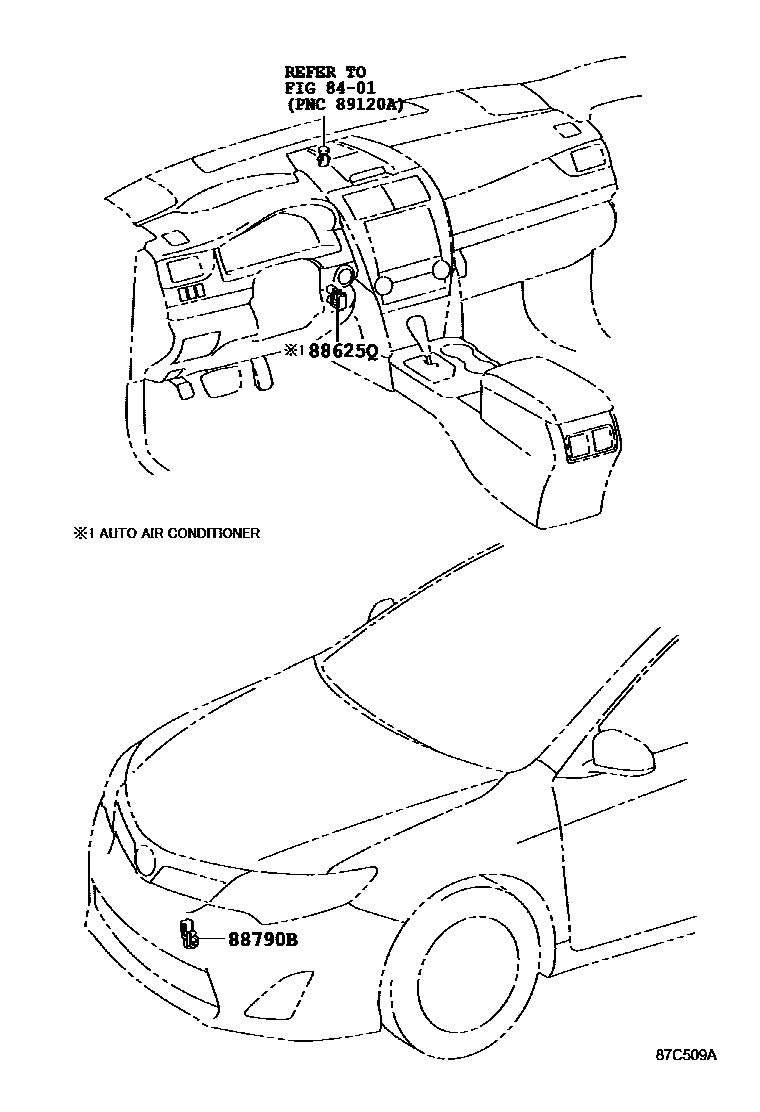

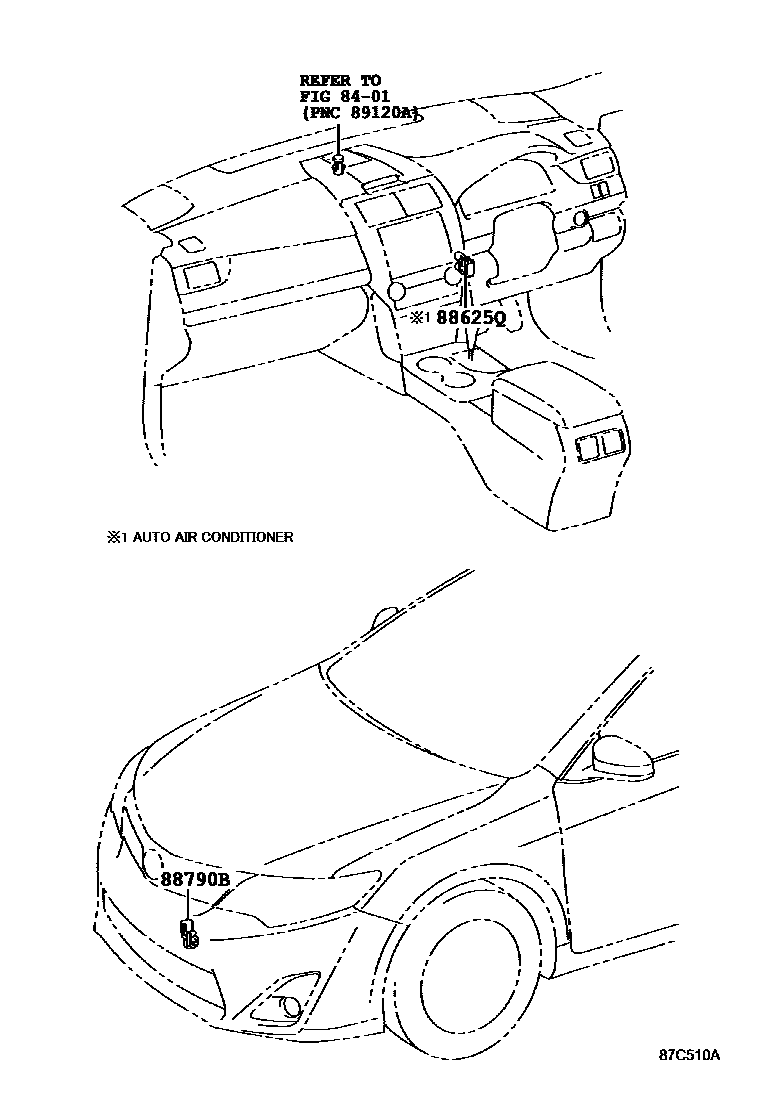

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06030 |
| 88669A | Hoses (for cooler thermistor) | 88669-06070 |
| 88790B | Thermistor assembly | 88790-22131 |
| 88897P | aspirator | 88897-06020 |
