Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

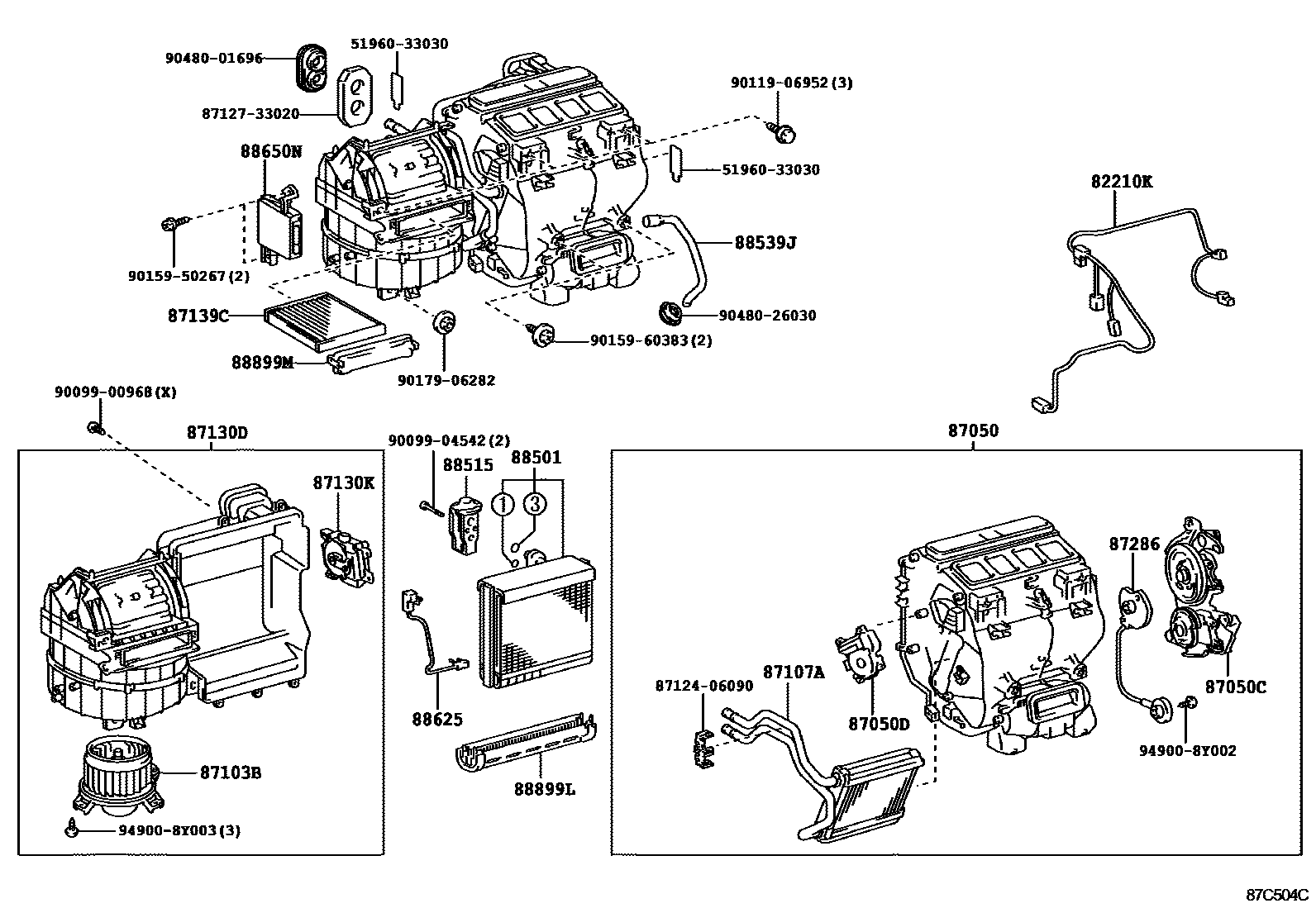

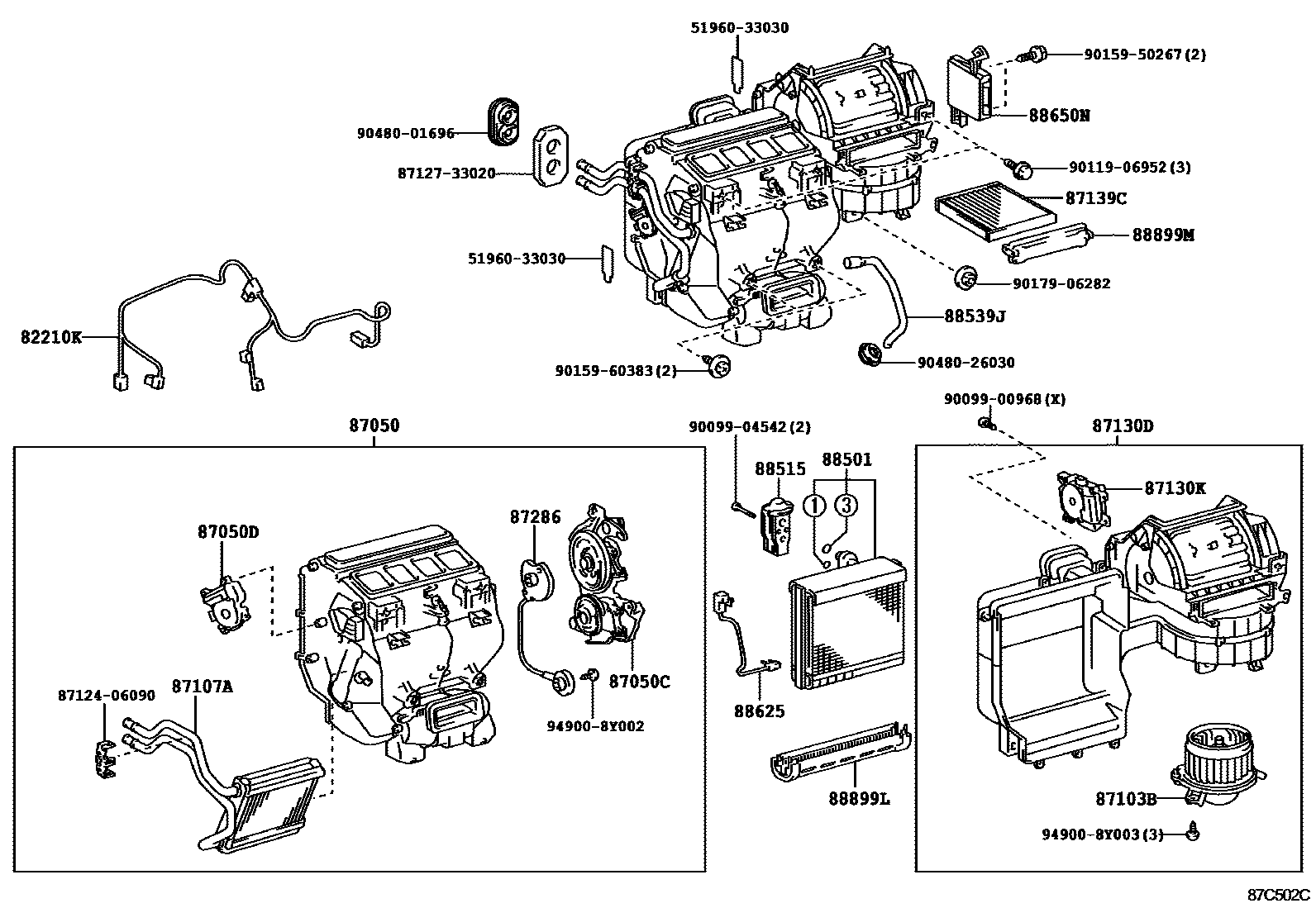

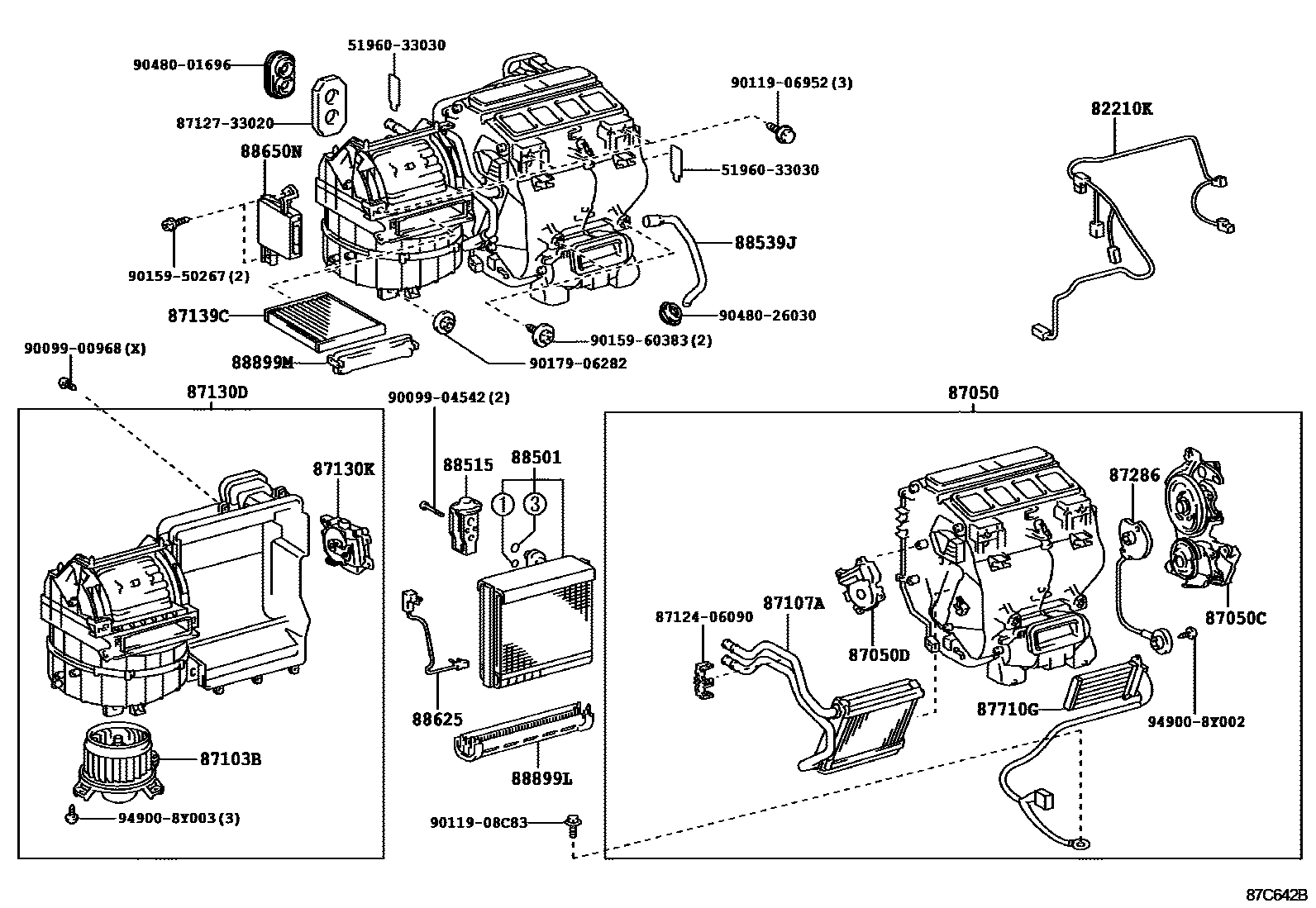

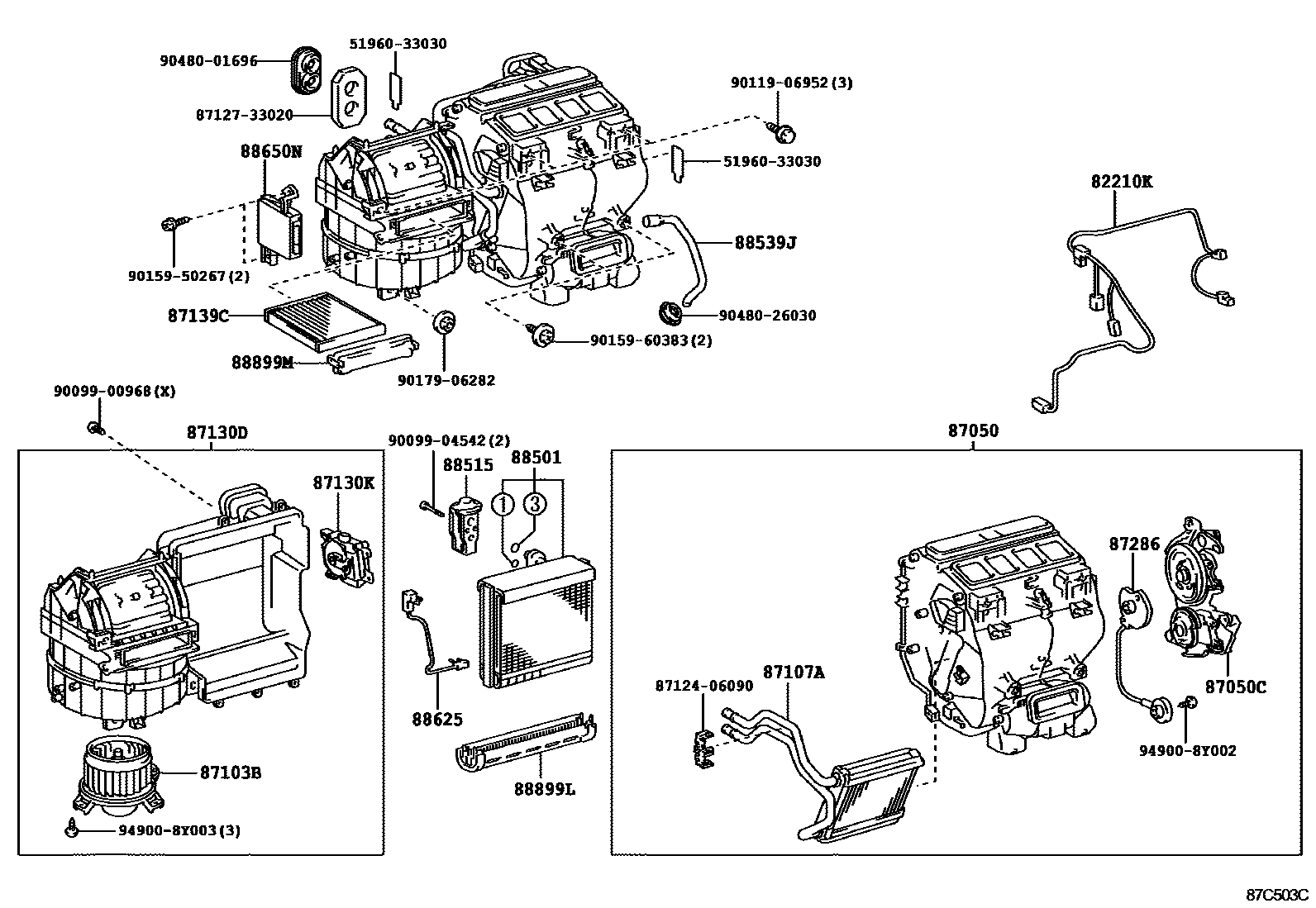

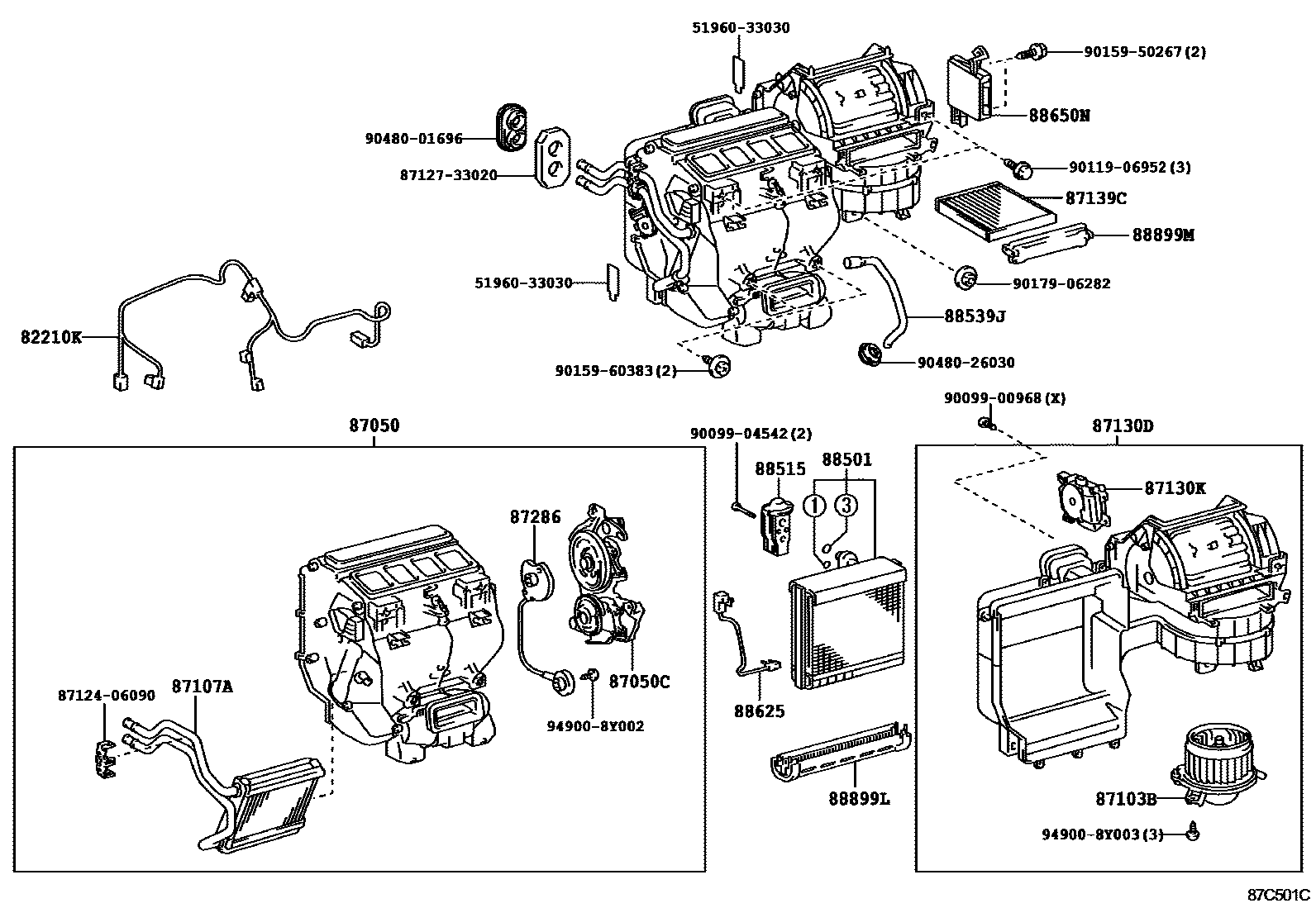

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06070 · 82212-06071 · 82212-06080 · 82212-06081 · 82212-06090 · 82212-06091 · 82212-06100 · 82212-06101 |
| 87050 | Air conditioning radiator assembly | 87050-06461 · 87050-06462 · 87050-06471 · 87050-06472 · 87050-06560 · 87050-06561 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06181 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06190 |
| 87103B | Blower motor sub-assembly with fan | 87103-06071 · 87103-06081 |
| 87107A | Heater radiator device sub-assembly | 87107-06070 |
| 87130D | Blower assembly | 87130-06310 · 87130-06350 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-06200 · 87106-06210 |
| 87139C | air purification filter | 87139-06100 · 87139-06120 · 87139-50100 |
| 87286 | control cable | 87286-8Y003 |
| 87710G | Rapid heater assembly | 87710-06030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06250 · 88501-06260 · 88501-06270 |
| 88515 | Cooler expansion valve | 88515-06090 |
| 88539J | Cooler drain hose | 88539-06100 |
| 88625 | Cooler No. 1 Thermistor | 88620-06050 |
| 88650N | Air conditioning amplifier assembly | 88650-06540 · 88650-06541 · 88650-06550 · 88650-06551 · 88650-06560 · 88650-06561 · 88650-06640 · 88650-06641 · 88650-06850 · 88650-06860 · 88650-06870 · 88650-06D70 · 88650-06D80 · 88650-06D90 · 88650-06E00 |
| 88899L | Cooling unit parts | 88899-06120 |
| 88899M | cover (for air cleaner) | 88899-06060 |
