Toyota CAMRY 扬声器 — Figure 8602

Toyota CAMRY EPC diagram 8602, 扬声器, with 3 images and 6 PNC and OE references.

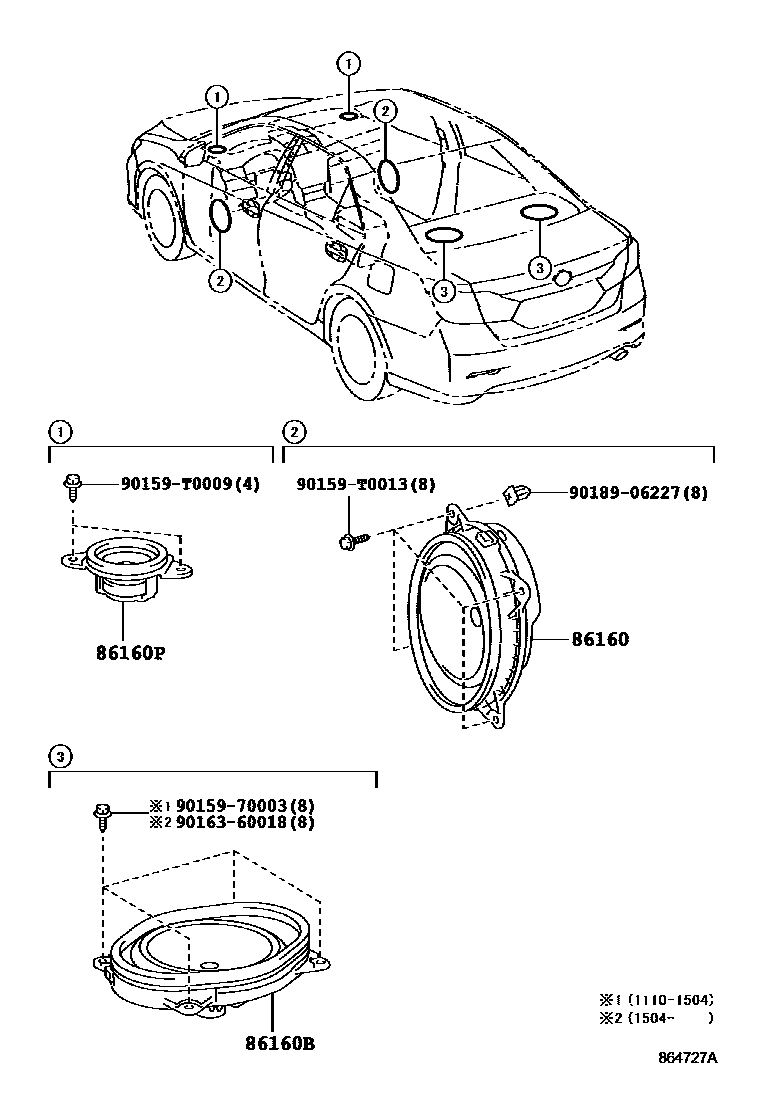

Toyota CAMRY 扬声器 EPC diagram — 864727A — 扬声器 — 864727A (201110 – 999999)

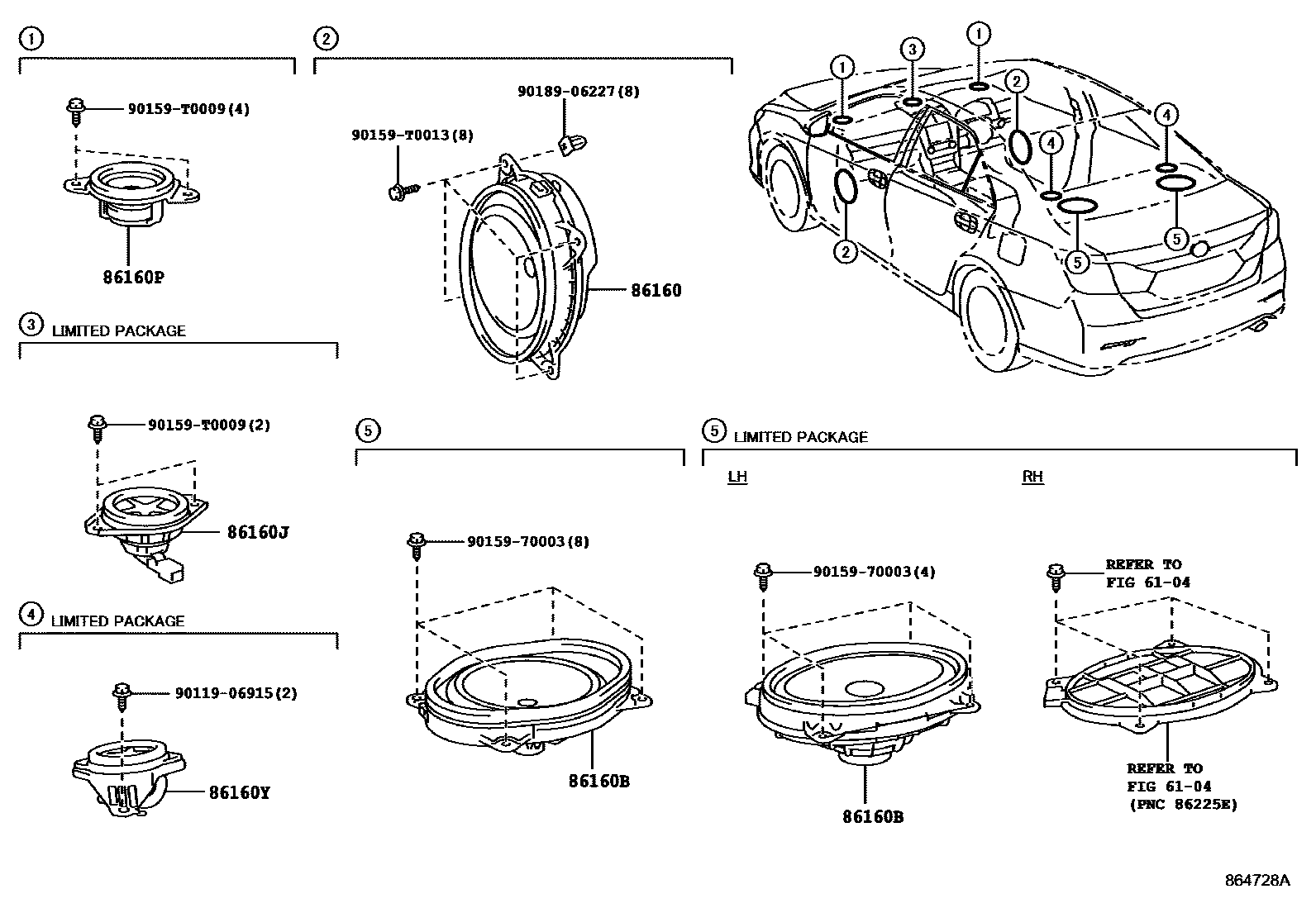

Toyota CAMRY 扬声器 EPC diagram — 864728A — 扬声器 — 864728A (201110 – 201504)

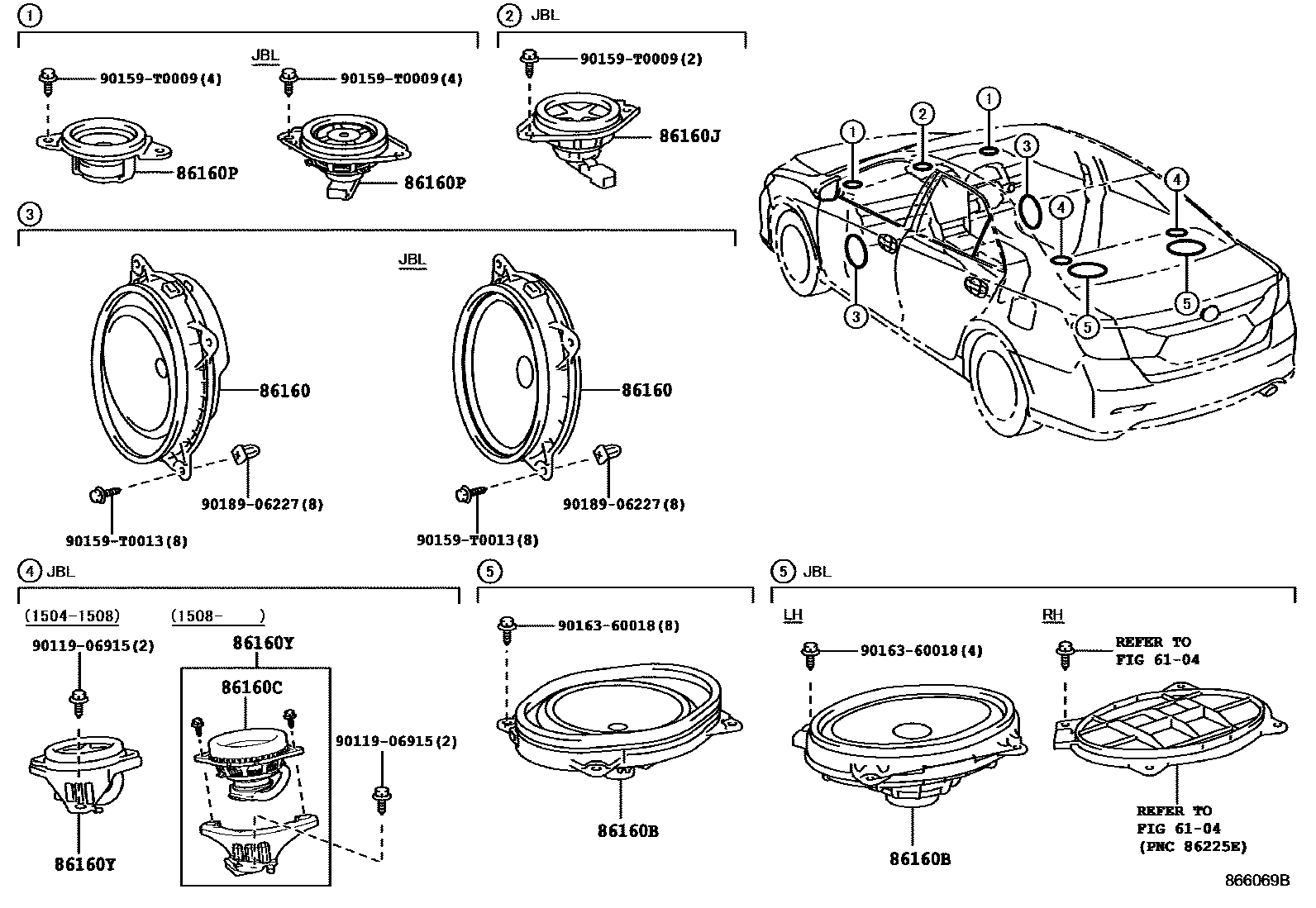

Toyota CAMRY 扬声器 EPC diagram — 866069B — 扬声器 — 866069B (201504 – 999999)

PNC and OE references

PNC	Part name	OE numbers
86160	No. 1 front speaker assembly	86160-06670 · 86160-0WU60 · 86160-33850
86160B	Rear speaker assembly	86160-06680 · 86160-0WU70 · 86160-33860
86160C	rear speaker assembly	86160-33880
86160J	No. 3 front speaker assembly	86160-0WU80 · 86160-33870
86160P	No. 2 front speaker assembly	86160-06660 · 86160-0WU50 · 86160-33840
86160Y	No. 2 rear speaker assembly	86150-33040 · 86150-33050 · 86160-0WU90 · 86160-0WW70
