Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

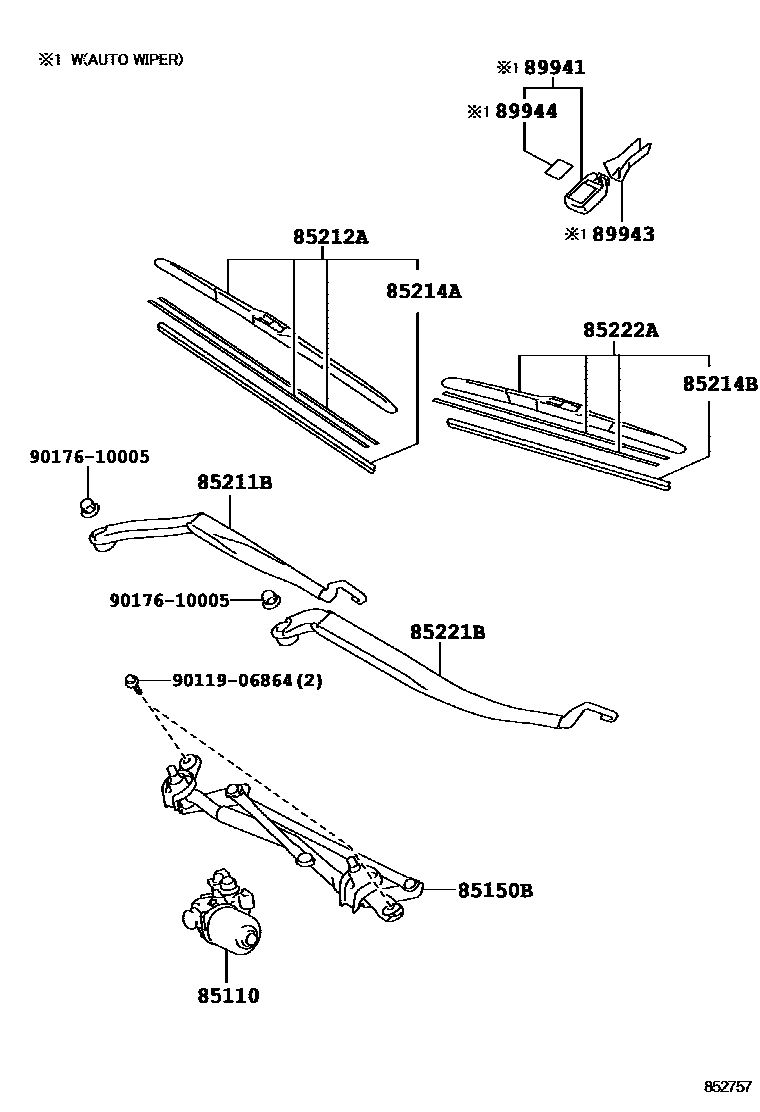

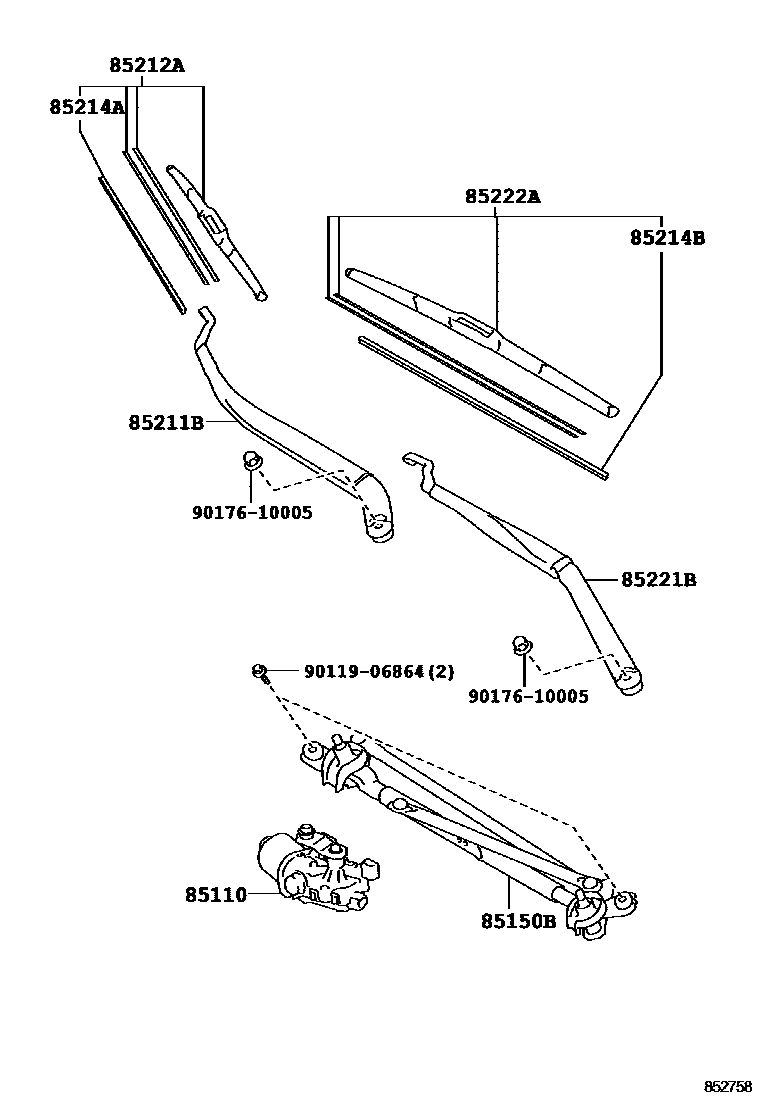

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06130 · 85110-06140 |
| 85150B | Wiper connecting rod assembly | 85150-06130 · 85150-06140 |
| 85211B | Right front wiper arm | 85211-06120 · 85211-06130 |
| 85212A | Right front wiper blade | 85212-06140 · 85212-06150 |
| 85214A | Right wiper rubber strip | 85214-06150 · 85214-06160 · 85214-06210 |
| 85214B | Left wiper rubber strip | 85214-06150 · 85214-06160 · 85214-06210 |
| 85221B | Left front wiper arm | 85221-06120 · 85221-06130 |
| 85222A | Left front wiper blade | 85222-06140 · 85222-06150 |
| 89941 | rain sensor | 89941-52010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
