Toyota CAMRY 防盗装置 — Figure 8424

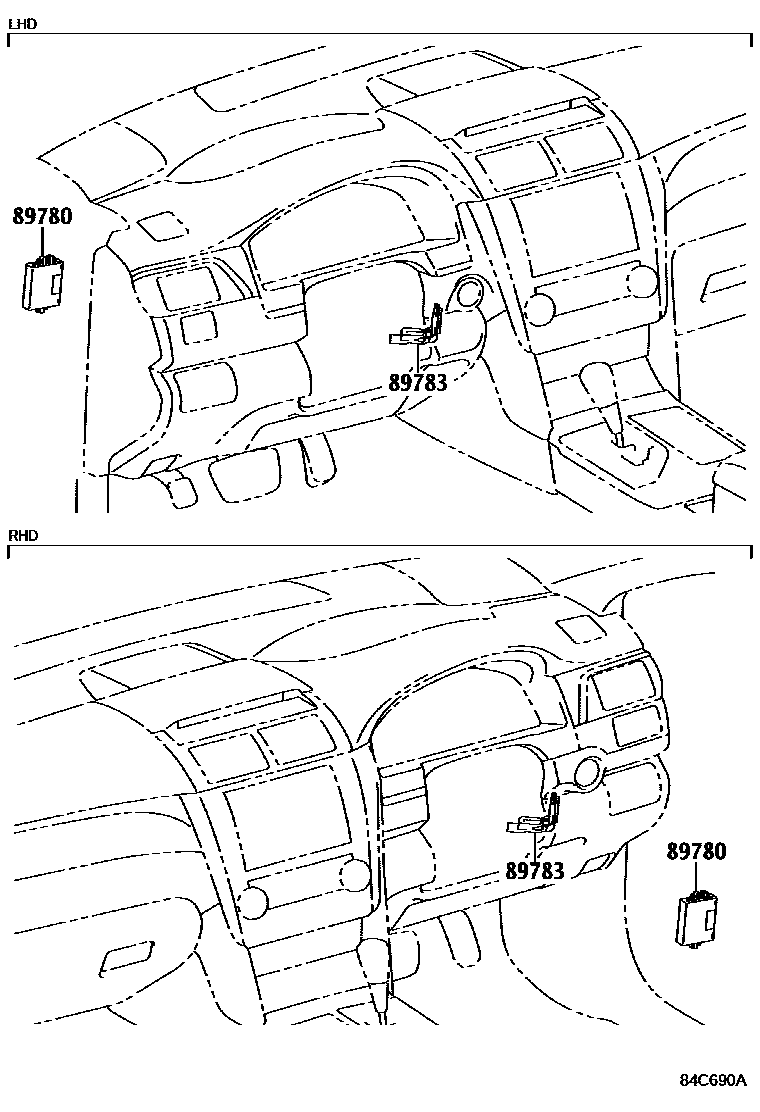

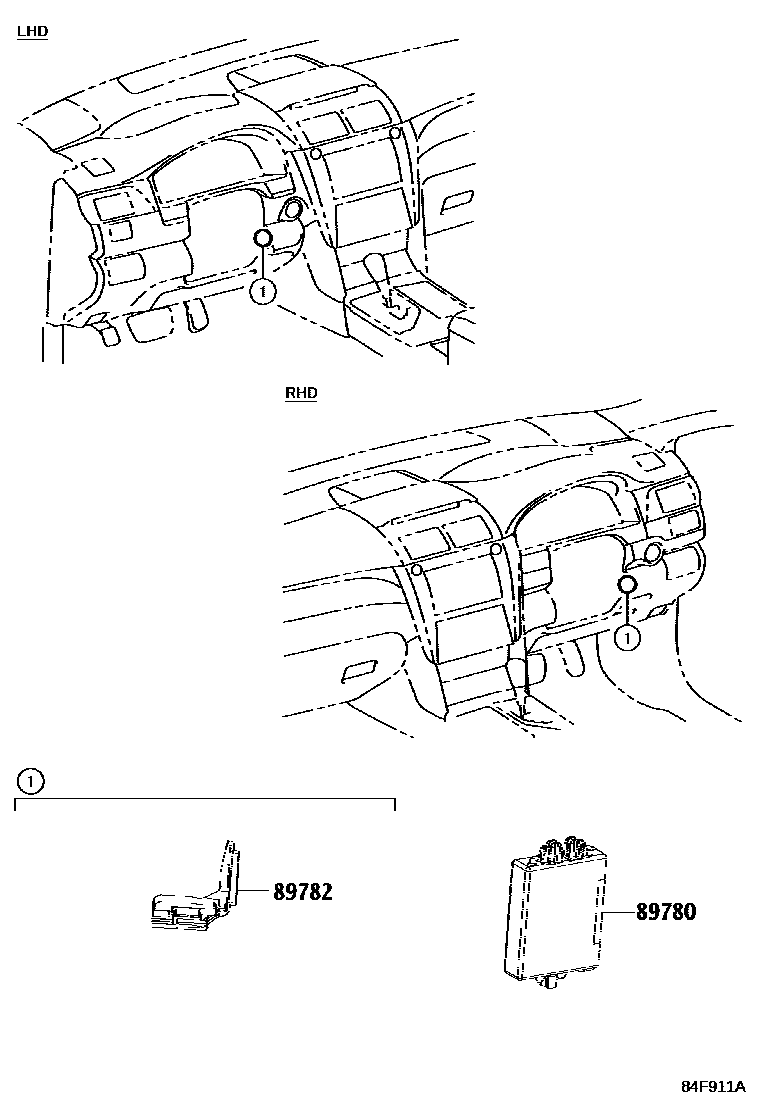

Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-06110 · 89780-06111 · 89780-06120 · 89780-06121 · 89780-06130 · 89780-06131 · 89780-33210 · 89780-33240 · 89780-33260 |
| 89782 | transceiver key coil | 89782-02050 |
| 89783 | transceiver key amplifier | 89783-33130 · 89783-33131 |
