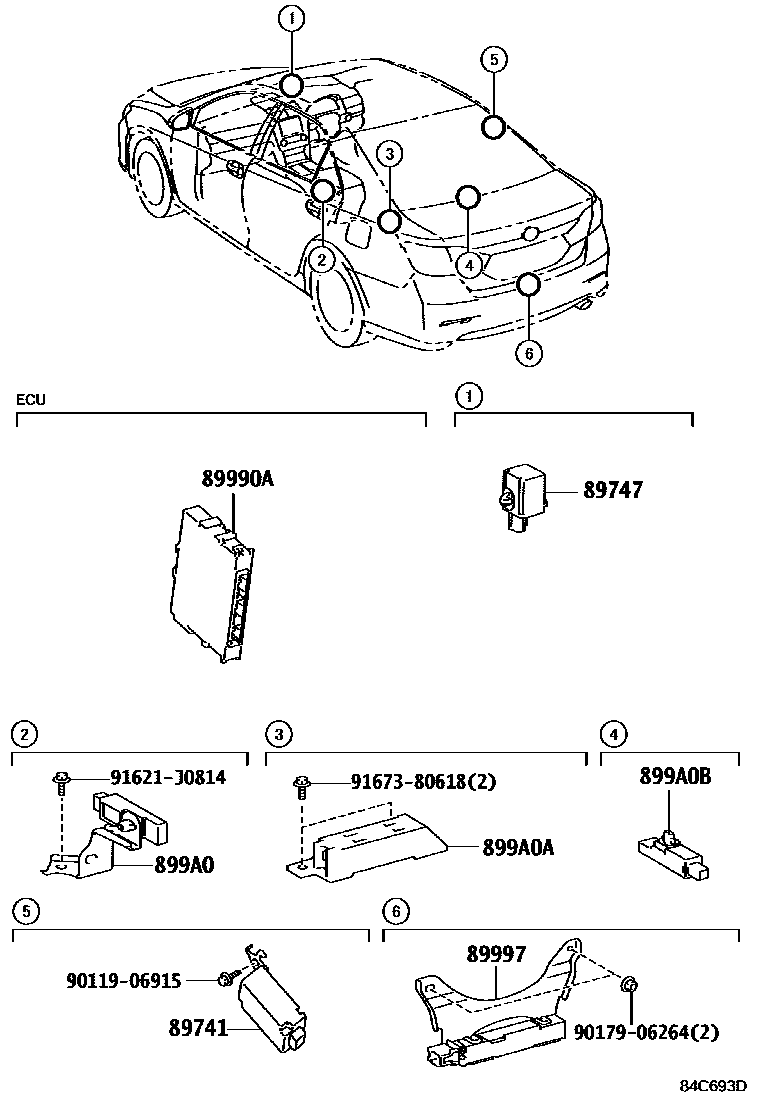

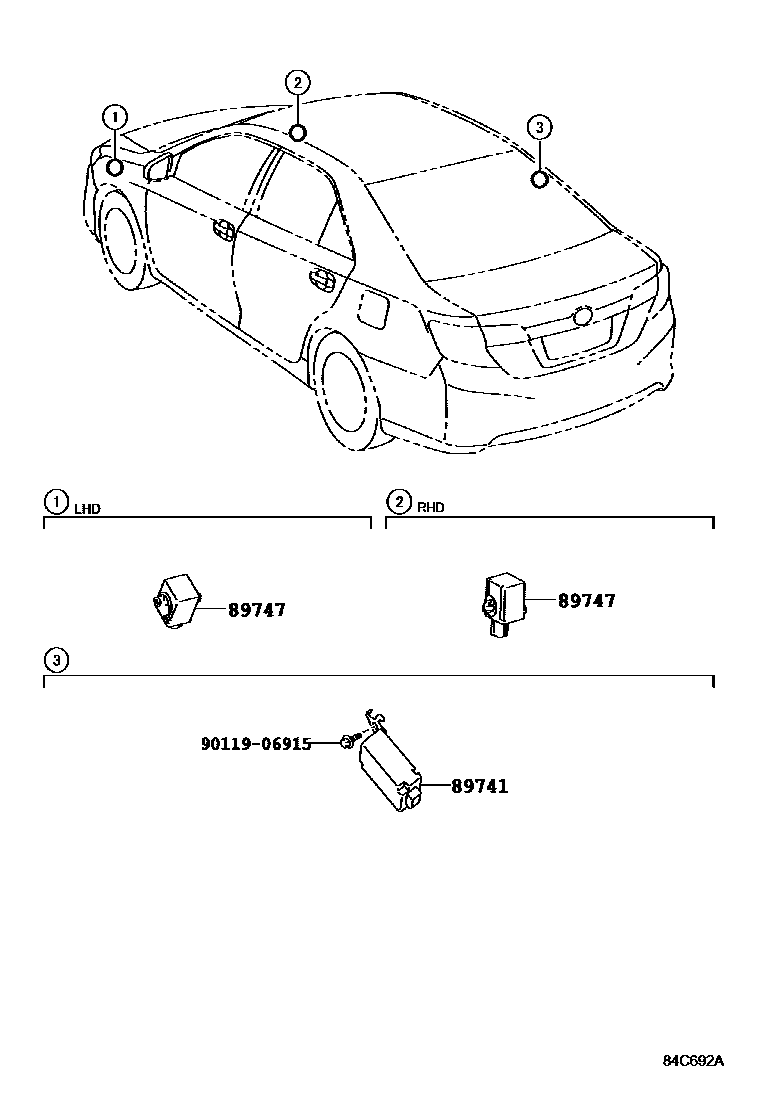

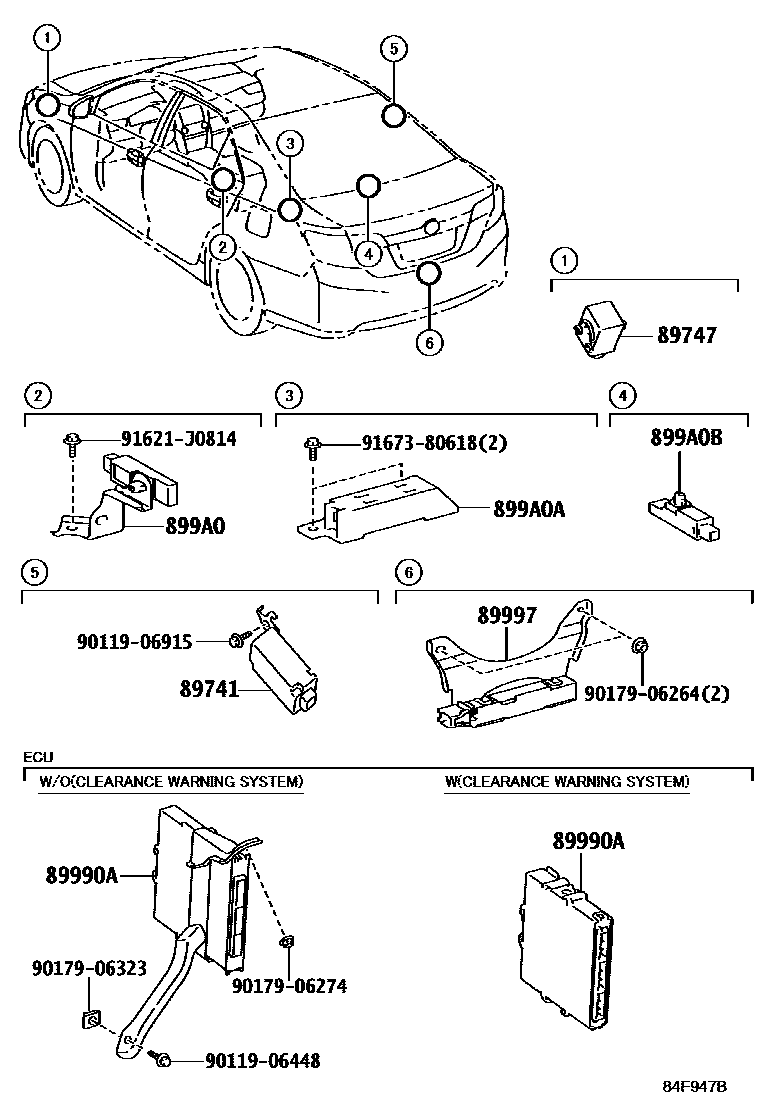

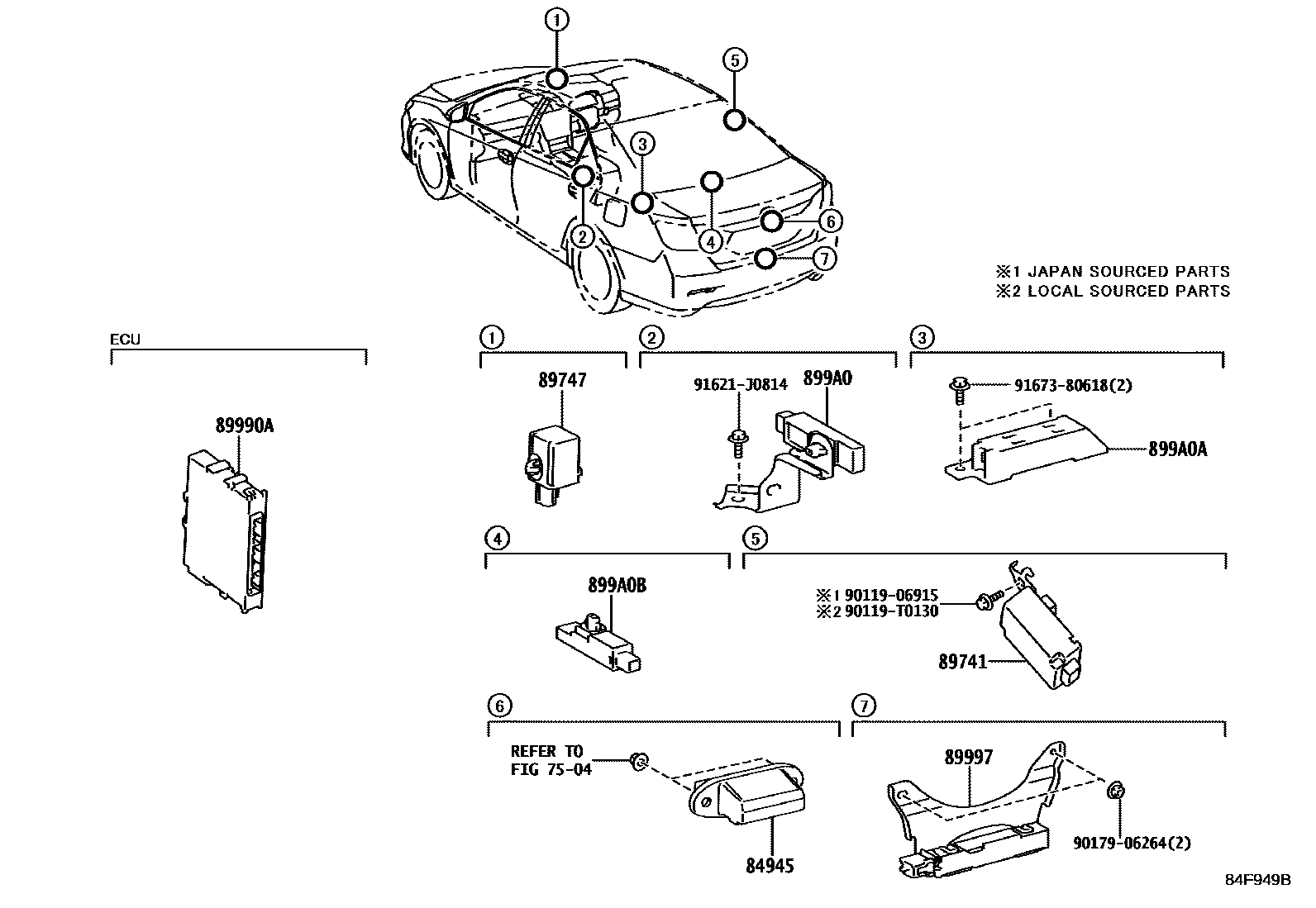

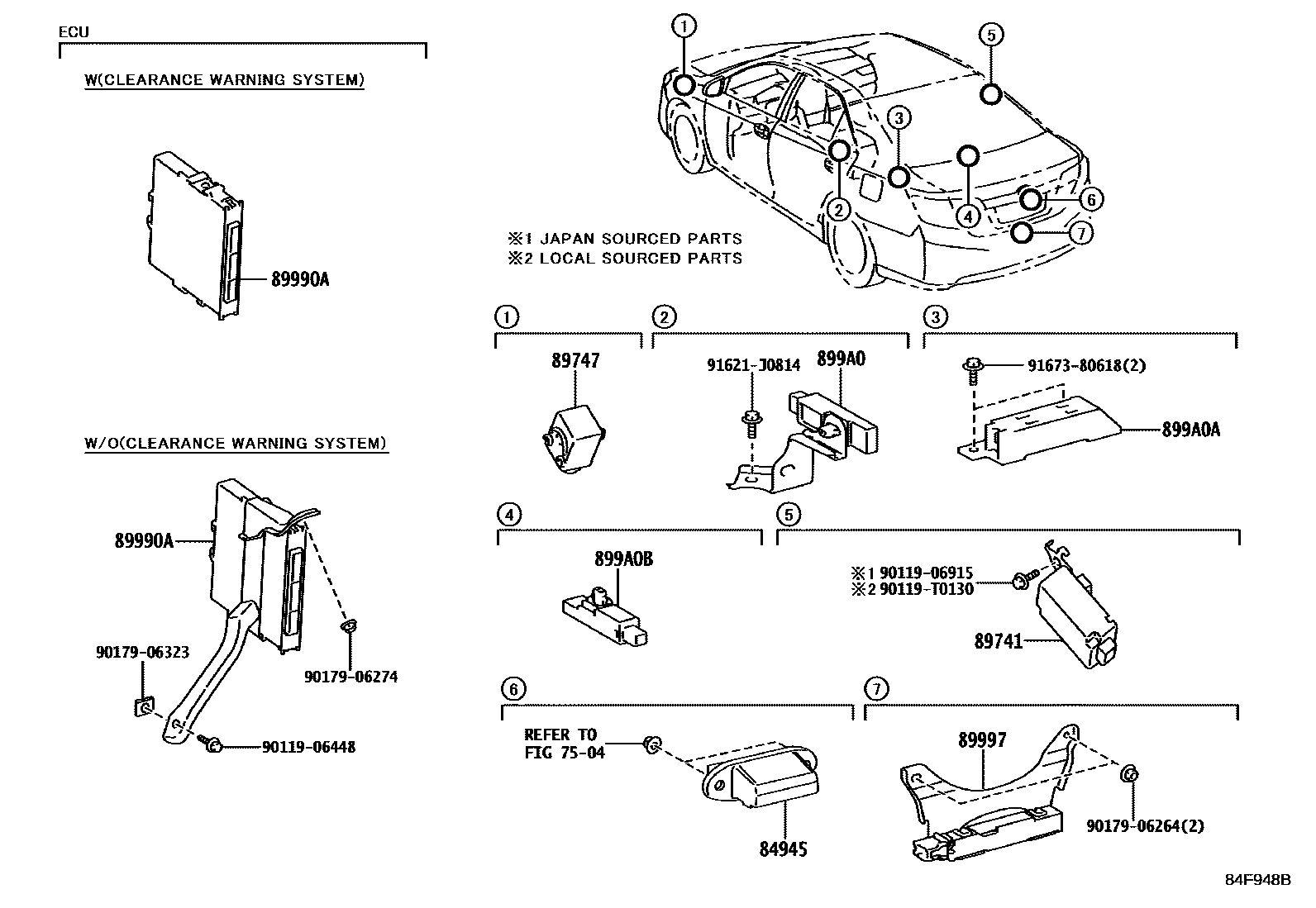

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 5 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-33030 |
| 89741 | door control receiver | 89740-33260 · 89740-33261 · 89740-33280 · 89740-33360 · 89741-33501 · 89741-33510 · 89741-33590 · 89741-33600 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-33210 · 89990-33211 · 89990-33290 · 89990-33300 · 89990-33310 · 89990-33360 · 89990-33380 · 89990-33450 · 89990-33451 · 89990-33670 |
| 89997 | electronic key antenna | 89997-33020 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-33010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-33020 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-47010 |
