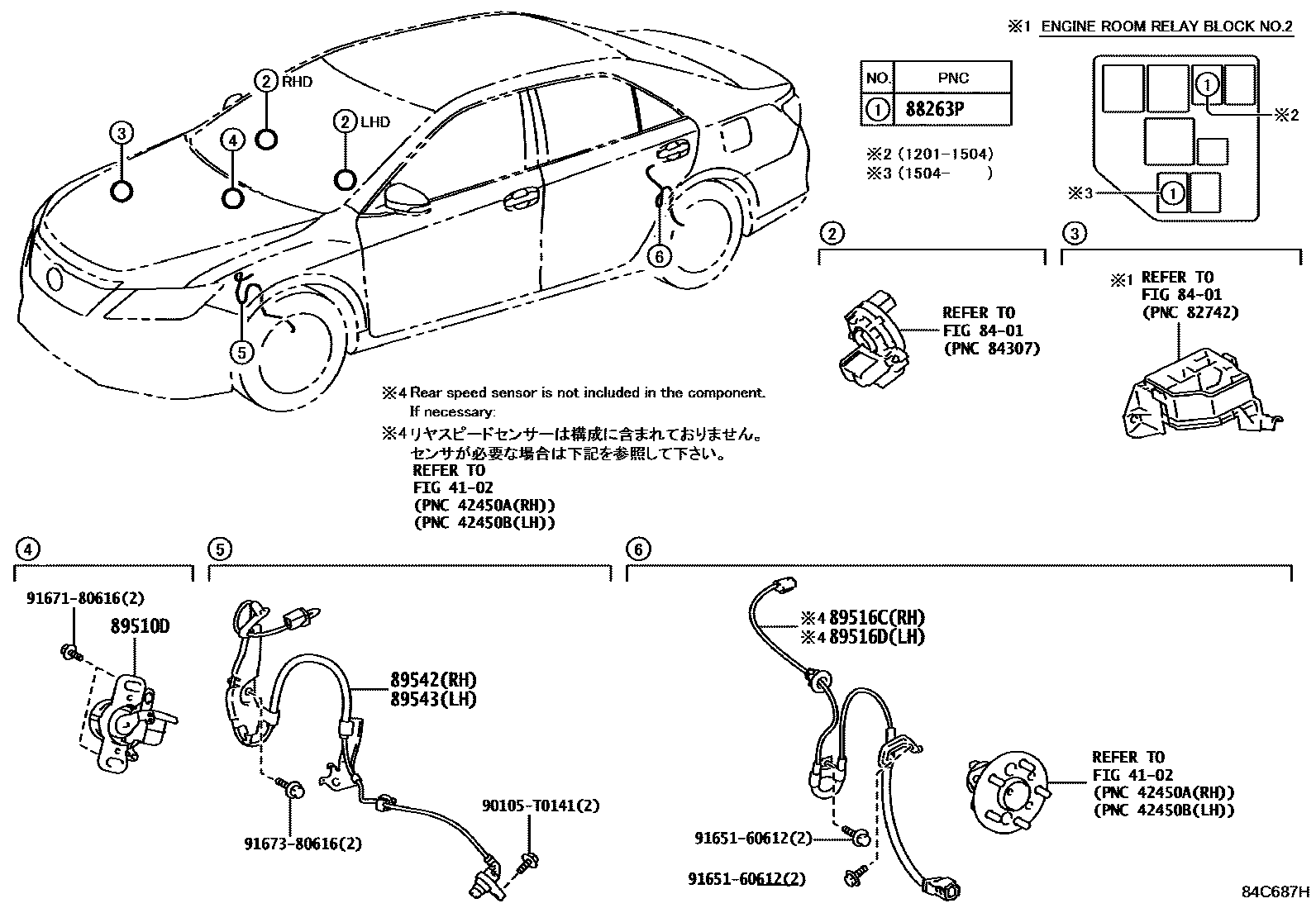

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263P | brake light control relay | 90987-04004 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33020 |
| 89516C | Right anti-skid control sensor harness | 89516-33070 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-33080 |
| 89542 | Right front wheel speed sensor | 89542-33100 · 89542-33120 |
| 89543 | Left front wheel speed sensor | 89543-33090 · 89543-33110 |
