Toyota CAMRY 开关和继电器和ECU — Figure 8401

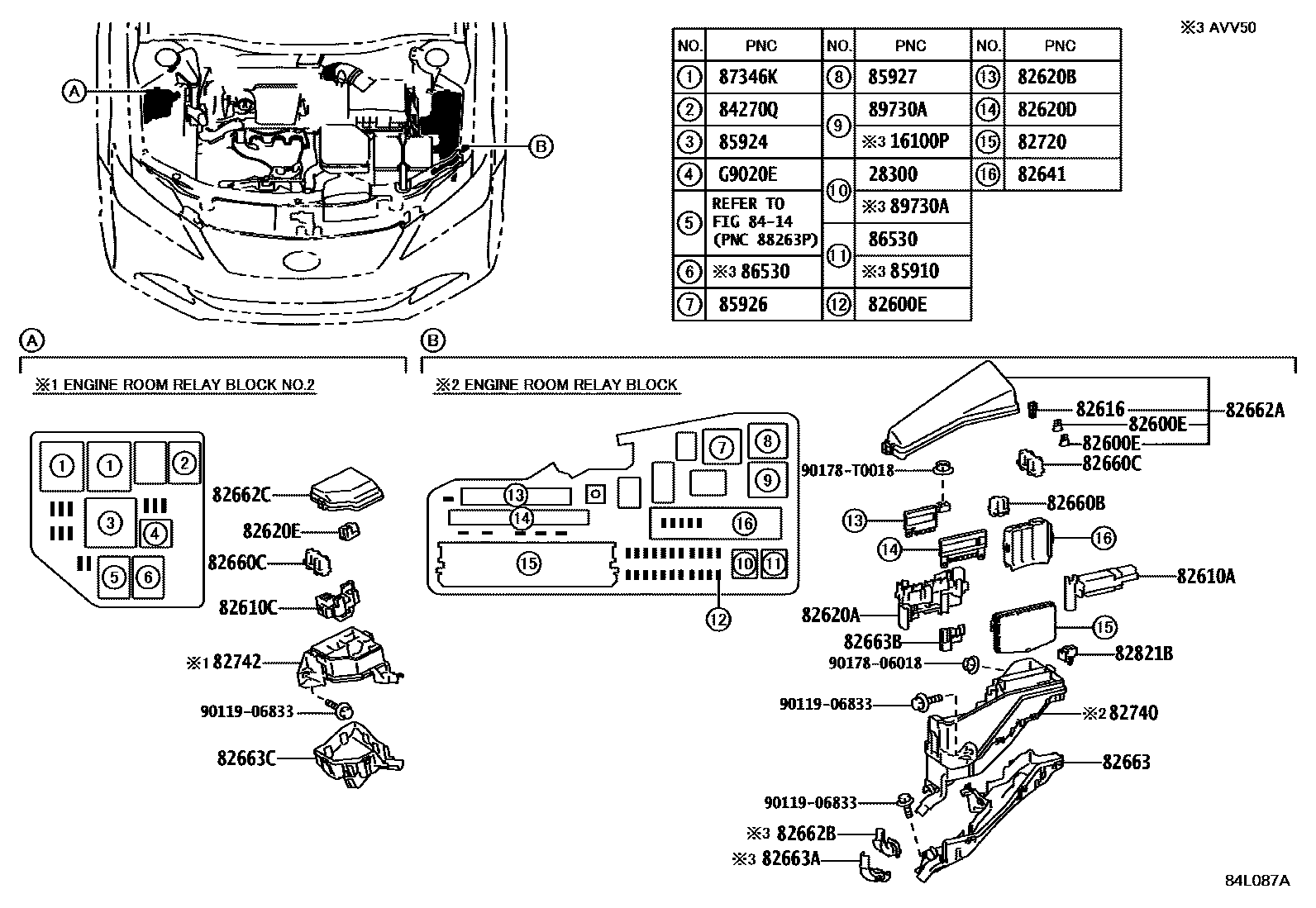

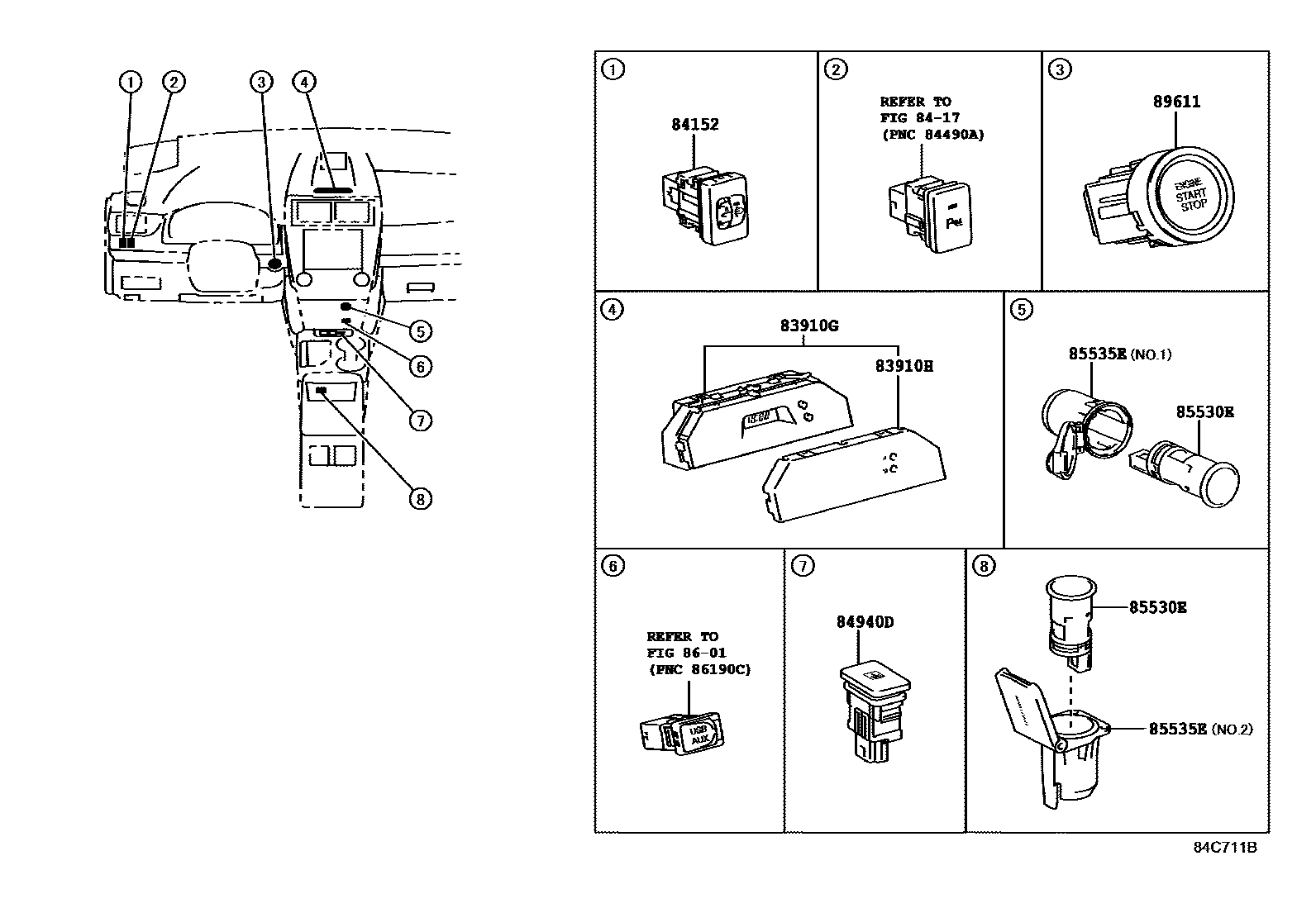

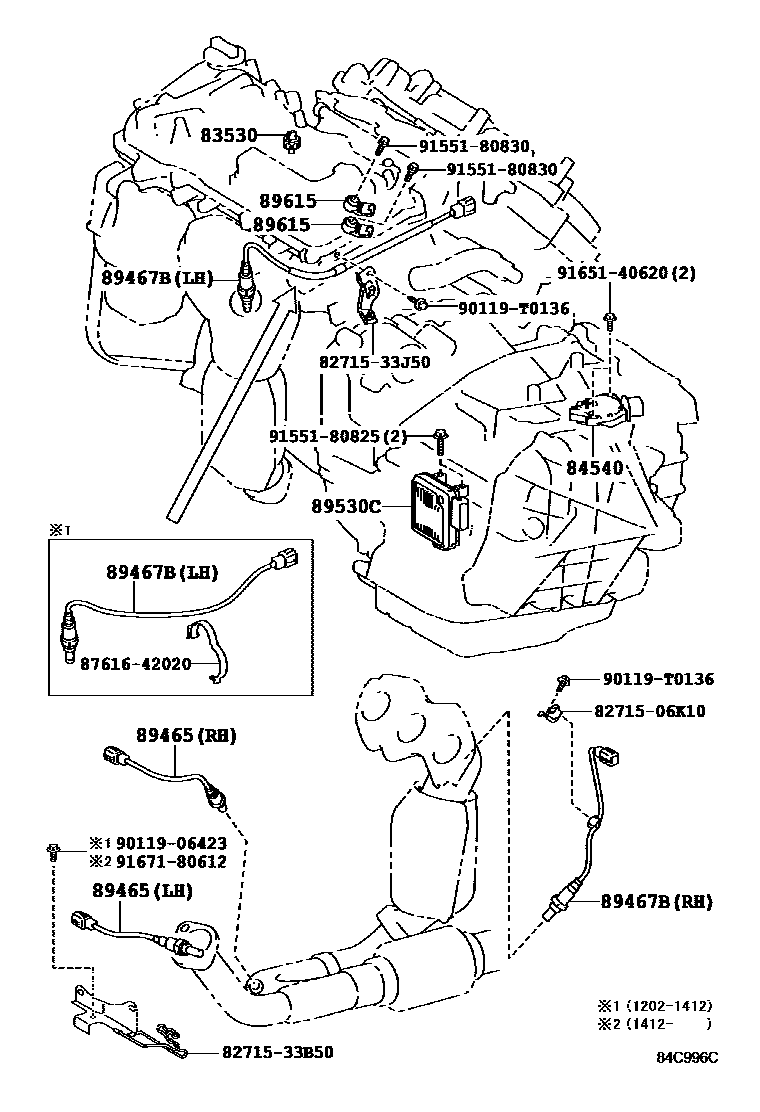

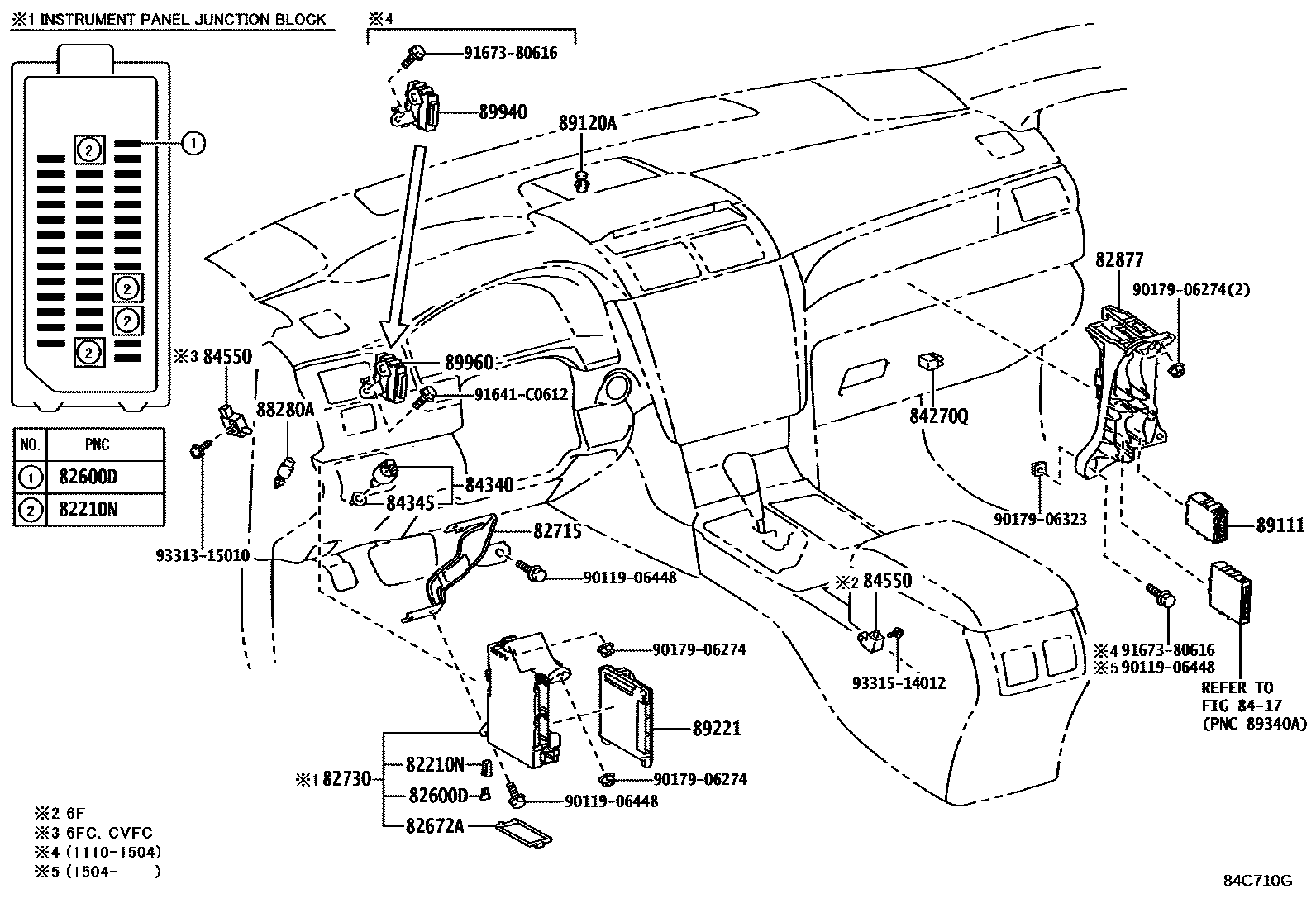

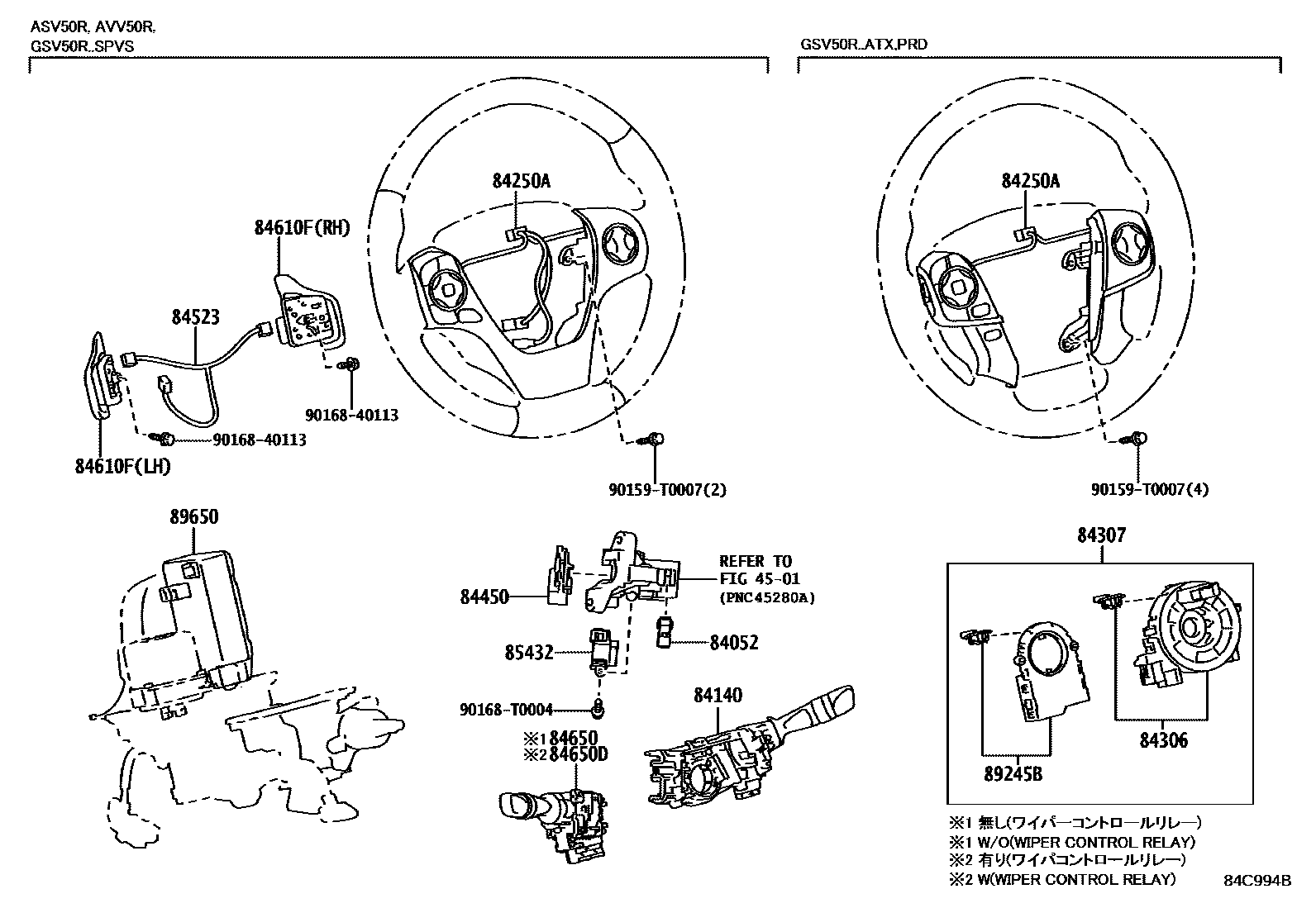

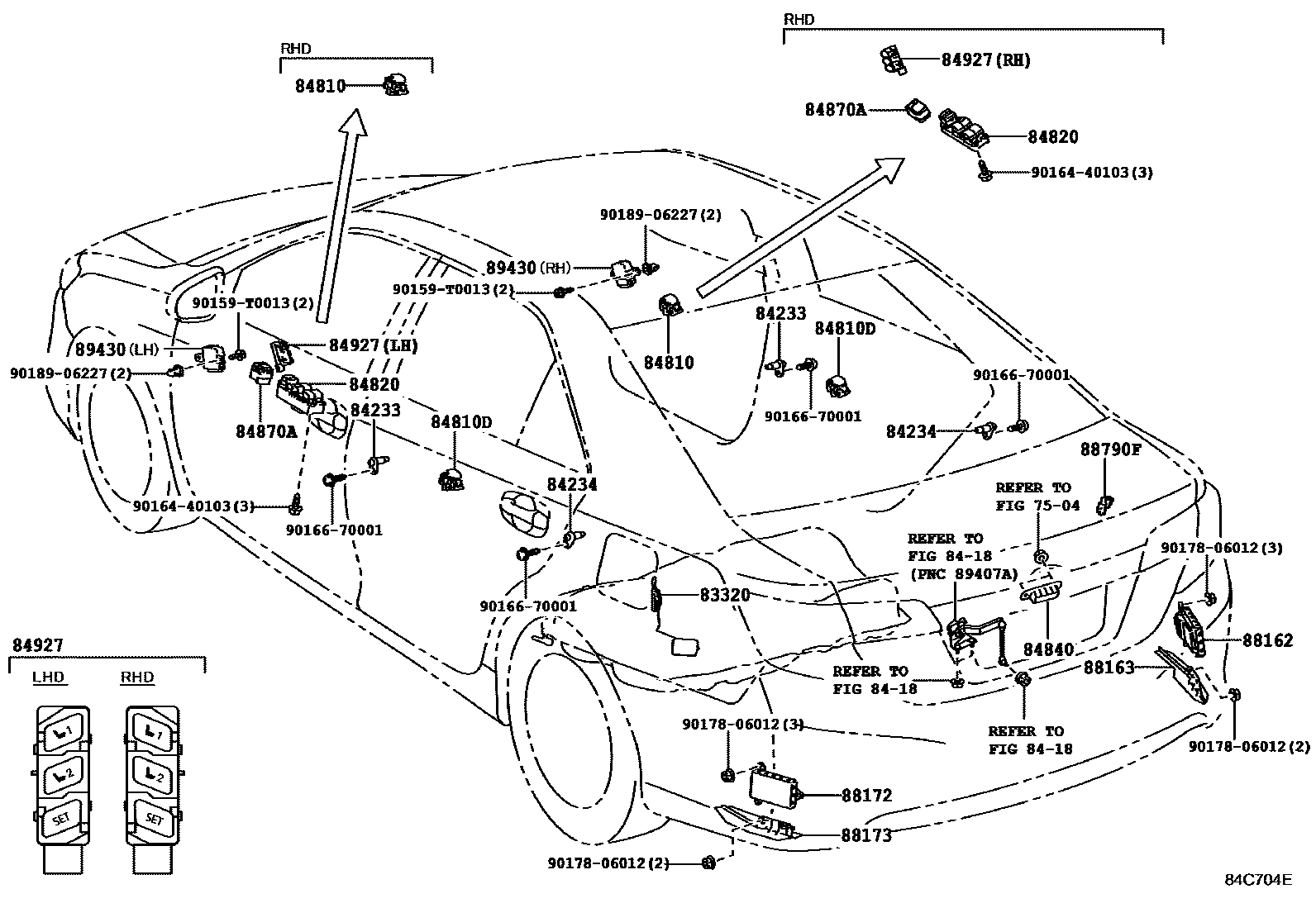

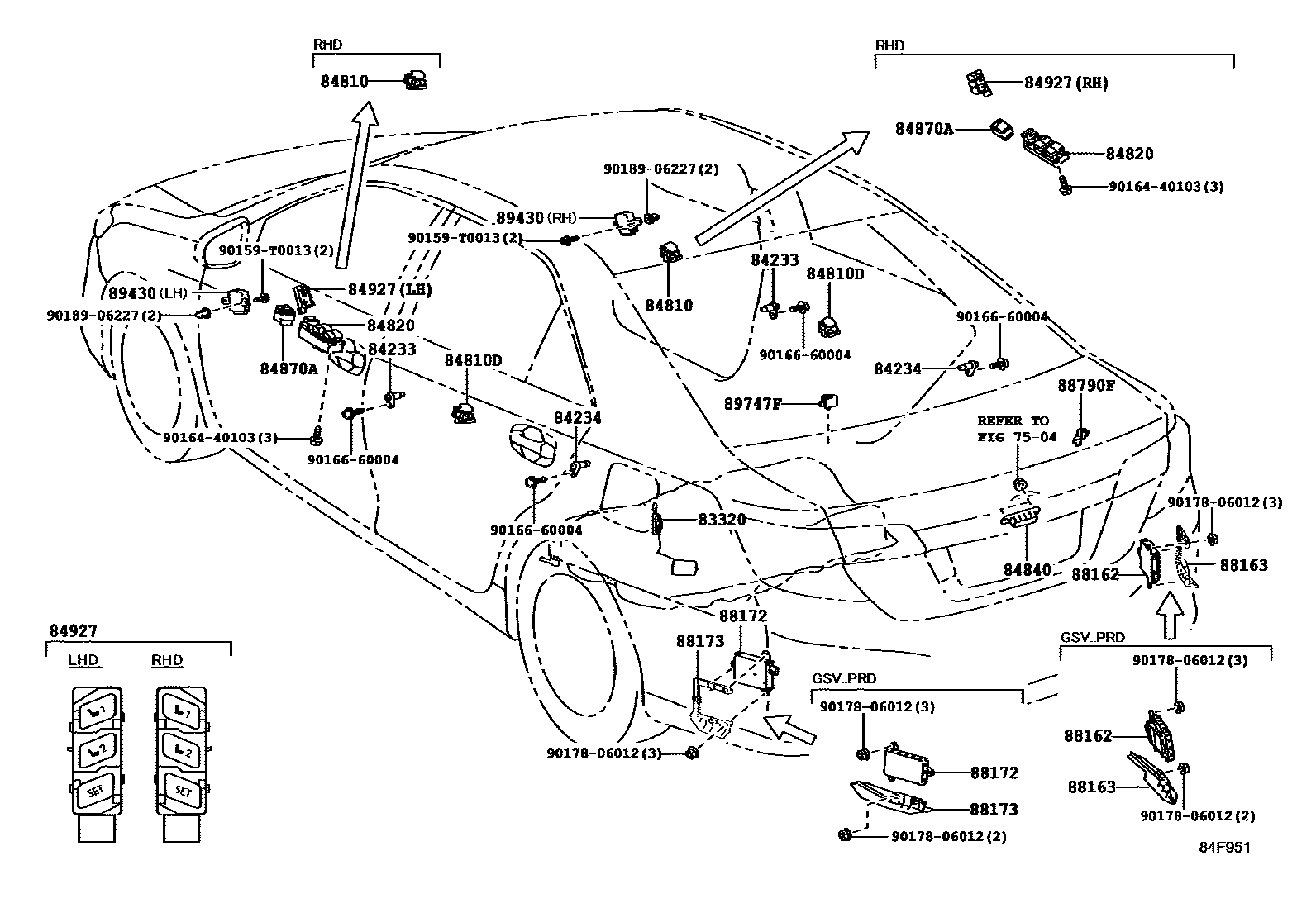

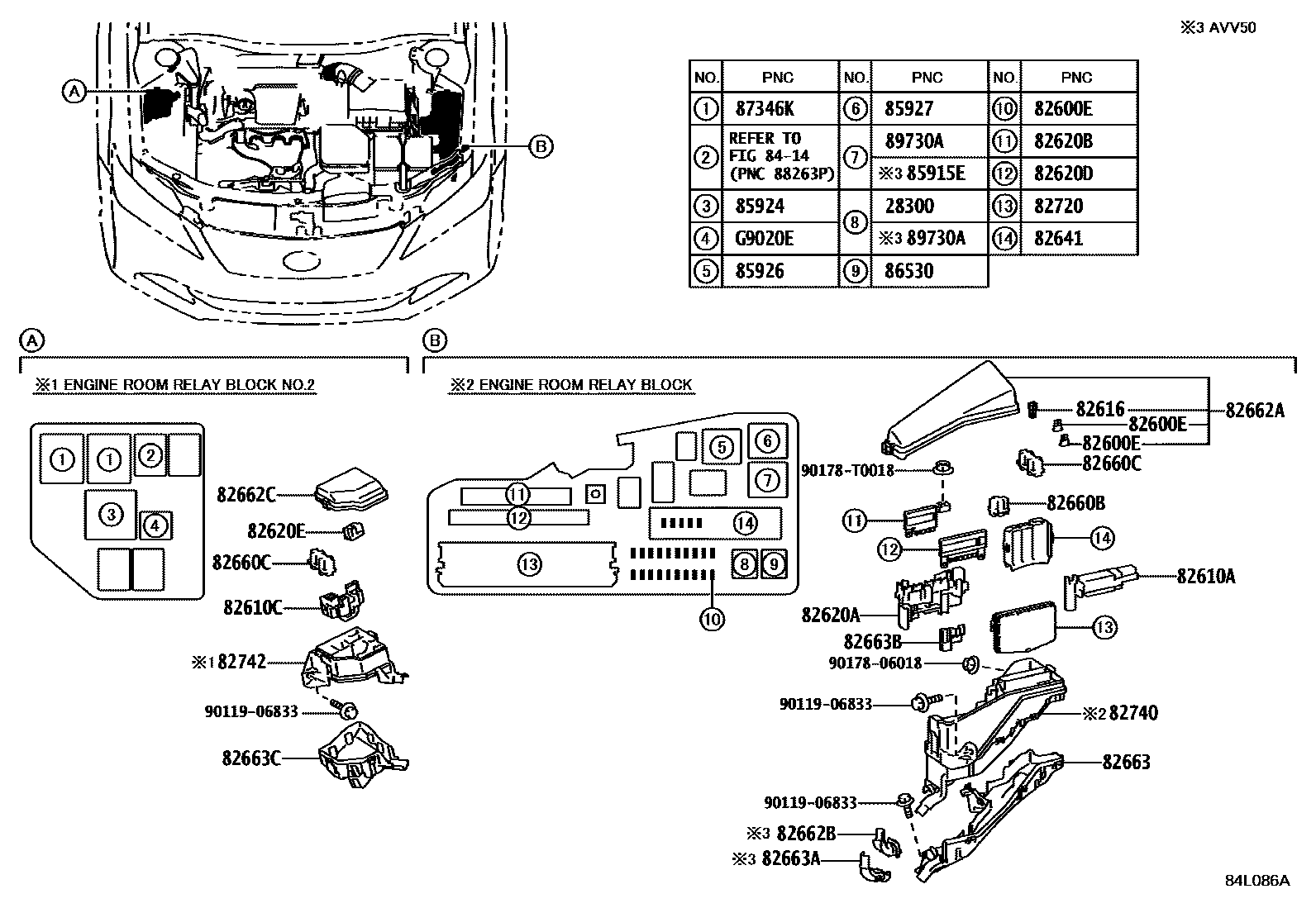

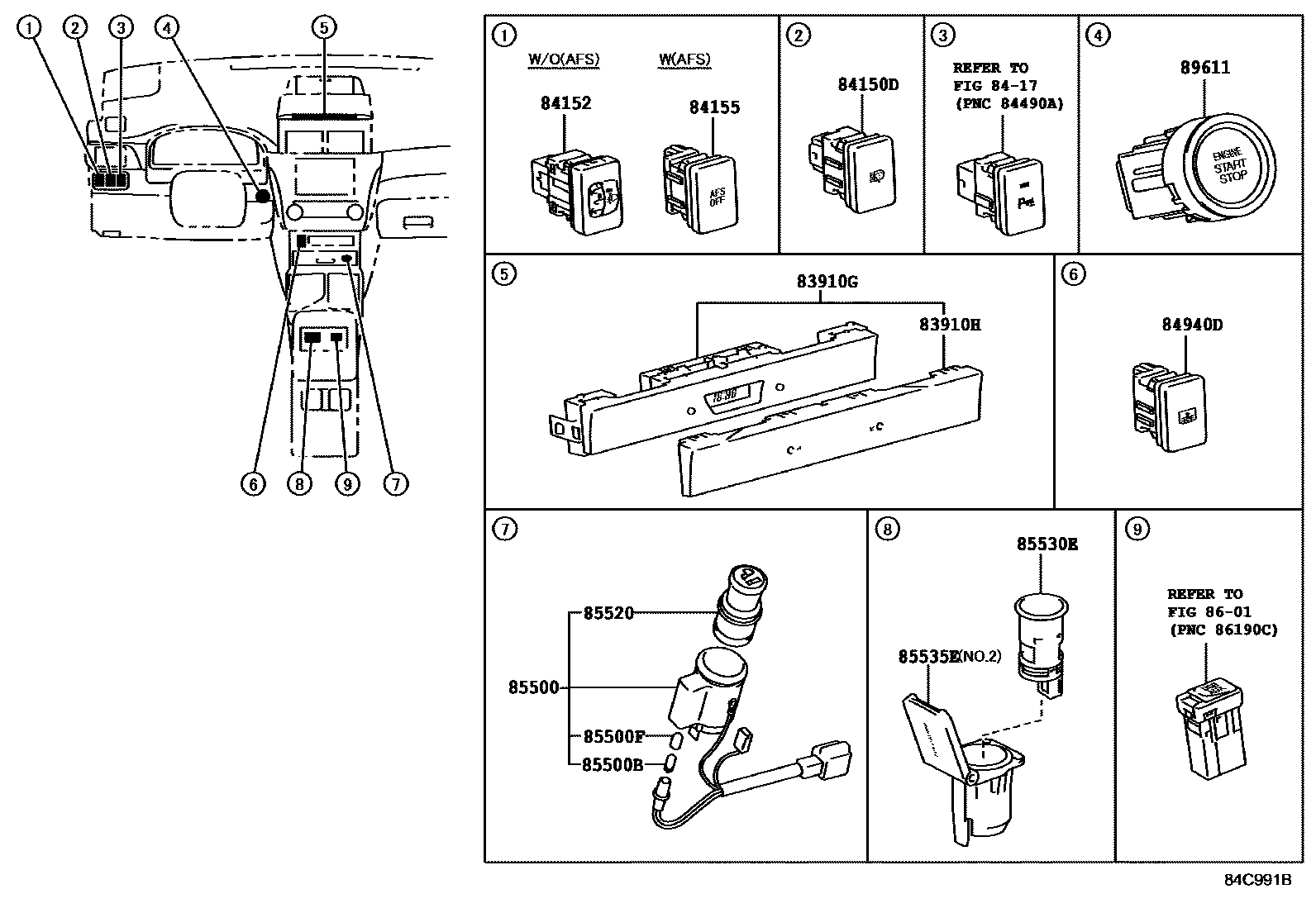

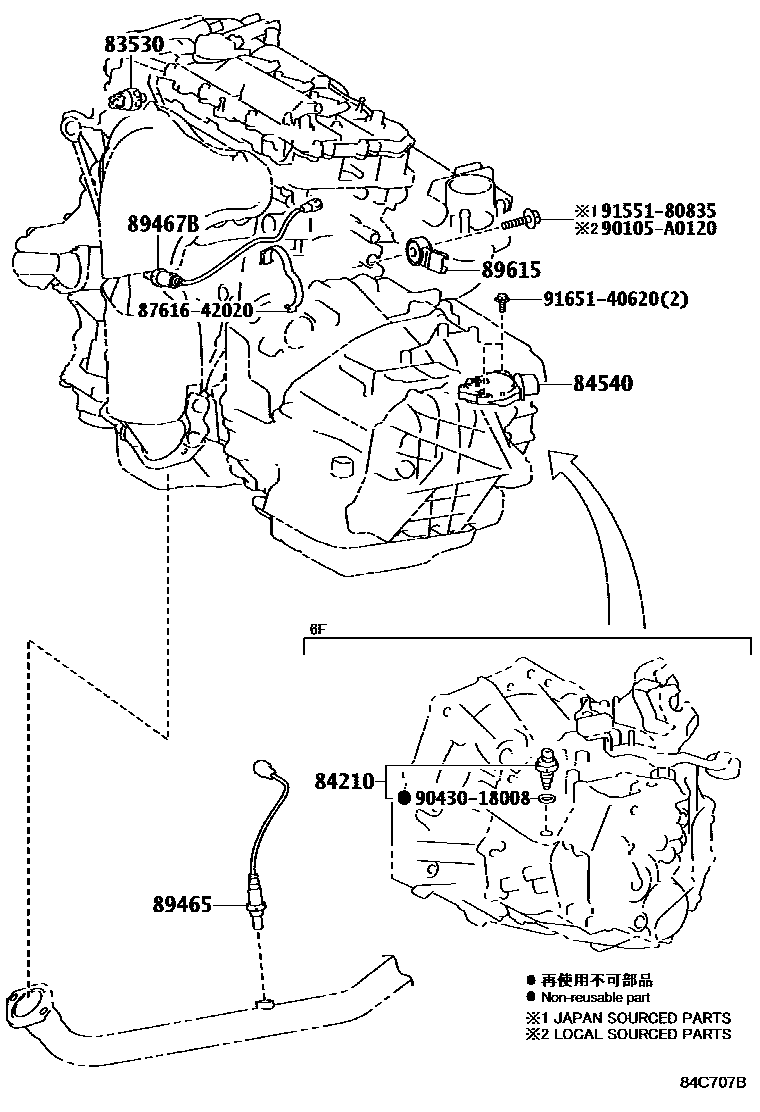

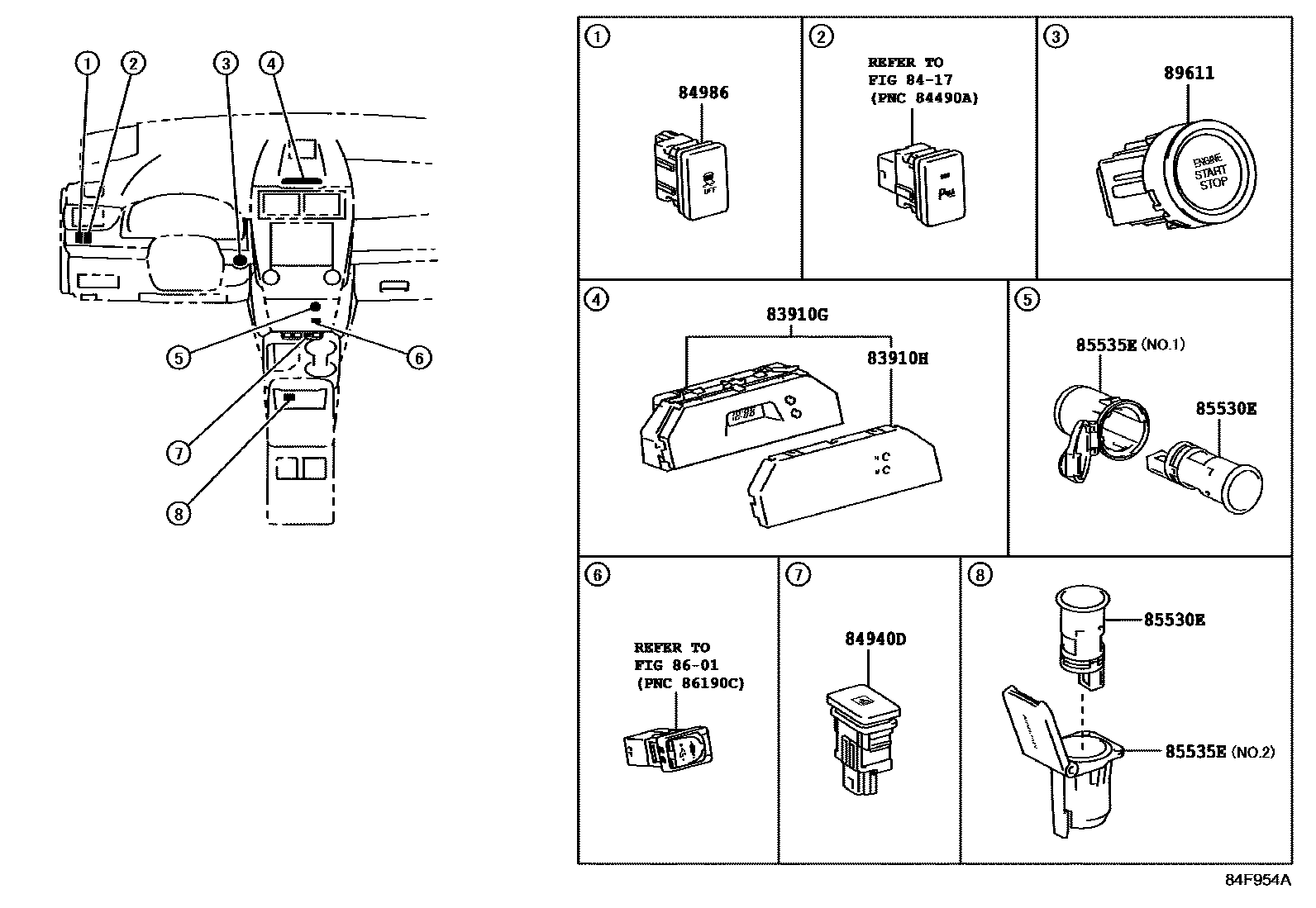

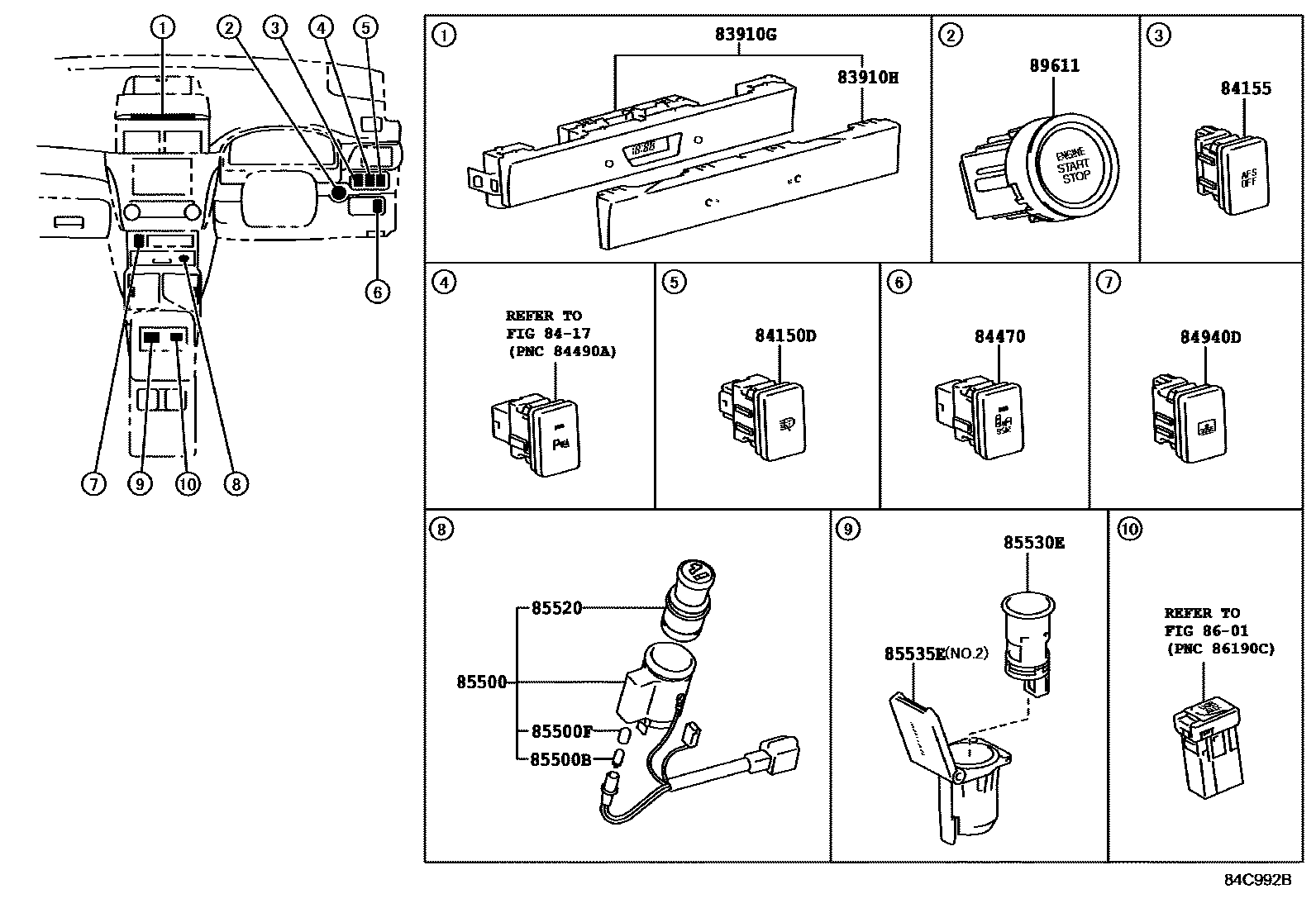

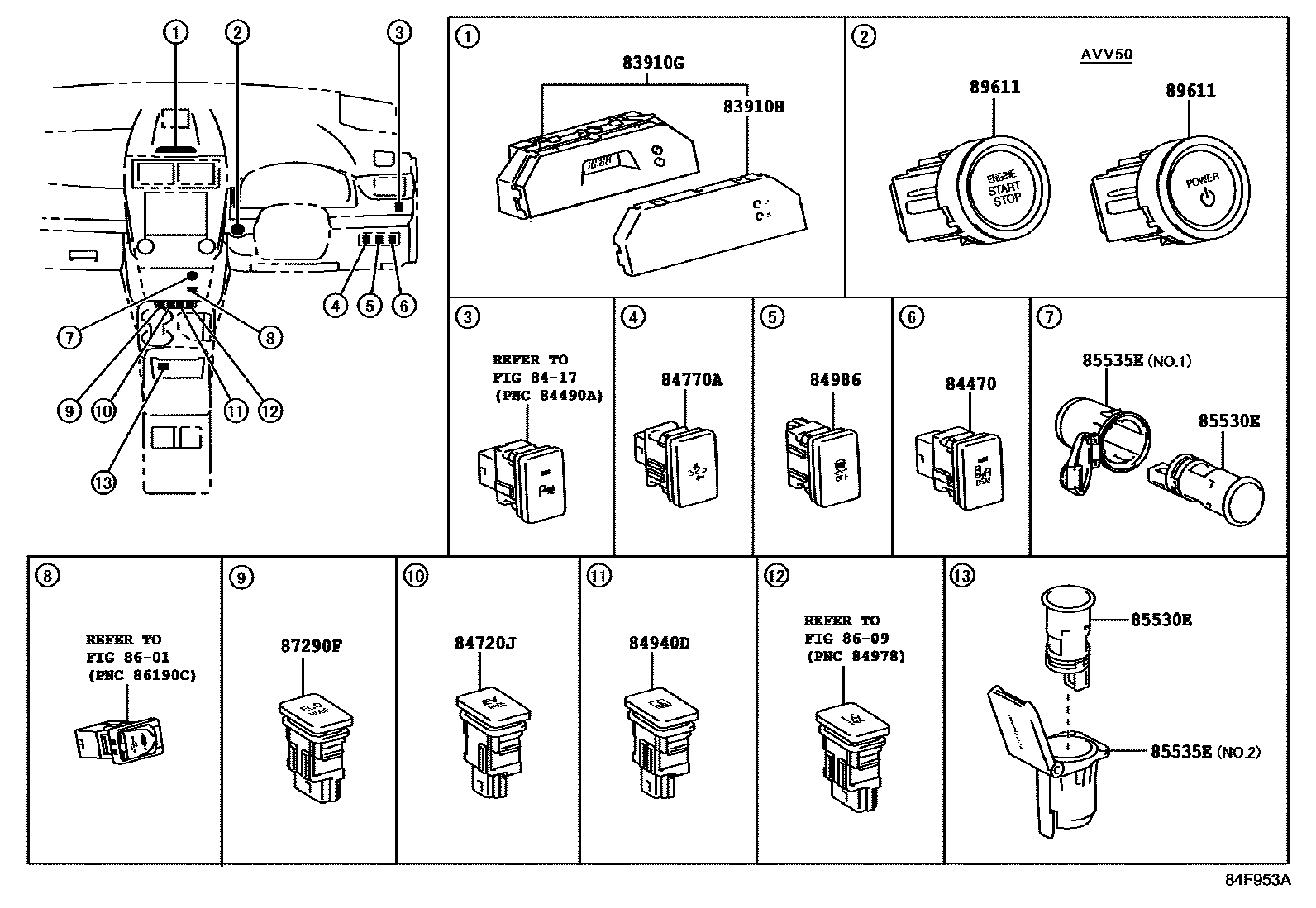

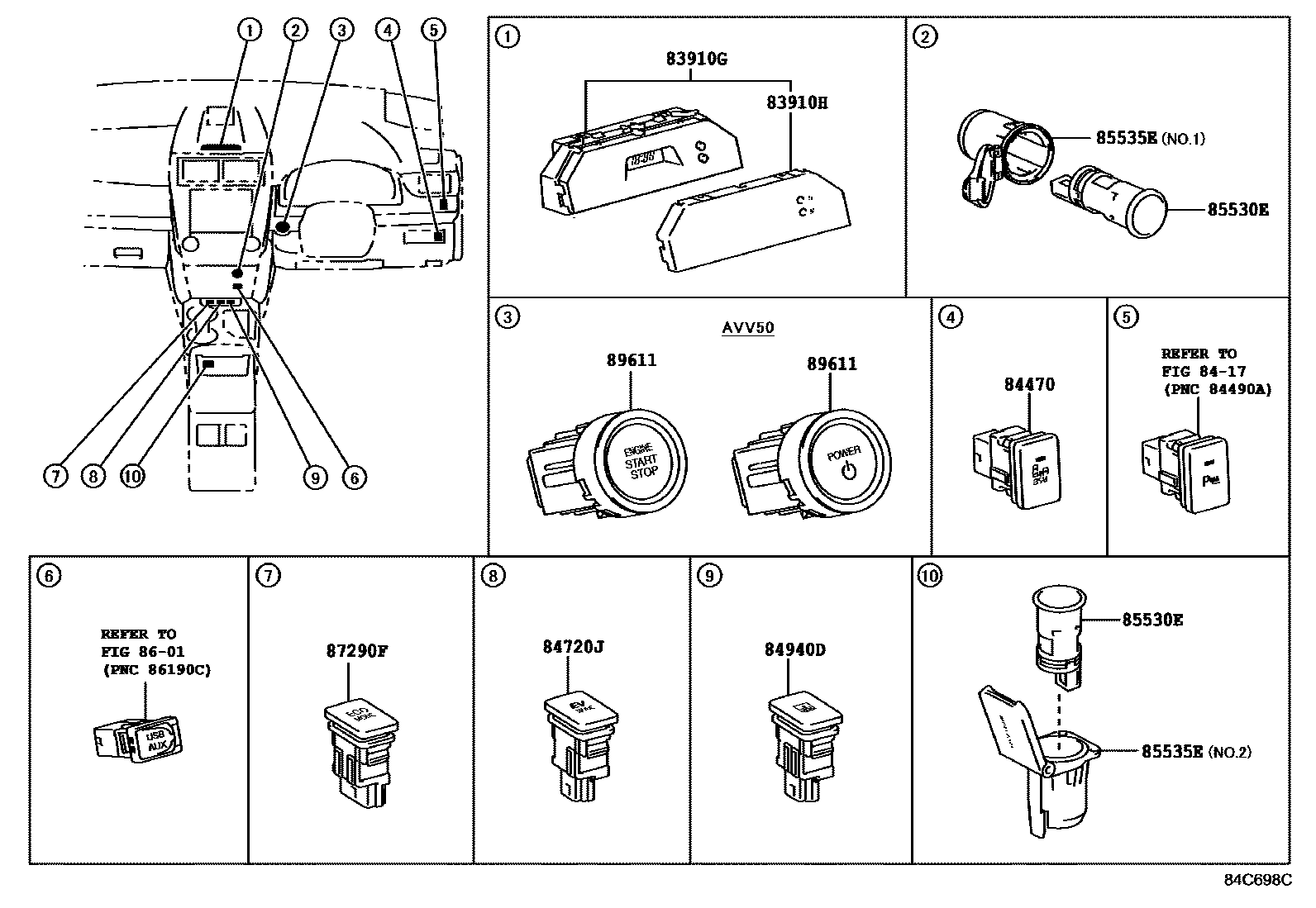

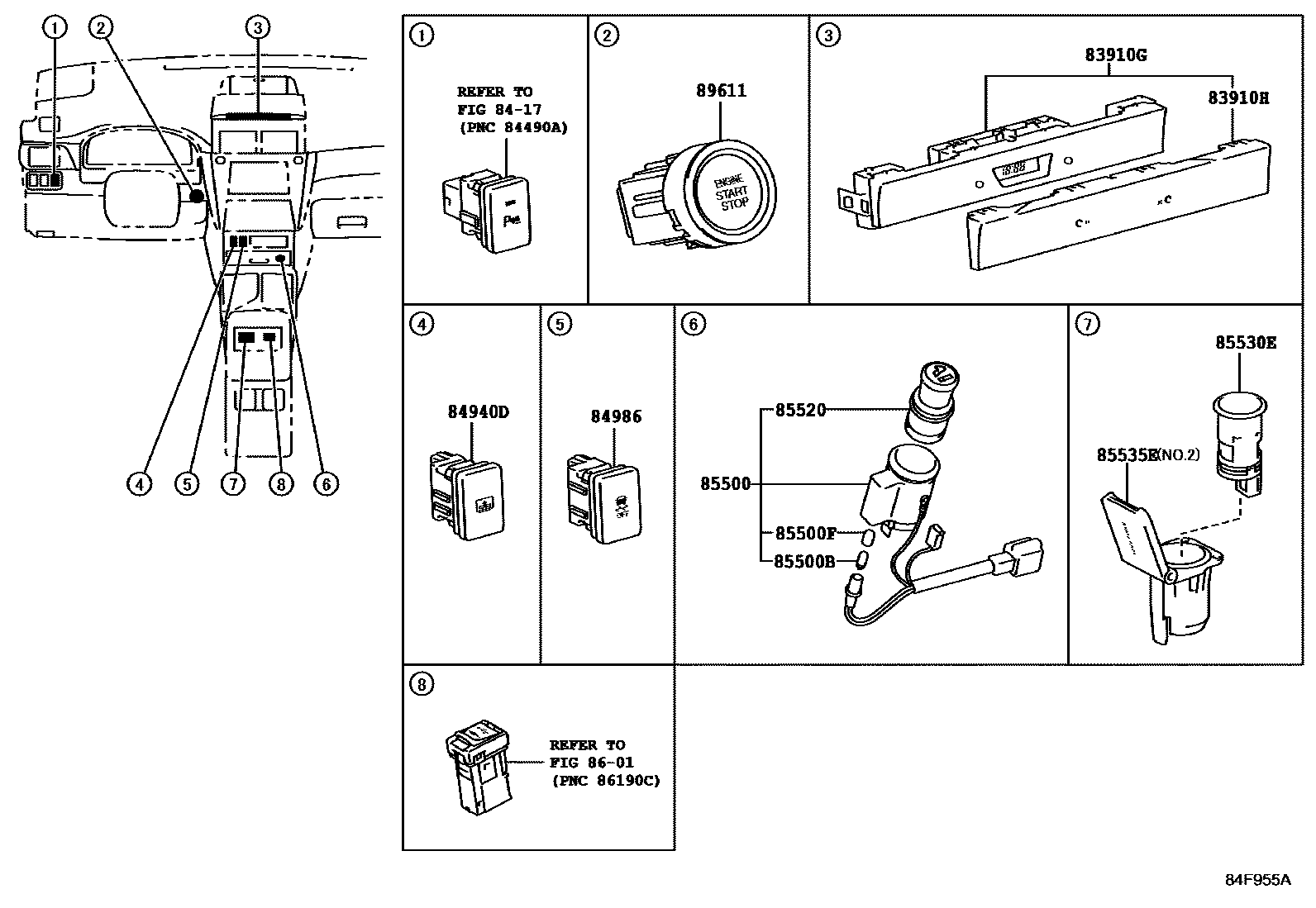

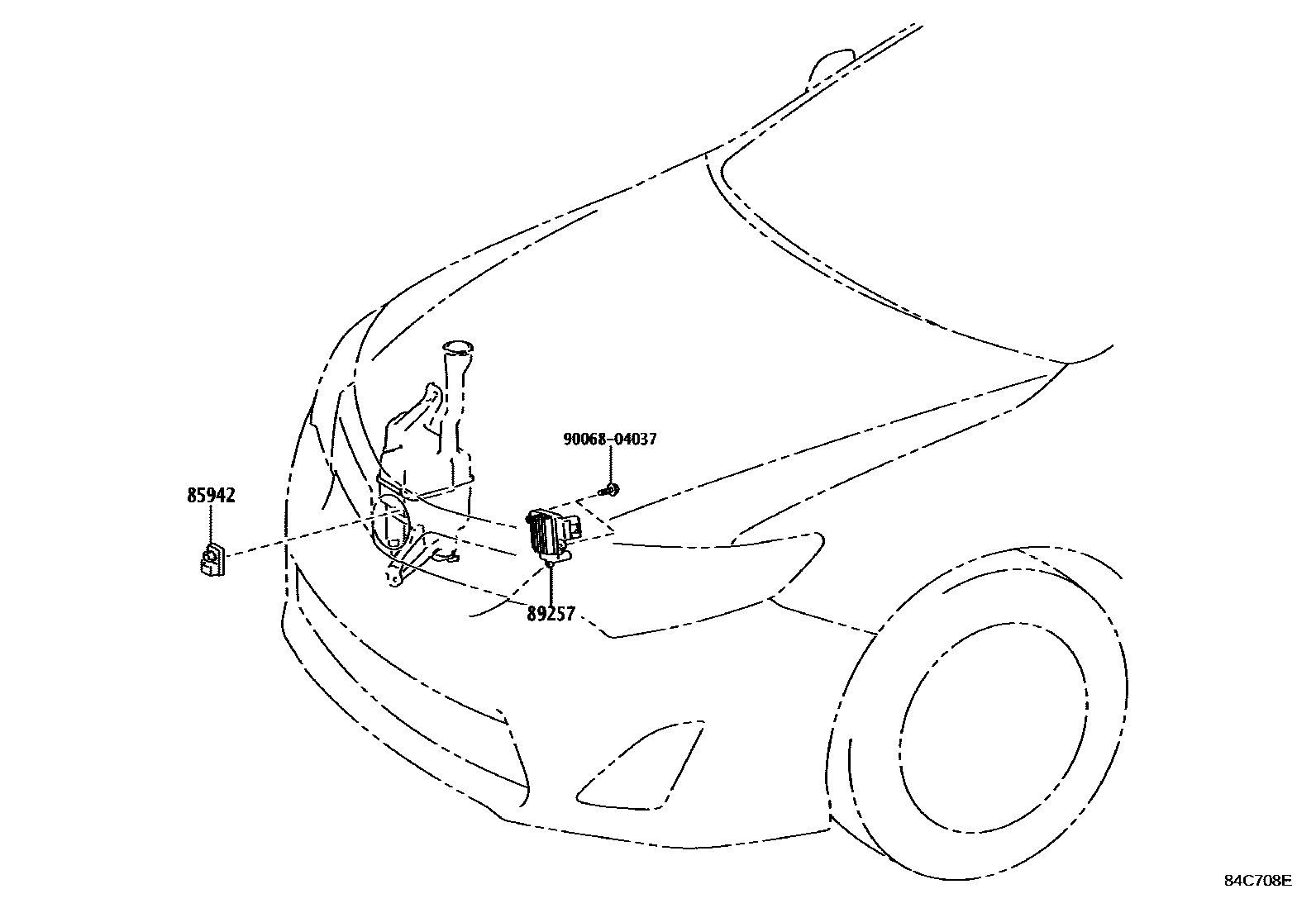

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 22 images and 111 PNC and OE references.
PNC and OE references

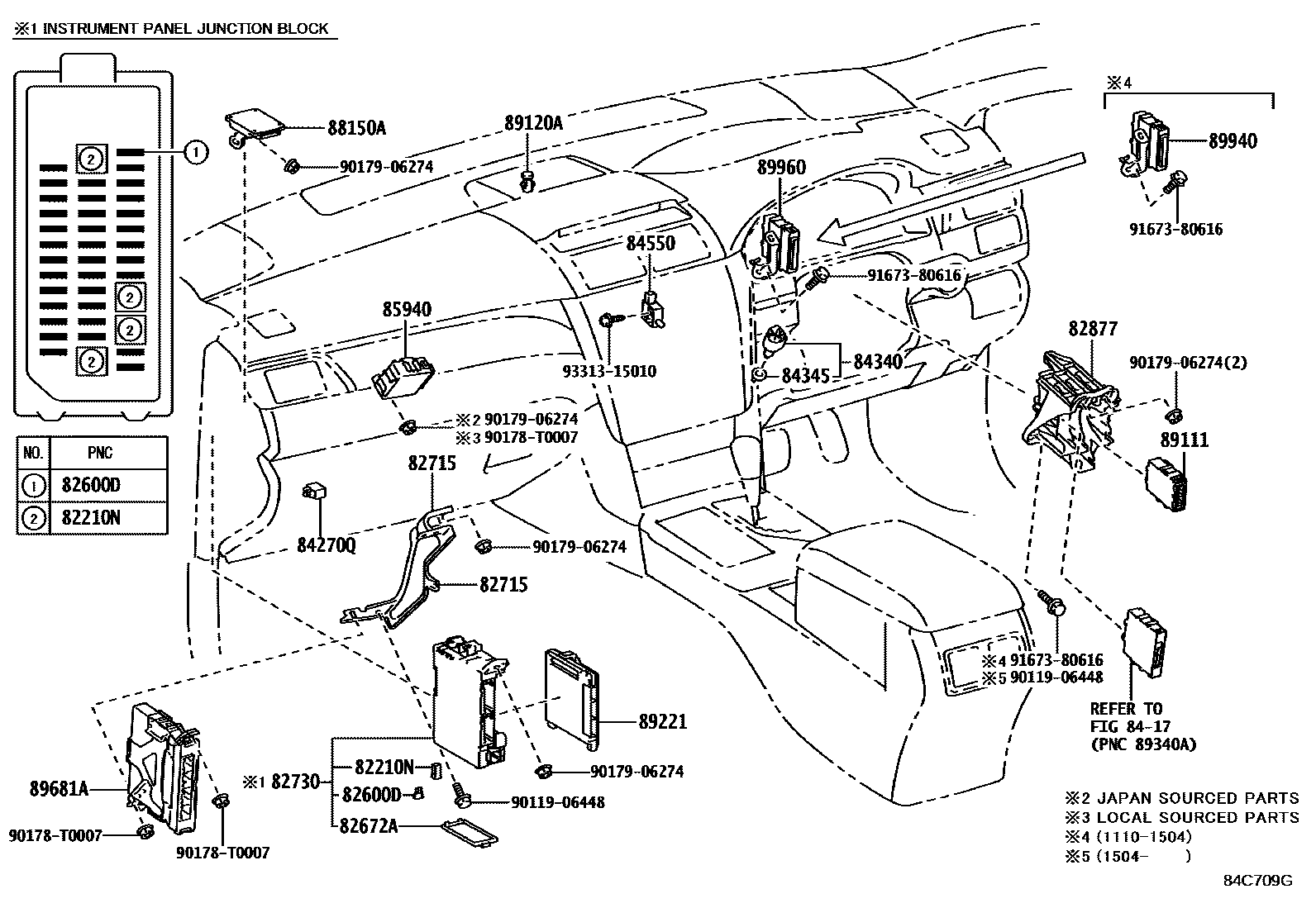

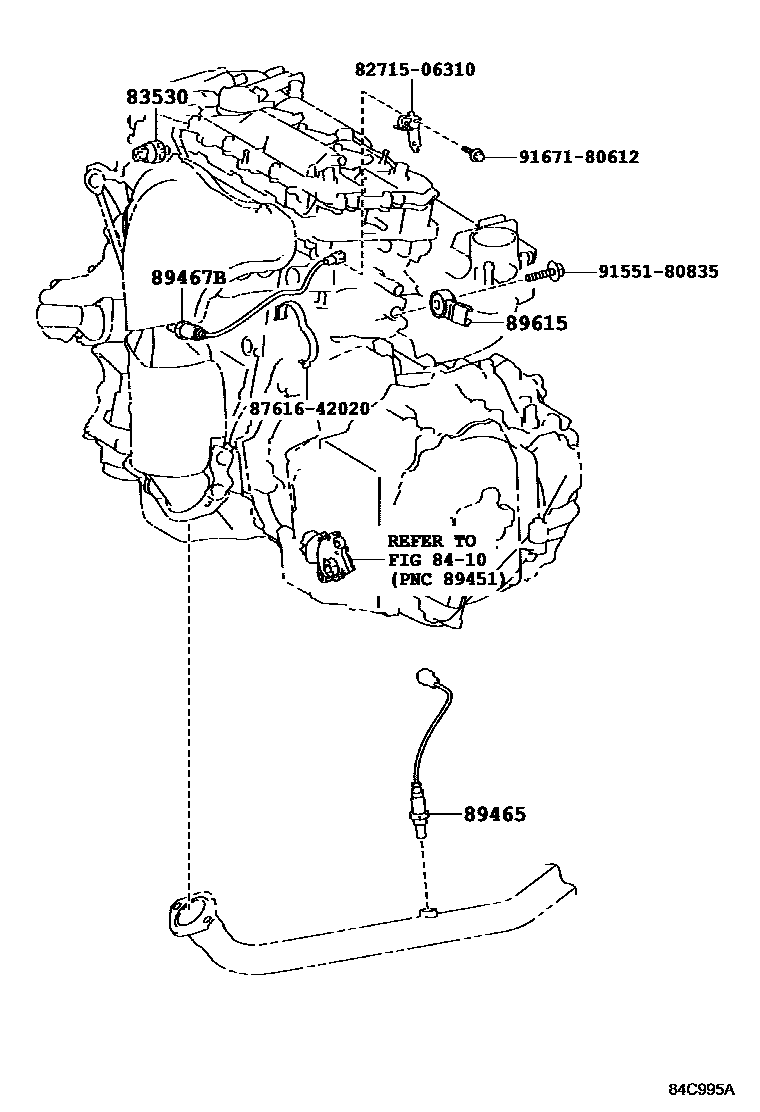

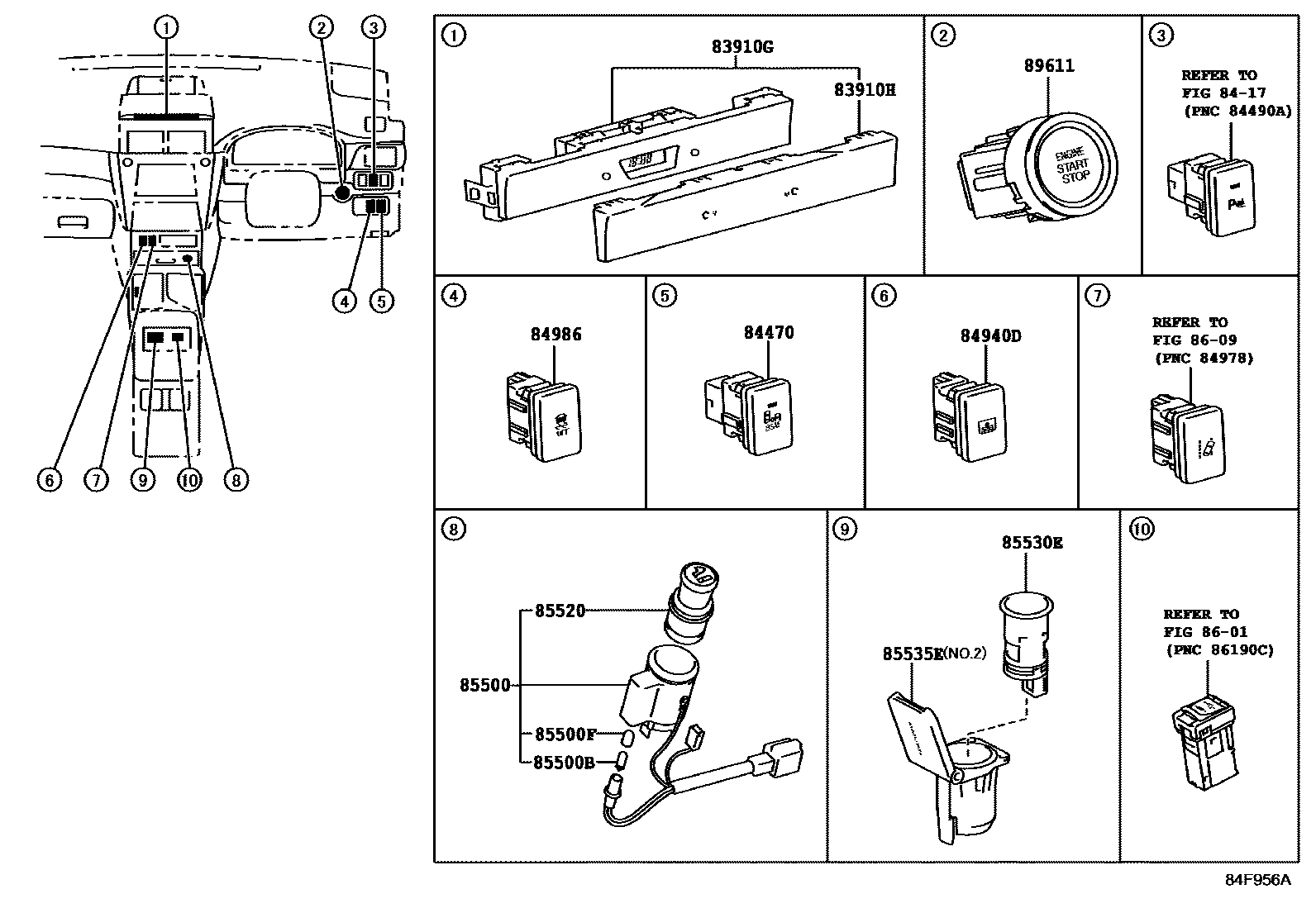

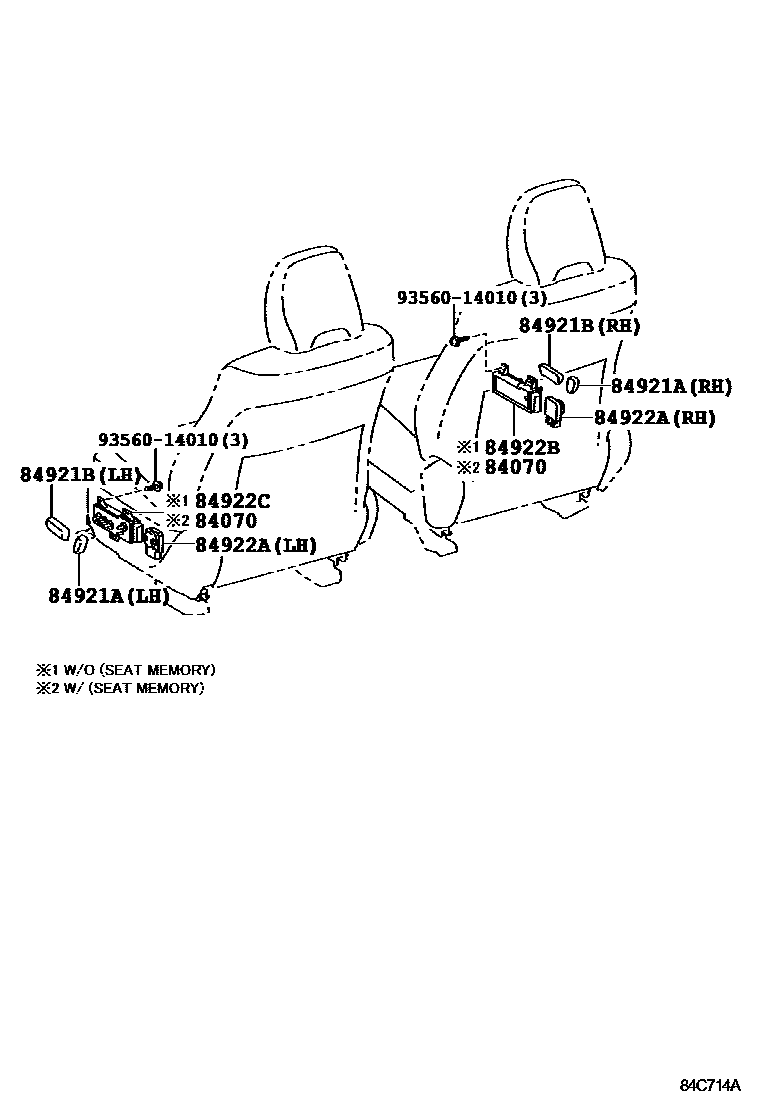

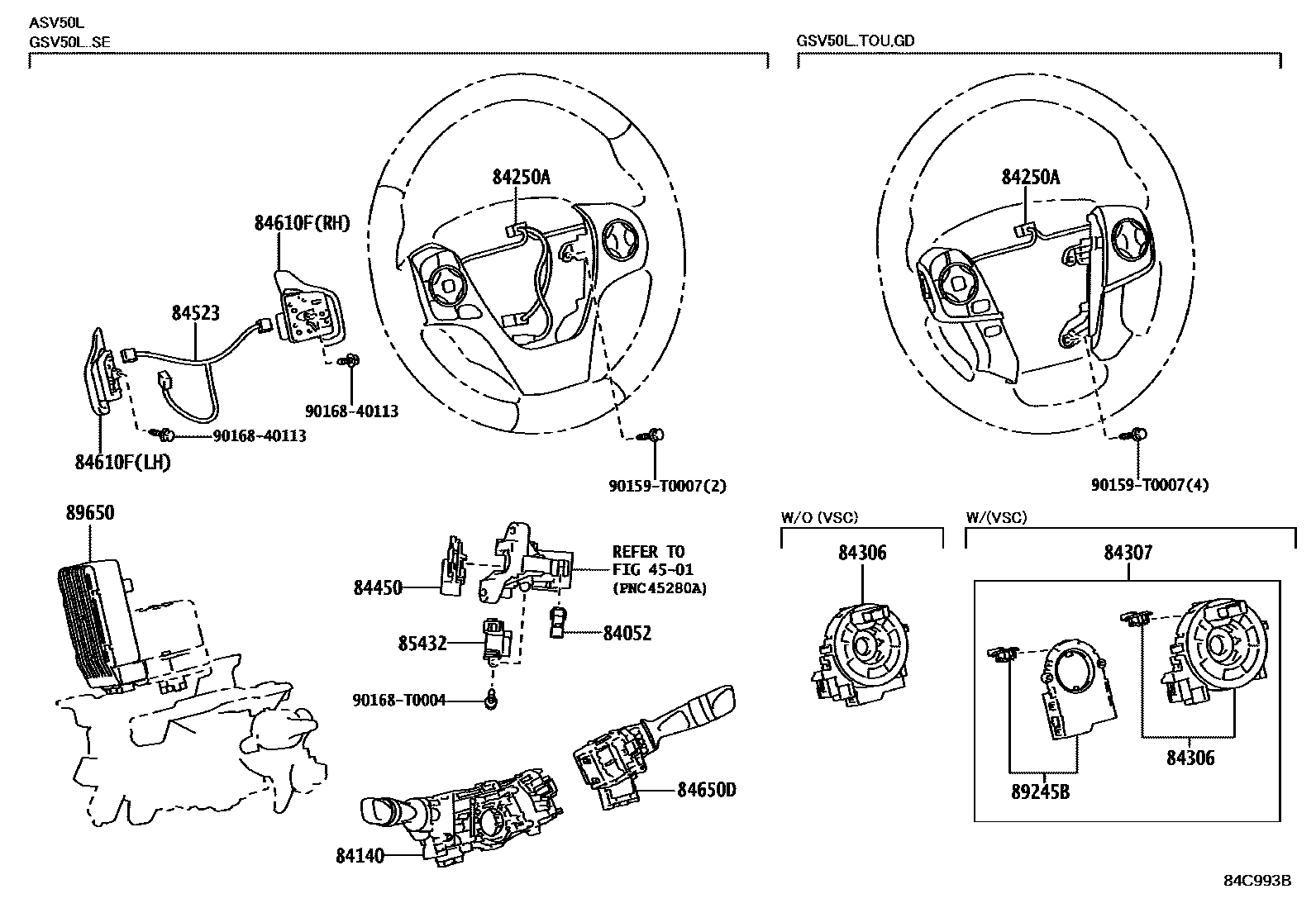

| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02025 |
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82620E | Fuse box assembly | 82620-44040 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33160 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 · 82660-33040 · 82660-33050 |
| 82662A | No. 1 relay box upper cover | 82662-33340 · 82662-33370 · 82662-33390 · 82662-33510 · 82662-33540 · 82662-33730 · 82662-33880 |
| 82662B | No. 2 relay box upper cover | 82662-33420 |
| 82662C | No. 3 relay box upper cover | 82662-33300 · 82662-33320 · 82662-33790 |
| 82663 | Relay box lower cover | 82663-33110 · 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33180 · 82663-33200 |
| 82672A | Junction box cover | 82672-33371 · 82672-33372 · 82672-33421 · 82672-33422 |
| 82715 | Wire harness clamp bracket | 82715-06550 · 82715-06560 · 82715-06570 |
| 82720 | Engine room junction box assembly | 82720-06121 · 82720-33190 · 82720-33200 · 82720-33201 · 82720-33260 · 82720-33280 · 82720-33281 · 82720-33290 · 82720-33291 · 82720-33440 · 82720-33480 · 82720-33530 |
| 82730 | Instrument panel junction box assembly | 82730-33F42 · 82730-33F43 · 82730-33F52 · 82730-33F53 · 82730-33F60 · 82730-33F61 · 82730-33G62 · 82730-33G63 · 82730-33G72 · 82730-33G73 |
| 82740 | Engine room relay box assembly | 82740-33030 · 82740-33050 |
| 82742 | Engine room No. 2 relay box | 82742-33030 · 82742-33040 |
| 82821B | Connector cover | 82821-33400 |
| 82877 | Right ECU integrated box | 82877-33010 · 82877-33020 |
| 83320 | Fuel gauge sensor assembly | 83320-33100 · 83320-33130 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-06240 · 83910-06270 · 83910-06290 · 83910-06300 |
| 83910H | clock cover | 8391B-06040 · 8391B-06050 · 8391B-06060 · 8391B-06090 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |
| 84070 | Position control ECU and switch assembly | 84070-33110 · 84070-33120 |
| 84140 | Headlight dimmer switch assembly | 84140-02A80 · 84140-06550 · 84140-06560 · 84140-06570 · 84140-06580 · 84140-06600 · 84140-0K520 · 84140-0K530 · 84140-0K550 |
| 84150D | Headlight washer switch assembly | 84150-47010 · 84150-47011 |
| 84152 | Headlight beam height adjustment switch | 84152-52100 |
| 84155 | Headlight rotary main switch | 84155-33020 · 84155-33021 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06300 · 84250-06310 · 84250-06350 · 84250-06400 · 84250-06420 · 84250-06430 · 84250-06440 · 84250-06480 · 84250-06490 · 84250-06500 · 84250-06730 · 84250-06740 · 84250-06750 · 84250-06760 · 84250-06770 · 84250-06780 · 84250-06790 · 84250-06800 · 84250-06810 · 84250-06820 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-06190 · 84306-06210 · 84306-39015 · 84308-12010 · 84308-33080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-30160 · 84307-33070 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-19026 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-06030 · 84450-52020 |
| 84470 | Warning release switch assembly | 84470-33020 · 84470-33021 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-33010 · 84550-47010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 · 84610-22010 · 84610-22020 |
| 84650 | Windshield wiper switch assembly | 84652-06280 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06260 · 84652-06270 |
| 84720J | Mode selection switch assembly | 84720-06060 · 84720-06061 |
| 84770A | Collision prediction system cancel switch assembly | 84770-47031 |
| 84810 | Electric window lift switch assembly | 84810-06050 |
| 84810D | Rear electric window lift switch assembly | 84810-06050 |
| 84820 | Electric window lift main switch assembly | 84820-0D130 · 84820-0D140 · 84820-33270 |
| 84840 | Trunk door opening switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-06040 · 84872-48010 |
| 84922B | Front right electric seat switch | 84922-06150 · 84922-06170 |
| 84922C | Front left electric seat switch | 84922-06140 · 84922-06160 |
| 84927 | Seat memory switch | 84927-33080 · 84927-33090 |
| 84940D | Rear sunshade switch assembly | 84940-33060 · 84940-33061 |
| 84986 | vehicle stability control switch | 84986-20011 |
| 85432 | Key interlock solenoid valve | 85432-06020 · 85432-0D010 |
| 85500 | Cigarette lighter assembly | 85500-33060 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85535E | No. 2 power outlet cover | 85535-30020 · 85535-33150 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85915E | relay | 90987-02025 |
| 85924 | Ignition control relay | 90987-02025 · 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927 | cooling fan relay | 90080-87009 · 90987-02025 · 90987-04004 |
| 85940 | Windshield wiper relay assembly | 85940-33150 |
| 85942 | Headlight washer control relay | 85942-58010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87290F | ECO switch assembly | 87290-06060 · 87290-06061 |
| 87346K | PTC heater relay | 90987-02025 |
| 88150A | Driving assistance ECU assembly | 88150-33110 · 88150-33120 |
| 88162 | Blind spot monitor right sensor | 88162-0W021 · 88162-0W240 · 88162-0W250 |
| 88163 | Blind spot monitor right side cover | 88163-06040 · 88163-33010 · 88163-33020 |
| 88172 | Blind spot monitor left sensor | 88162-0W240 · 88162-0W250 · 88172-0W021 |
| 88173 | Blind spot monitor left cover | 88173-06040 · 88173-33010 · 88173-33020 |
| 88280A | Clutch switch assembly | 88280-14030 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89111 | Network gateway ECU | 89111-33060 · 89111-33120 · 89111-33130 · 89111-33170 |
| 89120A | Automatic light control sensor | 89121-50020 · 89121-52010 |
| 89221 | Multi-channel network body ECU | 89221-33410 · 89221-33420 · 89221-33470 · 89221-33480 · 89221-33500 · 89221-33620 · 89221-33630 · 89221-33A40 · 89221-33A50 · 89221-33A60 · 89221-33A70 · 89221-33A80 · 89221-33A90 · 89221-33B00 · 89221-33B10 · 89221-33B20 · 89221-33B30 · 89221-33C90 · 89221-33D10 · 89221-33D30 |
| 89245B | steering sensor | 89245-39015 · 89245-39055 |

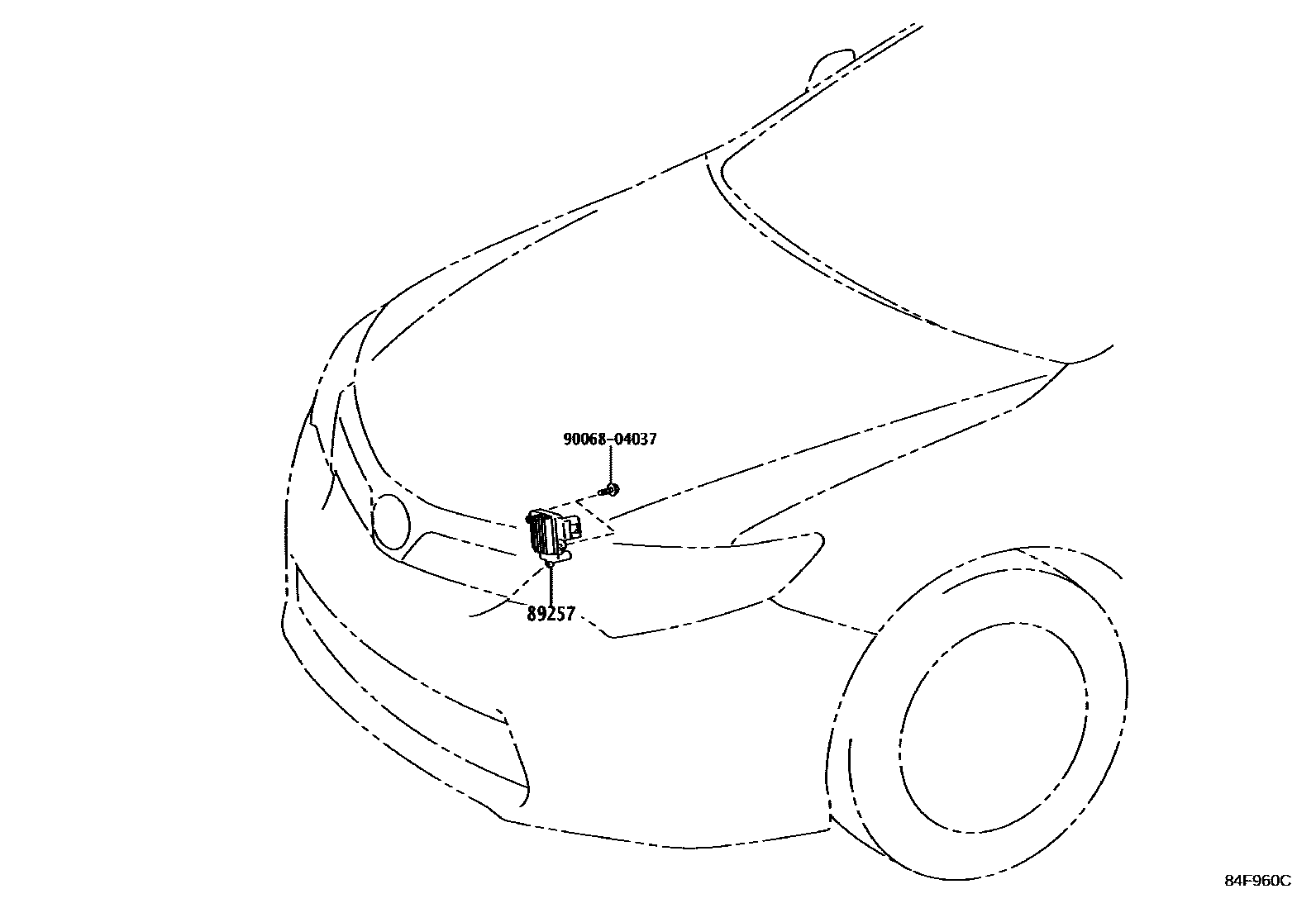

| 89257 | Cooling fan ECU | 89257-30080 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33110 · 89430-33120 |
| 89465 | oxygen sensor | 89465-06210 · 89465-06220 · 89465-06280 · 89465-33470 · 89465-33560 |
| 89467B | air fuel ratio sensor | 89467-33220 · 89467-33230 · 89467-48190 · 89467-48220 |
| 89530C | Transmission control ECU assembly | 89530-33240 · 89530-33250 · 89530-33260 · 89530-33270 · 89530-33400 · 89530-33410 · 89530-33430 · 89530-33440 |
| 89611 | One-button start switch | 89611-33020 · 89611-33021 · 89611-33022 · 89611-33023 · 89611-33031 · 89611-33032 · 89611-33033 · 89611-33034 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-06110 · 89650-06120 · 89650-06140 · 89650-06300 · 89650-06480 · 89650-06490 · 89650-06500 · 89650-06510 |
| 89681A | Power management control ECU | 89690-33090 · 89690-33160 · 89690-33240 · 89690-33300 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89940 | Headlight rotating ECU assembly | 89940-33230 · 89940-33240 · 89940-33260 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33420 · 89960-33430 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2001 |
