Toyota CAMRY 倒车灯 — Figure 8112

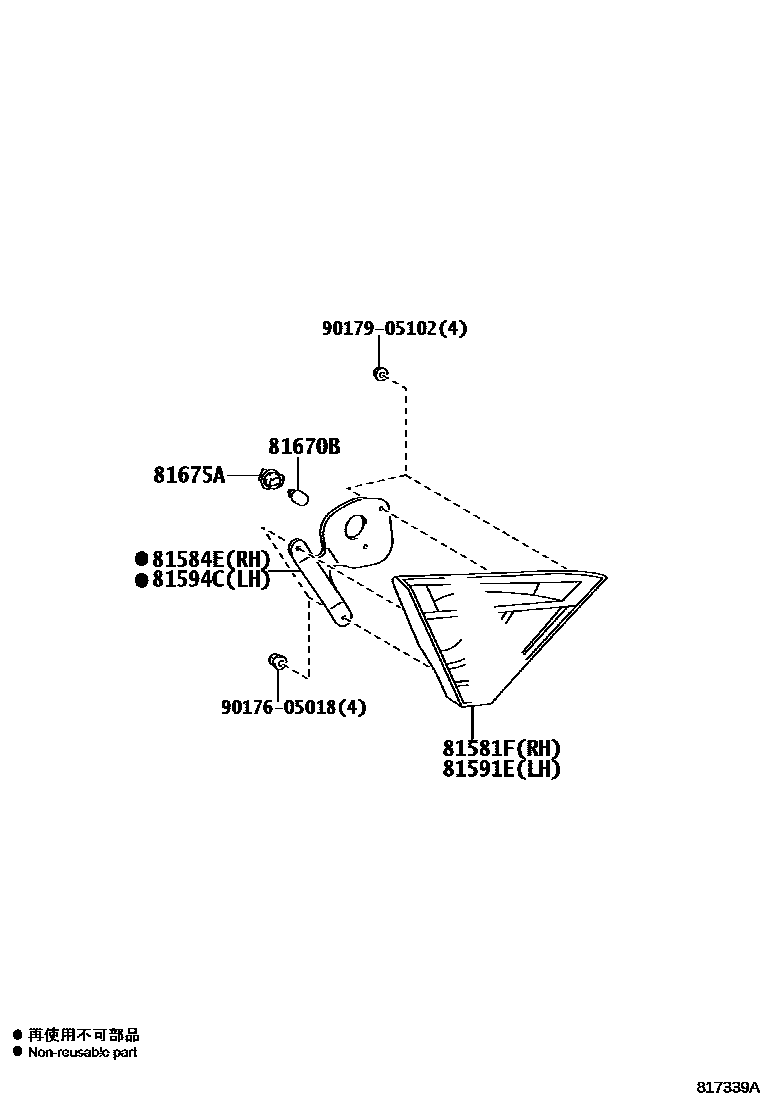

Toyota CAMRY EPC diagram 8112, 倒车灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81581F | Right taillight lampshade and body | 81581-06400 · 81581-06510 · 81581-06600 · 81581-06760 |
| 81584E | Right rear light gasket | 81584-06400 · 81584-06600 · 81584-06760 |
| 81591E | Left taillight lampshade and body | 81591-06400 · 81591-06510 · 81591-06600 · 81591-06760 |
| 81594C | Left rear light gasket | 81584-06400 · 81584-06600 · 81584-06760 |
| 81670B | Bulb (for reversing lights) | 90981-8Y059 |
| 81675A | Lamp holder plug (for reversing lights) | 81585-06400 |
