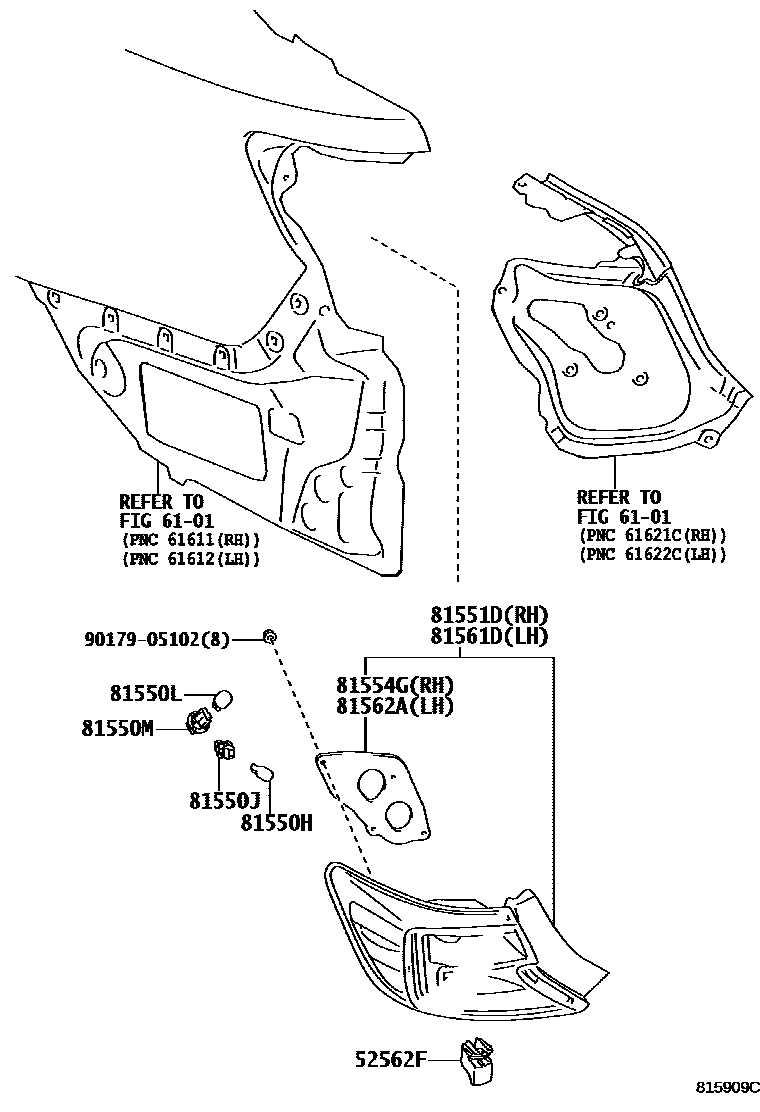

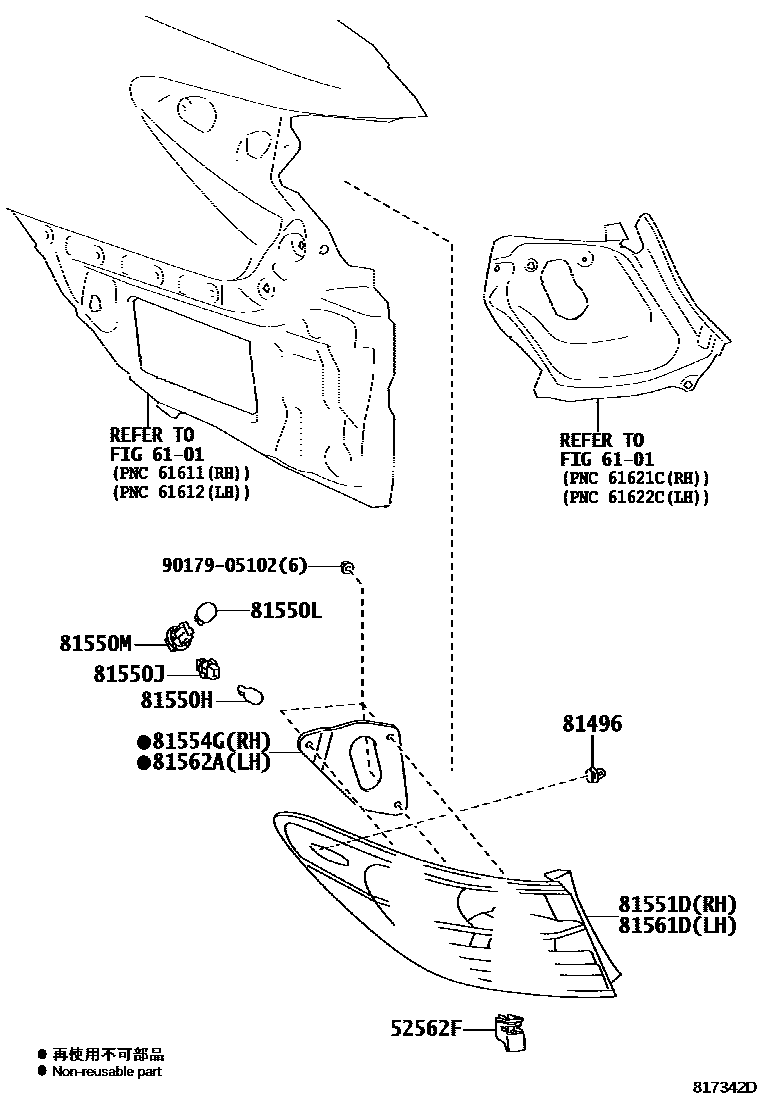

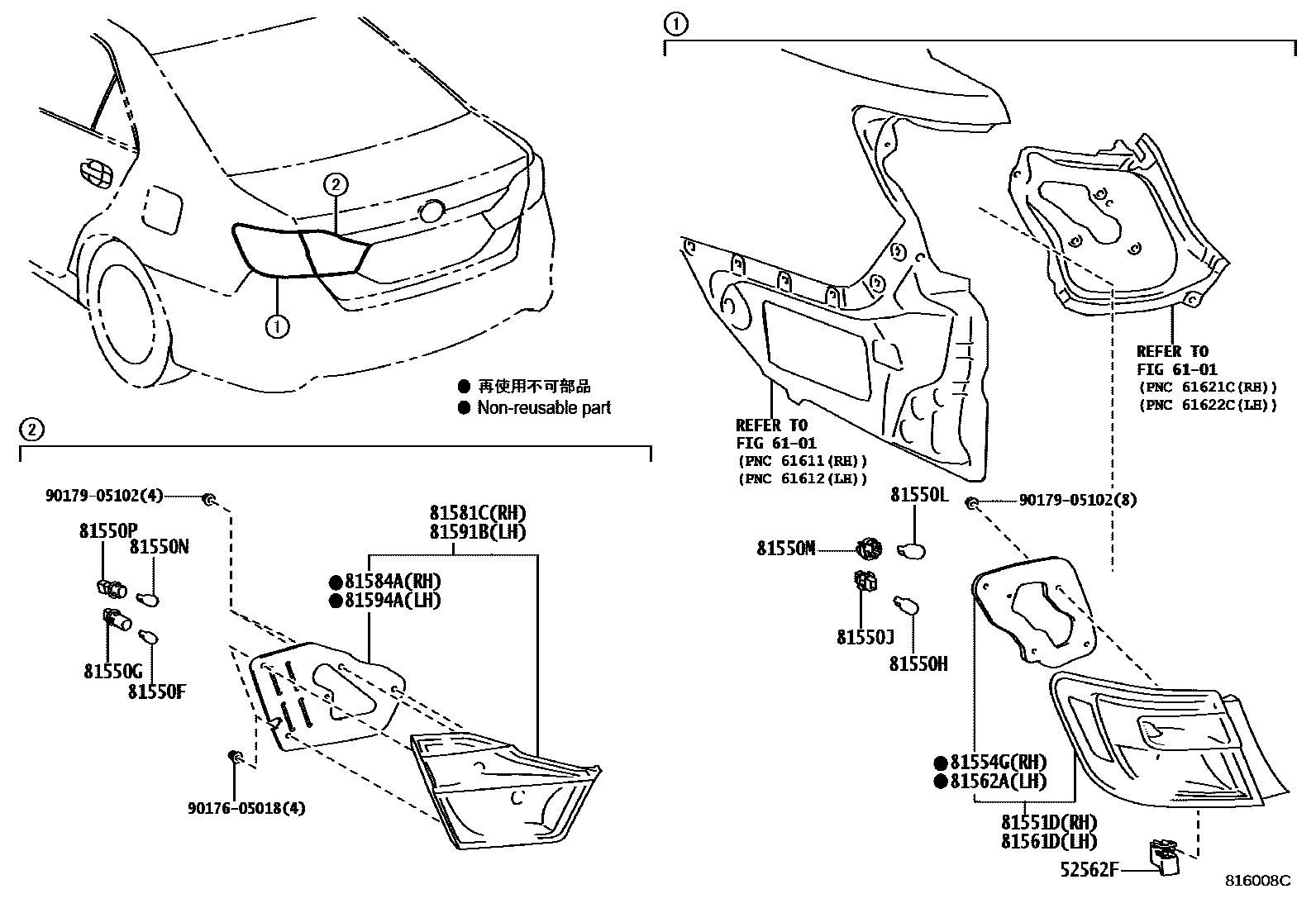

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562F | Rear bumper upper side fixing bracket | 52562-06120 |
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550F | tail light bulb | 84999-YC010 · 99132-12050 |
| 81550G | Tail light lamp holder | 90075-8Y005 |
| 81550H | Tail and brake light bulbs | 99132-8Y002 |
| 81550J | Tail and brake light holders | 90075-8Y003 |
| 81550L | Rear turn signal light bulb | 90981-8Y021 |
| 81550M | Rear turn signal lamp holder | 90075-8Y004 |
| 81550N | reversing light bulb | 90981-11059 · 90981-8Y059 |
| 81550P | Reversing light lamp holder | 81585-06350 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06490 · 81551-06570 · 81551-06571 · 81551-06580 · 81551-06700 |
| 81554G | Right rear combination light gasket | 81554-06700 · 81562-06490 · 81562-06570 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06490 · 81561-06570 · 81561-06571 · 81561-06580 · 81561-06700 |
| 81562A | Left rear combination light gasket | 81554-06700 · 81562-06490 · 81562-06570 |
| 81581C | Right rear light lampshade and lamp body | 81581-06460 · 81581-06500 · 81581-06501 |
| 81584A | Right rear light gasket | 81584-06460 · 81584-06500 |
| 81591B | Left rear light shade and body | 81591-06460 · 81591-06500 · 81591-06501 |
| 81594A | Left rear light gasket | 81584-06500 · 81594-06460 |
