Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

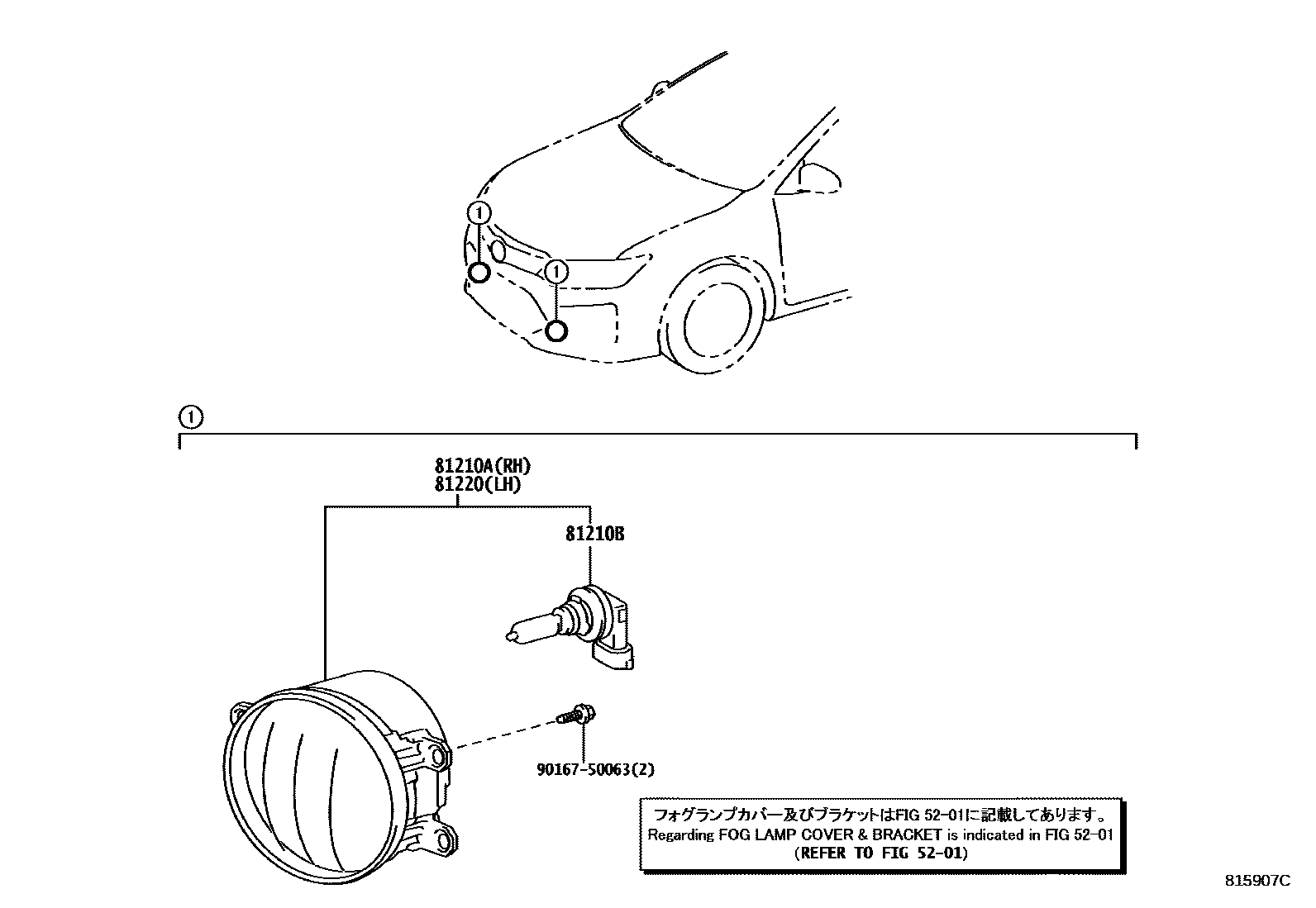

Toyota CAMRY Fog Lamp EPC diagram — 815907C
Fog Lamp — 815907C (201110 – 999999)

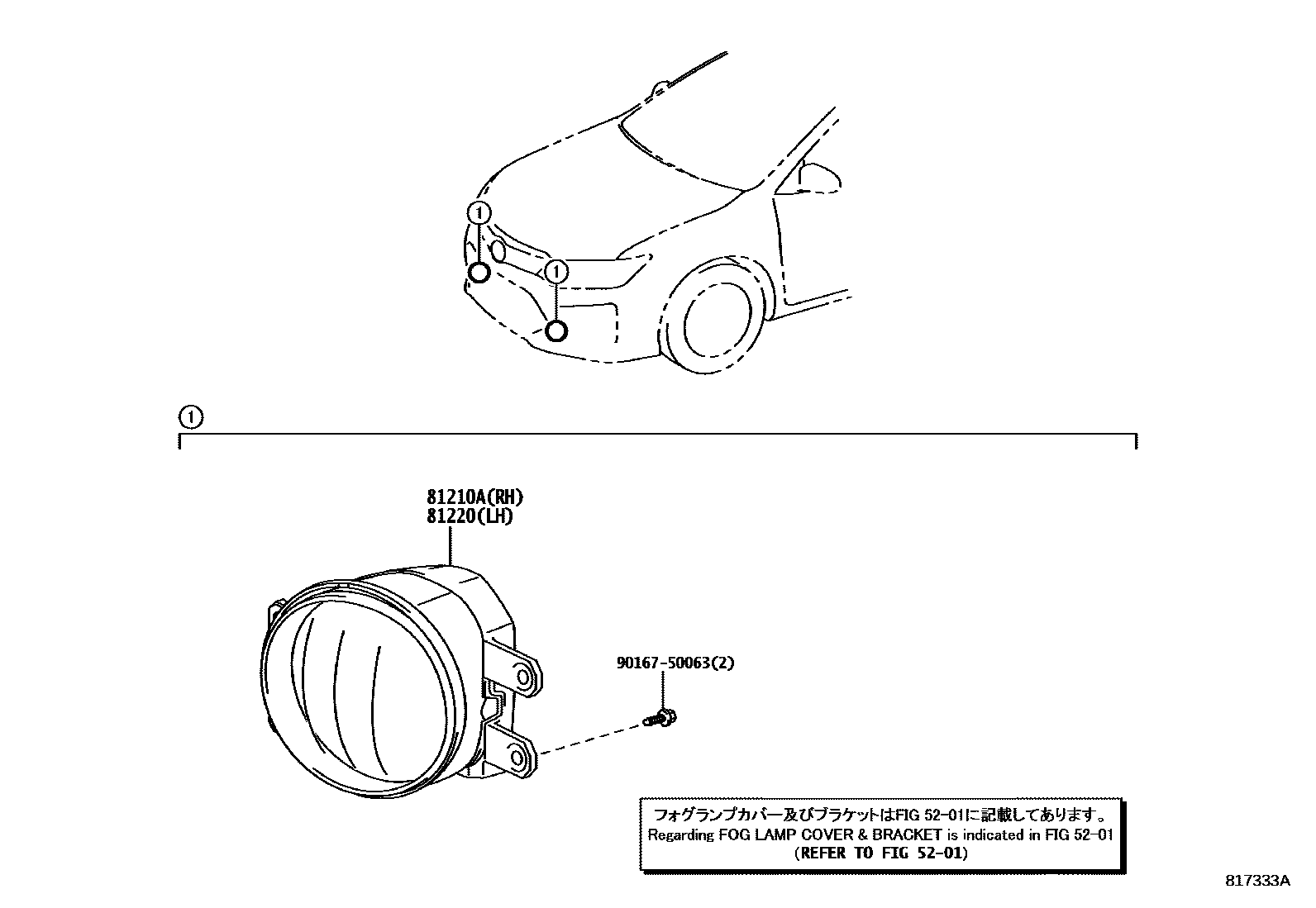

Toyota CAMRY Fog Lamp EPC diagram — 817333A
Fog Lamp — 817333A (201504 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-06071 · 81210-48050
81210Bfog light bulb90981-AD006
81220Left fog light assembly81220-06071 · 81220-48050
