Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 7 images and 19 PNC and OE references.

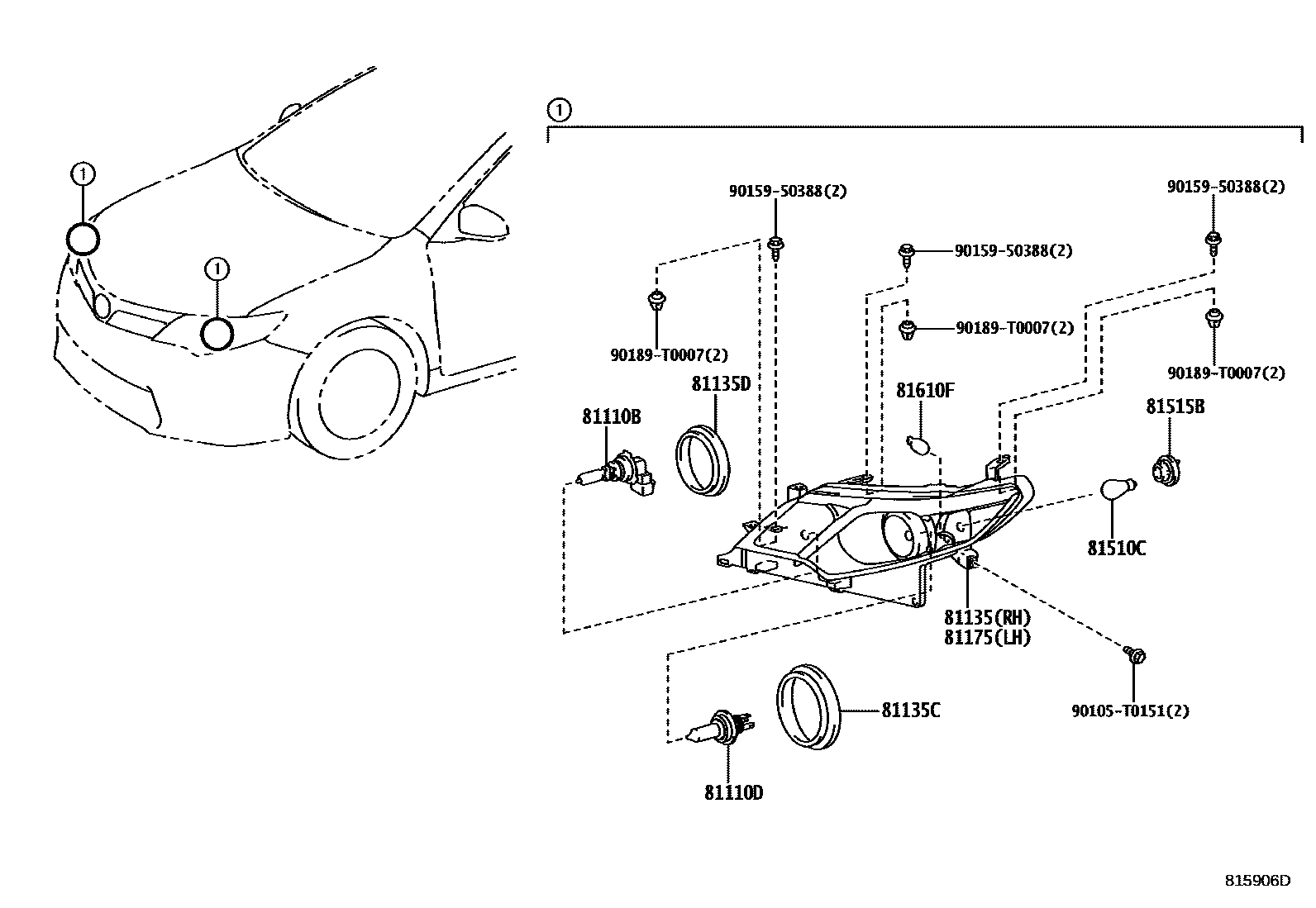

Toyota CAMRY Headlamp EPC diagram — 815906D — Headlamp — 815906D (201110 – 201504)

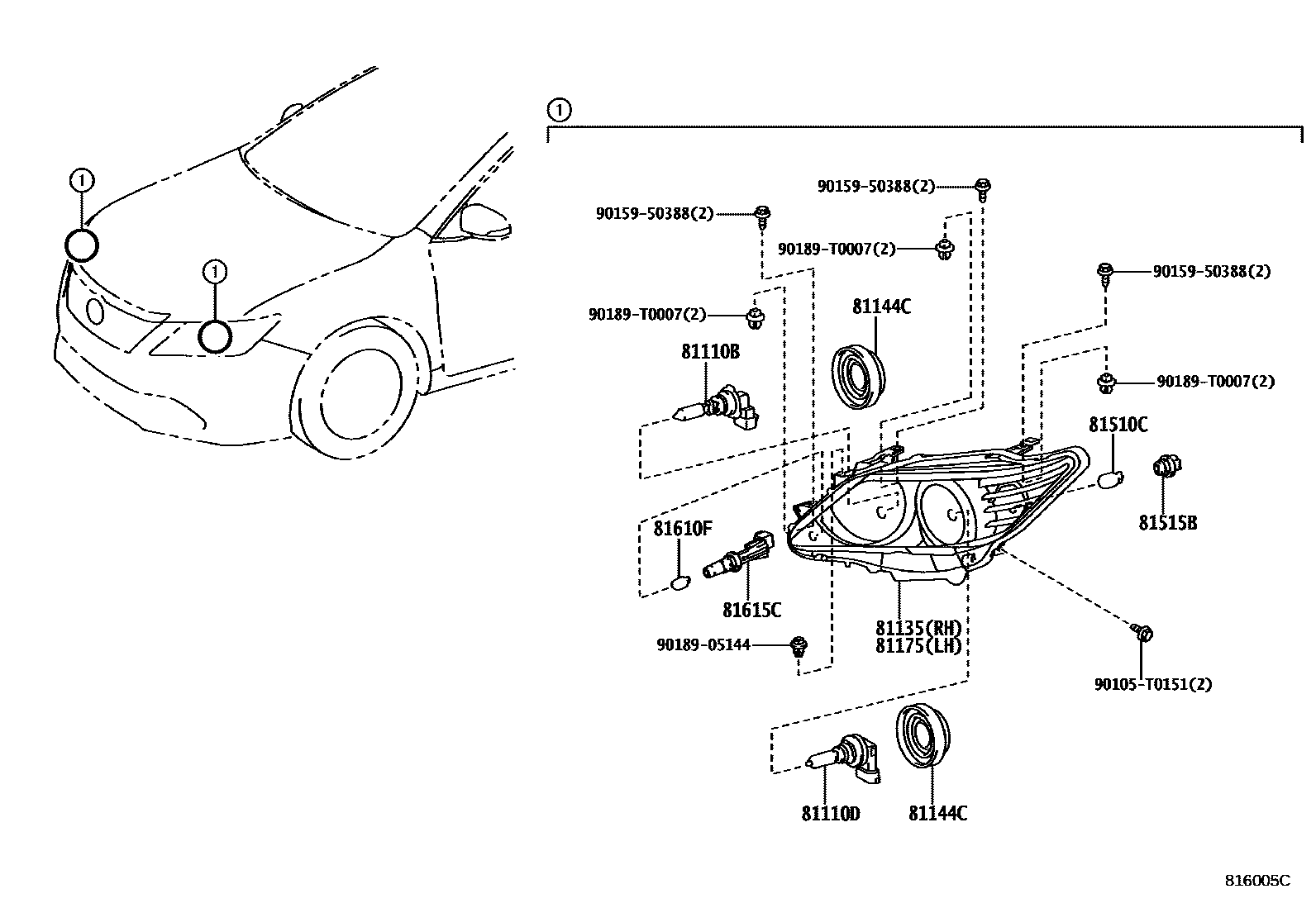

Toyota CAMRY Headlamp EPC diagram — 816005C — Headlamp — 816005C (201202 – 201309)

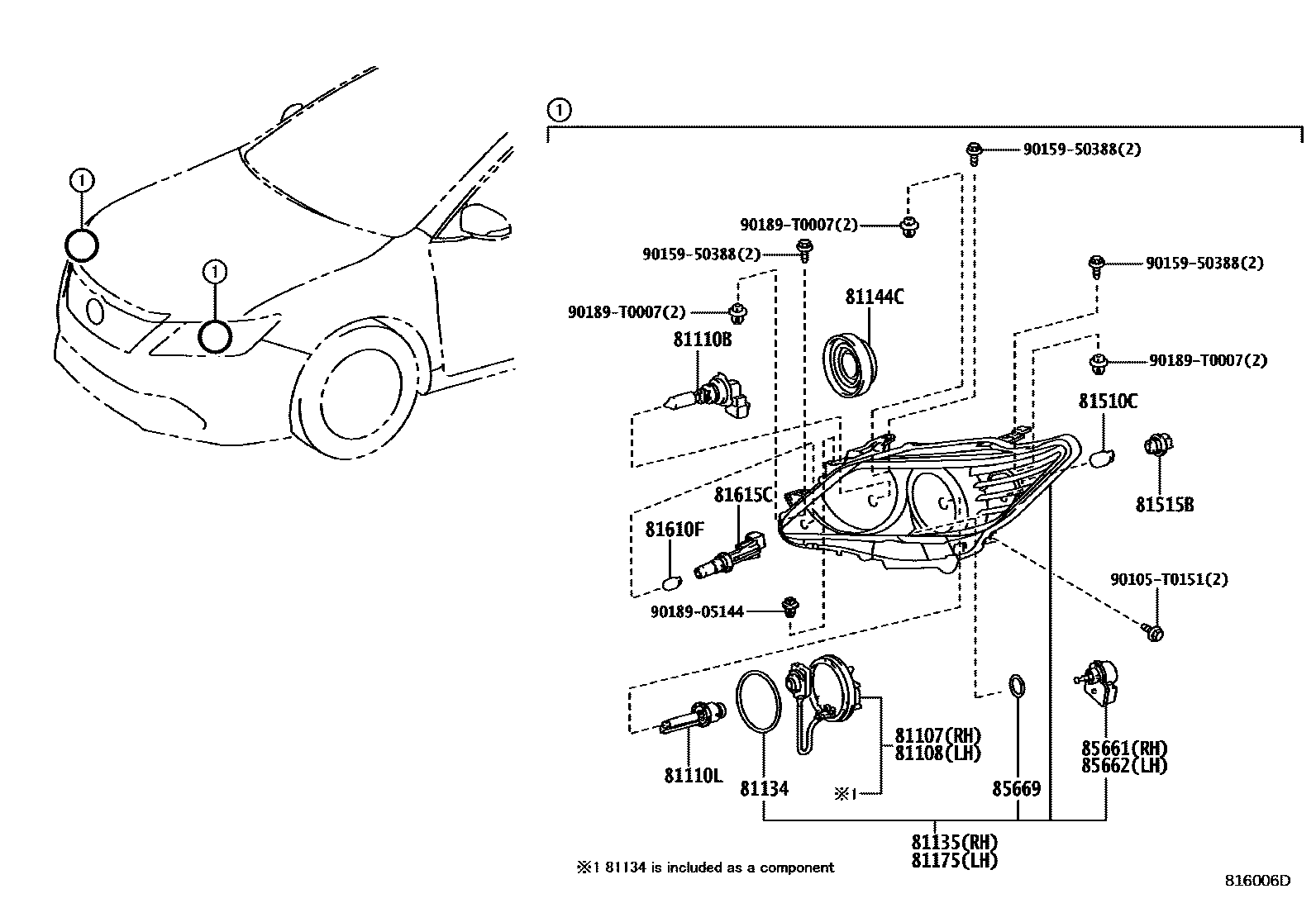

Toyota CAMRY Headlamp EPC diagram — 816006D — Headlamp — 816006D (201202 – 201309)

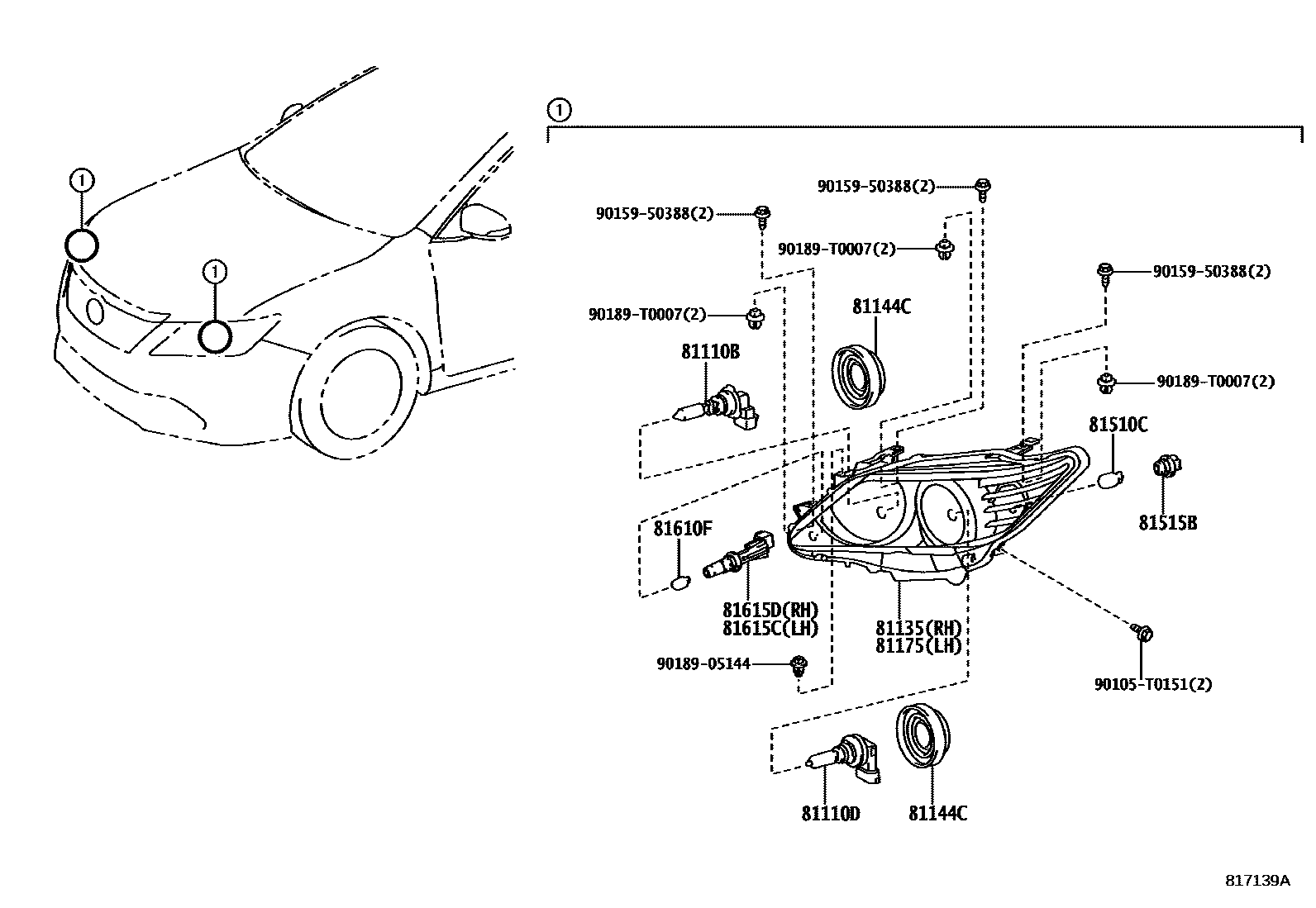

Toyota CAMRY Headlamp EPC diagram — 817139A — Headlamp — 817139A (201309 – 999999)

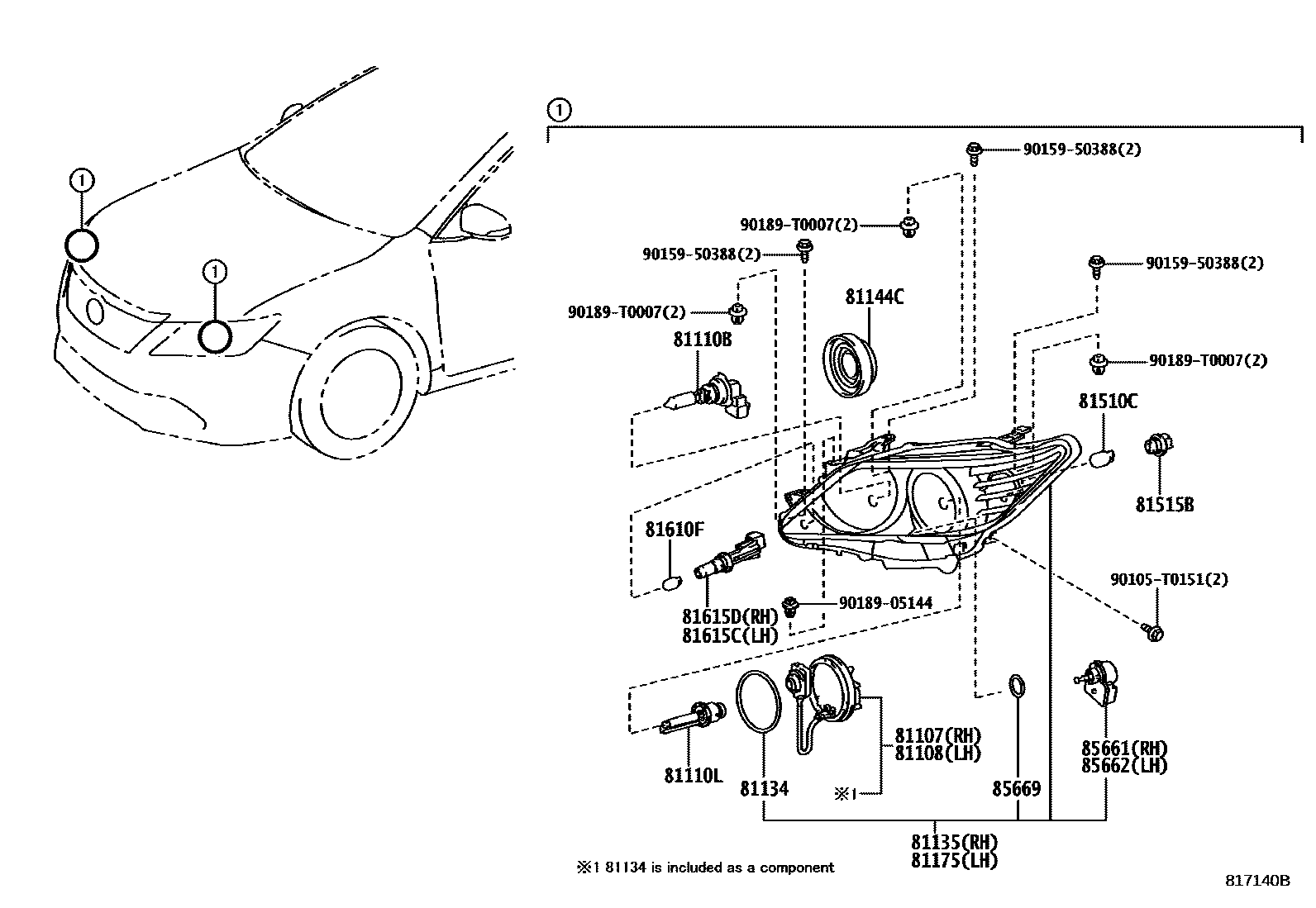

Toyota CAMRY Headlamp EPC diagram — 817140B — Headlamp — 817140B (201309 – 201504)

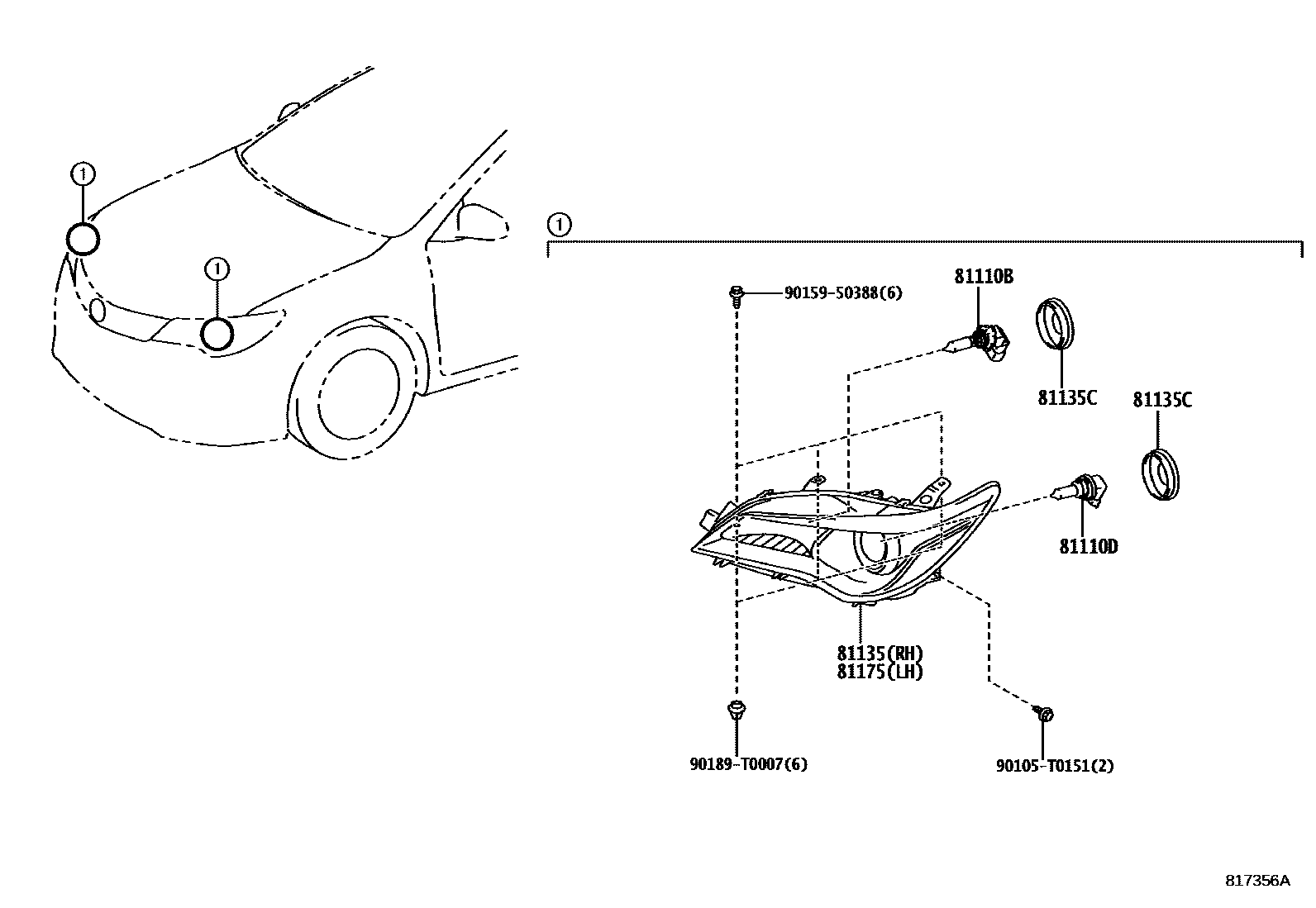

Toyota CAMRY Headlamp EPC diagram — 817356A — Headlamp — 817356A (201504 – 999999)

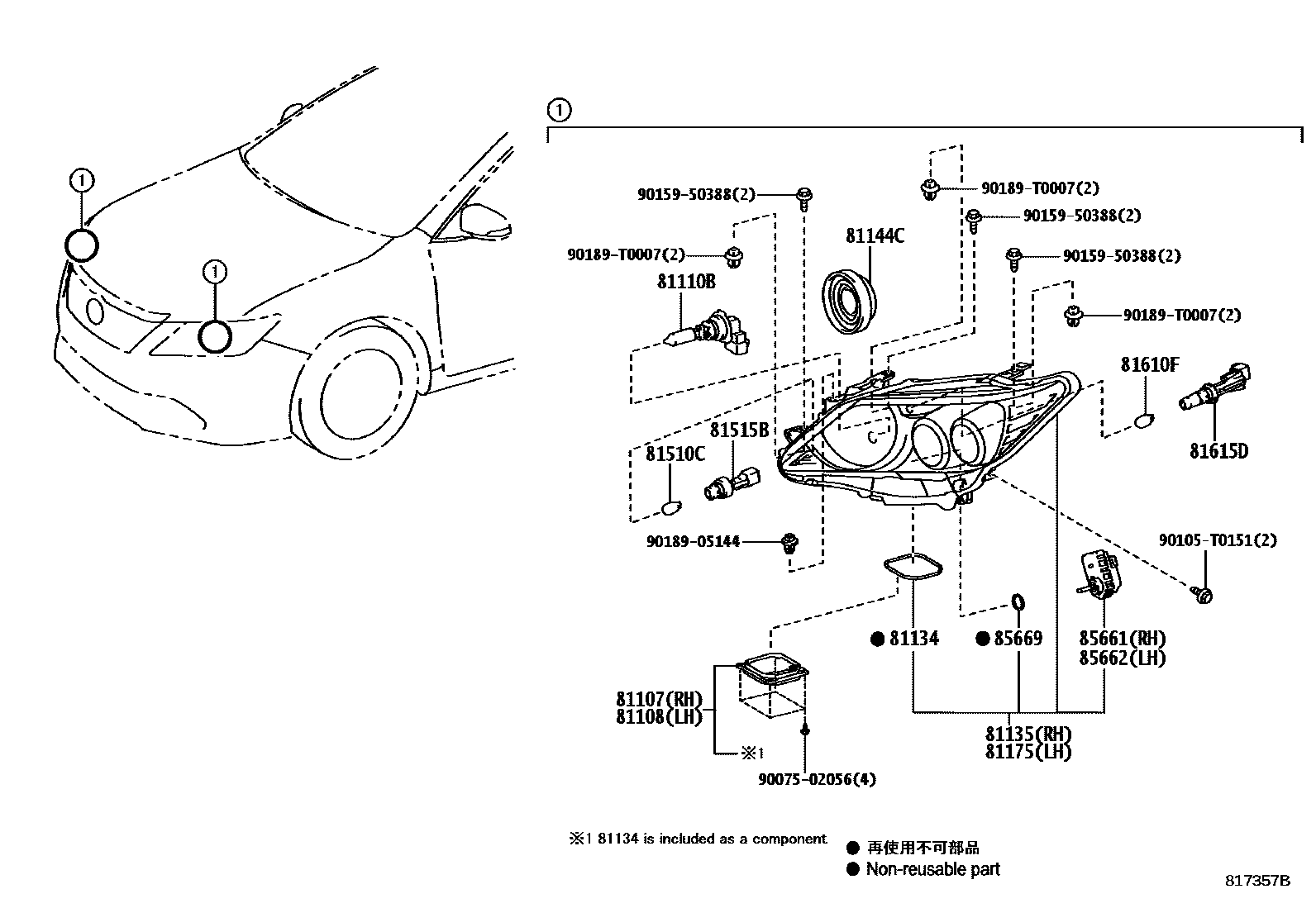

Toyota CAMRY Headlamp EPC diagram — 817357B — Headlamp — 817357B (201504 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81107	Right headlight control ECU sub-assembly	81107-47290 · 81107-75020
81108	Left headlight control ECU sub-assembly	81107-47290 · 81107-75020
81110B	Bulb (for headlight No. 1)	90981-13046 · 90981-8Y001
81110D	Bulb (for headlight No. 2)	90981-13075 · 90981-8Y003
81110L	Discharge headlight bulb	90981-20024
81134	headlight gasket	90075-23002 · 90075-68007
81135	Right headlight assembly assembly	81130-06810 · 81130-06811 · 81130-06820 · 81130-06821 · 81130-06830 · 81130-06840 · 81130-06841 · 81130-06850 · 81130-06851 · 81130-06B10 · 81130-06B12 · 81130-06B20 · 81130-06B21 · 81130-06B23 · 81130-06B50 · 81130-06B60 · 81130-06B70 · 81130-06B80 · 81145-06B30 · 81145-06B32 · 81145-06B40 · 81145-06B42 · 81145-33A80 · 81145-33A90
81135C	No. 1 headlight rear cover	81135-06810 · 81135-06B50
81135D	No. 2 headlight rear cover	81136-06810
81144C	Headlight lamp holder cover	90075-65006
81175	Left headlight assembly assembly	81170-06810 · 81170-06811 · 81170-06820 · 81170-06821 · 81170-06830 · 81170-06840 · 81170-06841 · 81170-06850 · 81170-06851 · 81170-06B10 · 81170-06B11 · 81170-06B20 · 81170-06B21 · 81170-06B22 · 81170-06B50 · 81170-06B60 · 81170-06B70 · 81170-06B80 · 81185-06B30 · 81185-06B31 · 81185-06B40 · 81185-06B41 · 81185-33A30 · 81185-33A40
81510C	Bulb (for front turn signal lamp)	90981-15021 · 99132-8Y001
81515B	Front turn signal lamp holder	81125-20A30 · 81139-06810 · 90069-81073 · 90075-60028
81610F	Light bulb (for width indicator light)	99132-12050
81615C	Width light lamp holder and wiring harness	81125-48470
81615D	Width light lamp holder	90075-60077
85661	Right headlight beam height adjustment motor	85661-12020 · 85661-28011
85662	Left headlight beam height adjustment motor	85661-12020 · 85691-28011
85669	Headlight beam height adjustment motor base seal	90075-99120
