Toyota CAMRY accelerator pedal connecting rod — Figure 7801

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

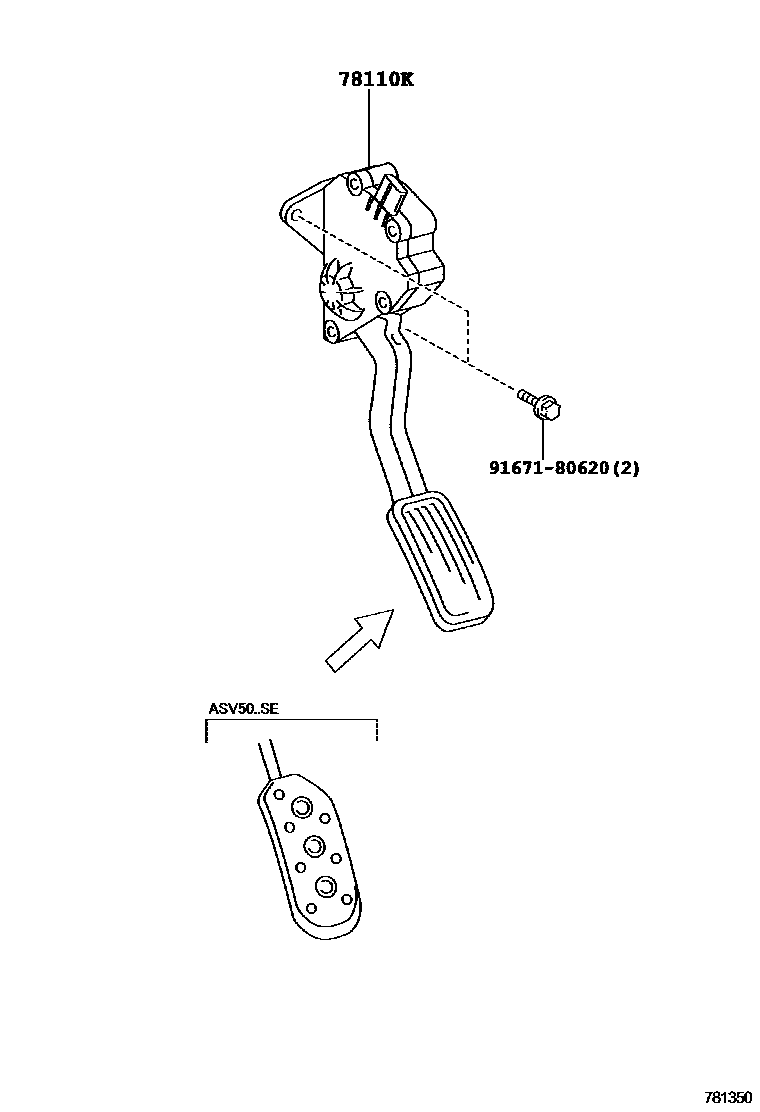

Toyota CAMRY accelerator pedal connecting rod EPC diagram — 781350
accelerator pedal connecting rod — 781350 (201110 – 999999)

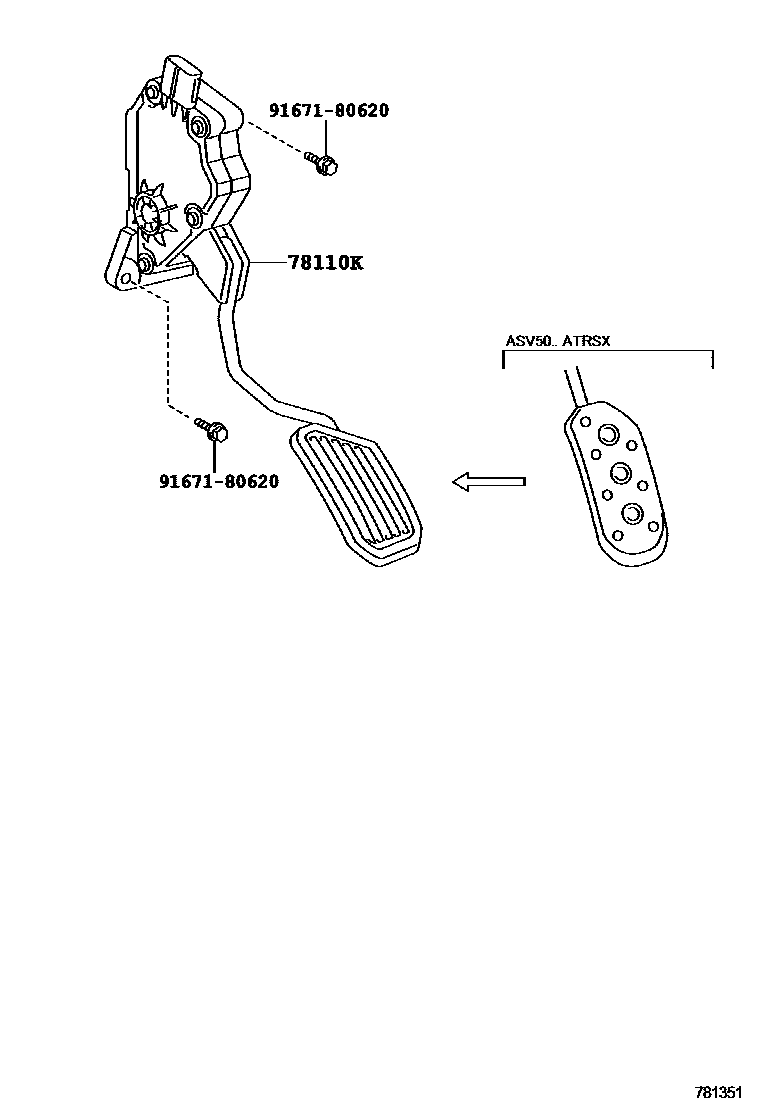

Toyota CAMRY accelerator pedal connecting rod EPC diagram — 781351
accelerator pedal connecting rod — 781351 (201110 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal connecting rod assembly with sensor78110-33071 · 78110-33072 · 78110-33081 · 78110-33082 · 78110-33092 · 78110-33093 · 78110-33101 · 78110-33102
