Toyota CAMRY 挡泥板和扰流板 — Figure 7601

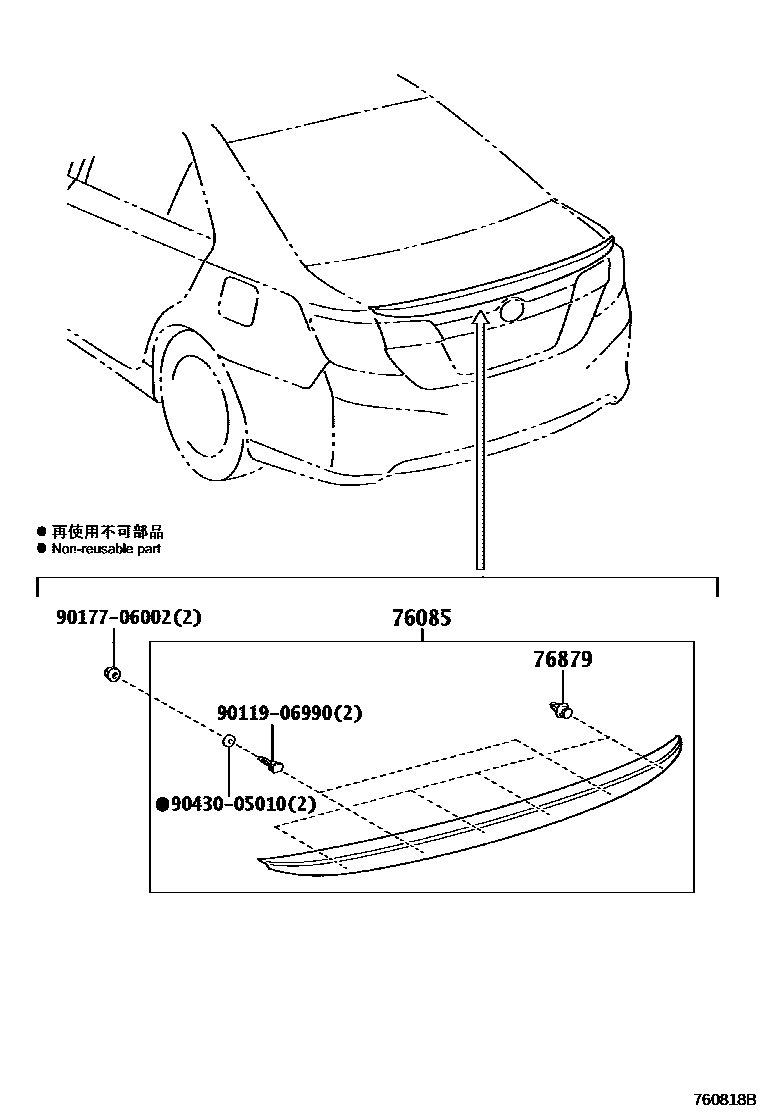

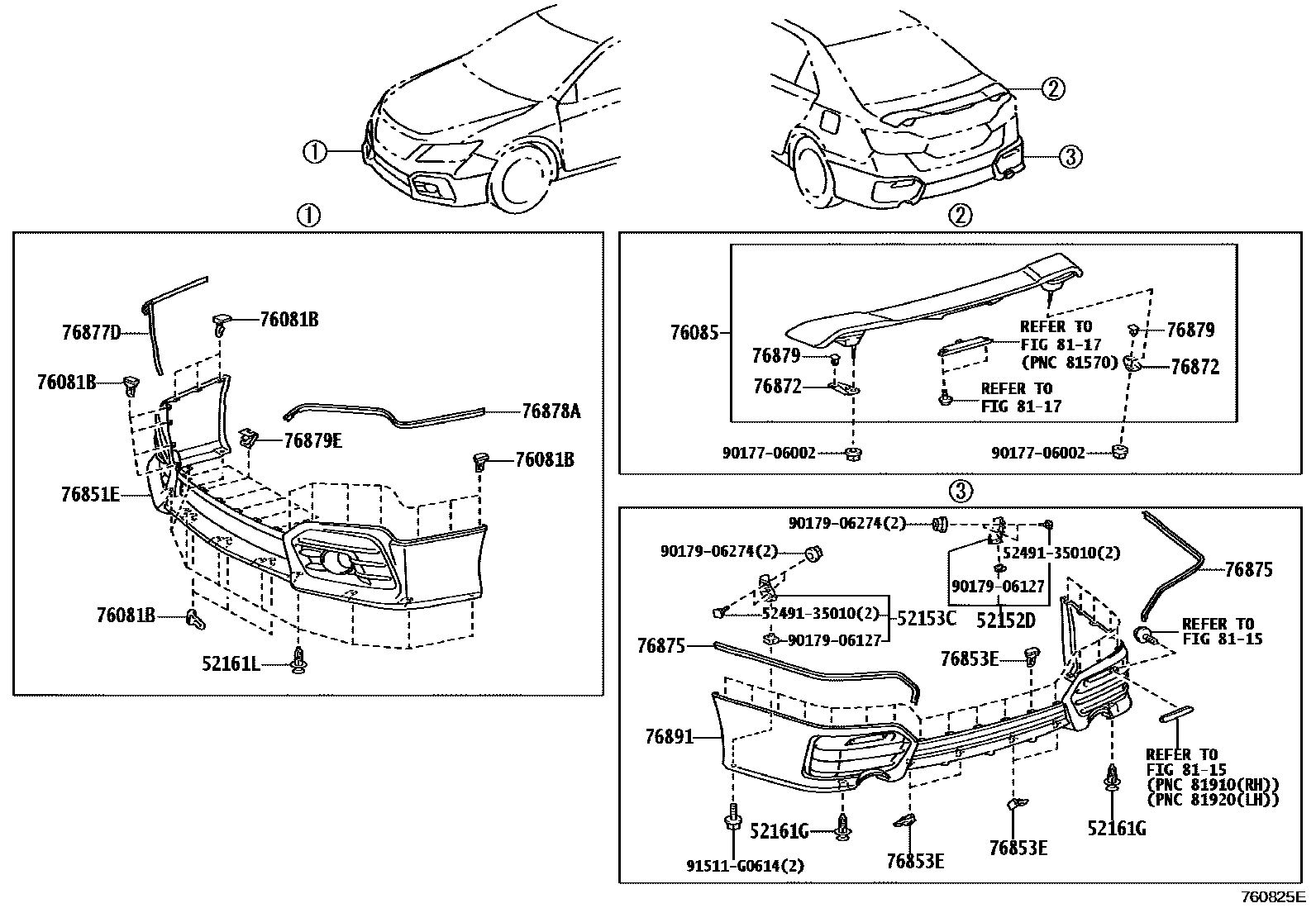

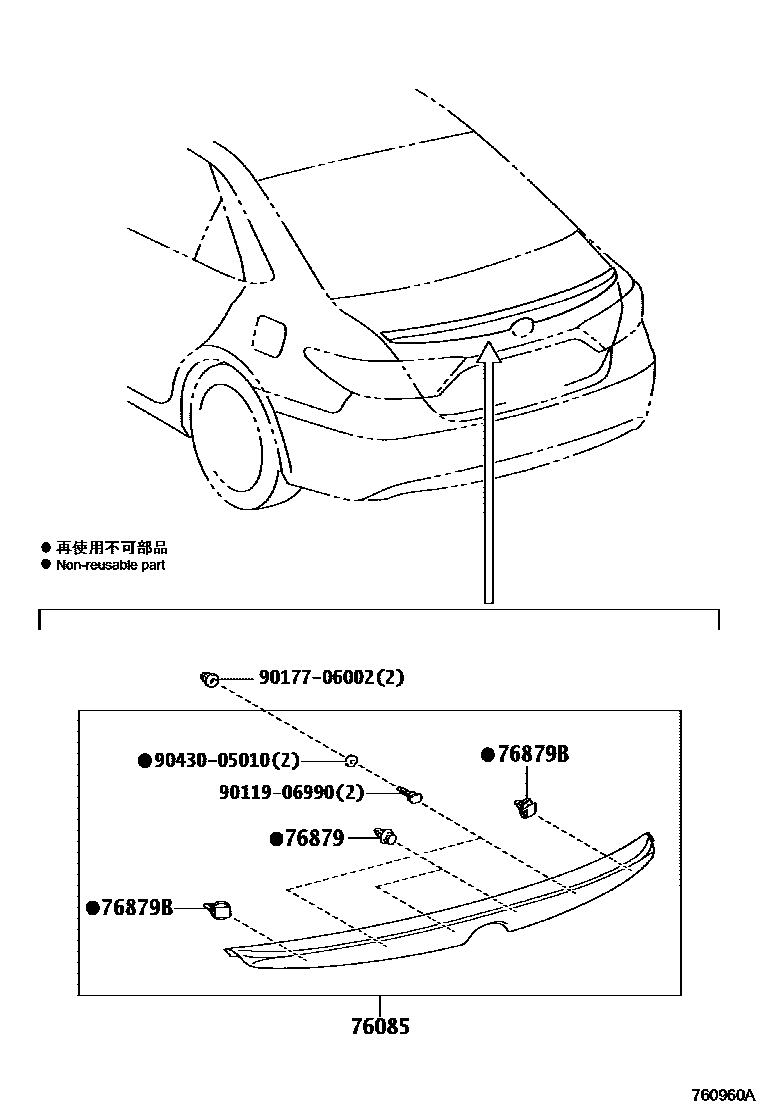

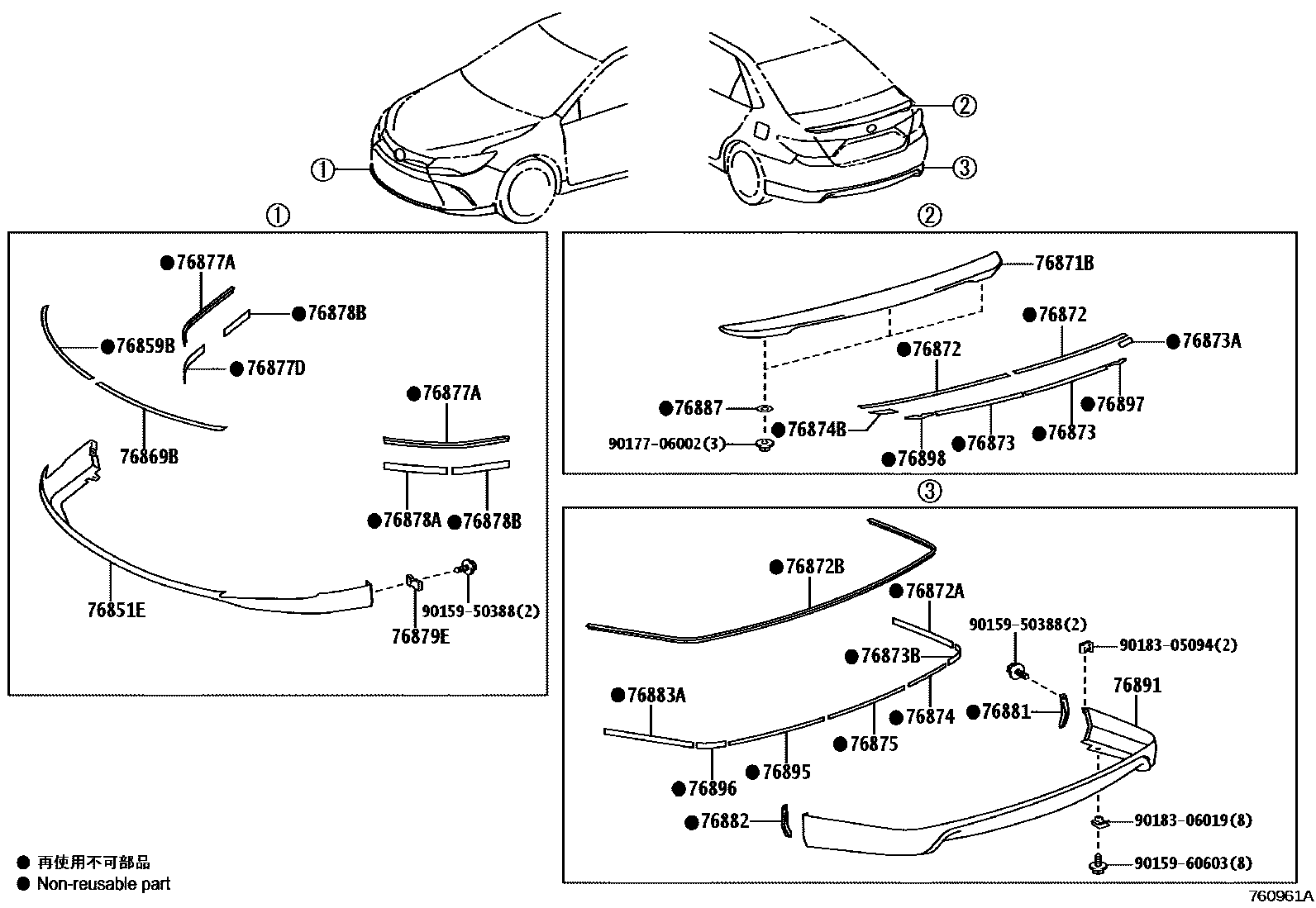

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52152D | Rear bumper right extension | 52152-06060 |
| 52153C | Rear bumper left extension | 52153-06060 |
| 52161G | Rear bumper insert | 52161-16010 |
| 52161L | front spoiler insert | 52161-16010 |
| 76081B | Front spoiler fixings | 75392-35220 |
| 76085 | Rear spoiler sub-assembly | 76085-06902 · 76085-06903 · 76085-06904 |
| 76851E | front spoiler | 76851-06909 · 76851-YY901 |
| 76853E | No. 1 rear spoiler fixing piece | 75392-35220 |
| 76859B | No. 2 right front side spoiler protective strip | 76878-YY030 |
| 76869B | No. 2 left front spoiler protective strip | 76878-YY050 |
| 76871B | rear spoiler cover | 76871-YY901 |
| 76872 | No. 1 rear spoiler protective strip | 76872-06050 · 76872-YY020 |
| 76872A | No. 1 rear spoiler protective strip | 76872-YY030 |
| 76873 | No. 2 rear spoiler protective strip | 76873-YY020 |
| 76873A | Right rear spoiler protective strip | 76873-YY010 |
| 76873B | No. 2 rear spoiler protective strip | 76873-YY030 |
| 76874 | No. 3 rear spoiler protective strip | 76874-YY030 |
| 76874B | Left rear spoiler protective strip | 76874-YY020 |
| 76875 | No. 4 rear spoiler protective strip | 76875-YY010 |
| 76877D | Right front spoiler protection strip | 76877-YY020 |
| 76878A | Left front spoiler protection strip | 76878-YY010 |
| 76878B | Front spoiler protection strip | 76878-YY040 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 · 90467-09203 · 90467-09206 |
| 76879B | No. 2 rear spoiler clip | 76817-12070 |
| 76879E | Front spoiler clip | 76879-44010 · 76879-YY010 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-YY010 |
| 76882 | No. 1 left rear spoiler protective strip | 76882-YY010 |
| 76883A | No. 7 rear spoiler protective strip | 76883-YY010 |
| 76887 | Rear spoiler seal | 76874-YY010 |
| 76891 | No. 1 rear spoiler | 76871-YY903 · 76891-06905 |
| 76895 | No. 5 rear spoiler protective strip | 76895-YY010 |
| 76896 | No. 6 rear spoiler protective strip | 76896-YY010 |
| 76897 | Right rear spoiler protection strip | 76897-YY010 |
| 76898 | Left rear spoiler protection strip | 76898-YY010 |
