Toyota CAMRY 烟灰盒 — Figure 7404

Toyota CAMRY EPC diagram 7404, 烟灰盒, with 2 images and 3 PNC and OE references.

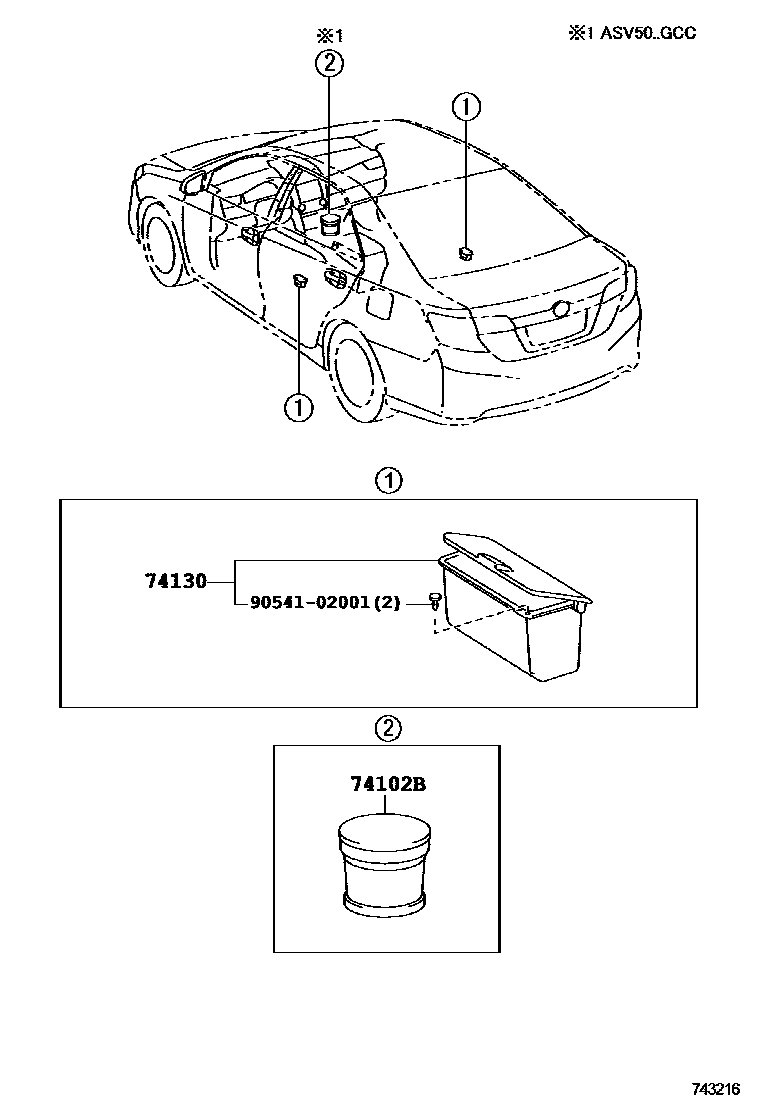

Toyota CAMRY 烟灰盒 EPC diagram — 743216
烟灰盒 — 743216 (201110 – 999999)

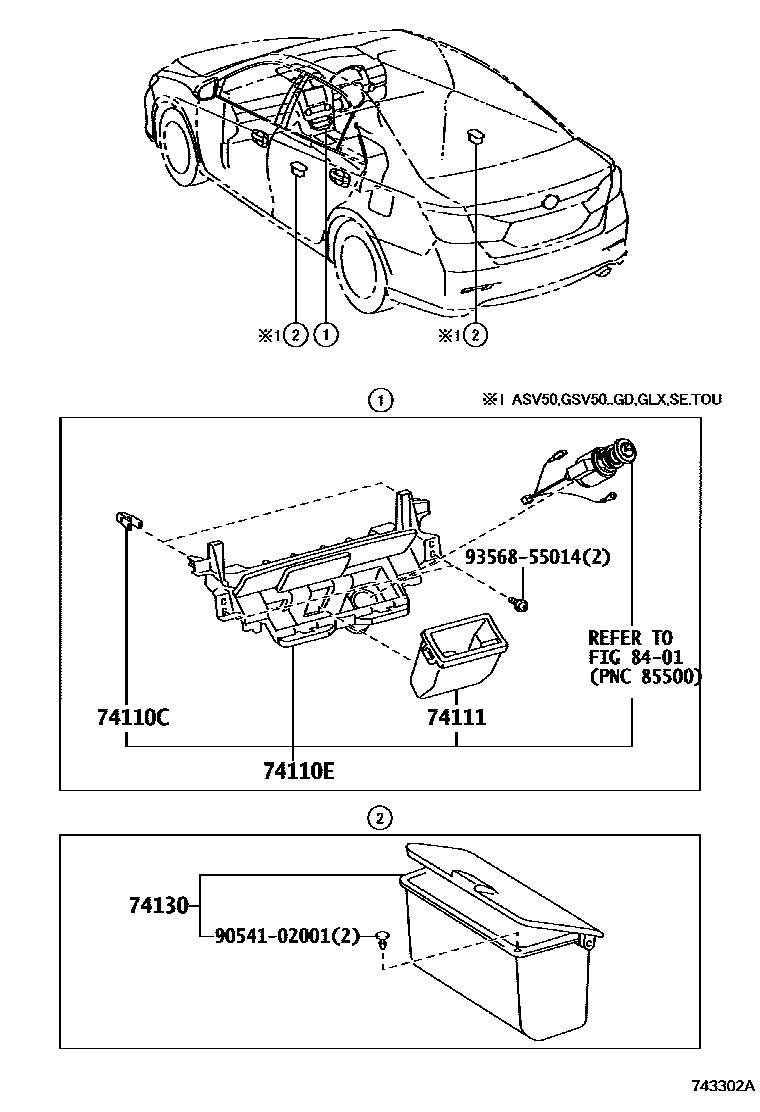

Toyota CAMRY 烟灰盒 EPC diagram — 743302A
烟灰盒 — 743302A (201202 – 999999)

PNC and OE references

PNCPart nameOE numbers
74102BFront ashtray sub-assembly74110-42010
74110CFront ashtray inner clip90467-10203
74111front ashtray74111-06030
