Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

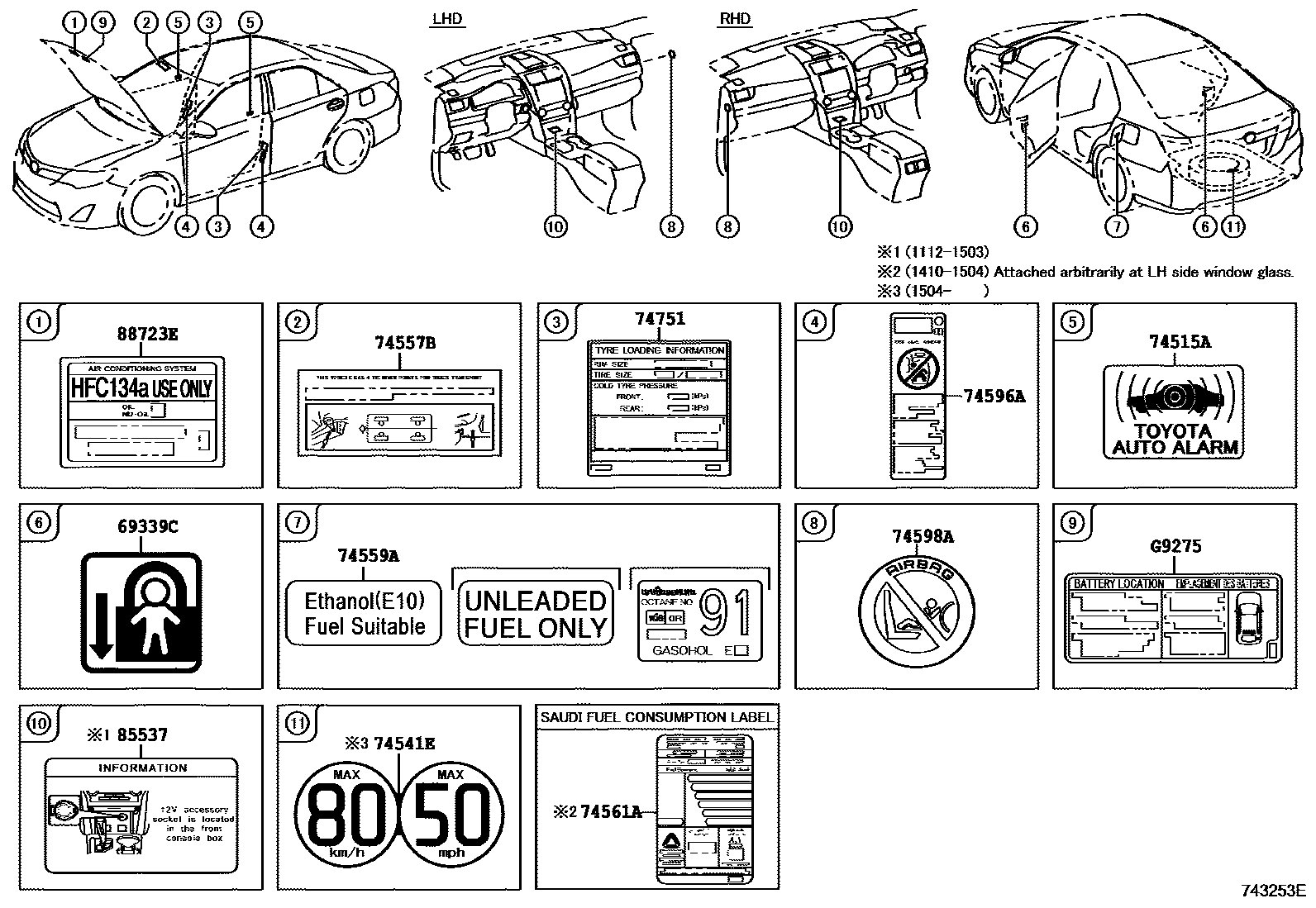

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291B | Engine name plate | 11291-36040 |
| 11293D | engine warning label | 11293-36070 |
| 16793E | Cooling fan warning label | 16793-28020 · 16793-31030 · 16793-36040 |
| 47288 | Brake Fluid Caution Label | 47288-33020 |
| 69339C | Child Restraint Information Label | 69339-06050 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74557B | Transport hook warning label | 74557-YC010 |
| 74559A | Fuel warning plate | 74559-02050 · 74559-06030 · 74559-YA010 |
| 74561A | fuel consumption information label | 74561-33041 · 74561-33042 · 74561-33081 · 74561-33082 · 74561-33091 · 74561-33100 · 74561-33110 · 74561-33111 · 74561-33140 · 74561-33150 · 74561-33160 · 74561-33170 · 74561-33300 · 74561-33310 · 74561-33320 · 74561-33330 · 74561-33340 · 74561-33350 · 74561-33360 · 74561-33370 |
| 74596A | Side air bag warning label | 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-YC010 |
| 74751 | tire pressure information label | 42661-06770 · 42661-06780 · 42661-06790 · 42661-06830 · 42661-06840 · 42661-06A41 |
| 85537 | Power outlet information label | 85537-33020 |
| 86995E | warning label | 88723-8Y001 |
| 88723E | Cooler maintenance warning label | 88723-06060 · 88723-06120 · 88723-YC020 |
| G9275 | No. 1 battery warning label | G9275-76020 |
