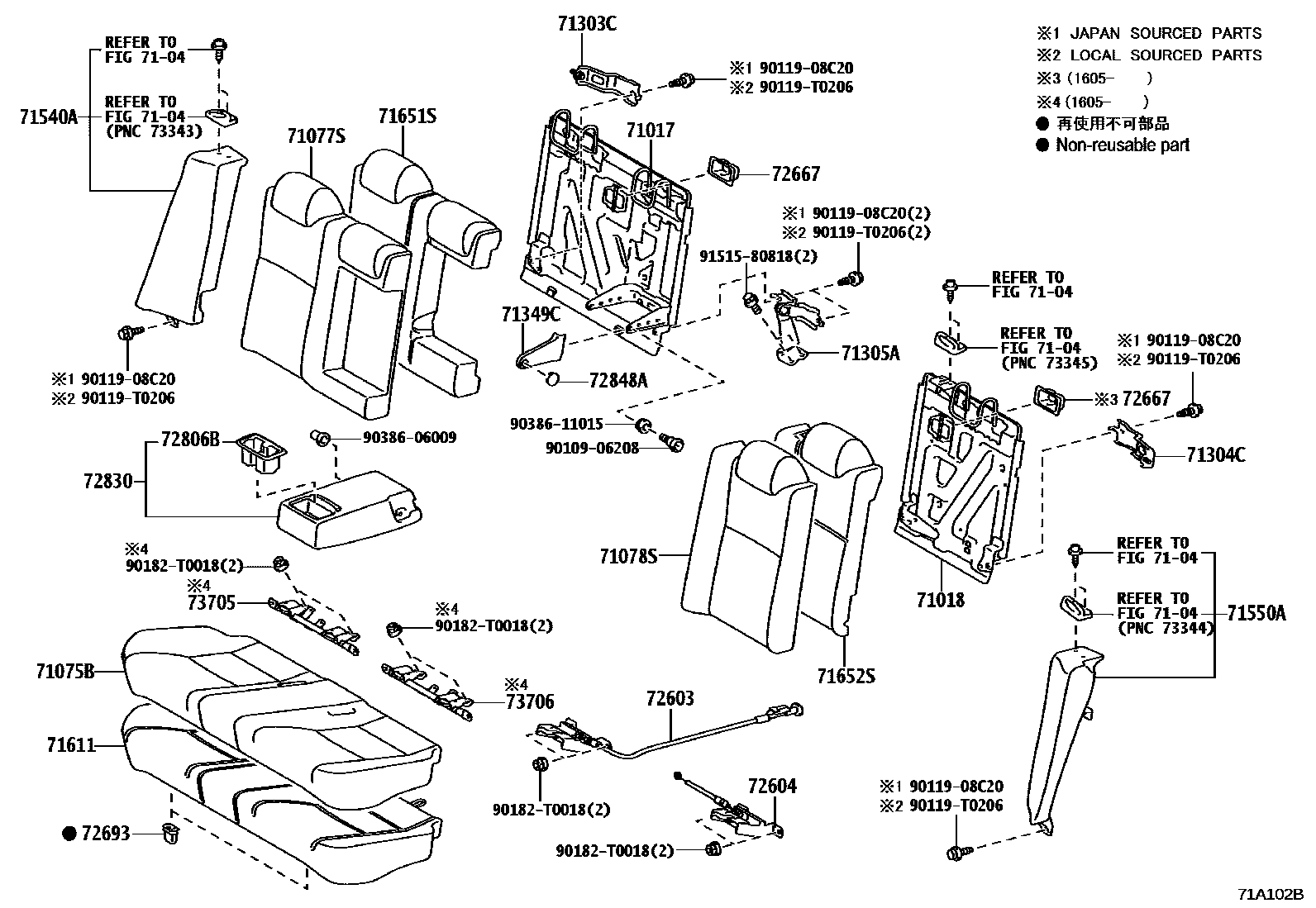

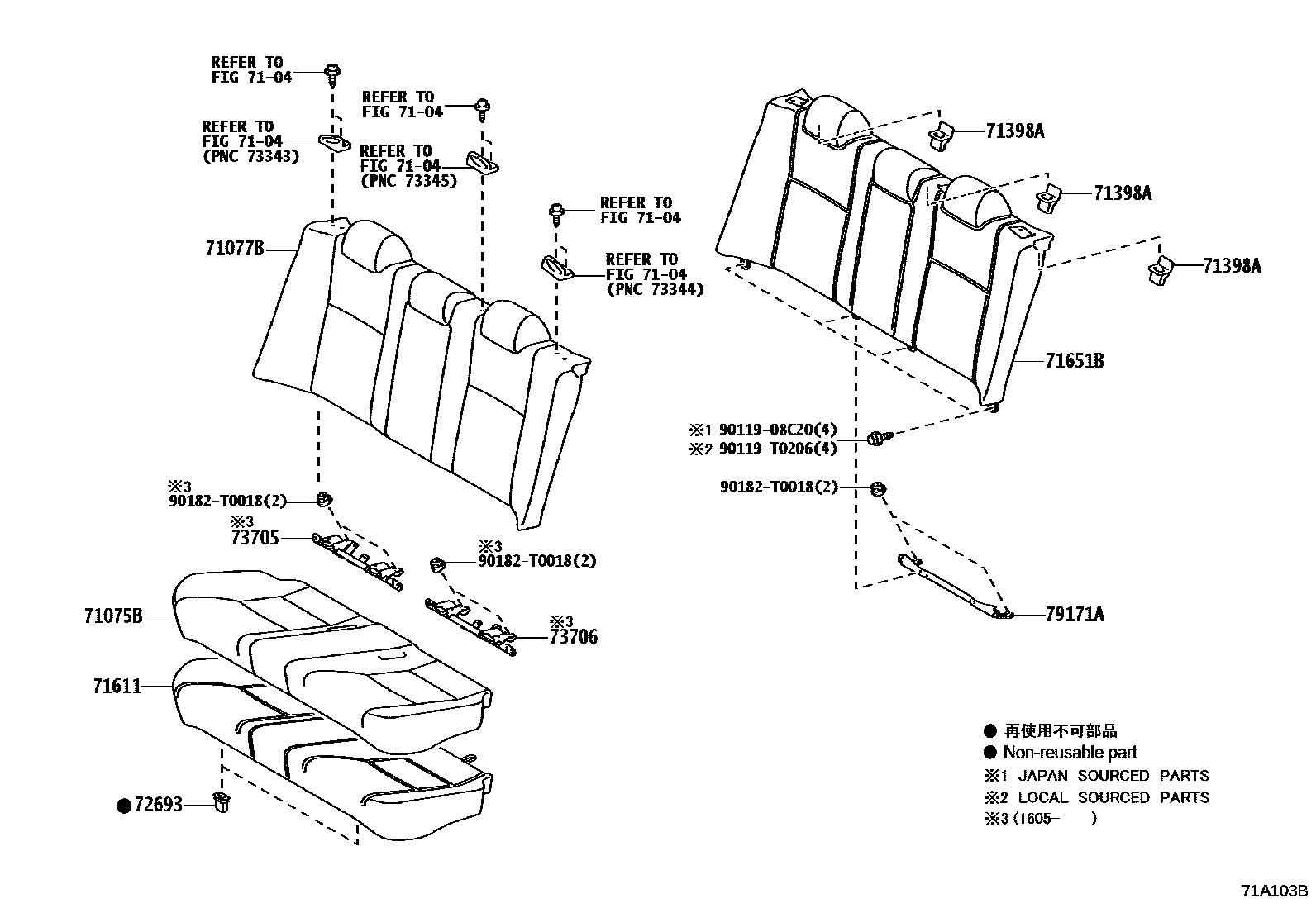

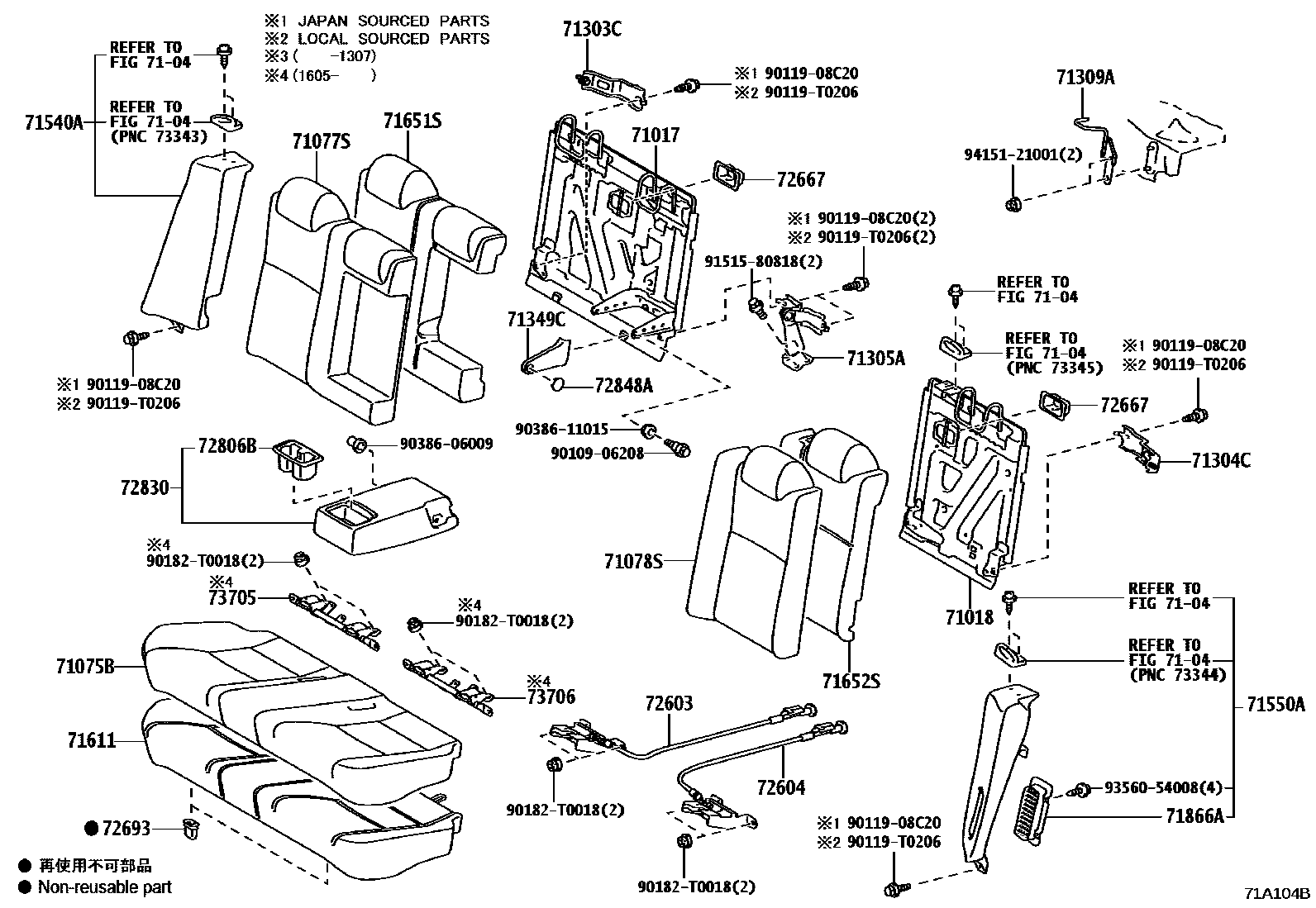

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06190 · 71017-06191 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06130 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06041 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-06041 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06050 |
| 71309A | Rear seat backrest retainer bracket sub-assembly | 71309-33050 |
| 71540A | Rear right side seat back assembly | 71540-06730 |
| 71550A | Rear left seat back assembly | 71550-06870 |
| 71611 | Rear seat cushion cushion | 71503-06370 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06350 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06360 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06160 |
| 72603 | Rear right seat back lock sub-assembly | 72630-33070 |
| 72604 | Rear left seat back lock sub-assembly | 72640-33070 · 72640-33080 |
| 72667 | Rear seat back locking frame | 72667-06020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33170 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33170 |
| 79171A | Seat bracket No. 1 | 79001-06010 |
