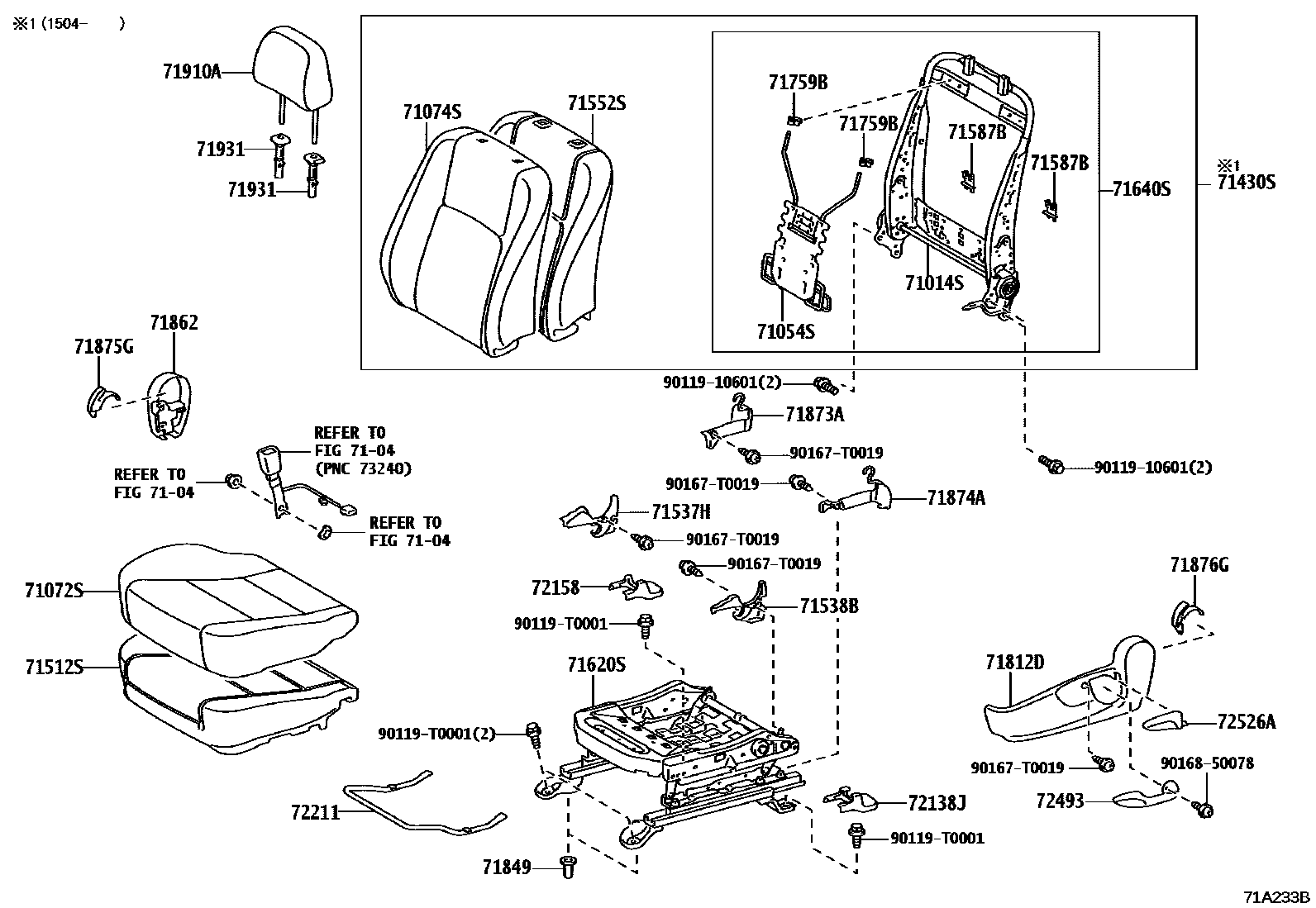

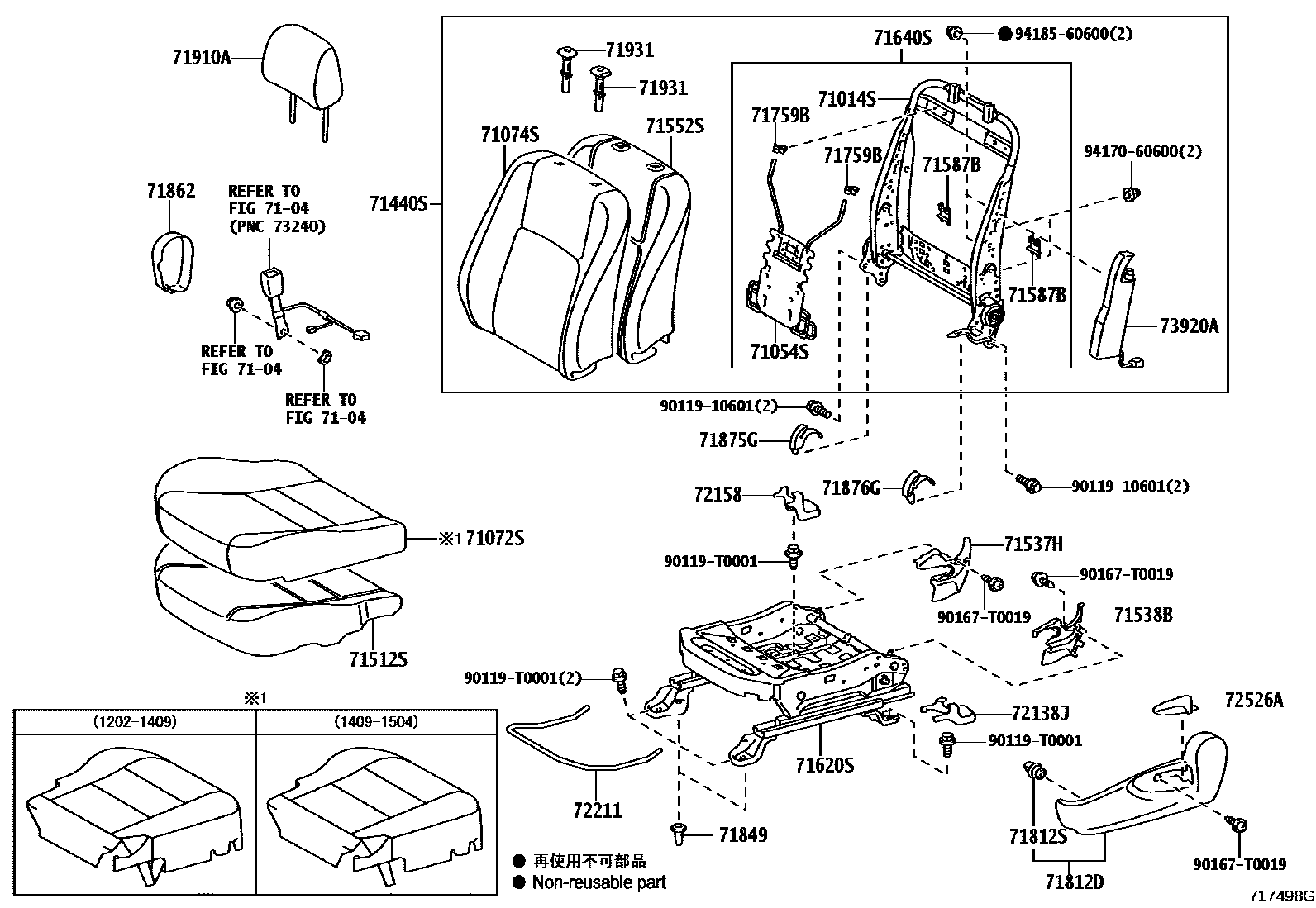

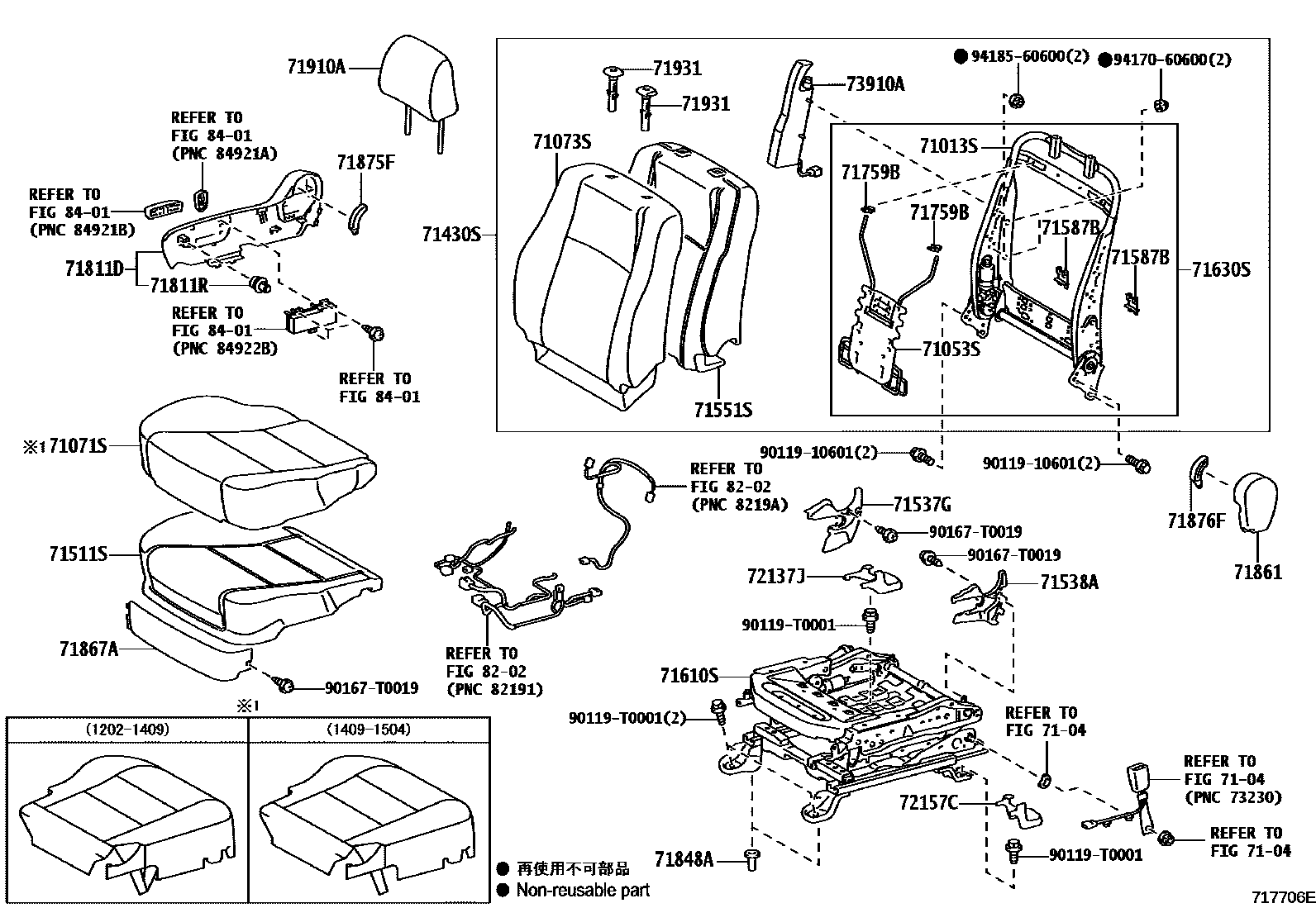

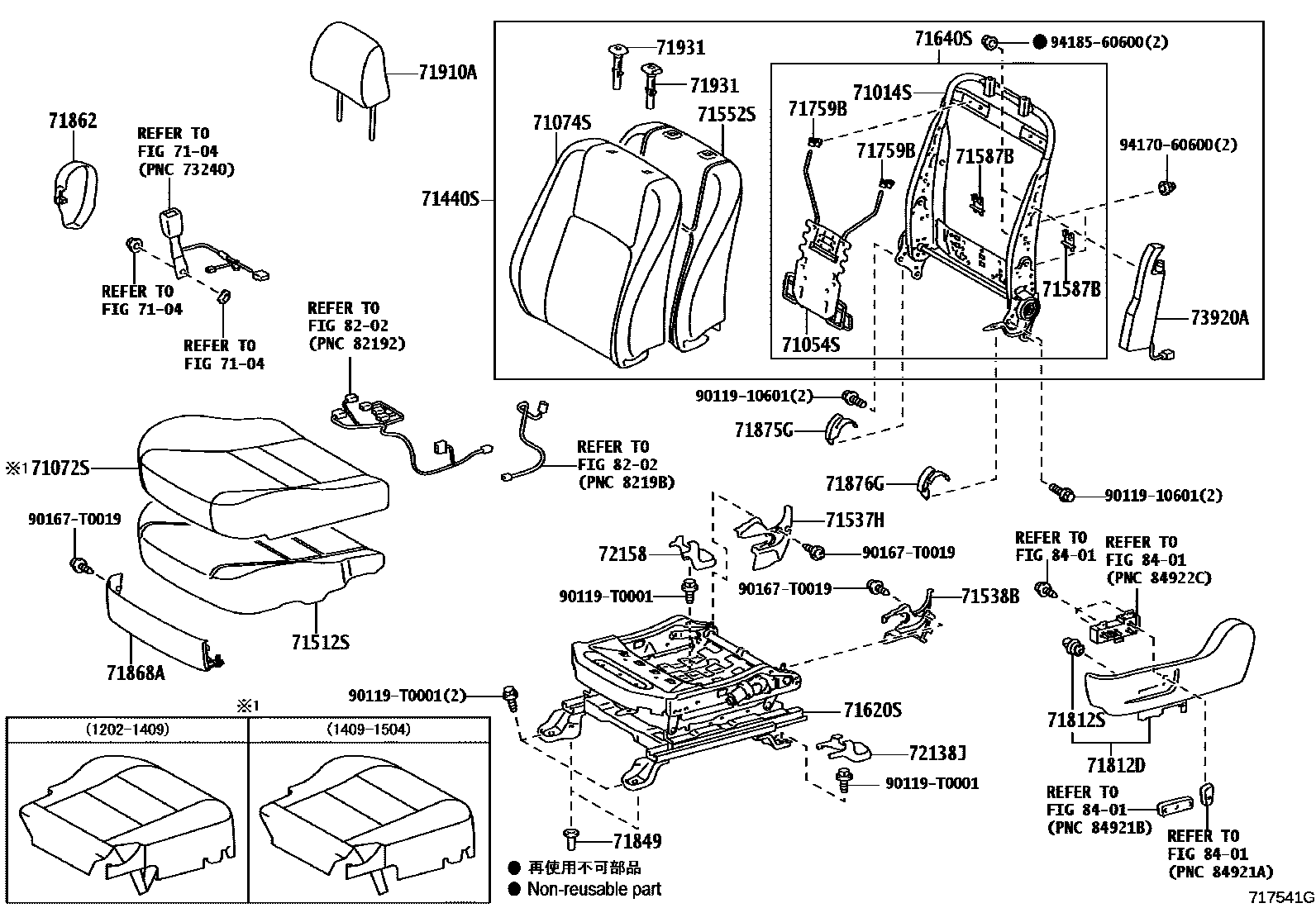

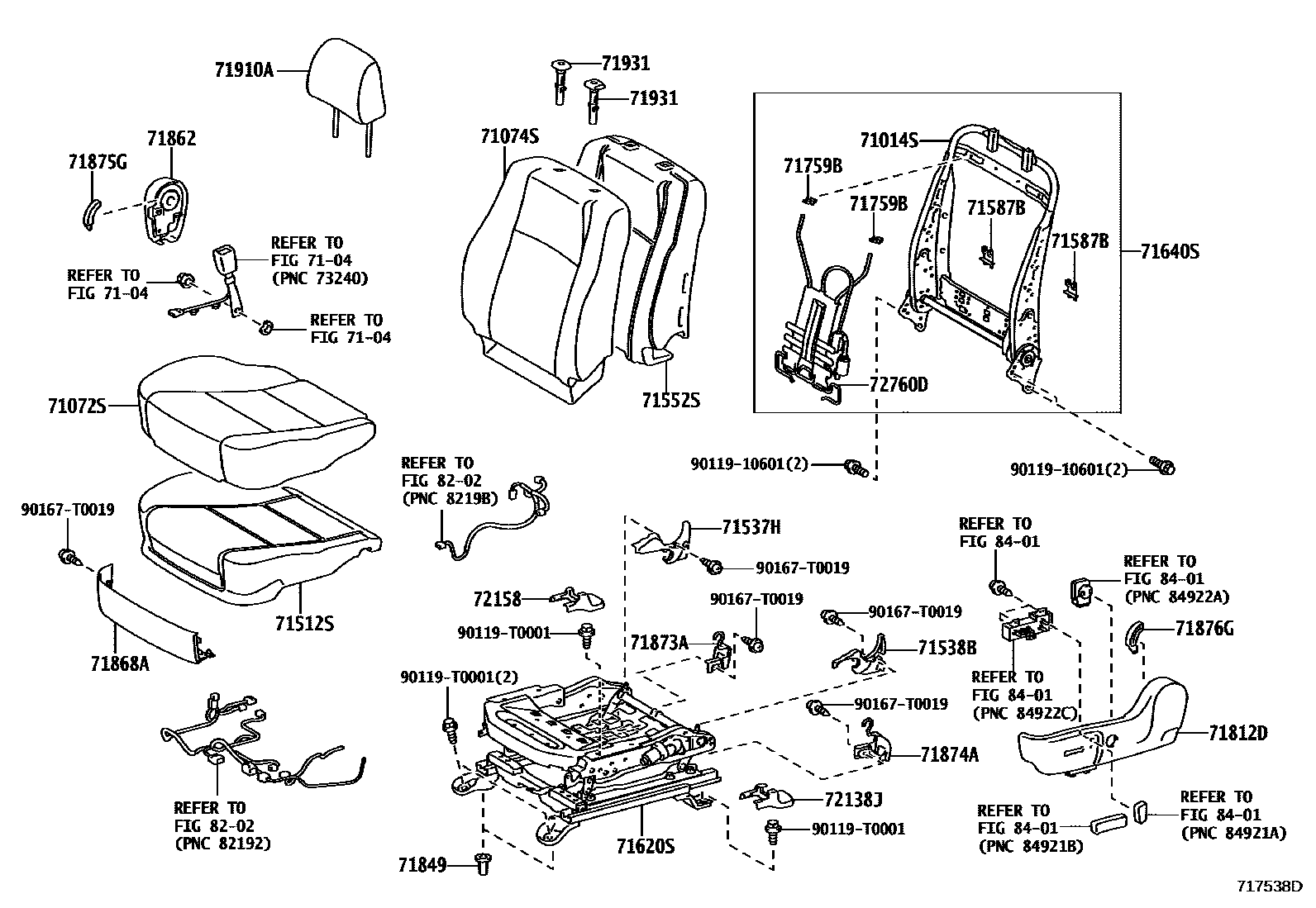

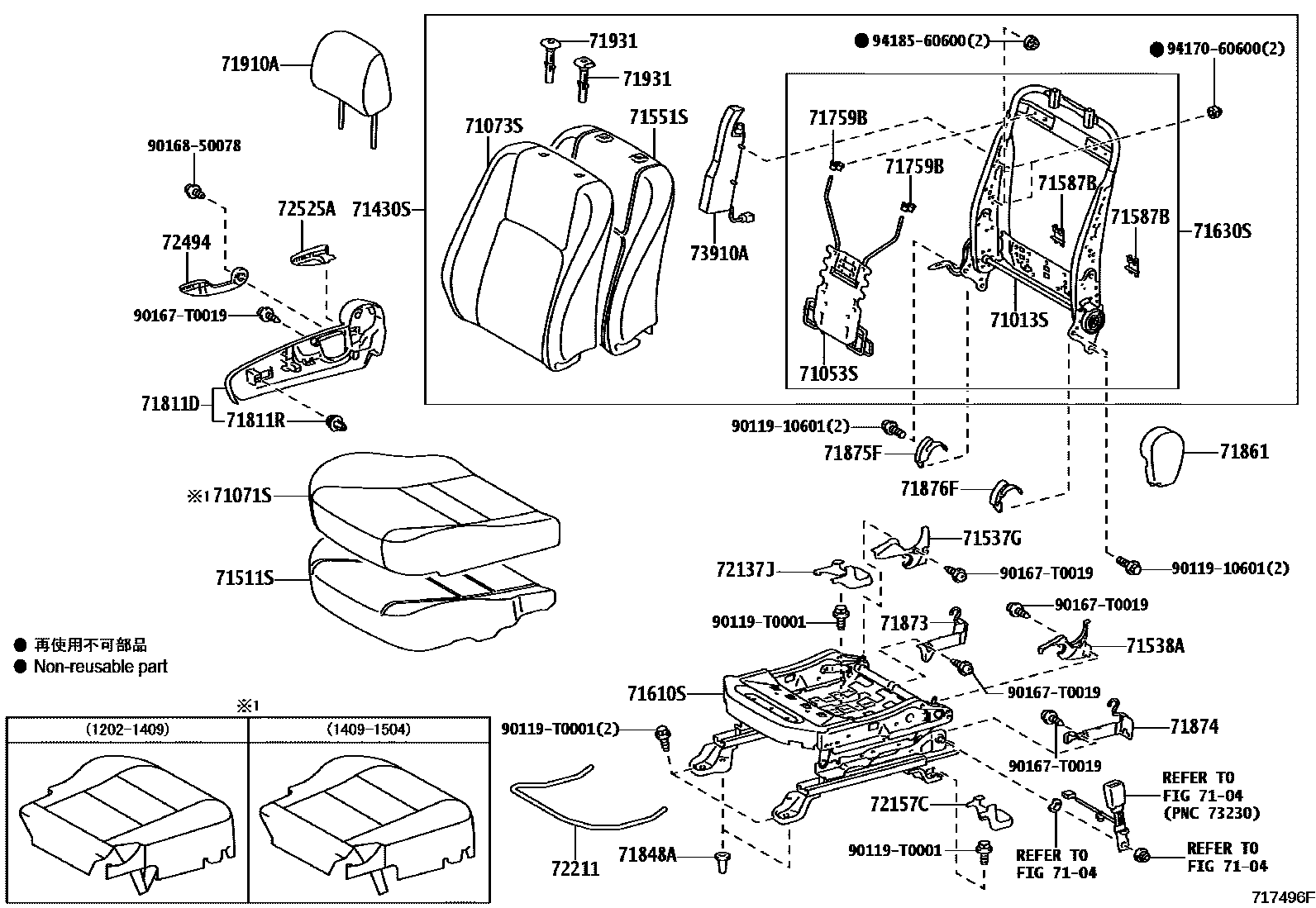

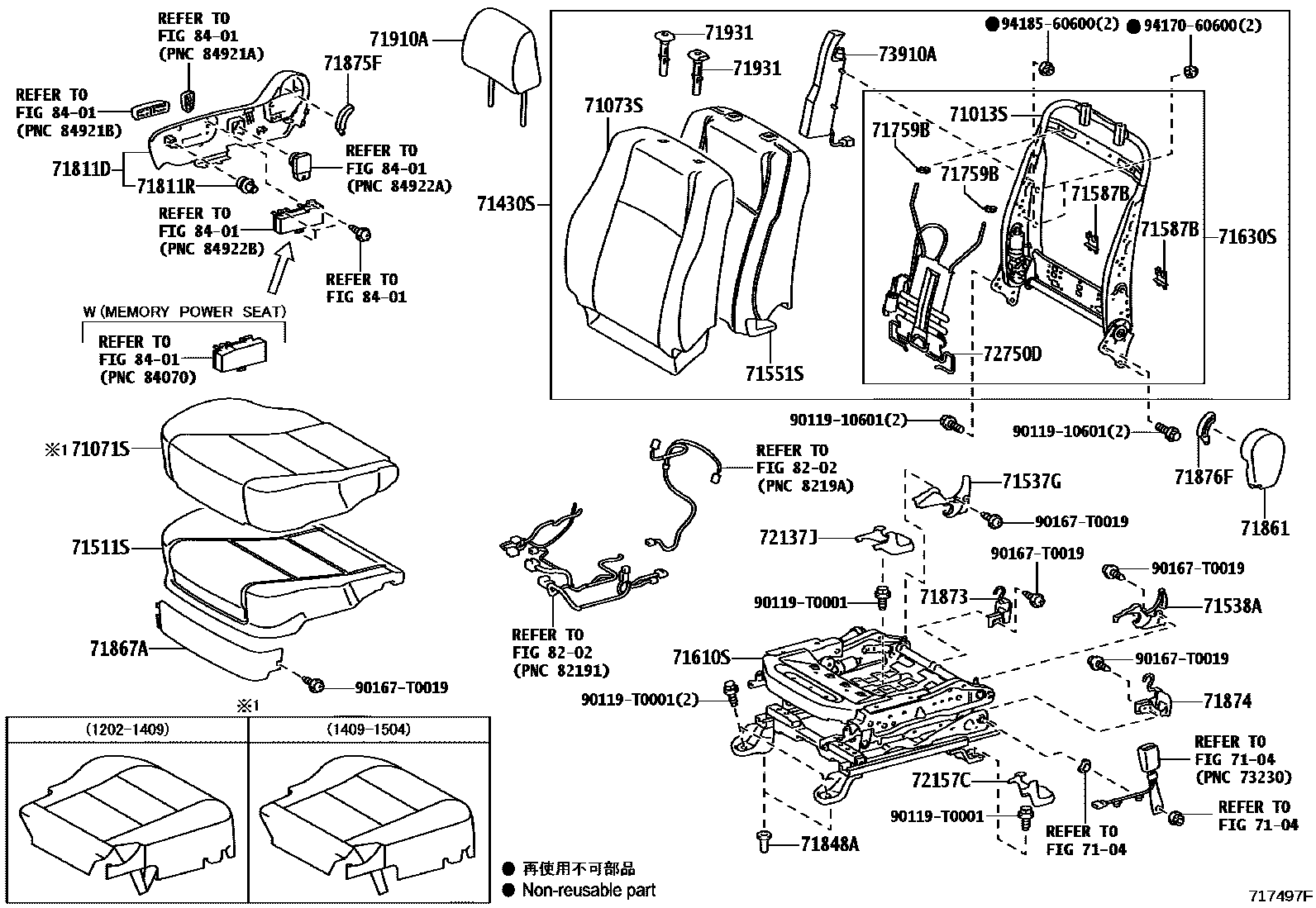

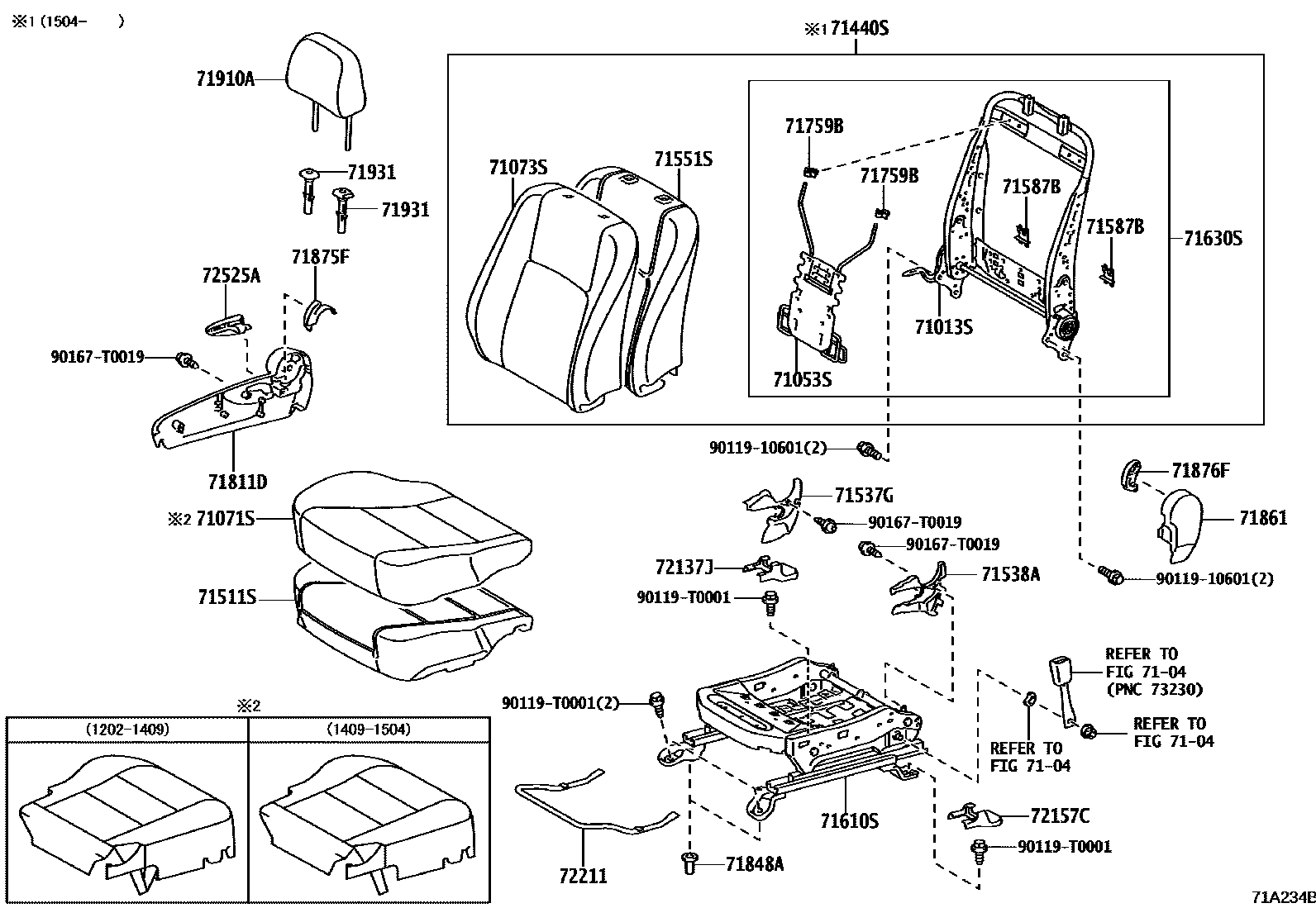

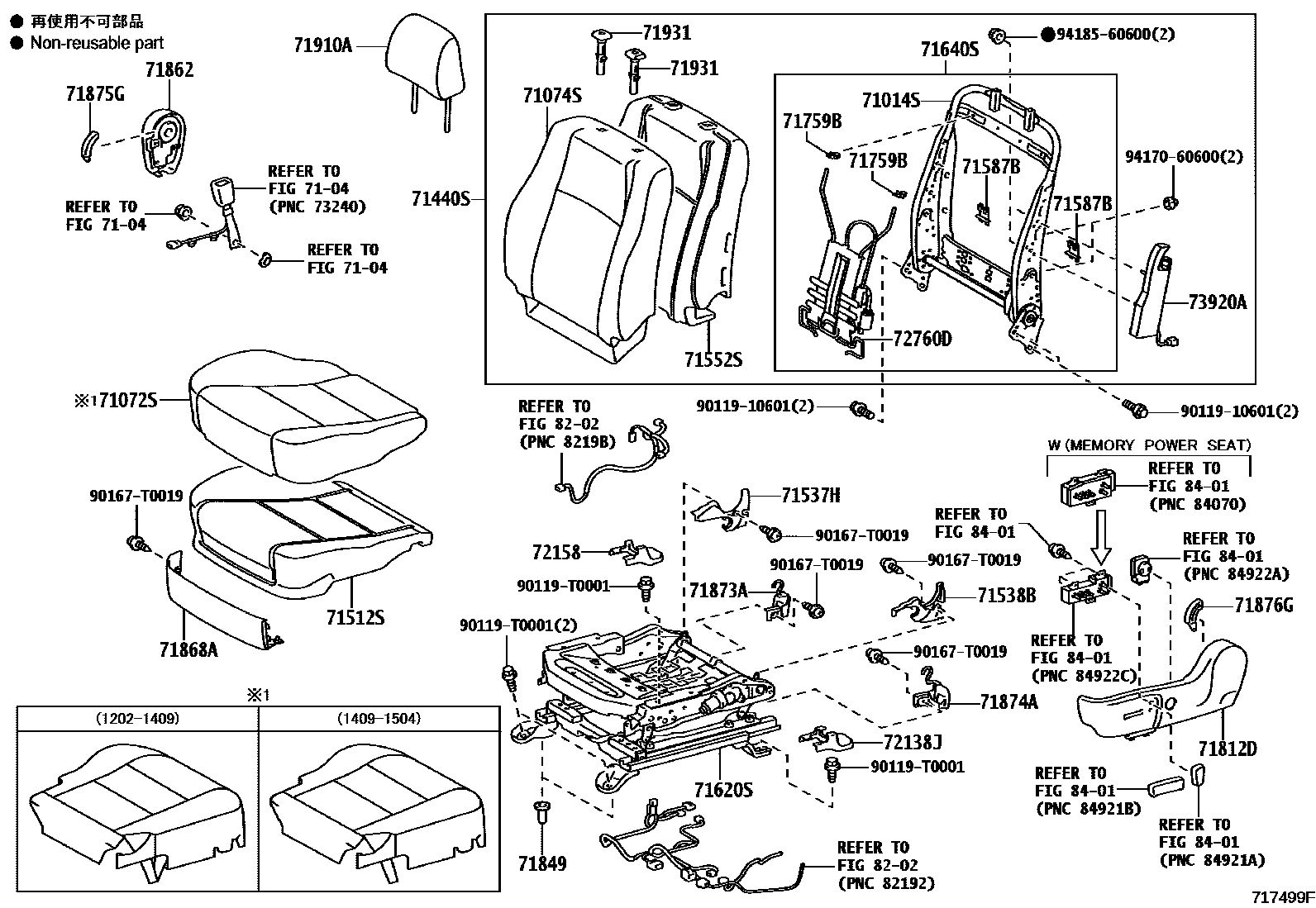

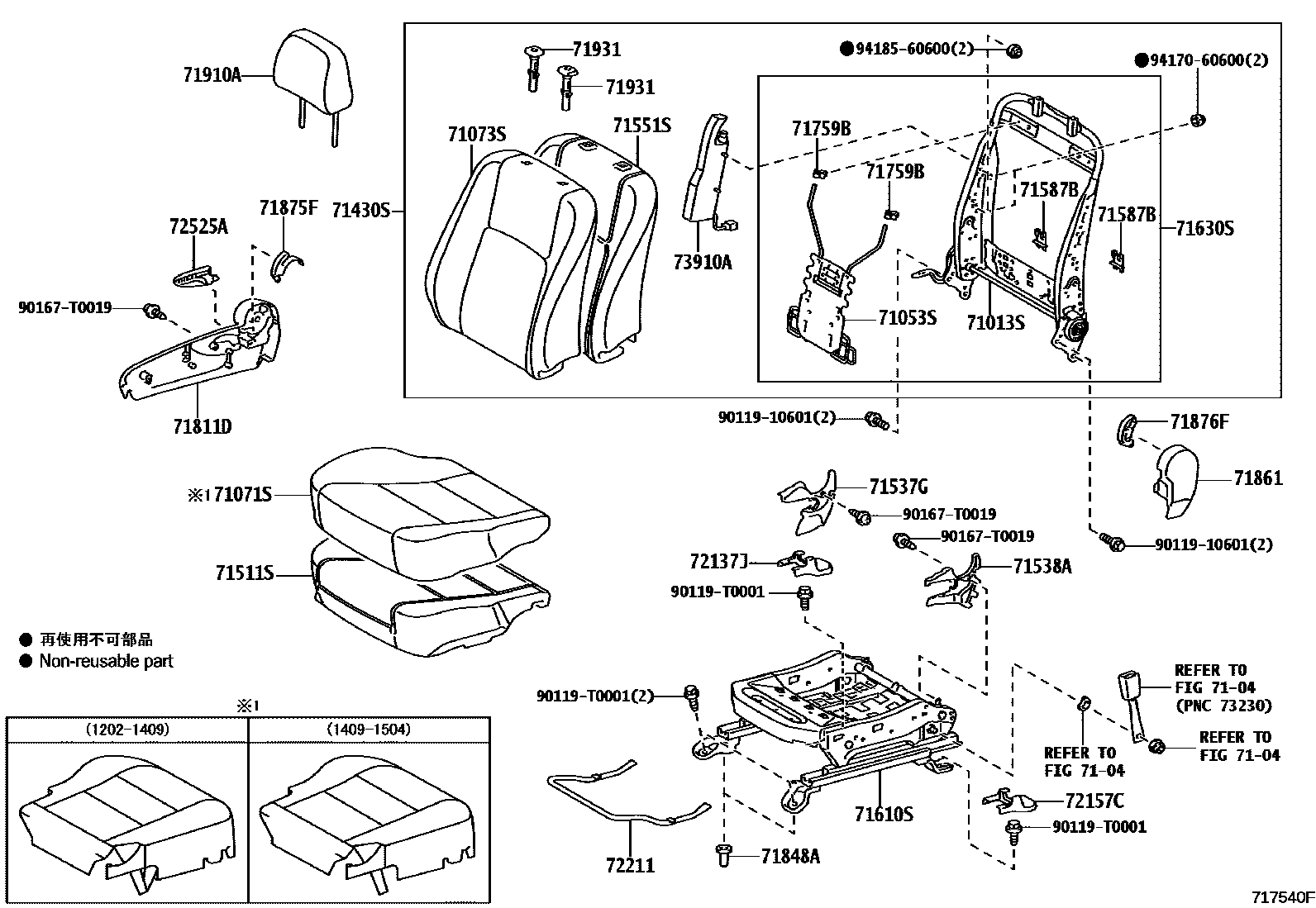

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 10 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06140 · 71013-06150 · 71013-06161 · 71013-06180 · 71013-06390 · 71013-06410 |
| 71014S | Front left seat back frame sub-assembly | 71014-06050 · 71014-06061 · 71014-06070 · 71014-06080 · 71014-06310 · 71014-06360 |
| 71053S | Front right seat back spring sub-assembly | 71053-06070 |
| 71054S | Front left seat back spring sub-assembly | 71053-06070 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06300 · 71501-06310 · 71501-06320 · 71501-06330 · 71511-06480 · 71511-06490 · 71511-06491 · 71511-06500 · 71511-06510 · 71511-06511 · 71511-06520 · 71511-06521 · 71511-06710 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06160 · 71502-06161 · 71502-06170 · 71502-06171 · 71502-06180 · 71502-06181 · 71502-06220 · 71502-06221 · 71512-06370 · 71512-06371 · 71512-06390 · 71512-06391 · 71512-06410 · 71512-06411 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06370 · 71551-06380 · 71551-06390 · 71551-06400 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06290 · 71552-06300 · 71552-06310 · 71552-06320 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06260 · 71610-06261 · 71610-06270 · 71610-06272 · 71610-06280 · 71610-06281 · 71610-06290 · 71610-06291 · 71610-06300 · 71610-06302 · 71610-06560 · 71610-06561 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06250 · 71620-06251 · 71620-06260 · 71620-06261 · 71620-06270 · 71620-06271 · 71620-06280 · 71620-06281 · 71620-06530 · 71620-06531 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06400 · 71630-06410 · 71630-06421 · 71630-06431 · 71630-06670 · 71630-06680 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06350 · 71640-06361 · 71640-06370 · 71640-06380 · 71640-06391 · 71640-06600 |
| 71759B | Front seat back hook | 71759-47010 · 71759-47011 |
| 71811R | Front seat cushion right guard panel clip | 62217-12050 |
| 71812S | Front seat cushion left guard panel clip | 62217-12050 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-06370 · 71873-06390 |
| 71873A | Front seat cushion lower guard | 71873-06370 · 71873-06390 |
| 71874 | Front left seat cushion lower guard | 71874-06360 · 71874-06370 |
| 71874A | Front left seat cushion lower guard | 71874-06360 · 71874-06370 |
| 72211 | Seat slide adjustment handle | 72211-06060 |
| 72750D | Right lumbar support adjuster assembly | 72750-06040 |
| 72760D | Left lumbar support adjuster assembly | 72760-06070 |
| 73910A | Front right seat airbag assembly | 73910-06090 |
| 73920A | Front left seat airbag assembly | 73920-06100 |
