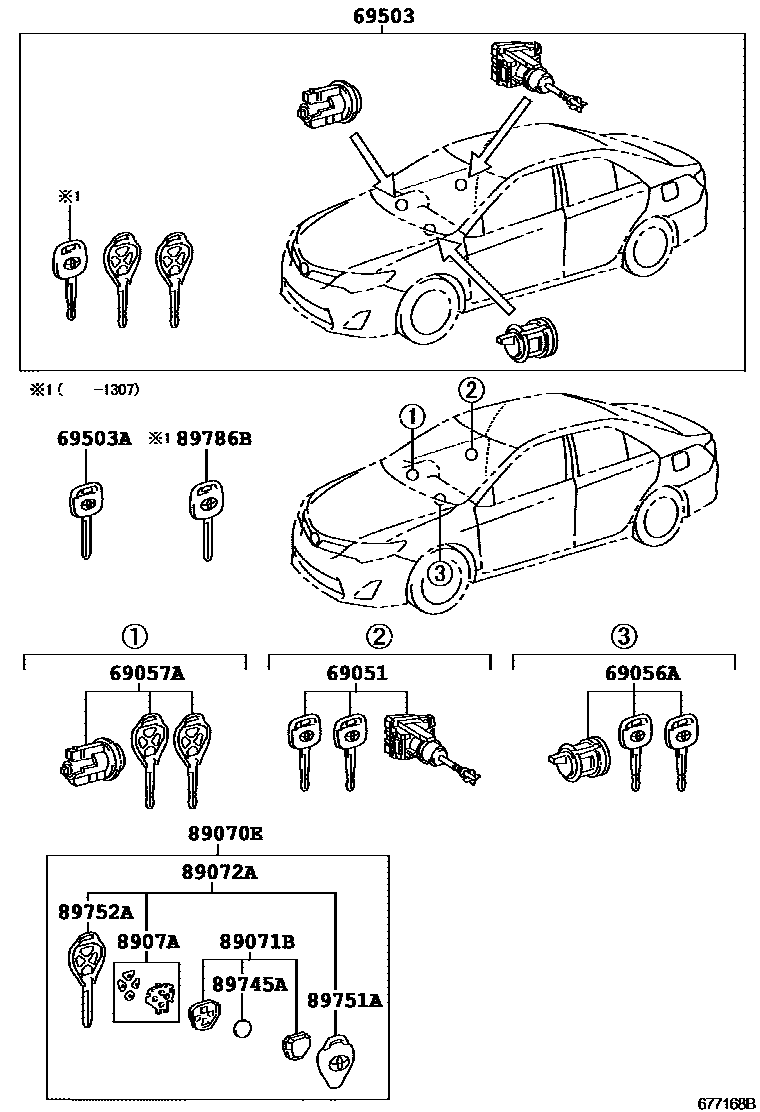

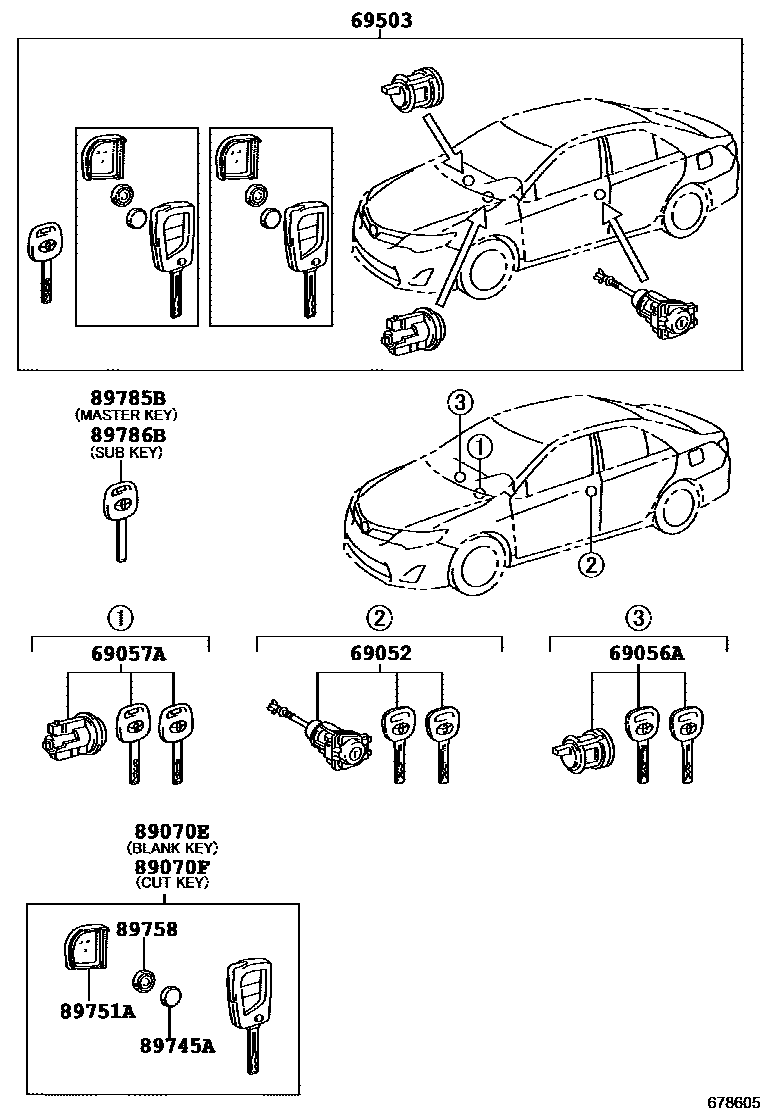

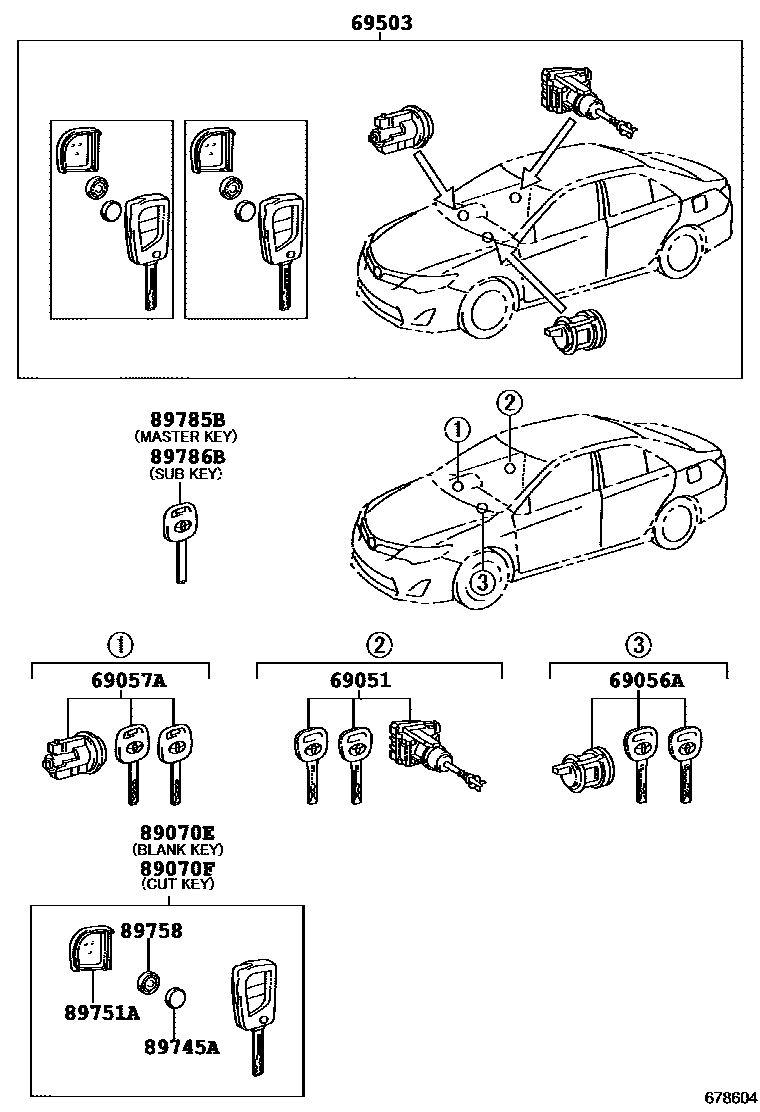

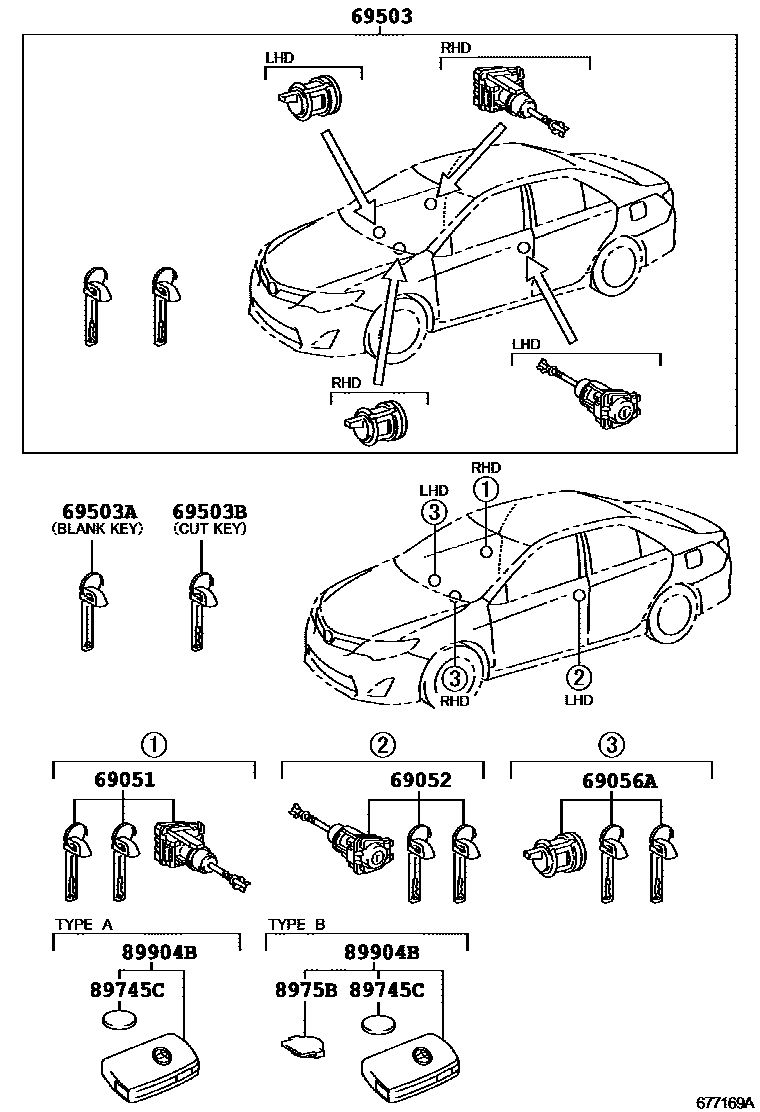

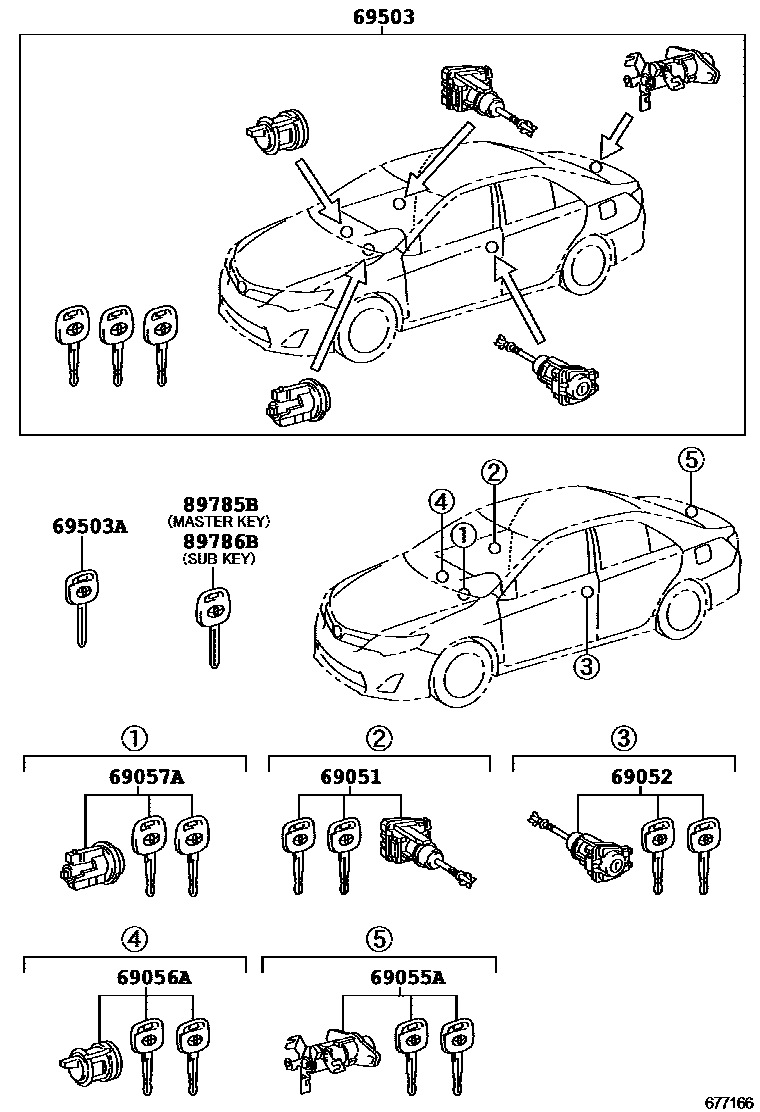

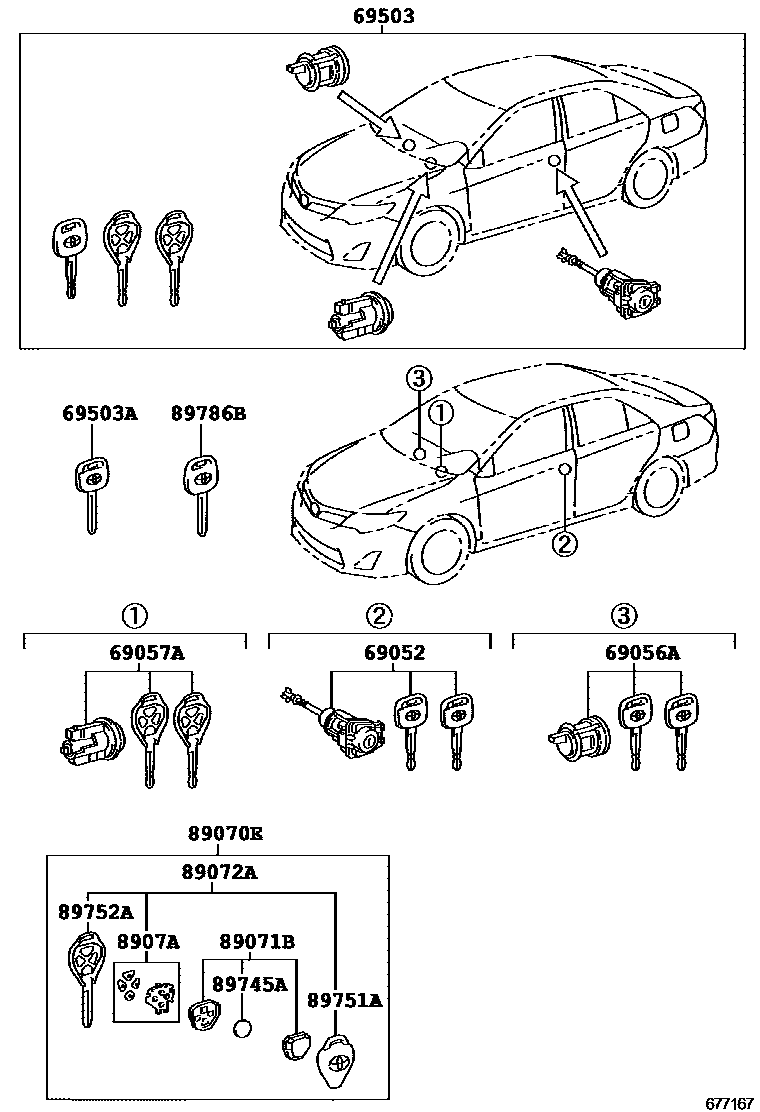

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06051 · 69051-06081 · 69051-06120 · 69051-06130 |
| 69052 | Left door lock cylinder and key assembly | 69052-06061 · 69052-06111 · 69052-06121 · 69052-06140 · 69052-06240 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06150 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06040 · 69056-06100 · 69056-06140 · 69056-06160 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02361 · 69057-02580 · 69057-06190 |
| 69503 | Door lock cylinder components | 69005-06471 · 69005-06521 · 69005-06531 · 69005-06532 · 69005-06541 · 69005-06631 · 69005-06730 · 69005-06740 · 89704-06580 · 89704-06590 |
| 69503A | external tooth key | 69515-06030 · 69515-33100 · 90999-00251 |
| 69503B | internal tooth key | 69515-06020 · 69515-33090 |
| 89070E | Remote key assembly | 89070-06460 · 89070-06480 · 89070-06700 |
| 89070F | Remote key assembly (internal tooth key) | 89070-06720 · 89070-06730 |
| 89071B | Remote key sub-assembly module assembly | 89071-33410 · 89071-33480 |
| 89072A | Remote key shell assembly | 89072-06150 · 89072-06250 |
| 8907A | Transmitter switch assembly | 8907A-33010 · 8907A-33050 |
| 89745A | Transmitter battery | 89745-0D040 · 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-02180 · 89751-06100 · 89751-0K080 · 89751-52140 · 89751-60081 |
| 89752A | transmitter housing | 89752-02310 |
| 89758 | Remote key seal | 89758-02010 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-02350 · 89785-02460 · 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-06150 · 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33400 · 89904-33450 · 89904-33460 · 89904-33520 · 89904-33521 |
