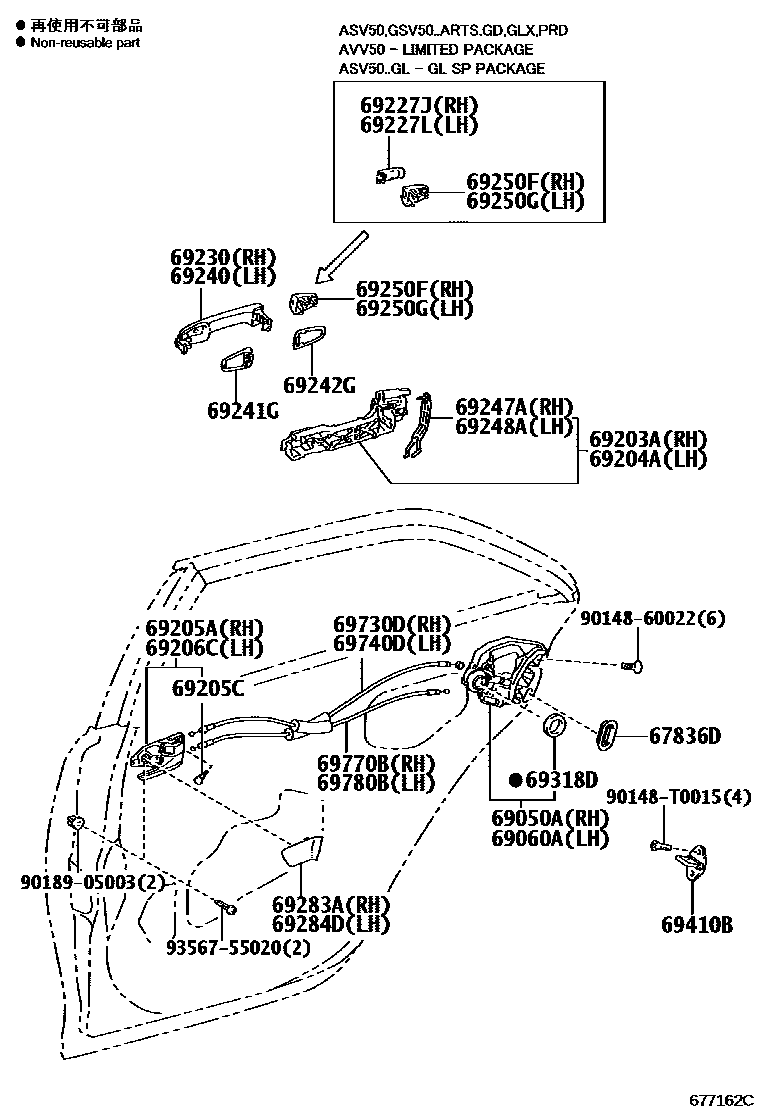

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-12040 · 67836-33030 |
| 69050A | Right rear door lock assembly with motor | 69050-06090 |
| 69060A | Left rear door lock assembly with motor | 69060-06090 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06081 · 69203-06120 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06081 · 69204-06120 |
| 69205C | Cushion pad (for rear door inner handle) | 90089-54015 |
| 69227J | Right rear door outer handle cover | 69218-06060 |
| 69227L | Left rear door outer handle cover | 69218-06060 |
| 69230 | Right rear door outer handle assembly | 69210-06936 · 69211-06910 |
| 69240 | Left rear door outer handle assembly | 69210-06936 · 69211-06910 |
| 69241G | Rear door front exterior handle pad | 69241-33030 · 69241-52020 |
| 69242G | Rear door rear outer handle pad | 69242-33040 · 69242-52030 |
| 69247A | Right rear door outer handle separation panel | 69247-06081 · 69247-06120 |
| 69248A | Left rear door outer handle separation panel | 69248-06081 · 69248-06120 |
| 69250F | Right rear door outer handle cover assembly | 69227-06908 · 69250-06901 |
| 69250G | Left rear door outer handle cover assembly | 69227-06908 · 69250-06901 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-02040 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06100 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06100 |
| 69770B | Right rear door inner lock cable assembly | 69770-06090 |
| 69780B | Left rear door inner lock cable assembly | 69770-06090 |
