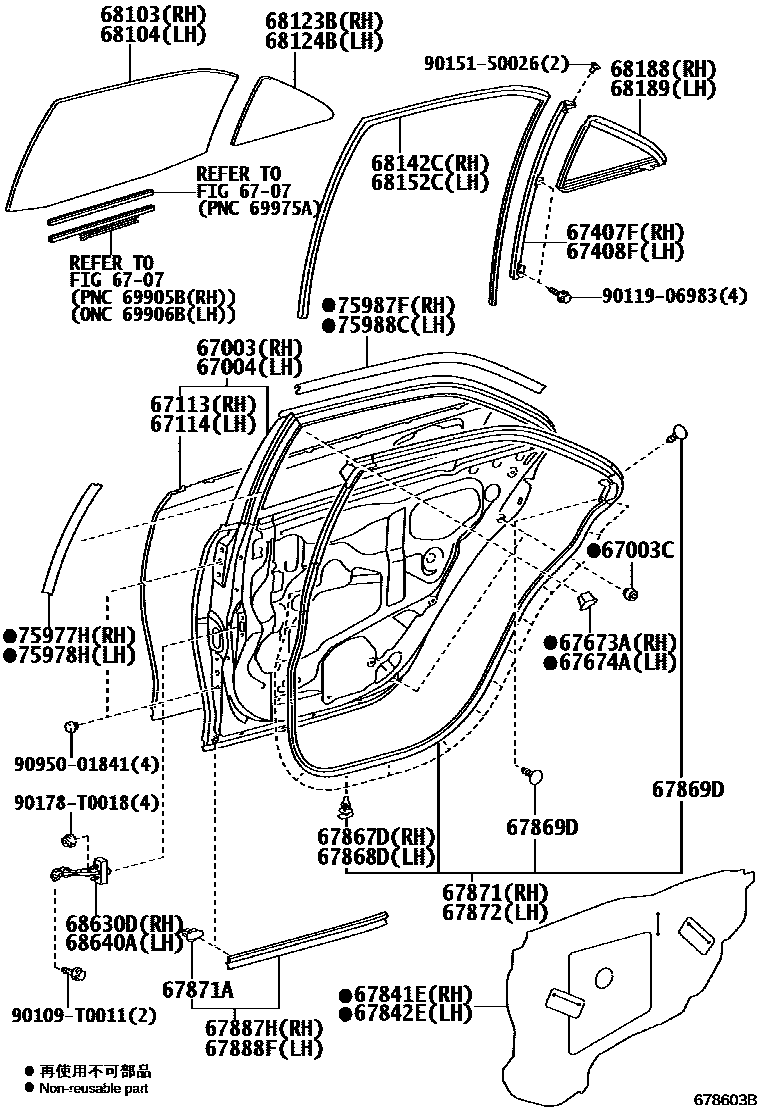

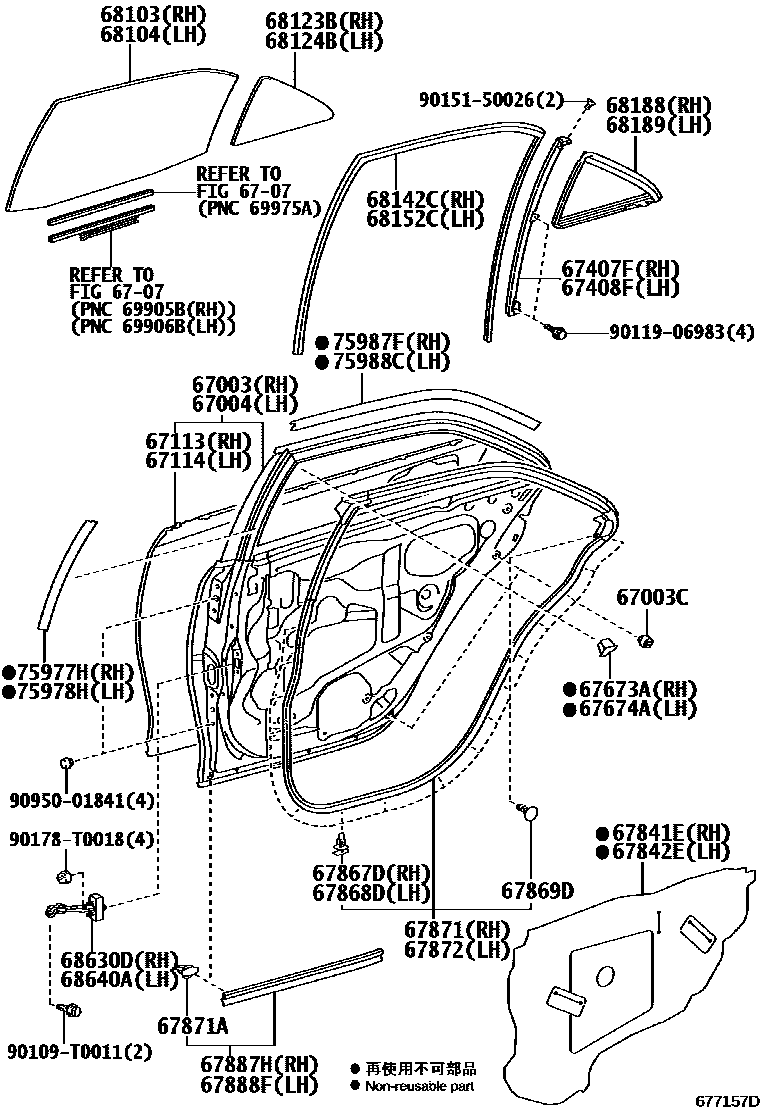

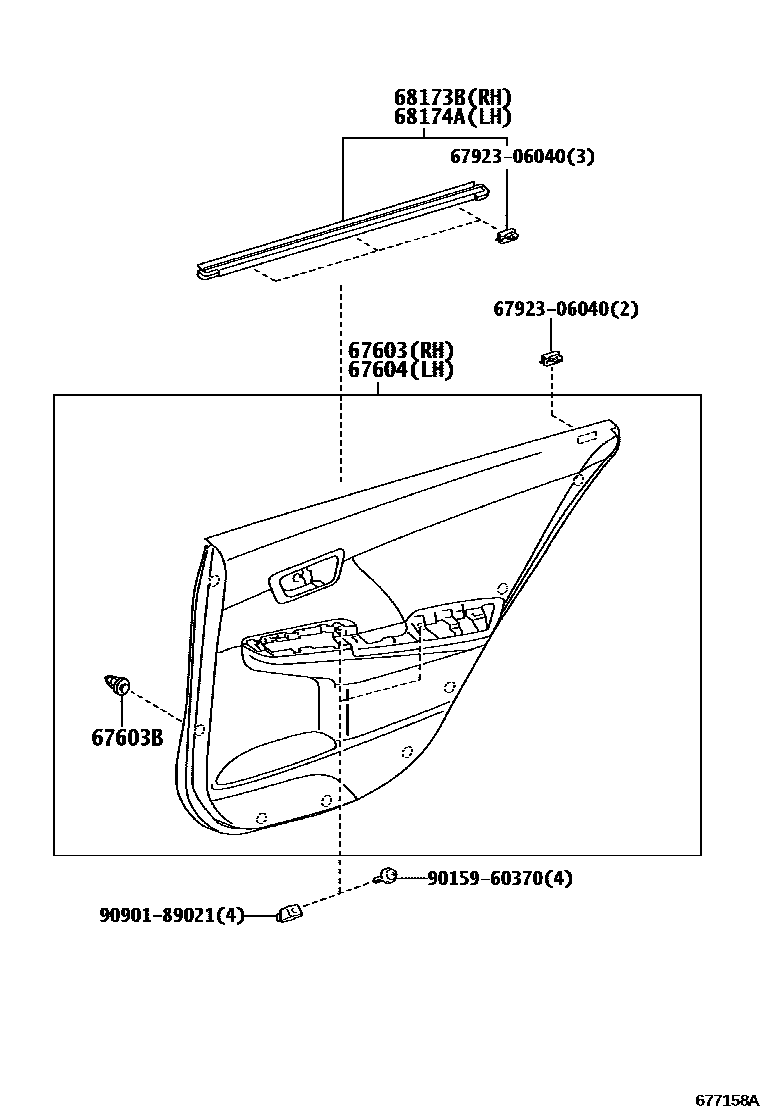

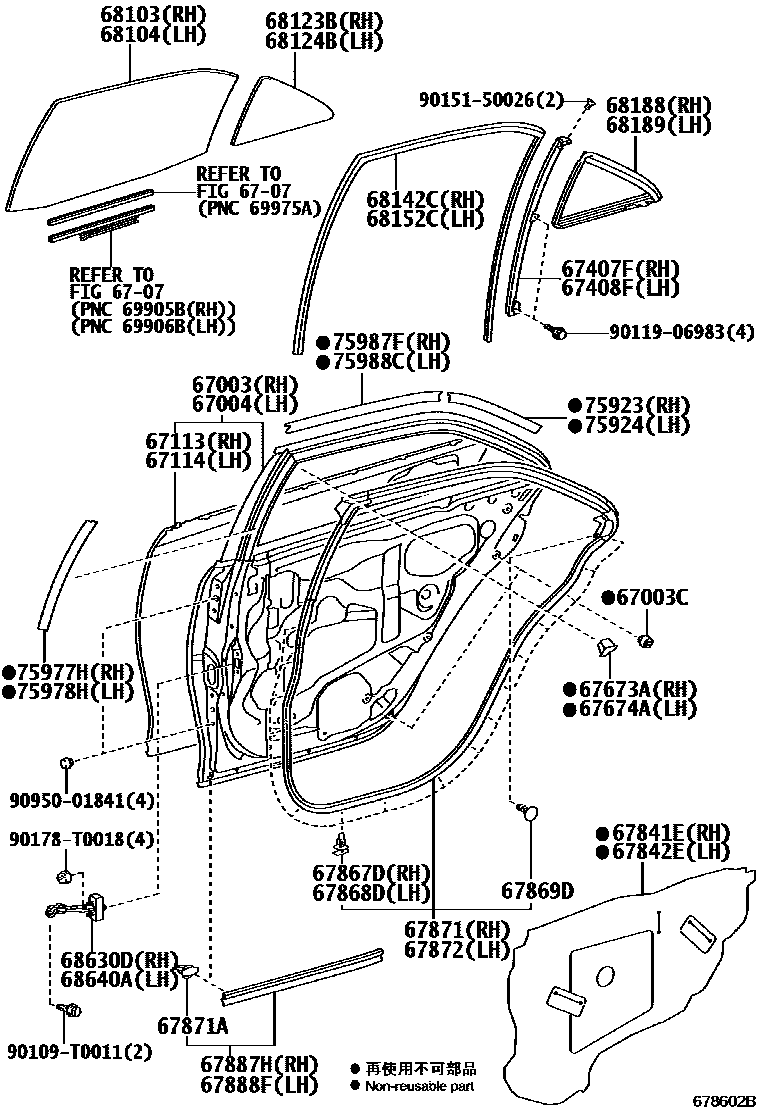

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-06160 · 67003-06210 · 67003-06280 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-06160 · 67004-06230 · 67004-06270 |
| 67113 | Right rear door outer panel | 67113-06110 · 67113-06150 · 67113-06160 |
| 67114 | Left rear door outer panel | 67114-06110 · 67114-06150 · 67114-06160 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-06110 · 67407-33100 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-06110 · 67408-33100 |
| 67603B | Catch (for rear door trim panel) | 67773-0E020 |
| 67673A | Right rear door frame decorative strip | 67673-06080 |
| 67674A | Left rear door frame decorative strip | 67674-06080 |
| 67841E | Right rear door access hole cover | 67841-06200 · 67841-06270 |
| 67842E | Left rear door access hole cover | 67842-06200 · 67842-06270 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67868-30030 |
| 67871 | Right rear door sealing strip | 67871-06100 · 67871-06160 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-06100 · 67872-06160 |
| 67887H | Right rear door seal No. 2 | 67887-06030 |
| 67888F | Left rear door seal No. 2 | 67888-06020 |
| 68103 | Right rear door glass sub-assembly | 68113-06180 · 68113-06270 |
| 68104 | Left rear door glass sub-assembly | 68114-06180 · 68114-06270 |
| 68123B | Right rear door corner window glass | 68123-06140 · 68123-06230 |
| 68124B | Left rear door corner window glass | 68124-06140 · 68124-06230 |
| 68142C | Right rear door glass lift slot | 68142-06090 · 68142-06091 · 68142-06150 |
| 68152C | Left rear door glass lift slot | 68152-06090 · 68152-06091 · 68152-06150 |
| 68173B | Right rear door glass inner sealing strip | 68173-06091 · 68173-06150 |
| 68174A | Left rear door glass inner sealing strip | 68174-06091 · 68174-06150 |
| 68188 | Right rear door corner window seal | 68188-06080 · 68188-06140 |
| 68189 | Left rear door corner window seal | 68189-06080 · 68189-06140 |
| 68630D | Right rear door opening limiter assembly | 68630-06091 |
| 68640A | Left rear door opening limiter assembly | 68630-06091 |
| 75923 | No. 2 right side light-shielding film | 75923-06020 |
| 75924 | No. 2 left shading film | 75924-06020 |
| 75977H | Right rear door outer lower trim strip | 75977-06060 |
| 75978H | Left rear door outer lower trim strip | 75978-06060 |
| 75987F | Right rear door outer trim | 75987-06070 · 75987-06150 |
| 75988C | Left rear door outer trim | 75988-06070 · 75988-06150 |
